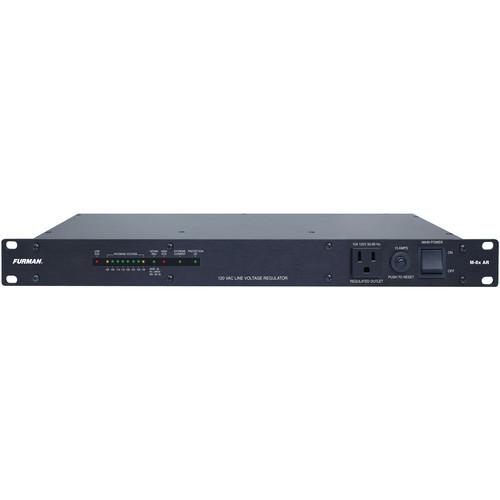

User Manual for Furman M-8x AR Voltage Regulator Click to enlarge the picture
Contents of the user manual for the Furman M-8x AR Voltage Regulator
- Product category: Power Distributors & Conditioners Furman
- Brand: Furman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Furman Power Distributors & Conditioners
|
User manual for the Furman M-8x AR Voltage Regulator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Furman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Furman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Furman product will considerably shorten its lifespan!
|
Product description The M-8x AR Voltage Regulator from Furman is intended to protect your sensitive electronic equipment from problems caused by AC line voltage irregularities such as brownouts, sags, and over-voltage conditions. Such irregularities can cause audio tonal changes, digital equipment malfunctions such as loss of MIDI programs or other data, or in extreme cases, permanent damage. The M-8x AR can be used in a variety of pro audio and A/V applications common in studio recording, live sound reinforcement and other scenarios. - Features at a Glance
-
- Provides nine total regulated, conditioned AC outlets with eight on the rear panel and one on the front
- Input capacity is 15 A; output capacity is 12 to 15 A
- Extreme over-voltage (instant) shutdown and under-voltage (delayed) shutdown, safeguard connected equipment
- Extreme Voltage Shutdown (EVS) indicator LED
- Extreme over-current shutdown protects regulator and connected equipment
- Extreme Current Shutdown (ECS) indicator LED
- Tri-color "In-Regulation" indicator
- Protection OK indicator
- Eight element, 2-color bar graph meter to indicate input line voltage
- User accessible thermal circuit breaker protects against overload
- Low noise toroidal autotransformer with very low stray magnetic field leakage
- Front Panel ON/OFF switch
- Compact, lightweight unit weighs 15.75 lb (7.15 kg)
UPC: 654061041146 In the Box Furman M-8x AR Voltage Regulator Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Furman M-8x AR Voltage Regulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFurman M-8x AR Specs | Nominal Input Voltage | 120 VAC 50/60 Hz | | Regulation capture range: | 97 VAC to 141 VAC | | Output Voltage | 120 VAC ±5 V | | Output Current | 15 Amps for input voltages of 124 V | | Output Current | 113 mA per volt to a minimum of 12.3A at 100 V (de-rating) | | Voltage Shutdown Range | Less than 75 V or greater than 145 V | | ECS Shutdown Range | Within 10 cycles at 100 A, and within 1 cycle for currents greater than 200 A | | Accuracy | ±5 VAC (voltmeter) | | Protection Modes | L-N | | Spike Clamping Voltage | TVSS rating of 400 volts peak at 500 A, L-N (tested to UL-1449 3rd Ed.) | | Response Time | 1 nanosecond | | Maximum Surge Current | 15,000 Amps | | Maximum spike energy | 225 joules | | Noise Attenuation | Transverse: -16dB @ 10KHz, -33dB @ 100 kHz, -48 dB @ 400 KHz | | Safety | cCSAus | | EMI | FCC Part 15 Class B | | Dimensions | 1.75 x 19.00 x 11.00" (4.45 x 48.30 x 28.00 cm) | | Weight | 15.75 lb (7.15 kg) | | | | Package Weight | 17.6 lb | | Box Dimensions (LxWxH) | 22.0 x 14.0 x 4.0" |
