User Manual for Furman M4000-PRO 15A BlueBOLT Power Conditioner Click to enlarge the picture
Contents of the user manual for the Furman M4000-PRO 15A BlueBOLT Power Conditioner
- Product category: Power Distributors & Conditioners Furman
- Brand: Furman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Furman Power Distributors & Conditioners
 |
User manual for the Furman M4000-PRO 15A BlueBOLT Power Conditioner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Furman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Furman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Furman product will considerably shorten its lifespan!
|

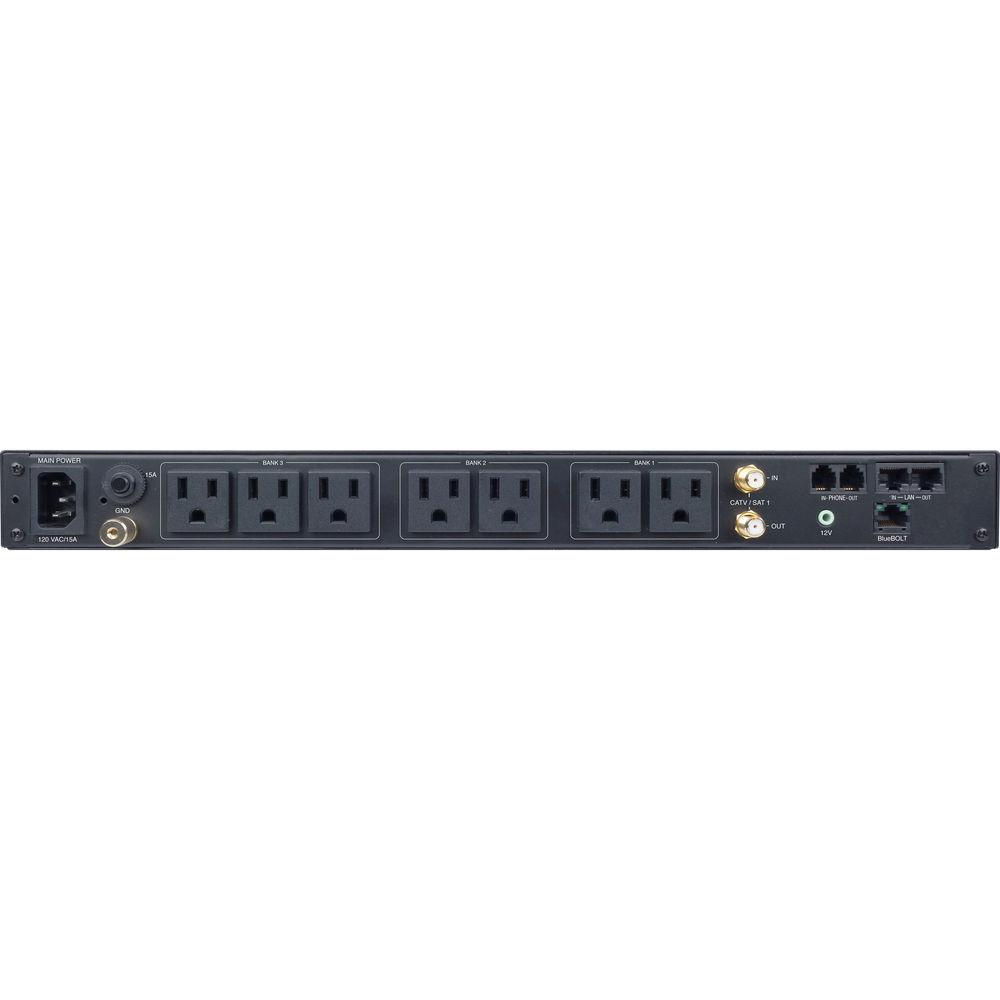

Product description The M4000-PRO 15A BlueBOLT Power Conditioner from Furman is designed to protect your connected equipment from power surges and dangerous voltage connections. It is compatible with most moderate and advanced home entertainment systems. The conditioner filters your AC power for maximum electronic performance and provides remote power, energy, and network management from any web enabled device. The M4000-PRO reduces equipment issues as well as excess energy consumption with scheduled on/off commands. There is Protect-or-Disconnect protection for safeguarding your equipment from harmful surges, and visibility on energy usage with cloud-based monitoring and tracking. The conditioner automatically reboots network equipment when connectivity is lost, and features AVM protection against brownouts and dangerous overvoltage conditions. - Eight protected and filtered power outlets
- Exclusive automatic voltage monitoring
- Protect-or-Disconnect technology
- Entry level BlueBOLT component
- Linear level 3 noise filtration
- Antenna, cable, or satellite and LAN signal protection
UPC: 050616009966 In the Box Furman M4000-PRO 15A BlueBOLT Power Conditioner Rack Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Furman M4000-PRO 15A BlueBOLT Power Conditioner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFurman M4000-PRO Specs | | | Under-Voltage Shutoff | 95 VAC ± 2 VAC | | Voltage Protection Rating | UL 1449: 330 V L-N, 400 V L-G, 400 V N-G | | Nominal Discharge Current | UL 1449: 3000 A | | Over-Voltage Shutoff | 134 VAC ± 2 VAC | | Operating Voltage | 120 VAC / 60 Hz | | Initial Clamping Level | 200 VAC | | Energy Dissipation | 1575 Joules (8/20 µs) | | Filtration | -18 / 7 dB @ 10 kHz
EMI / RFI Noise Filtration: -50.5 dB @ 100 kHz
-43.9 dB @ 1 MHz | | Maximum Current Capacity | 15 A | | Dimensions | 17.0 x 1.8 x 13.0" / 43.2 x 4.6 x 33.0 cm
With rack ears: 19.0 x 1.8 x 13.0" / 48.3 x 4.6 x 33.0 cm | | Weight | 10.6 lb / 4.8 kg | | | | Suppression Modes | Metallic, longitudinal | | Connectors | RJ-11 | | Clamping Level | 260 V | | | | Wires Protected | 8 | | Jacks | RJ-45 CAT 5e | | Compatibility | 10 / 100 BASE-T | | Clamping Level | 52 V | | | | Insertion Loss | < 0.5 dB | | Frequency Range | 0 MHz to 2.2 GHz | | Connections | Female F, gold plated | | Clamping Level | 75 V | | | | Box Dimensions (LxWxH) | 19.6 x 14.35 x 4.7" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 00 owners. Add your rating and experience with the product.
