User Manual for Furman M4315-PRO Power Management with Control System Click to enlarge the picture
Contents of the user manual for the Furman M4315-PRO Power Management with Control
- Product category: Power Distributors & Conditioners Furman
- Brand: Furman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Furman Power Distributors & Conditioners
 |
User manual for the Furman M4315-PRO Power Management with Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Furman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Furman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Furman product will considerably shorten its lifespan!
|

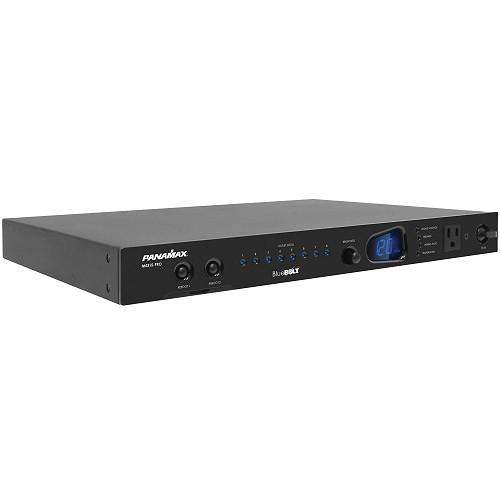

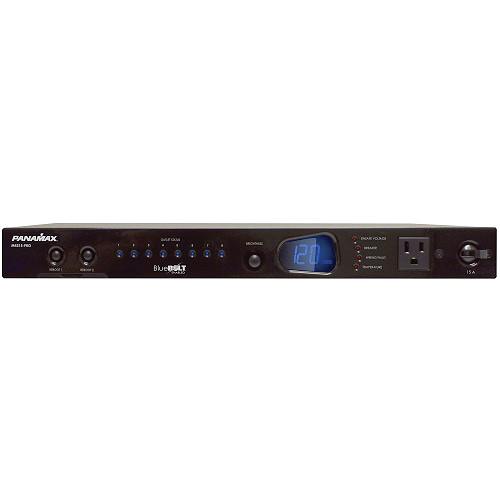

Product description The M4315-PRO Power Management with Control System from Panamax is a rack-mountable, power management system that features Panamax's AVM (Automatic Voltage Monitoring) circuit and Linear Filtering Technology (LiFT) to provide AC protection and purification. The included BlueBOLT-CV1 provides secure, hosted IP system control and monitoring for the M4315-PRO. - Eight fully controllable/programmable outlets via BlueBOLT-CV1 or RS-232C cards
- Linear Filtration with four isolated outlet banks
- Two front panel programmable reboot buttons
- IP control with BlueBOLT-CV1 and RS-232C cards
- Volt/amp meter, outlet status, and warning LEDs
- Removable rack ears with a full depth metal chassis
- Circuit breaker/power switch
UPC: 050616008594 In the Box Furman M4315-PRO Power Management with Control System BlueBOLT-CV1 Card RS232 Card Removable Rack Ears 10' Detachable Power Cord 4 x Silicone Feet Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Furman M4315-PRO Power Management with Control System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFurman M4315-PRO Specs | | | Line Voltage | 120 V, 60 Hz | | Isolated Filter Banks | 2 | | Voltage Regulation | No | | Outlets | Total: 9
High Current: 2 | | Max Total Current | 15 A, 1800 W | | Voltage Protection Rating | UL 1449 3rd Edition (3,000 A): 500 V | | Protection Modes | L-N, L-G, N-G | | Clamping Characteristics | Initial Clamping Level: 200 V Peak, 141 V RMS | | Maximum Energy Dissipation | 2700 J | | Peak Impulse Current | 135,000 amps | | Circuit | Catastrophic Surge Circuit: Yes | | Safe Thermal Fusing | Yes | | Auto Reset | Auto-resetting Over-voltage shutoff: 134 VAC ± 2 VAC Auto-resetting Under-voltage shutoff: 100 VAC ± 2 VAC | | EMI / RFI Noise Filtration: | Banks 1, 2, 3: 76 dB, 5-250 kHz
Bank 4 and High Current Outlets: 46 dB, 250 kHz-1 Mhz | | | | LAN | Clamping Level: 60 ± 5 V
Compatibility: 10/100/1000 BASE-T
Jacks: RJ-45
Wires Protected: 8 wires | | Telco | Fuse-less/Auto-resetting: Yes
Clamping Level: 260 V
Capacitance: Approx. 30 pf
Suppression Modes: metallic and longitudinal
Connectors: RJ-11
Lines Protected: 2-wire, pins 4 & 5 | | COAX | HD 1080 i/p Ready: Yes
Bidirectional: Yes
Shielded: Yes
Clamping Level: 75 V
Frequency Range: 0 MHz-2.2 GHz
Insertion Loss: < 0.5 dB
Connectors: Female "F", gold plated | | | | Dimensions | Overall: 12.25 x 17 x 1.75" (31.11 x 43.18 x 4.44 cm)
With Rack Ears: 12.25 x 19 x 1.75" (31.11 x 48.26 x 4.44 cm) | | Weight | 12 lb (5.44 kg) | | | | Package Weight | 16.8 lb | | Box Dimensions (LxWxH) | 21.5 x 20.0 x 4.5" |
