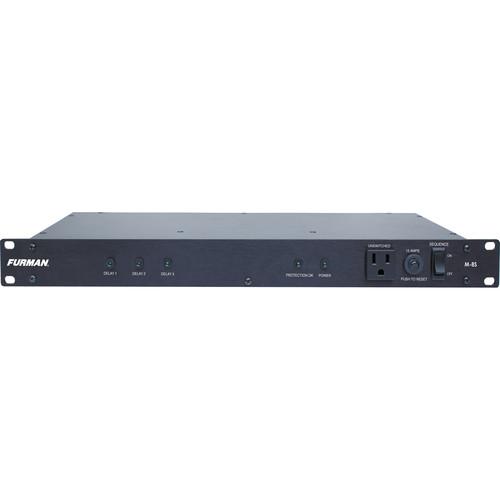

User Manual for Furman Merit M-8S Power Sequencer Click to enlarge the picture
Contents of the user manual for the Furman Merit M-8S Power Sequencer
- Product category: Power Distributors & Conditioners Furman
- Brand: Furman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Furman Power Distributors & Conditioners
|
User manual for the Furman Merit M-8S Power Sequencer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Furman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Furman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Furman product will considerably shorten its lifespan!
|
Product description The Merit M-8S from Furman is an AC power sequencing solution for your rack mount system. Install an M-8S in your rack, and the eight outlets in the rear panel will power up in sequence and protect all your equipment up to a 15-amp load. There is also an additional unswitched single outlet on the front of the unit for convenience. - Features:
-
- Standard level AC protection and filtering
- Six configurable delayed rear panel outlets (in 3 groups), two unswitched rear panel outlets, and one front panel unswitched outlet
- Momentary and Maintained sequencing via rear panel terminal block or front panel switch (momentary only)
- All settings and configurations available on rear panel
- 15 amp rating
UPC: 654061041078 In the Box Furman Merit M-8S Power Sequencer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Furman Merit M-8S Power Sequencer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFurman M-8S Specs | Maximum Output Current | 15 amps, 120 VAC (thermal breaker) | | Line Cord | 14 AWGx3, 10 feet, black, fixed, NEMA 5-15P plug | | AC Receptacles | Convenience Outlet (Front Panel): 1 un-switched NEMA 15-5RRear Panel Outlets: 2 un-switched NEMA 5-15R (1 duplex)6 Sequenced Outlets: NEMA 5-15R (3 duplexes, each controlled by separate relay) | | AC Surge Protection | Merit class (sacrificial) | | Protection Modes | Line to neutral, zero ground leakage (spike protection) | | Operating Voltage | 130 V RMS (max continuous) | | Max Clamp Voltage | 500 V peak | | Peak Impulse Current | 12,000 amps | | Energy Rating | 225 joules | | Filtering | Standard level Pi LCR filter (AC) | | Noise Attenuation | > 26 dB, 100 kHz to 1 MHz | | Operating Temperature Range | 5 C (40 F) to 40º C (105º F) | | Humidity Range | < 90% rH (relative humidity) | | Switch | Front panel, sequence (ON, OFF) | | Circuit Breaker | Front panel, push to reset (thermal) | | Front Panel Indicators | Delay 1, delay 2, delay 3, power, protection OK | | Dip Switches | 12V Mode on/off, GND mode on, momentary/maintained (rear panel) | | Potentiometer | Rear panel, time calibration fine tune delay adjust | | Remote Terminal | +5-30 VDC In, 12 VDC (12 mA) outPhoenix type 4-pin connector with screw terminals; +12V, STAT, REM, GND (class 2 wiring) | | Dimensions | 19.00 x 8.75 x 1.75" (482.60 x 222.30 x 44.50 mm) | | Weight | 7.00 lb (3.18 kg) | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 21.5 x 9.0 x 3.5" |
