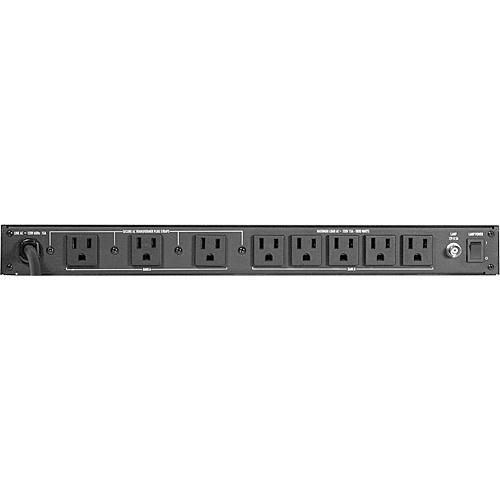

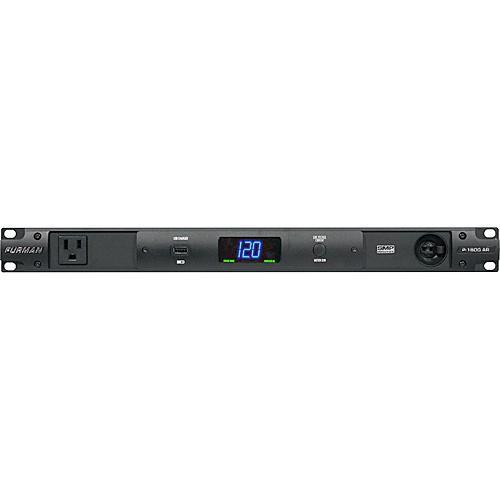

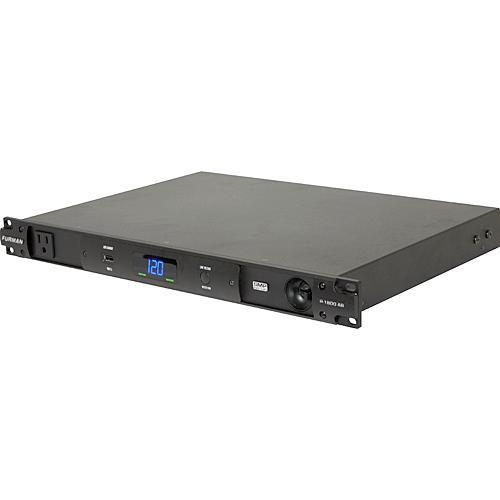

User Manual for Furman P-1800 AR Voltage Regulator Power Conditioner Click to enlarge the picture
Contents of the user manual for the Furman P-1800 AR Voltage Regulator Power
- Product category: Power Distributors & Conditioners Furman
- Brand: Furman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Furman Power Distributors & Conditioners
 |
User manual for the Furman P-1800 AR Voltage Regulator Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Furman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Furman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Furman product will considerably shorten its lifespan!
|
Product description The Furman P-1800 AR delivers a stable 120VAC power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltages - all of which can cause sensitive electronic equipment to malfunction or sustain damage. The P-1800 AR accepts input voltages over a wide AC voltage range and transforms it to a constant output of 120V, ±5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance. Additionally, the P-1800 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Furman's Linear Filtering Technology (LiFT), but it will also be fully protected by our exclusive Series Multi-Stage Protection (SMP), and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protection available. - Surge Protection
- Furman's exclusive SMP technology provides the highest level of surge & spike protection available
- Noise Filtration
- LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity
- Voltage Protection
- Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions
- Diagnostic Lights
- LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised
- True RMS Voltage Regulation
- True RMS Voltage Regulation delivers a stable 120V power to protect equipment from problems caused by AC line voltage irregularities
- USB Charger
- Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp
- Voltmeter / Ammeter
- Large digital voltmeter / ammeter, with discrete dimmer button, displays line votlage and true RMS current draw
- Isolated Banks
- Isolated outlet banks minimize inter-component interference and noise contamination
- Wall Wart Spacing
- Three widely spaced outlets accommodate bulky AC power transformers
- 15A Rating
- 15A rating featuring a high in-rush magnetic circuit breaker for added protection
- Nine Total Outlets
- Nine total outlets (8 rear panel outlets and one front panel convenience outlet)
- BNC Lamp Connector
- Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination
UPC: 654061028130 In the Box Furman P-1800 AR Voltage Regulator/Power Conditioner 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Furman P-1800 AR Voltage Regulator Power Conditioner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFurman P-1800 AR Specs | Input | 15A @ 124V | | Overvoltage Protection | 140VAC Nominal | | Surge Energy Rating | 6,500 Amps | | Dimensions | 19 x 12 x 1.75" (482.6 x 304.8 x 44.45mm) | | Weight | 15 lbs (6.8kg) | | Equipment Protection | Line to neutral, zero ground leakage | | | | Package Weight | 18.89 lb | | Box Dimensions (LxWxH) | 23.0 x 16.5 x 4.0" |
