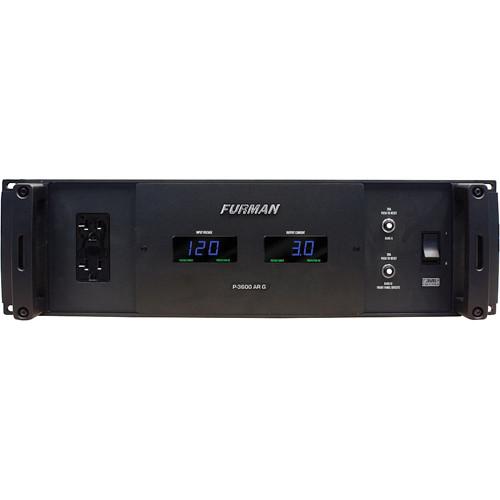

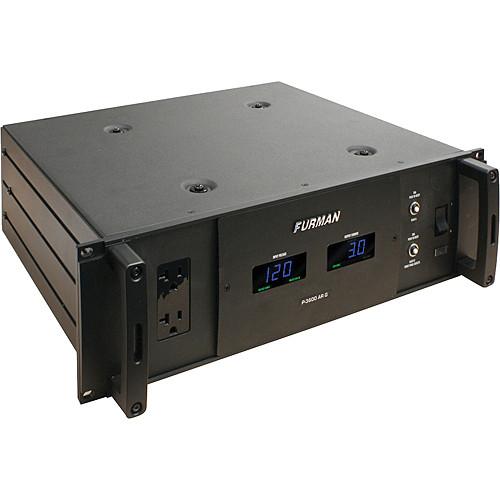

User Manual for Furman P-3600 AR G - Global Voltage Regulator and Power Conditioner Click to enlarge the picture
Contents of the user manual for the Furman P-3600 AR G - Global
- Product category: Power Distributors & Conditioners Furman
- Brand: Furman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Furman Power Distributors & Conditioners
 |
User manual for the Furman P-3600 AR G - Global contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Furman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Furman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Furman product will considerably shorten its lifespan!
|
Product description - Product Tutorial Part 1
- Product Tutorial Part 2
- Product Tutorial Part 3
The Furman P-3600 AR G Global Voltage Regulator and Power Conditioner delivers professional 120V power from 120V to 127V, or 208V to 240V power sources. The P-3600 AR G is a powerful solution for regulating and conditioning power around the globe. AC line filtration will effectively condition incoming currents, resulting in clean power without grounding issues, noise, spikes, etc. The P-3600 AR G features a comprehensive set of meters, and is an ideal choice for A/V touring, applications, high-end multimedia gear and more. - Global True RMS Voltage Regulation
- Delivers a stable 120 volts of AC power (from any voltage source between 88V-134V and 170V-265V) to protect equipment from problems.
- Surge Protection
- Furman's exclusive SMP technology provides the highest level of surge & spike protection available.
- Noise Filtration
- LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
- Voltage Protection
- Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
- Diagnostic Lights
- LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
- Large LED Voltmeter
- Large LED voltmeter displays incoming line voltage.
- Large LED Ammeter
- Large LED ammeter displays output current draw.
- 30 Amp Rating
- 30 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
- 11 Total Outlets

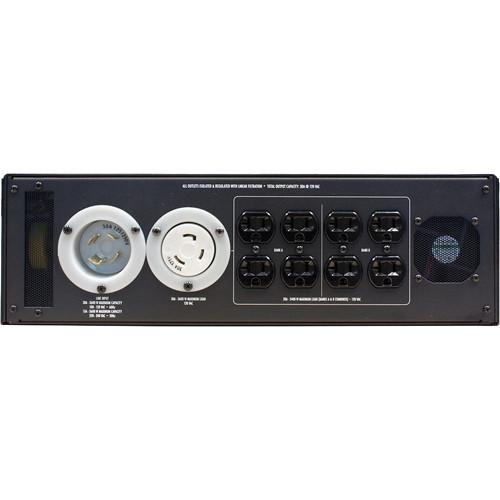

- 11 total outlets (nine rear panel outlets and two front panel convenience outlet).
UPC: 654061028215 In the Box Furman P-3600 AR G - Global Voltage Regulator and Power Conditioner 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Furman P-3600 AR G - Global Voltage Regulator and Power Conditioner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFurman P-3600 AR G Specs | Maximum Current | 30 Amps | | Voltage | 120VAC (+/- 4%)
In Regulation Range: (Low) 88-133 VAC @ 50/60Hz
(High) 170-265 VAC @ 50/60Hz | | Circuit Protection | Spike Protection Modes: Line to neutral, zero ground leakage
Spike Clamping Voltage 191V Peak @ 3,000 Amps Response time: 1 nanosecond
Maximum surge current: 6,500 amps | | Noise Attenuation | 10dB @ 10kHz, 40dB @ 100 kHz, 55dB @ 500 kHz | | Connections | Front: Two 120V 20A Edison Spec Grade NEMA-20 outlets
Rear: One 120V L-5 30A female, Eight 120V 20A Edison Spec Grade NEMA-20 outlets Line Cord: L-14 male twistlock inlet (twistlock cable-mount connector included) | | Dimensions | 5.25 x 19 x 14.25" (133 x 483 x 305mm) | | Weight | 98 lbs (44.5 kg) | | | | Package Weight | 109.2 lb | | Box Dimensions (LxWxH) | 24.0 x 23.0 x 13.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
