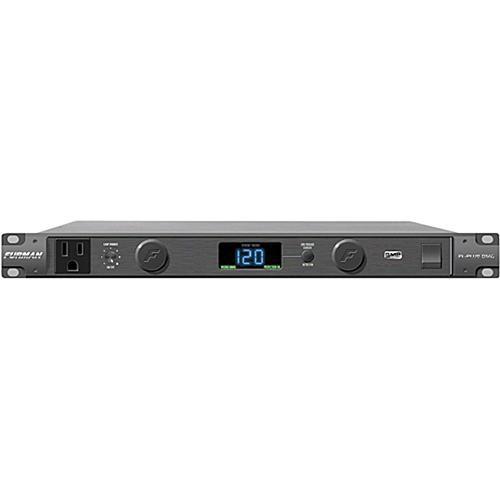

User Manual for Furman PL-PLUS DMC Power Conditioner with Voltmeter Ammeter Click to enlarge the picture
Contents of the user manual for the Furman PL-PLUS DMC Power Conditioner with
- Product category: Power Distributors & Conditioners Furman
- Brand: Furman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Furman Power Distributors & Conditioners
|
User manual for the Furman PL-PLUS DMC Power Conditioner with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Furman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Furman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Furman product will considerably shorten its lifespan!
|
Product description - Product Tutorial Part 1
- Product Tutorial Part 2
- Product Tutorial Part 3
The PL-PLUS DMC Power Conditioner from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman's revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge suppressors. - Surge Protection
- Furman's exclusive SMP technology provides the highest level of surge & spike protection available
- Voltage Protection
- Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions
- Voltmeter / Ammeter
- Large digital voltmeter / ammeter, with discrete dimmer button, displays line voltage and true RMS current draw
- Pull-out Lights
- Dual smooth track retractable LED lights illuminate equipment in your rack
- Diagnostic Lights
- LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised
- Isolated Banks
- Isolated outlet banks minimize inter-component interference and noise contamination
- Wall Wart Spacing
- Three widely spaced outlets accommodate bulky AC power transformers
- 15A Rating
- 15 amp rating featuring a high inrush magnetic circuit breaker for added protection
- Nine Total Outlets
- Nine total outlets (8 rear panel outlets and one front panel convenience outlet)
- BNC Lamp Connector
- Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination
UPC: 654061027980 In the Box Furman PL-PLUS DMC Power Conditioner with Voltmeter/Ammeter 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Furman PL-PLUS DMC Power Conditioner with Voltmeter Ammeter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFurman PL-PLUS DMC Specs | Maximum Current | 15A@124V | | Output | 90 to 139VAC | | Surge Energy Rating | 188VAC peak @ 3,000A | | Dimensions | 19 x 10.5 x 1.75" (482.6 x 266.7 x 44.45mm) | | Weight | 12 lbs (5.44kg) | | Equipment Protection | Line to neutral, zero ground leakage | | | | Package Weight | 12.6 lb | | Box Dimensions (LxWxH) | 21.0 x 15.0 x 4.5" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
