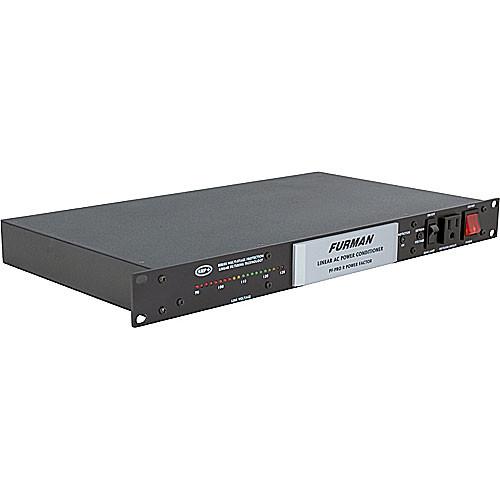

User Manual for Furman Power Factor Pro R - Rackmount 8-Outlet Clear Tone Power Conditioner with Line Voltage Meter Click to enlarge the picture
Contents of the user manual for the Furman Power Factor Pro R -
- Product category: Power Distributors & Conditioners Furman
- Brand: Furman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Furman Power Distributors & Conditioners
 |
User manual for the Furman Power Factor Pro R - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Furman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Furman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Furman product will considerably shorten its lifespan!
|
Product description The Furman Power Factor Pro R Clear Tone Power Conditioner is specifically designed to provide power conditioning for the guitarist, bassist, or keyboard player. The AC power nowadays supplied from local utilities is typically poor and contaminated. The Clear Tone Technology in this unit actually lowers the AC line impedance supplied by the wall outlet, while storing energy for peak current demands. There are over 45 amps of instantaneous current reserve in the Power Factor Pro R. Coupled with Linear Filtering Technology (LiFT), this dramatically lowers AC line noise in the critical audio frequency band. SMP circuitry offers the highest degree of protection against electrical surges and spikes, and does this without sacrificing itself or any of its components. In addition, the Extreme Voltage Shutdown circuit automatically turns off the unit when it is fed 140 volts or higher, protecting itself and connected equipment from the extreme voltage. The Power Factor Pro R offers a 20 segment LED bar-graph meter that displays incoming voltage between 90 and 128 volts in 2-volt steps. The normal range voltages are indicated in green, with moderately and extremely high or low voltages in yellow and red respectively. The voltmeter's accuracy is ±2 volts. - Eight rear panel outlets and one front panel outlet.
- Series Multi-Stage Protection (SMP) with a high current TVZ-MOV provides the highest level of AC surge suppression.
- Automatic Extreme Voltage Shutdown (EVS) guards your valuable equipment from dangerous wiring faults.
- Zero ground contamination circuitry assures the delivery of pure AC power thus protecting critical audio/video components.

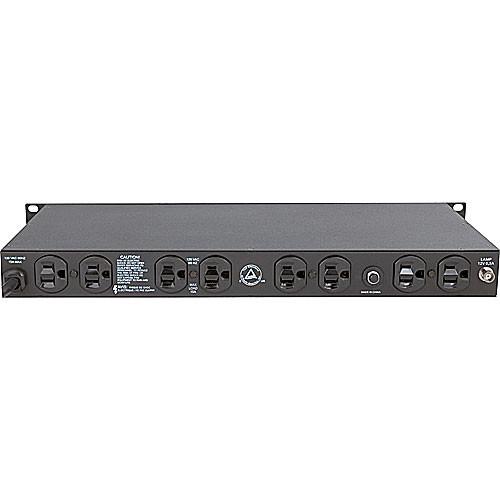

- BNC connector on rear panel for connection of any standard gooseneck lamp.
- The master switch controls all outlets and glows red when power is on.
- Steel chassis, .19" brushed and black anodized aluminum front panel, glass epoxy printed circuit boards.
UPC: 654061012252 In the Box Furman Power Factor Pro R - Rackmount 8-Outlet Clear Tone Power Conditioner with Line Voltage Meter 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Furman Power Factor Pro R - Rackmount 8-Outlet Clear Tone Power Conditioner with Line Voltage Meter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFurman PF PRO R Specs | Input | 1 x 8' IEC-type power cord with 3-prong plug | | Output | 8 x 3-prong AC rear power outlets plus one front panel outlet | | Surge Energy Rating | 6,500A, 188V peak clamping @ 3000V (133 VAC RMS) | | Battery | N/A | | Typical Backup Runtime | N/A | | Audible Alarm | No | | Agency Certifications | CE, ETL-C, UL-1449 | | Compatibility | 19" Rack mountable; for musical instruments | | Environmental Requirements | Not Specified by Manufacturer | | Dimensions | 19 x 1.75 x 11.6" (48.3 x 4.5 x 29.5 cm) WxHxD | | Weight | 9.7 lbs (4.4 kg) | | Equipment Protection | None | | Additional Info | - AC Noise Attenuation: 10 dB @ 10 kHz, 100dB @ 10 MHz
- Extreme Voltage Shutdown (EVS): >140 VAC
- Rated Input Current: 12A
- Input Breaker Capacity: 12A
- Voltmeter Accuracy: ±2 VAC, calibrated with internal trimpot adjustments
- Transient Current Reservoir: 45 amps peak
| | | | Package Weight | 11.8 lb | | Box Dimensions (LxWxH) | 21.6 x 14.7 x 4.2" |
