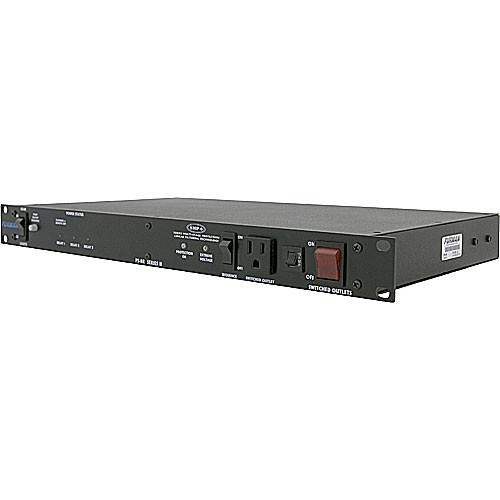

User Manual for Furman PS-8R Series II 8-Outlet Power Conditioner & Sequencer , Remotable - 120v 15a Click to enlarge the picture
Contents of the user manual for the Furman PS-8R Series II 8-Outlet Power
- Product category: Power Distributors & Conditioners Furman
- Brand: Furman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Furman Power Distributors & Conditioners
 |
User manual for the Furman PS-8R Series II 8-Outlet Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Furman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Furman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Furman product will considerably shorten its lifespan!
|
Product description - Furman SMP Circuitry Demo
- Furman EVS Technology
- Intro to AC Line Noise
- Intro to LiFT Technology
- LiFT Demo
- Intro to Power Sequencing
- Power Sequencing Demo
- Furman PS-8R Series II Power Conditioner

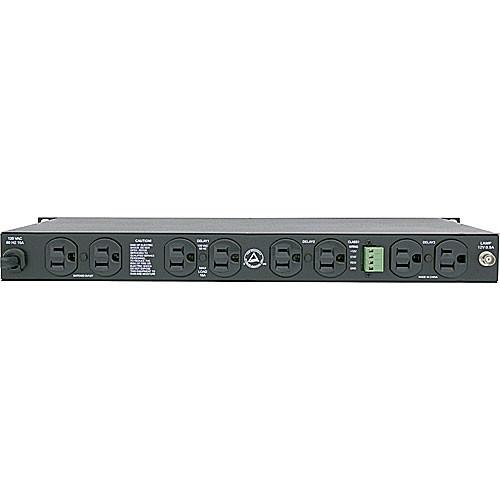

The Furman PS-8R Series II 8-Outlet Power Conditioner & Sequencer is capable of safely powering up a rack full of equipment in a 3-step delayed sequence. The sequence is reversed for power-down, and can be initiated with either momentary or maintained switches, locally or remotely. In addition, the PS-8R offers advanced and comprehensive transient voltage surge suppression. Furman's proprietary Linear Filtering Technology (LiFT) suppresses AC noise evenly, assuring maximum performance from your system. SMP+ circuitry offers the highest degree of protection against electrical surges and spikes, and does this without sacrificing itself or any of its components. In addition, the Extreme Voltage Shutdown circuit automatically turns off the unit when it is fed 140 volts or higher, protecting itself and connected equipment from the extreme voltage. One or more Furman PS-8R II's may be installed in remote locations and operated via low-voltage wiring. The unit comes factory-set for "maintained operation". It may be easily converted to other operations by moving jumper plug/plugs on the PS-8R II's circuit board. - Six sequenced rear panel outlets (in 3 groups), two switched rear panel outlets, and one front panel unswitched outlet
- Series Multi-Stage Protection (SMP) with a high current TVZ-MOV provides the highest level of AC surge suppression
- Automatic Extreme Voltage Shutdown (EVS) guards your valuable equipment from dangerous wiring faults
- Zero ground contamination circuitry assures the delivery of pure AC power thus protecting critical audio/video components
- Momentary and Maintained sequencing via rear panel terminal block or front panel switch
- A rear mounted BNC jack accepts any standard (12VAC 0.5 amp) gooseneck lamp for rear rack illumination.
UPC: 654061011552 In the Box Furman PS-8R Series II 8-Outlet Power Conditioner & Sequencer (3 Groups), Remotable - 120v/15a 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Furman PS-8R Series II 8-Outlet Power Conditioner & Sequencer , Remotable - 120v 15a in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFurman PS-8R II Specs | Input | 1 x Power Cord with 3-prong plug | | Output | 8 x 3-prong AC rear power outlets, plus 1x AC front panel outlet | | Surge Energy Rating | 6,500A, 188V peak clamping @ 3000V (133 VAC RMS) | | Battery | N/A | | Typical Backup Runtime | N/A | | Audible Alarm | No | | Agency Certifications | CE, NRTL-C, CUL | | Compatibility | 19" Rack mountable | | Environmental Requirements | Not Specified by Manufacturer | | Dimensions | 19 x 1.75 x 10.5" (48.3 x 4.5 x 26.7 cm) WxHxD | | Weight | 12 lbs (5.4 kg) | | Equipment Protection | None | | Additional Info | - AC Noise Attenuation: 10 dB @ 10 kHz, 100dB @ 10 MHz
- Extreme Voltage Shutdown (EVS): >140 VAC
- Rated Input Current: 15A
- Input Breaker Capacity: 15A
| | | | Package Weight | 11.1 lb | | Box Dimensions (LxWxH) | 21.3 x 14.6 x 4.2" |
