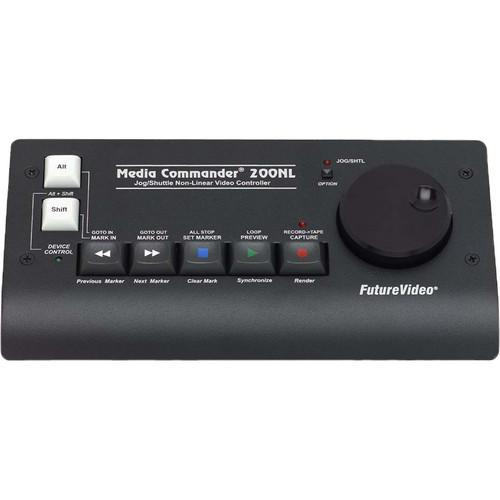

User Manual for FutureVideo Media Commander MC-200NL Multi-protocol Jog Shuttle Controller Click to enlarge the picture
Contents of the user manual for the FutureVideo Media Commander MC-200NL Multi-protocol Jog
- Product category: Jog Shuttle Controllers FutureVideo
- Brand: FutureVideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FutureVideo Jog Shuttle Controllers
|
User manual for the FutureVideo Media Commander MC-200NL Multi-protocol Jog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FutureVideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FutureVideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FutureVideo product will considerably shorten its lifespan!
|
Product description FutureVideo's Media Commander MC-200NL Jog/Shuttle Controller is a rugged, multi-purpose controller that's compatible with a wide range of analog and digital audio/video players and recorders, including VTRs, DVRs, VCRs, ATRs, DTRs and camcorders. With its customizable sensitivity and dynamics, the MC-200NL offers precision control via its RS-232C serial port or as a PS2 pass-through. While controlling a multitude of external devices, the unit can pass along each one's status, including timecode, and works with applications for video editing, logging, capture, and archiving. - Professional Multi-Purpose Digital Video Controller
- Media Commander 200NL is a professional jog/shuttle controller which is designed for both digital and analog audio/video device control. Its unique multipurpose design means only one model is required for interfacing with many types of audio/video media devices as well as a PC. Applications for this controller include security systems, broadcast systems, de-briefing/training systems, and video editing systems.
- Personal Computer Connectivity
- The Media Commander 200NL may also be connected to a PC's serial port and transfer all status and command operations from an external device to/from the running software application. Thus, providing an excellent solution for logging and batch capture of audio/video. FutureVideo also has an SDK available for 3rd party developers to create proprietary software applications where device control capabilities are required.
- PC Keyboard Emulation Mode
- In addition to controlling an external (transport) device with the Media Commander 200NL, its keys and jog/shuttle dial can be put into a PC keyboard emulation mode and control a PC based audio or video software application via a PS2 keyboard port (or with optional USB adapter).
- Customize Jog/Shuttle Dynamics
- Unlike any other such controllers, the sensitivity and dynamics of the jog/shuttle dial are configurable. You can 'customize' the sensitivity, responsiveness of the jog and shuttle functions to suit your preferences from the setup and configuration software that is included with the Media Commander 200NL.
- Advanced Flash Memory Technology
- Media Commander 200NL's advanced flash memory technology makes updating the controller's drivers fast, economical, and easy. As new capabilities of the digital system become available or digital equipment compatibility changes, firmware updates may be downloaded into Media Commander 200NL's flash memory via the PC's Com port.
- Auto-Sensing Device Control Protocol Circuitry
- Media Commander 200NL incorporates device control protocols for a broad range of equipment and can auto-sense RS-422A (9 pin), RS-232C (9 pin & 25 pin), Panasonic Control-M (5pin), Sony VISCA (8 pin), and Sony LANC (aka Control-L 5 pin and 2.5mm) serial protocols. This provides the ability to interface with a variety of VTRs/VCRs, DVRs, camcorders--plus selected Digital Audio Recorders & DVD Recorders. 1
Please Note: Does not include serial device control cables (order separately). close - Broad Array Of Time Codes Supported
- Media Commander 200NL is capable of reading a variety of commonly used time codes (in addition to control track timing), through the device's serial control port, including DVTC, VITC, SMPTE/EBU, JVC CTL, Sony Industrial 8mm, and Hi8 RC.
- Intuitive fingertip control of up to 25 different functions
- Includes plug-in device control for digital video capture with Premiere Pro
- Heavy duty metal enclosure/machined aluminum dial
UPC: 686751351945 In the Box FutureVideo Media Commander MC-200NL Multi-protocol Jog/Shuttle Controller Setup Configuration Software, Keymap Plug-ins PC PS2 Cable Serial Control Cable 7.5VDC Power Adapter 2-Year Parts & Labor Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FutureVideo Media Commander MC-200NL Multi-protocol Jog Shuttle Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFutureVideo MC-200NL Specs | System Requirements | Windows 98 or 2000/XP for software applications | | Connectors | Transport: 7-pin mini-DIN (x1 Input)
RS-232C: 8-pin mini-DIN (x1 Input)
PC: 6-Pin PS-2 mini-Din (x2 Input/Output)
Power In | | Material | Precision machined aluminum | | Power | 7.5VDC @150 mA from supplied adapter | | Dimensions | 8.5 x 4.5 x 1.5" (21.5 x 11.3 x 3.9cm) | | Weight | Approx. 2.2 lb (1kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 8.0" |
