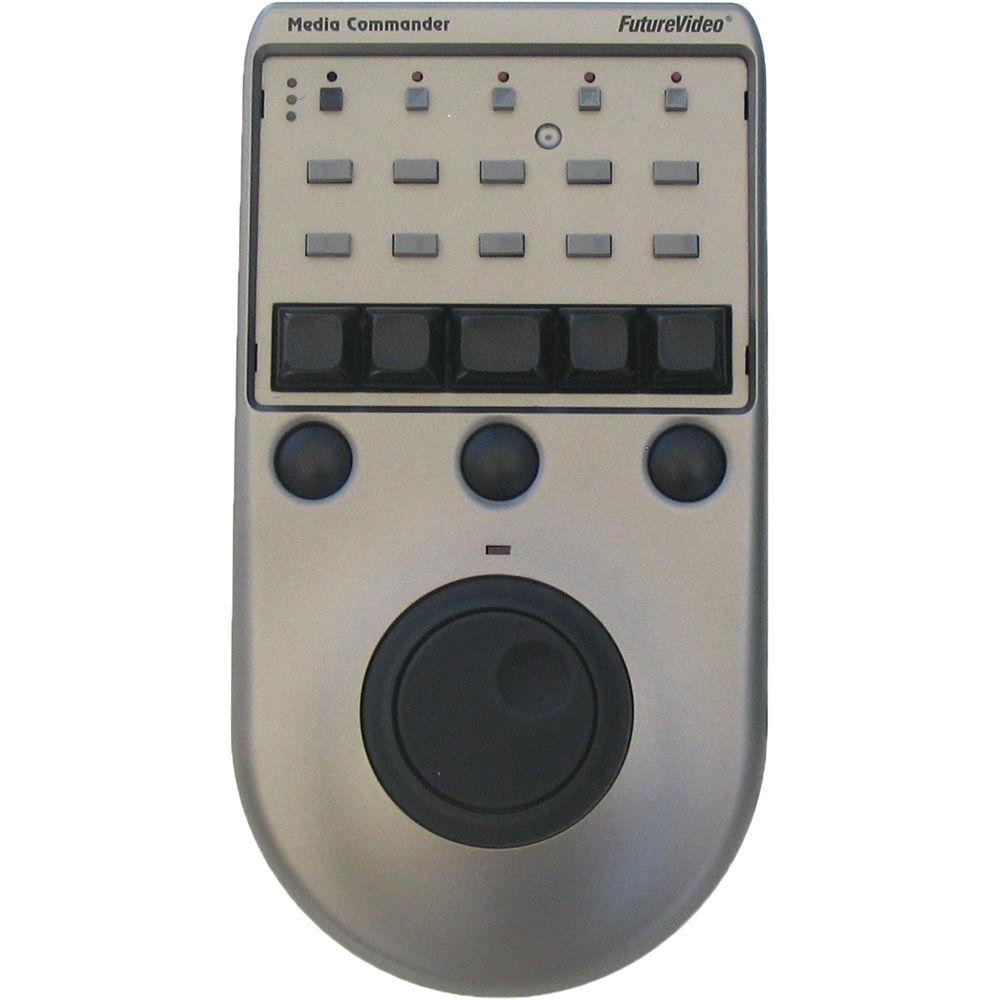

User Manual for FutureVideo Media Commander MC-20PRO II Multi-Function Jog Shuttle Controller Click to enlarge the picture
Contents of the user manual for the FutureVideo Media Commander MC-20PRO II Multi-Function
- Product category: Jog Shuttle Controllers FutureVideo
- Brand: FutureVideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FutureVideo Jog Shuttle Controllers
 |
User manual for the FutureVideo Media Commander MC-20PRO II Multi-Function contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FutureVideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FutureVideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FutureVideo product will considerably shorten its lifespan!
|

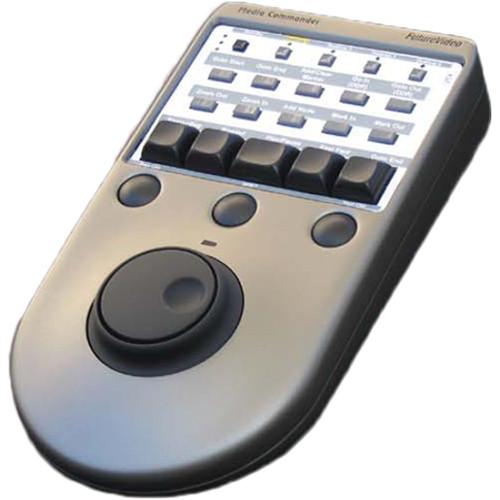

Product description Combining the features of the Media Commander MC-20 and MC-20PRO, FutureVideo's MC-20PRO II Jog/Shuttle Controller is both a multi-function control surface and a remote control for RS-422A enabled devices. As a fully-programmable professional control surface, the MC-20PRO II transfers media playback and editing functions from your Mac or PC onto a smooth jog/shuttle dial and 22 assignable buttons. Making audio and video editing easier and faster, this flexible, ergonomically designed unit allows 16 different keysets and can be assigned up to 180 of your application's shortcut and macro functions. As a remote controller for DVRs, VTRs and other serial controlled RS-422A record/playback devices, the MC-PRO II also contains a GPI port for controlling other rack-mounted and out-of-reach equipment. Control popular software and common machine control applications with any of the pre-installed key maps--or visually map all keys with the included KeyAssigner software. Instantly switch between applications and functions, with each key map identifiable by printed removable labels. This 2-in-1 controller is ideal not only for broadcast, remote and post-production facilities, but media asset management, video ingest and archiving, video content analysis, digital video/audio editing, and DVD creation. - Reconfigurable as RS-422A Device Controller or Media Control Surface for either PC or MAC
- 22 Assignable Keys plus Jog & Shuttle Controls
- Dynamic Jog/Shuttle Settings (4 Styles)
- Up to 180 Possible Key Assignments
- Up to 72 Additional Assignments for Jog & Shuttle
- Key Assignments Retained in Flash Memory

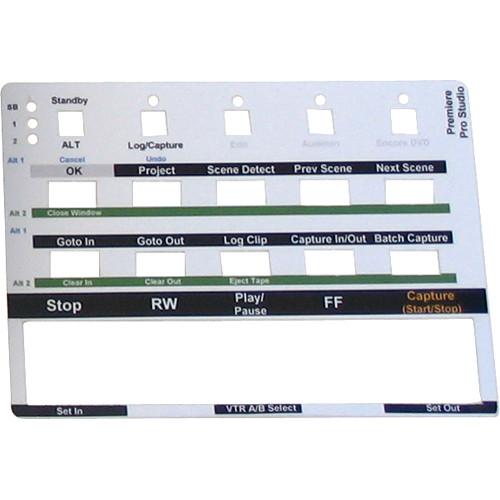

- Customizable Label Overlay
- 16 Different Key Sets (Normal, Alt 1, Alt 2, Shift, plus 4 Modes)
- GPI Trigger Port for Auxiliary Device Control
- Macro Creation for Multiple Commands
- Includes KeyAssigner PC Software & RS-422A VTR serial cable
- Includes key maps and templates for popular non-linear editing software
- Replacement for Obsolete Manufacturers' Controllers
In the Box FutureVideo Media Commander MC-20PRO II Multi-Function Jog/Shuttle Controller KeyAssigner Software USB Cable (Type A to Type B) RS-422A VTR Serial Cable 7.5VDC Power Adapter Pre-cut Gloss Paper Label Templates 2-Year Parts & Labor Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FutureVideo Media Commander MC-20PRO II Multi-Function Jog Shuttle Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFutureVideo MC-20PRO Specs | System Requirements | PC Pentium III or higher with USB Port, Microsoft Windows 2000/XP/Vista/7

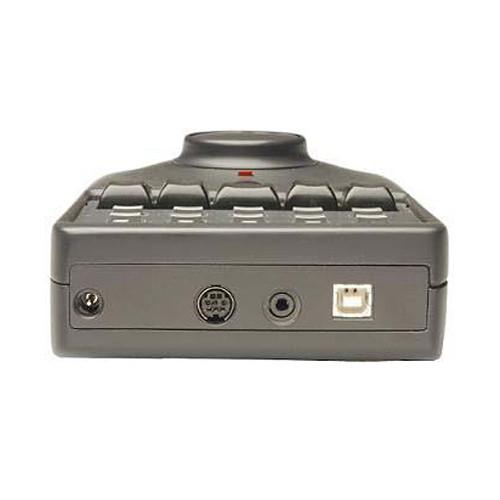

Apple Mac G4/G5 PowerPC or Intel Core Duo with USB port, OS X 10.4.x | | Connectors | USB, GPI, EditLink, DC Power | | Material | High-impact molded ABS plastic | | Power | 7.5VDC @ 150 mA from supplied adapter | | Dimensions | 8.75 x 4.56 x 1.69" (22.2 x 11.6 x 4.3cm) | | Weight | Approx. 1.25 lb (0.57kg) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 13.3 x 9.4 x 3.7" |
