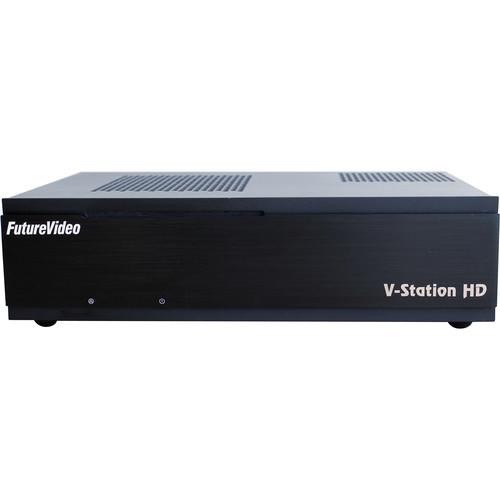

Product description The FutureVideo V-Station HD Pro4 DVR can be used by the event videographer for multi-cam/multi-angle shoots. It is simple to setup and transfer your video files to your NLE system after the shoot is done. The DVR can simultaneously record 4 signals in full HD 1080p60 resolution (at up to 30 Mb/s per channel) with a total of 320 hours of recording time. In addition, it comes with a 1TB internal hard drive and accepts up to to 4 3G/HD-SDI inputs.

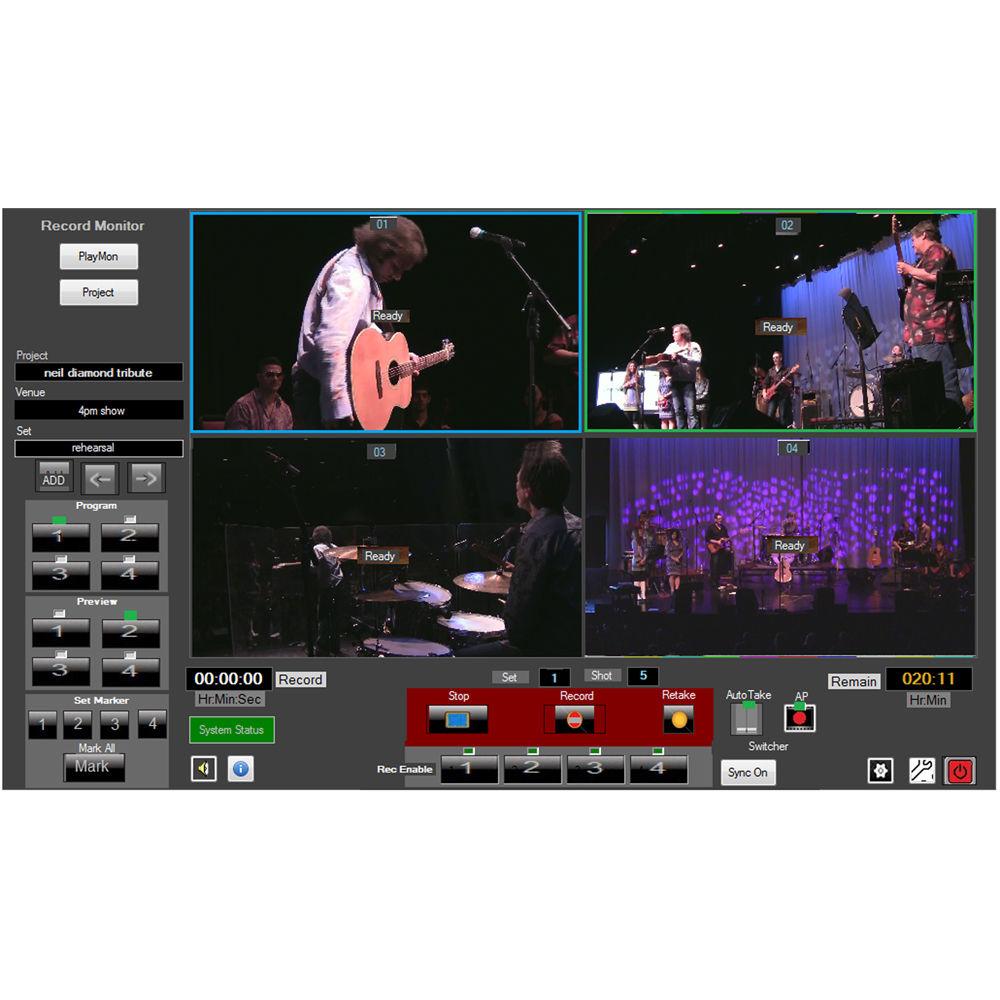

You can monitor all channels in real time, and perform live switching with editing (line-cuts) during a live event. The output can be sent to an HDMI monitor or a streaming appliance for broadcasting over the Internet. The DVR supports Seamless XML project transfer to Premiere Pro, Final Cut Pro, and Vegas Pro NLE systems and features a projector VGA output for the PowerPoint Viewer. Monitor All 4 channels Live - View all video angles together on one screen and control the system with your monitor with a keyboard and mouse. The DVR also features short cut keys for fast operation from the keyboard.
4-Channel Synchronized Video Recording - The V-Station HD Pro4 DVR will make your post-production editing task much easier and faster because all the camera angles are automatically synchronized as you record-and when you transfer the video clips to your NLE system.
AutoProducer Video Switcher & Line-Cuts Editor - Switch live between cameras and send the program output to a HDMI monitor or streaming device - all while simultaneously creating the EDL for post-production.
Extended Recording Duration - The Pro4 DVR provides up to 320 hours total (80 hours with all 4 channels simultaneous recording) on an internal 1TB drive.
Integrated Project Management - With the built-in SQL database media asset management system, the DVR's clips are recorded and organized by project, reel, scene, shot, and take numbers. This makes it simple to locate, backup, or transfer projects to your NLE.
Event Log - While recording or playing back, you can mark event times with a description using the logging feature. Instantly cue to any event mark using the built-in media player.
The Workflow Advantage-Seamless XML NLE Transfer - The Pro4 projects are transferred to your NLE system with clips automatically organized into bins and sequences (generated from the EDL)-already synchronized.
Flexible Audio Inputs - Use either 8-channel embedded audio from cameras via SDI or 4-channel via two 3.5mm stereo phone jacks on SDI card panel, or 2-channel via one 3.5mm stereo phone jack on the main panel.
Flexible Video Recording Resolutions & Containers - The V-Station HD Pro4 system provides a variety of H.264 recording options. Multiple resolutions (720i/720p, 1080i/1080p), frame rates (24/50/60 fps), and container types (MPEG2-TS/MP4/AVI) are supported.

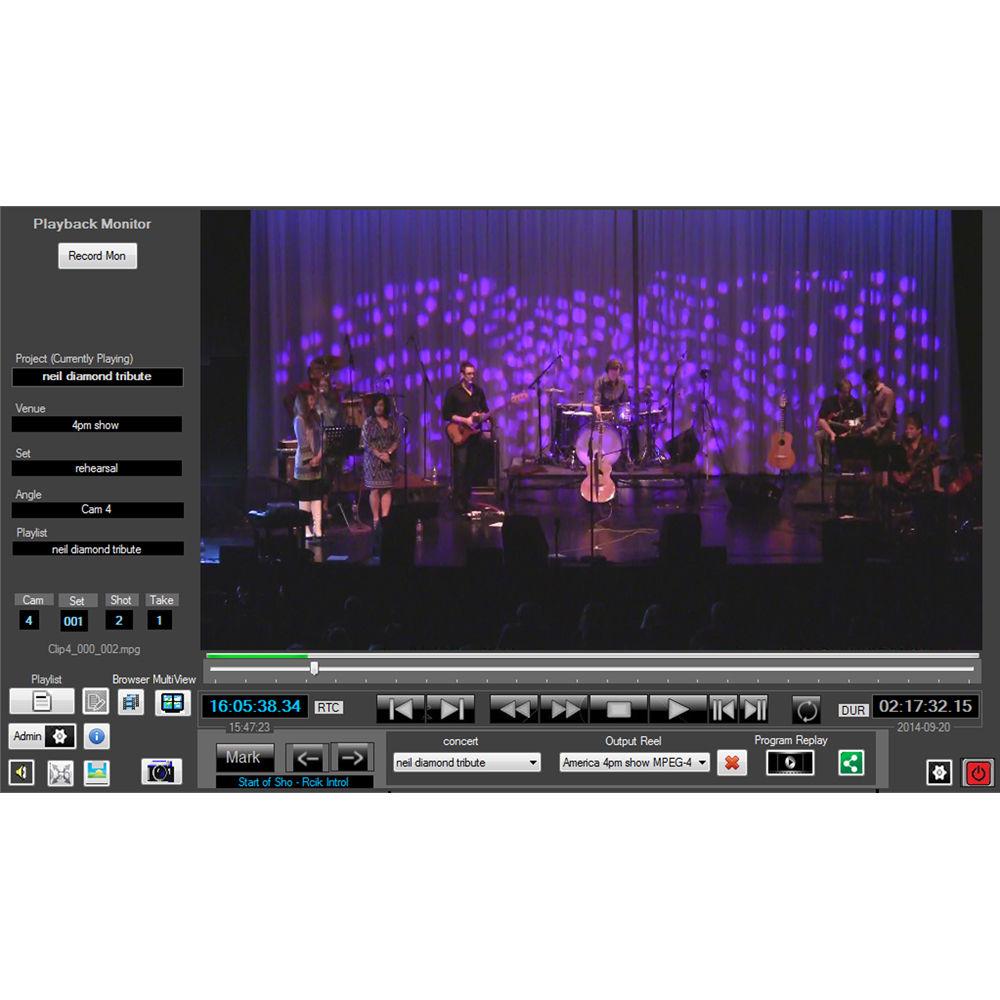

Fully Featured Media Player - Even while recording, you can play back previous shots using the built-in media player. Pull up the playlist by project and review footage. You can also log footage for each frame for rehearsals.

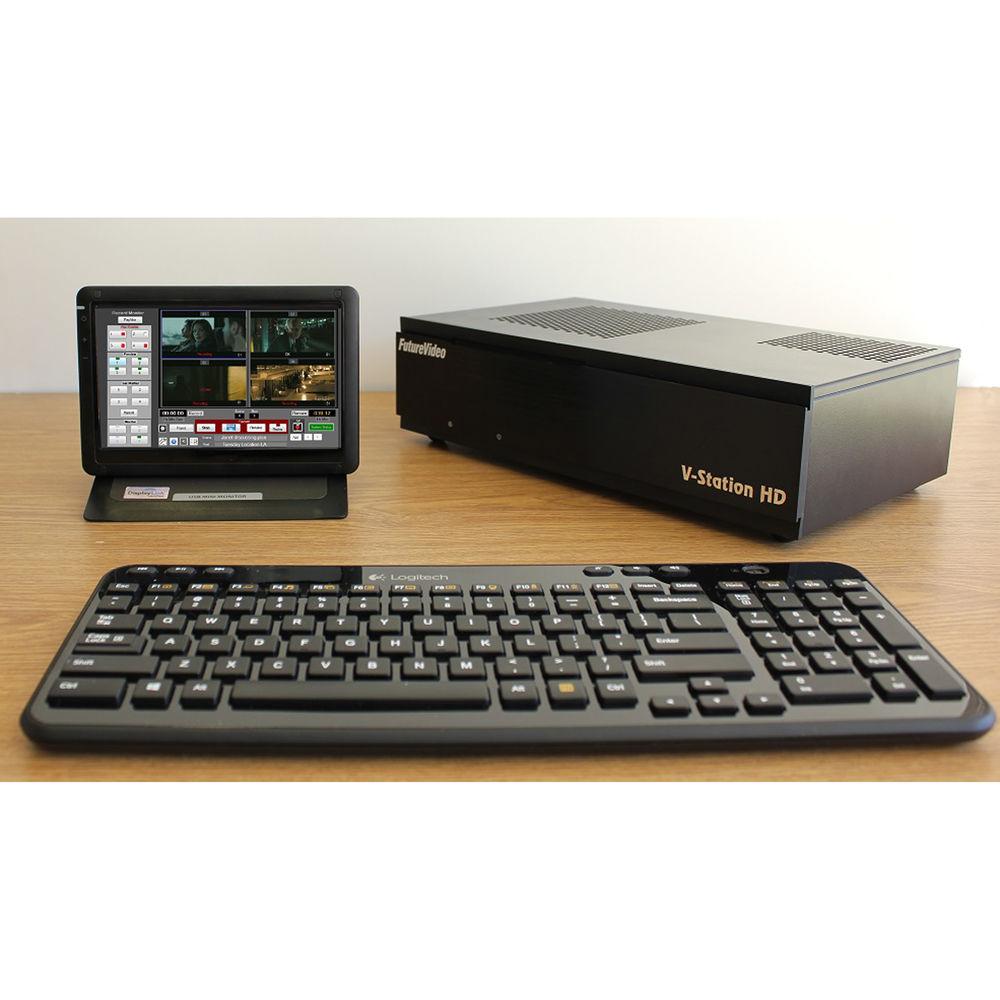

UPC: 686751351907 In the Box FutureVideo V-Station HD Pro4 DVR with SDI Inputs Wireless Keyboard Wireless Mouse Ethernet Cable 4 x SMA to BNC Flex Cable Adapters Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FutureVideo V-Station HD Pro4 DVR with SDI Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFutureVideo HD Pro4 Specs | Video Inputs | 4 x 3G/HD/SD-SDI | | Embedded Audio | 8 via SDI
4 via 2 x 1/8" / 3.5 mm stereo phone jacks on SDI card panel

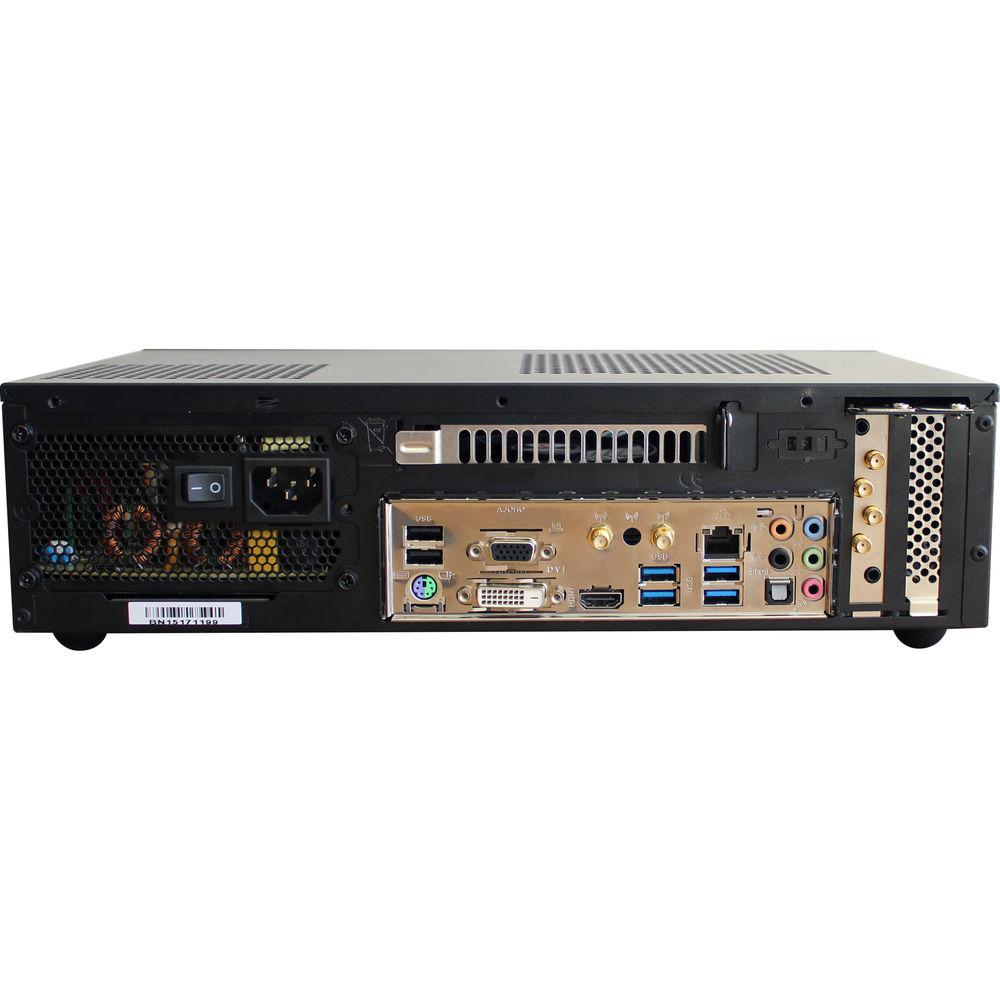

2 via 1 x 1/8" / 3.5mm stereo phone jack on main panel | | Video Output | Program: 1 x HDMI (back panel) | | Audio Output | 2 (1 x 1/8" / 3.5 mm stereo phone jack) | | USB | 2 x USB 2.0 (front panel), 4 x USB 3.0, 2 x USB 2.0 (back panel) | | LAN | 1 x RJ-45 Gigabit network (back panel) | | WiFi Performance | 2 x Antennas-back panel | | Control | Monitors: 1 VGA, 1 x DVI, 1 x USB (front panel) | | Audio Line Input | 1 x 1/8" / 3.5 mm stereo | | Mic Input | 1 x 1/8" / 3.5 mm (back panel) | | Audio Line Output | 1 x 3.5 mm (back panel) | | Number of Video Tracks | 4 discrete non-multiplexed | | Audio Tracks | 8 (via SDI input x 2 per track) | | Video Compression | H.264 / AVC high profile level 4.2 MPG (TS)
MP4 or AVI | | Input Resolutions / Frame Rates | 1920 x 1080 x 60p / 59.94p / 50p / 24
1920 x 1080 x 60i / 59.94i / 50i
1280 x 720 x 60p / 59.94p / 50p
720 x 480 x 60i / 59.94i
720 x 576 x 50i | | Recording Resolution | 1920 x 1080 x 60p / 59.94p / 50p / 24, video encoding bit rate 6 to 30 Mb/s
1920 x 1080 x 60i / 59.94i / 50i, video encoding bit rate 6 to 24 Mb/s
1280 x 720 x 60p / 59.94p / 50p, video encoding bit rate 4 to 24 Mb/s
720 x 480 x 60i / 59.94i, video encoding bit rate 2 to 10 Mb/s
720 x 576 x 50i, encoding video bit rate 2-10 Mbps | | Recording Time | 4 x 80, up to 320 hours with 1 to 4 simultaneous sources at 1080p @ 60 fps, 6 Mb/s | | Audio Compression | AAC or LPCM | | Bit Rate | 96 to 512 k | | Operating System | Windows 7 Professional 64-bit | | System Drive | 120 GB SSD | | CPU | Intel i3 | | System Memory | 8 GB high speed dual channel memory | | Data Storage | Capacity: 1 TB
Form Factor: 1 x 2.5" | | Graphics | Intel HD Graphics 4600 | | Power Supply | 115 to 240 VAC, 50/60 Hz | | Power Consumption | 55 W | | Compliance | HDCP | | Dimensions (W x H x D) | 13.7 x 3.9 x 8.1" (347.98 x 99.06 x 205.74 mm) | | Weight | 9.5 lb (4.3 kg) | | | | Package Weight | 17.2 lb | | Box Dimensions (LxWxH) | 20.9 x 16.2 x 10.5" |
