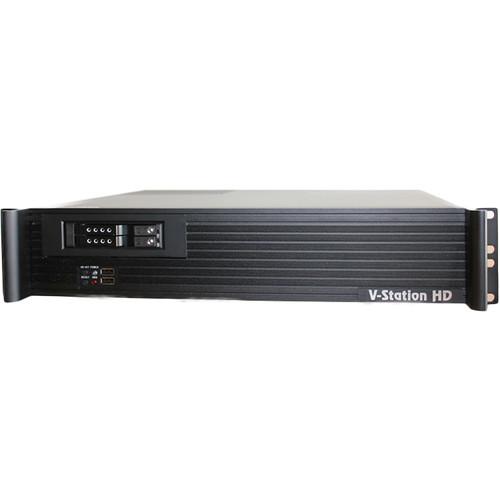

Product description The FutureVideo V-Station HD Studio4 DVR is a rackmount multi-channel HD video recording system with four HDMI inputs and one HDMI output. With five full video track recording capability, it will create the live mix track and still have the 4 channels of the original recordings to re-edit later with your NLE. The DVR can simultaneously record 4 HD SDI cameras in full HD 1080p60 resolution (at up to 30 Mb/s per channel) with a total of 320 hours of recording time.

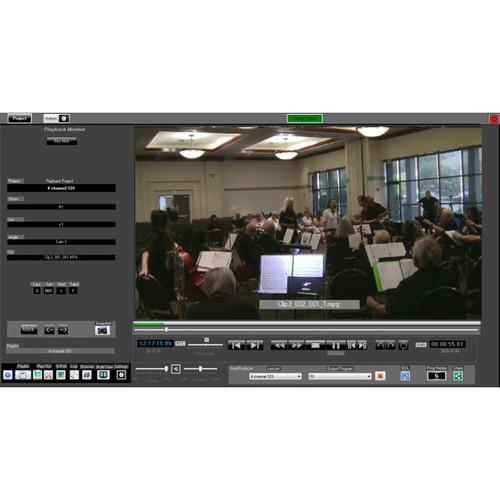

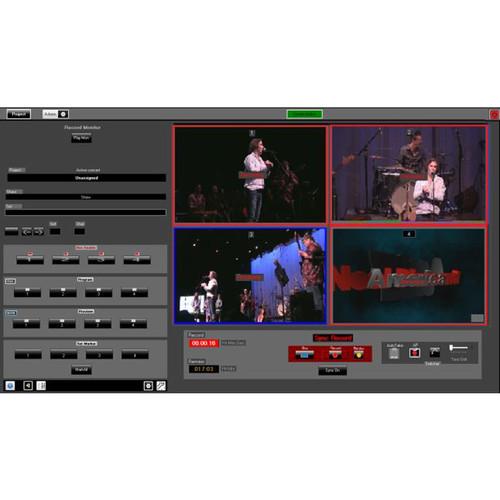

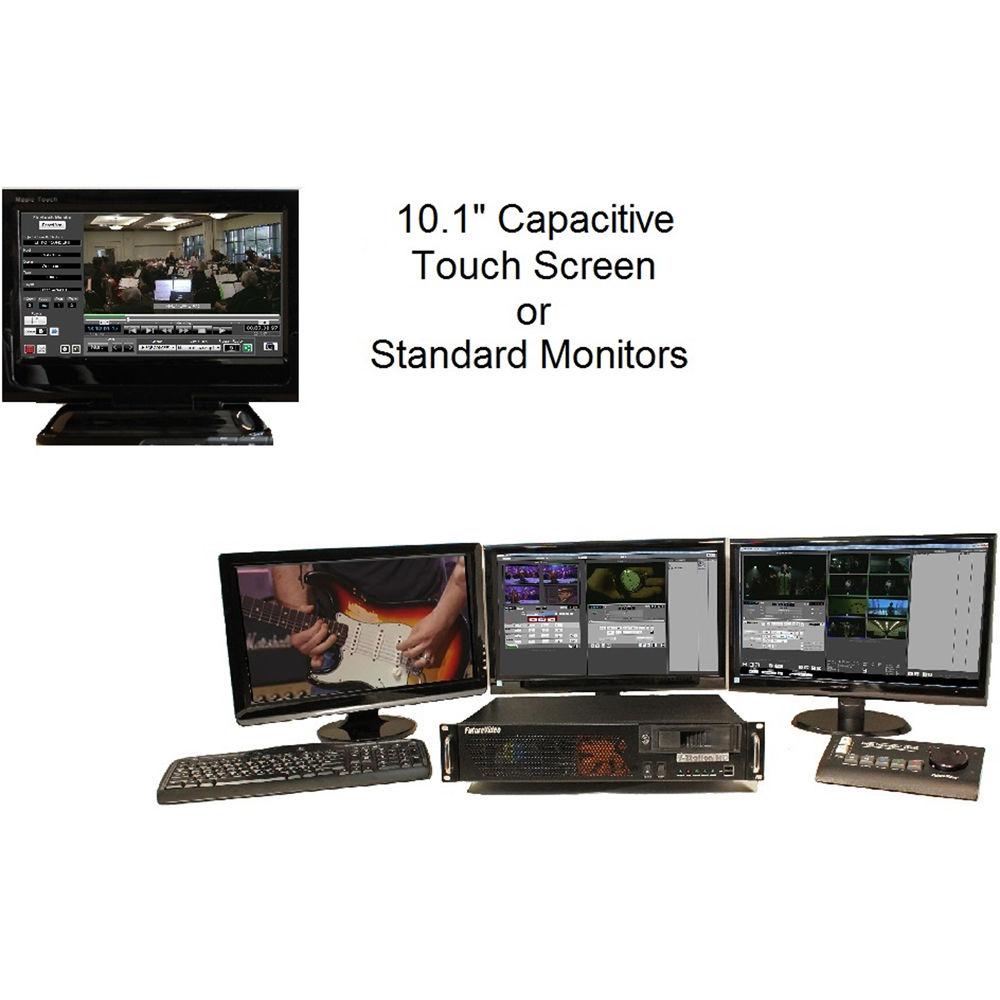

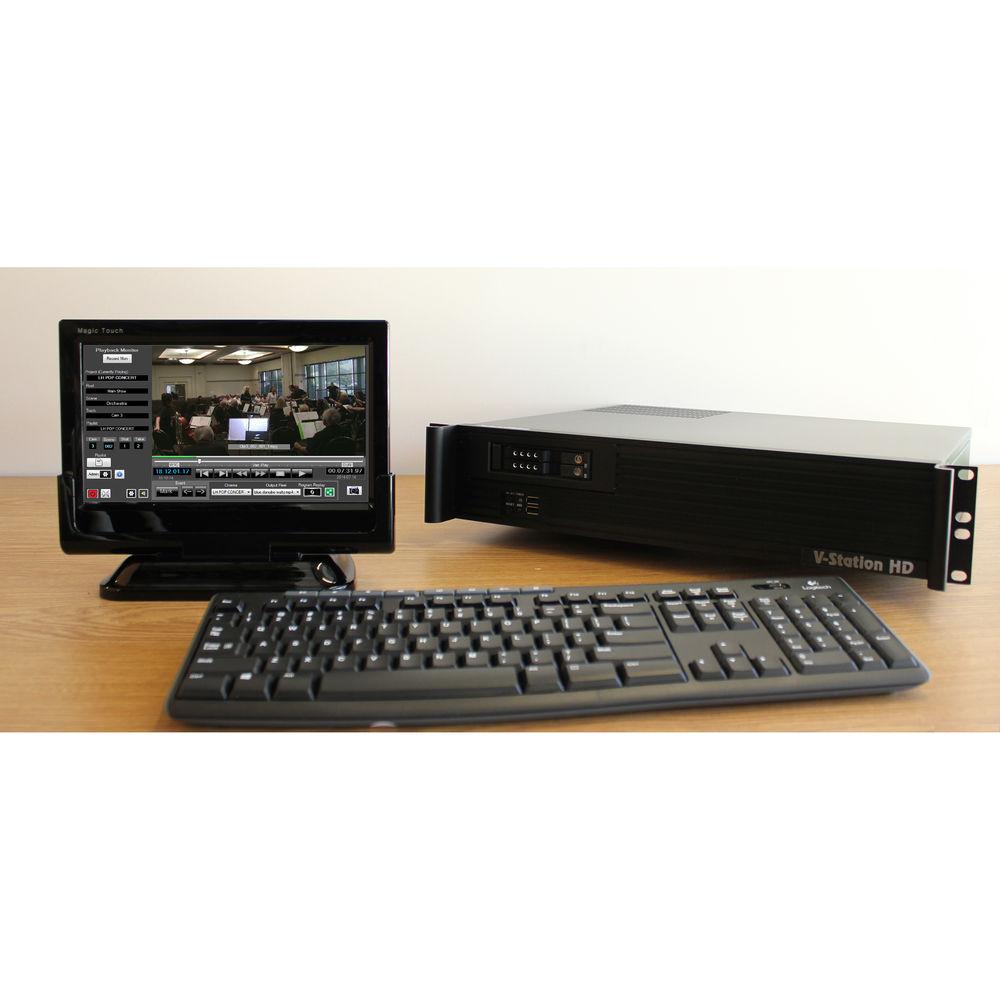

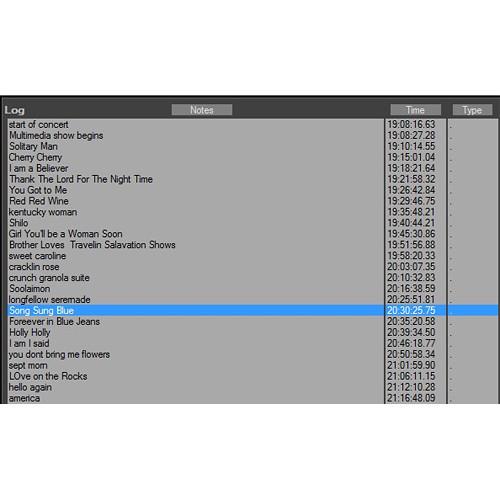

You can enter markers and notes for each angle as an event occurs and find the exact frame upon playback with the built-in media player. The DVR can be used with a 10.1" touchscreen monitor (sold separately) or multiple PC monitors to view all your controls and videos. Stream or Send Mix to YouTube or FTP - Built-in streaming technology enables your live cut to be streamed to YouTube. You can also upload your project to your FTP site or to YouTube immediately after the shoot with DVR's built-in uploader.

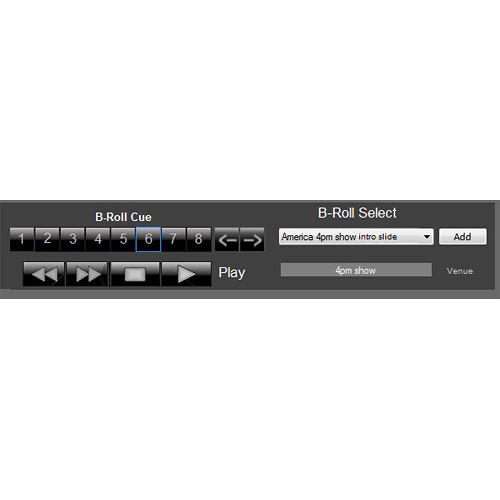

Built-in B-roll Media Player - Even while recording, you can play back previous shots using the built-in B-roll media player.

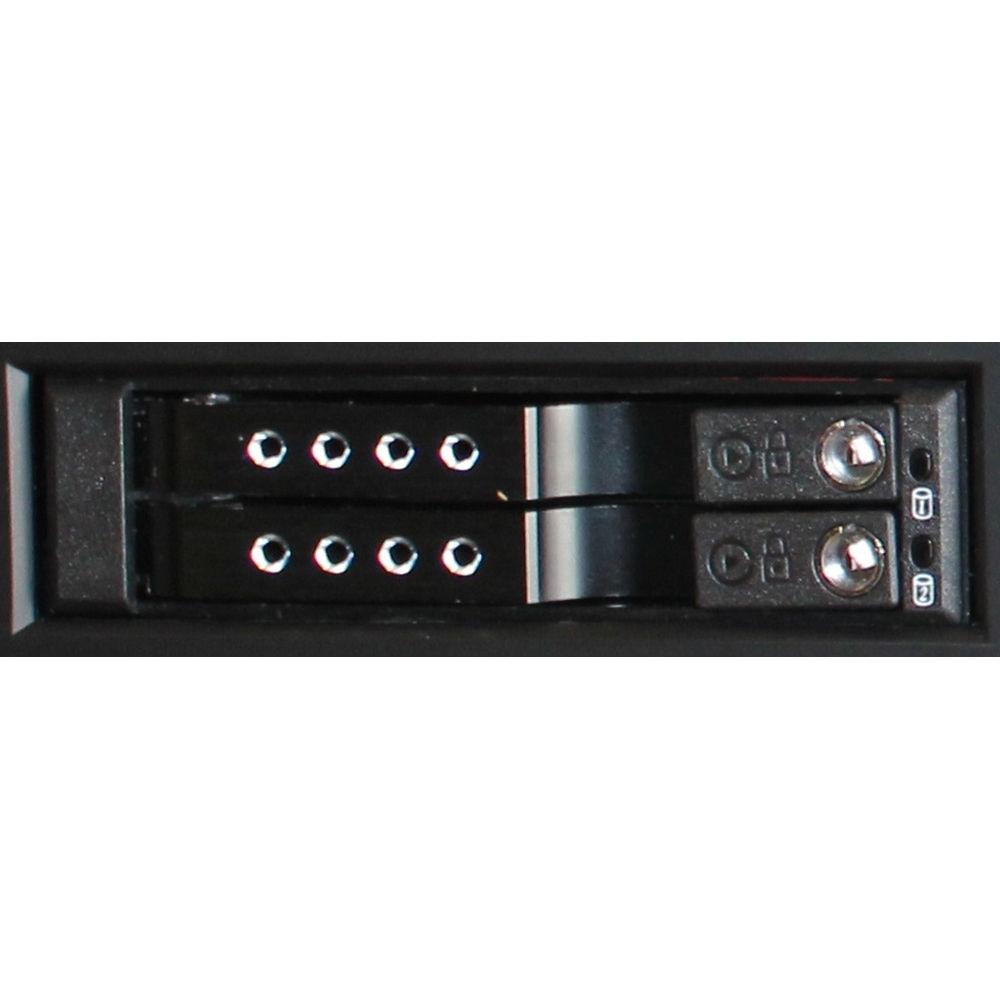

Redundant Recording - With support for two 1TB HDDs (sold separately) for redundant recording, the DVR ensures there is a backup of your sessions in case one drive should fail.
Multi-View Player/Rough-Cut Editor - With the optional V-Station HD Studio Companion software, you can play back all videos in synchronized mode without re-encoding or transferring to an NLE system. You can also re-create the shoot and cut as you play, creating many different rough cuts.
In the Box FutureVideo V-Station HD Studio4 DVR with HDMI Inputs/Outputs Wired Illuminated Mechanical Keyboard Wireless Mouse Ethernet Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the FutureVideo V-Station HD Studio4 DVR with HDMI Inputs Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

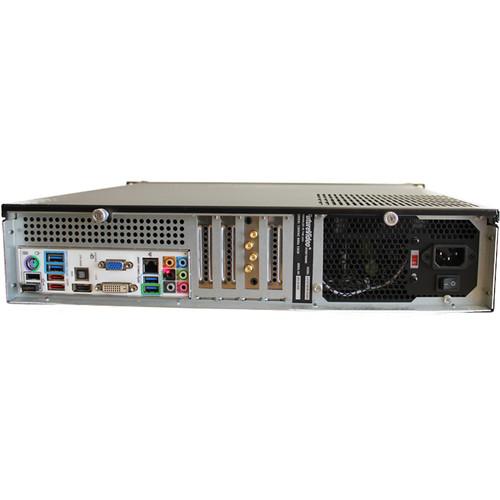

Technical parametersFutureVideo Studio4 DVR Specs | Video Inputs | 4 x HDMI | | Embeddable Audio | 4 x RCA input
1 x 3.5 mm stereo phone jack | | Video Output | Program: 1 x HDMI (back panel) | | Audio Output | 2 (1 x 3.5 mm stereo phone jack) | | USB | 2 x USB 2.0 (front panel), 4 x USB 3.0, 2 x USB 2.0 (back panel) | | LAN | 1 x RJ45 Gigabit network (back panel) | | Control | Monitors: 1 x VGA, 1 x DVI, 1 x USB (front panel) | | Audio Line Input | 1 x 3.5 mm stereo
4 additional RCA | | Mic Input | 1 x 3.5 mm (back panel) | | Audio Line Output | 1 x 3.5 mm (back panel) | | Number of Video Tracks | 5 discrete non-multiplexed | | Audio Tracks | 8 (via HDMI input x 2 per track) | | Video Compression | H.264 / AVC high profile level 4.2 MPG (TS)
MP4 or MOV | | Input Resolutions / Frame Rates | 1920 x 1080 x 60p / 59.94p / 50p / 24
1920 x 1080 x 60i / 59.94i / 50i
1280 x 720 x 60p / 59.94p / 50p
720 x 480 x 60i / 59.94i
720 x 576 x 50i | | Recording Resolution | 1920 x 1080 x 60p / 59.94p / 50p / 24, video encoding bit rate 6 to 30 Mb/s
1920 x 1080 x 60i / 59.94i / 50i, video encoding bit rate 6 to 24 Mb/s
1280 x 720 x 60p / 59.94p / 50p, video encoding bit rate 4 to 24 Mb/s
720 x 480 x 60i / 59.94i, video encoding bit rate 2 to 10 Mb/s
720 x 576 x 50i, encoding video bit rate 2-10 Mbps | | Video Recording | Redundant Video Recording: Mirrored Raid 1 for safety | | Recording Time | 4 x 80, up to 320 hours with 1 to 4 simultaneous sources at 1080p @ 60 fps, 6 Mb/s | | Audio Compression | AAC or LPCM | | Bit Rate | 96 to 256 kbps | | Operating System | Windows 7 Professional 64-bit | | System Drive | 240 GB SSD | | CPU | Intel i7 Quad core | | System Memory | 16 GB high-speed dual channel memory | | Data Storage | 2 x 2.5" swappable HDDs supported | | Graphics | Intel HD Graphics 4600 | | Power Supply | 115 to 240 VAC, 47 to 63 Hz | | Power Consumption | 110 W | | Compliance | HDCP | | Dimensions (W x H x D) | 19 x 3.5 x 15" (482.6 x 88.9 x 381 mm) | | Weight | Not specified by the manufacturer |
