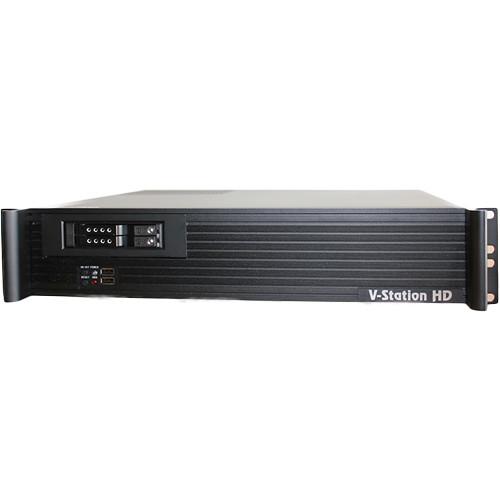

User Manual for FutureVideo V-Station HD Studio4 Production DVR Click to enlarge the picture
Contents of the user manual for the FutureVideo V-Station HD Studio4 Production DVR
- Product category: Recorders & Duplication FutureVideo
- Brand: FutureVideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FutureVideo Recorders & Duplication
|
User manual for the FutureVideo V-Station HD Studio4 Production DVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FutureVideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FutureVideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FutureVideo product will considerably shorten its lifespan!
|
Product description The V-Station HD Studio4 Production DVR from FutureVideo is used for projects where you need to do either independent 4-channel recording with separate logging for each video channel, or for synchronized recording with live-switching and live multi-streaming (up to 5 streams). With 5 full video track recording, it can create the live mix track and still have the 4 channels of the original recordings to re-edit later with your NLE. It can simultaneously record 4 HD cameras in full HD 1080p60 resolution (at up to 30 Mbps per channel) with a total of 320 hours of recording time. Built-in B-Roll Media Player - The recorder has its own B-Roll media player for playing back graphics or videos you can record on the DVR in a live shoot or use for presentation or cue card to a studio monitor.
Log Events as They Happen or Afterwards - Enter markers and notes for each angle as an event occurs and find the exact frame upon playback with the built-in media player.
Multi-Stream and Stream Live Cut to Facebook Live and YouTube Live - Built-in multi-streaming technology enables each camera feed being recorded to be streamed. Destinations may be different. The live cut may be streamed to YouTube Live or Facebook Live. You can also upload your project to your FTP site or to YouTube immediately after the shoot with Studio4's built-in uploader.
Flexible User Interface - You can use either a 10" or 24" touchscreen (both optional) and/or standard PC monitor with the recorder. You can even use one, two, or three monitors to easily see all your controls and videos.
Redundant Recording - The recorder supports a dual set of 1TB HDDs for redundant recording and safely ensures there is a backup of your sessions in case one drive should fail.
Multi-View Player/Rough-Cut Editor - With the optional V-Station HD Studio Companion software (sold separately), you can playback all videos in synchronized mode without re-encoding or transferring to an NLE system. Re-create the shoot, and cut as you play, creating as many different rough cuts.
Field-Upgradable to 8-Camera Recording - As your needs evolve, FVS403 can be field-upgraded from 4-channel/5-track to 8-channel/9-track recording.
In the Box FutureVideo V-Station HD Studio4 Production DVR Wired Illuminated Mechanical Keyboard Wireless Mouse 4 x SMA to BNC Flex Cable Adapters Ethernet Cable Limited 1-Year Warranty vqqzafvfusyuzewdwtabxevcvbefydrxvbxe Table of Contents
|
Upload User Manual
Have you got an user manual for the FutureVideo V-Station HD Studio4 Production DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFutureVideo V-Station HD Studio4 Specs | Video Inputs | 4 x 3G/HD/SD-SDI SMA inputs | | Audio Channels | Audio Input Channels / (Line Inputs): 8 Embedded
4 x RCA input
3.5 mm stereo phone jack
Audio Output Channels (Outputs): 2 x 3.5 mm stereo phone jack | | Video Output | 1 x HDMI (back panel) | | USB | Front Panel: 2 x USB 2.0
Back Panel: 4 x USB 3.0 + 2 x USB 2.0 | | LAN | Back Panel: 1 x RJ45 Gigabit Network | | Monitor | Control Monitor: Front Panel: 1 x VGA
1 x DVI
1 x USB | | Audio Line Input | 1 x 3.5 mm stereo
Back panel: 4 additional RCA | | Mic Input | Audio Mic Input: Back Panel: 1 x 3.5 mm | | Audio Line Output | Back Panel: 1 x 3.5 mm | | Number of Video Tracks | 5 discrete | | Audio Tracks | 8 (via SDI input x 2 per track) | | Video Compression | H.264 / AVC High Profile Level 4.2 MPG (TS), MP4 or AVI | | Resolution / Frame Rate | 1920 x 1080 x 60p / 59.94p / 50p / 24
1920 x 1080 x 60i / 59.94i / 50i
1280 x 720 x 60p / 59.94p / 50p
720 x 480 x 60i / 59.94i
720 x 576 x 50i | | Video Bit Rate | 1920 x 1080 x 60p / 59.94p / 50p / 24, video encoding bit rate 6 to 30 Mbps
1920 x 1080 x 60i / 59.94i / 50i, video encoding bit rate 6 to 24 Mbps
1280 x 720 x 60p / 59.94p / 50p, video encoding bit rate 4 to 24 Mbps
720 x 480 x 60i / 59.94i, video encoding bit rate 2 to 10 Mbps
720 x 576 x 50i, encoding video bit rate 2 to 10 Mbps | | Video Recording | Redundant Video Recording: Mirrored RAID 1 for safety | | Recording Time | Up to 320 hours with 1 to 4 simultaneous sources at 1080p @ 60 fps, 6 Mbps | | Audio Compression | AAC or LPCM | | Bit Rate | 96 to 256 kbps | | Operating system | Windows 7 Professional 64-bit | | System Drive | 240 GB SSD | | CPU | Intel Core i7 Quad Core | | System Memory | 16 GB | | Data Storage | 2 x 2.5" swappable | | Graphics | Graphics System: Intel HD Graphics 4600 | | Compliance | HDCP | | Mains Power | 115 to 240 VAC, 47 to 63 Hz | | Power Consumption | 110 W | | Dimensions (WxDxH) | 19 x 16.2 x 3.5" (48.26 x 41.148 x 8.89 cm) | | Weight | Not specified by the manufacturer |
