Fxlion Cool Blue Series AN-100AL 14.8V

Search your instruction manual in PDF to download

User Manual for Fxlion Cool Blue Series AN-100AL 14.8V Lithium-Ion Gold Mount Battery

Click to enlarge the picture
Fxlion Cool Blue Series AN-100AL 14.8V Lithium-Ion Gold Mount Battery Contents of the user manual for the Fxlion Cool Blue Series AN-100AL 14.8V
  • Product category: On Camera Batteries Fxlion
  • Brand: Fxlion
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Fxlion On Camera Batteries

Fxlion Cool Blue Series AN-100AL 14.8V Lithium-Ion Gold Mount Battery Fxlion Cool Blue Series AN-100AL 14.8V Lithium-Ion Gold Mount Battery Fxlion Cool Blue Series AN-100AL 14.8V Lithium-Ion Gold Mount Battery
User manual for the Fxlion Cool Blue Series AN-100AL 14.8V contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Fxlion product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Fxlion user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Fxlion product will considerably shorten its lifespan!



Product description

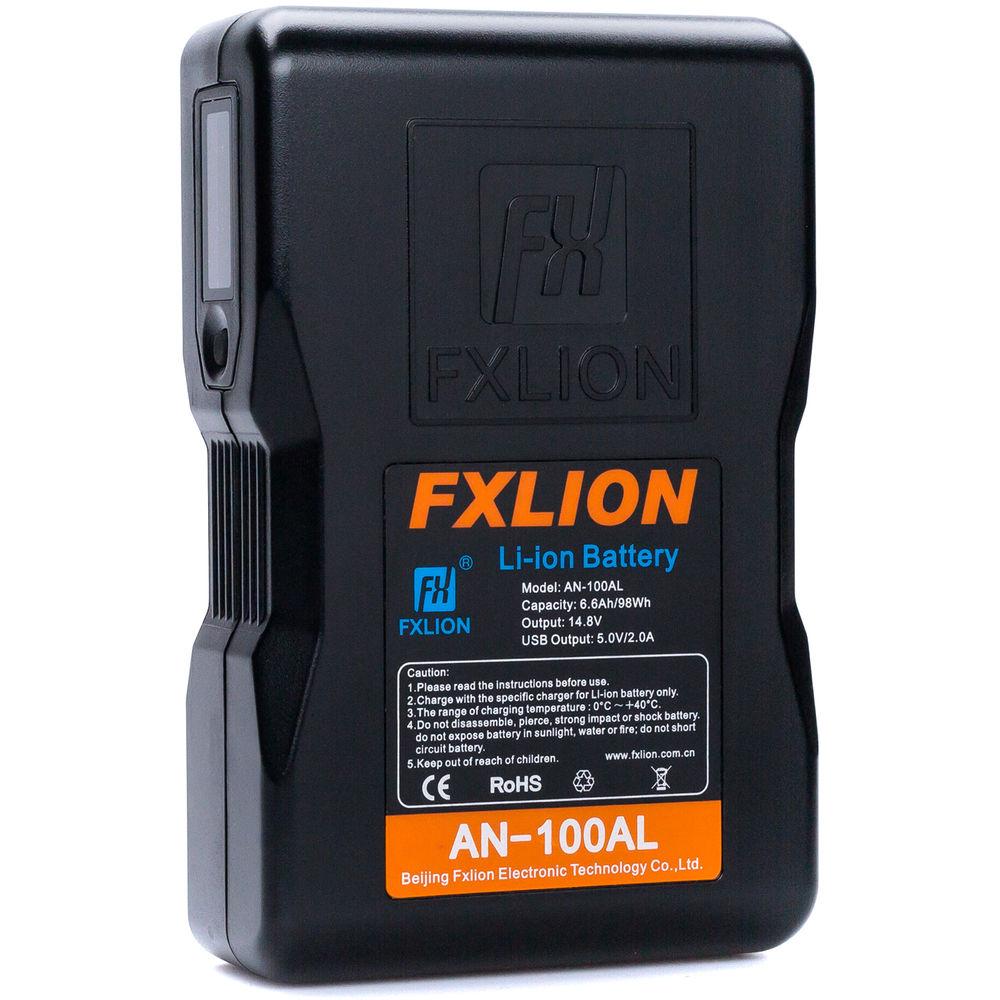

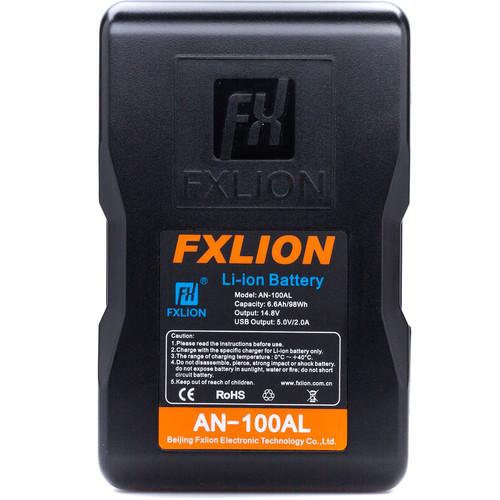

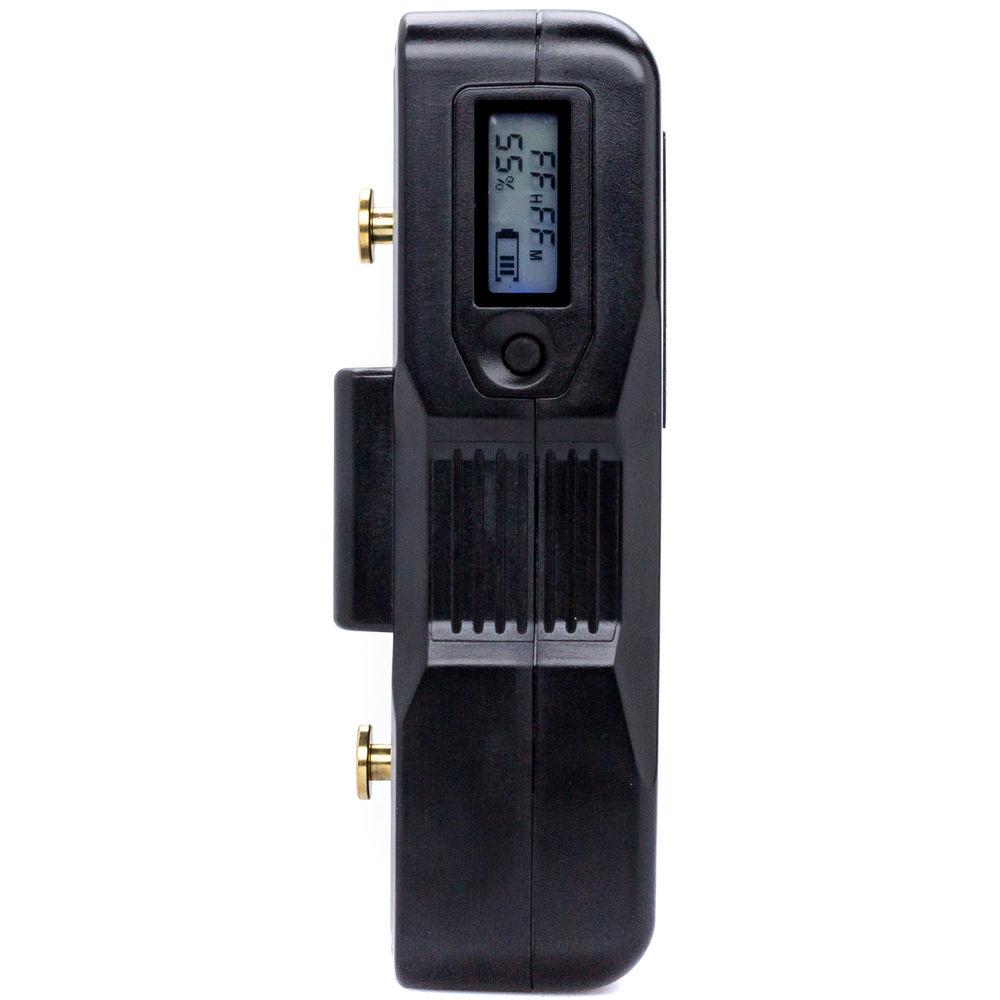

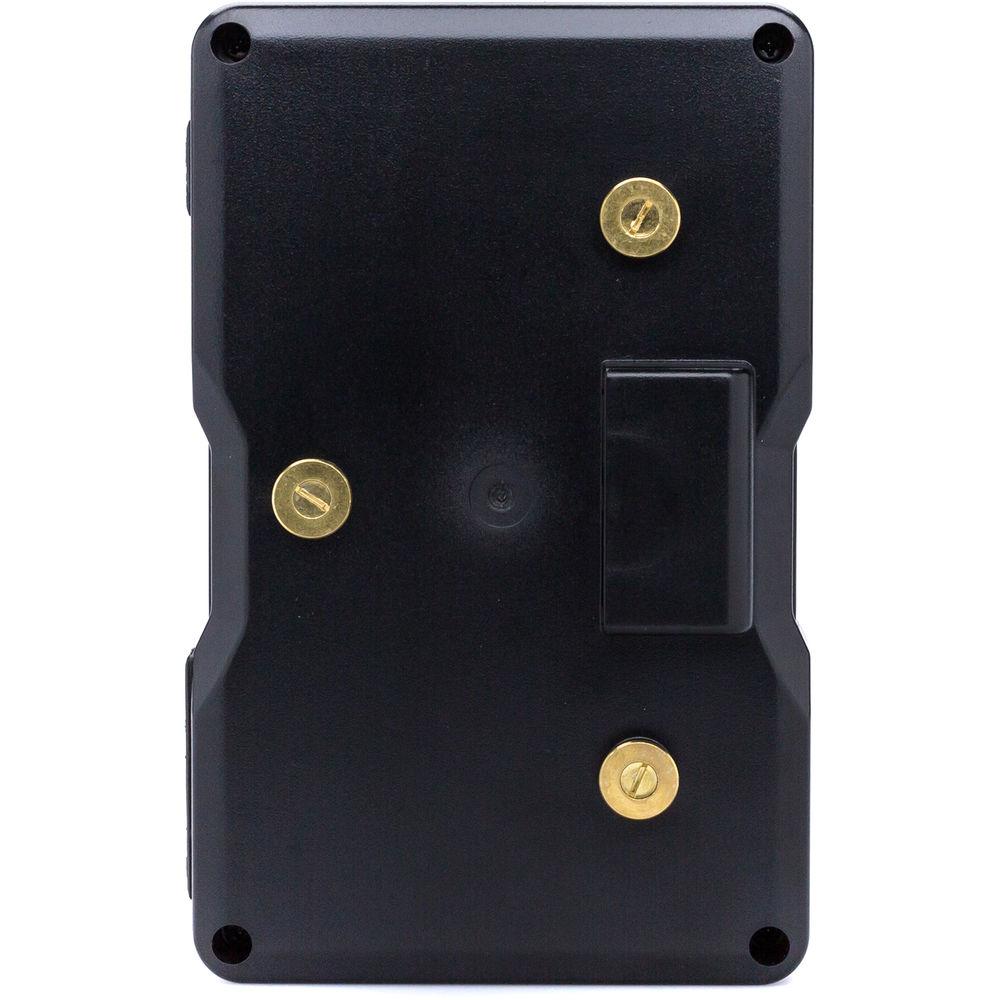

The Cool Blue Series AN-100AL Lithium-Ion Gold Mount Battery from Fxlion outputs 14.8V and has a capacity of 98Wh (6.6Ah). It features both D-Tap and DC outputs that can be used for charging as well as discharging. Additionally, this battery comes with a 5V/2A USB output that allows for charging smartphones. The blue LCD screen displays charging or discharging time in hours and minutes. It flashes when the battery power goes below 10%. This battery also features a built-in circuit design that protects it during charging and use.
    Compatible With
  • PL-3680, PL-3680D, PL-3680E, PL-5680, PL- Q80A, PL-Q280A, PL-Q480A, PL-1680A, PL-4680A, and PL-5680A Fxlion chargers
  • Blue LCD screen flashes when battery power goes below 10%
  • Accurate charging/discharging/power indication
  • 5-level LED power indicator
  • Chargeable Li-ion battery, no memory effect
  • Intelligent protection circuit design for over-heat, over-charge, over-discharge, and over-current protection
  • D-Tap and DC outputs, both can be used as a charging or discharging port
  • USB 5V/2A output for charging smartphones
Table of Contents




Upload User Manual

Have you got an user manual for the Fxlion Cool Blue Series AN-100AL 14.8V Lithium-Ion Gold Mount Battery in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Fxlion AN-100AL Specs

Voltage 14.8 V
Capacity 6.6 Ah, 98 Wh
USB Output 5 V / 2 A
Mount Type Gold Mount
Charging Time Approximately 4 hours with FX 16.8 V / 2 A output charger (available separately)
Approximately 2.2 hours with FX 16.8 V / 4 A output charger (available separately)
Working Temperature -4 to 131°F (-20 to 55°C)
Dimensions 6.2 x 3.9 x 2.1" (158 x 100 x 53 mm)
Weight 1.7 lb (0.765 kg)
Package Weight 1.95 lb
Box Dimensions (LxWxH) 7.2 x 4.4 x 3.2"
