User Manual for Fxlion Cool Blue Series BP-190SL 14.8V Lithium-Ion V-Mount Battery Click to enlarge the picture
Contents of the user manual for the Fxlion Cool Blue Series BP-190SL 14.8V
- Product category: On Camera Batteries Fxlion
- Brand: Fxlion
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fxlion On Camera Batteries
 |
User manual for the Fxlion Cool Blue Series BP-190SL 14.8V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fxlion product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fxlion user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fxlion product will considerably shorten its lifespan!
|

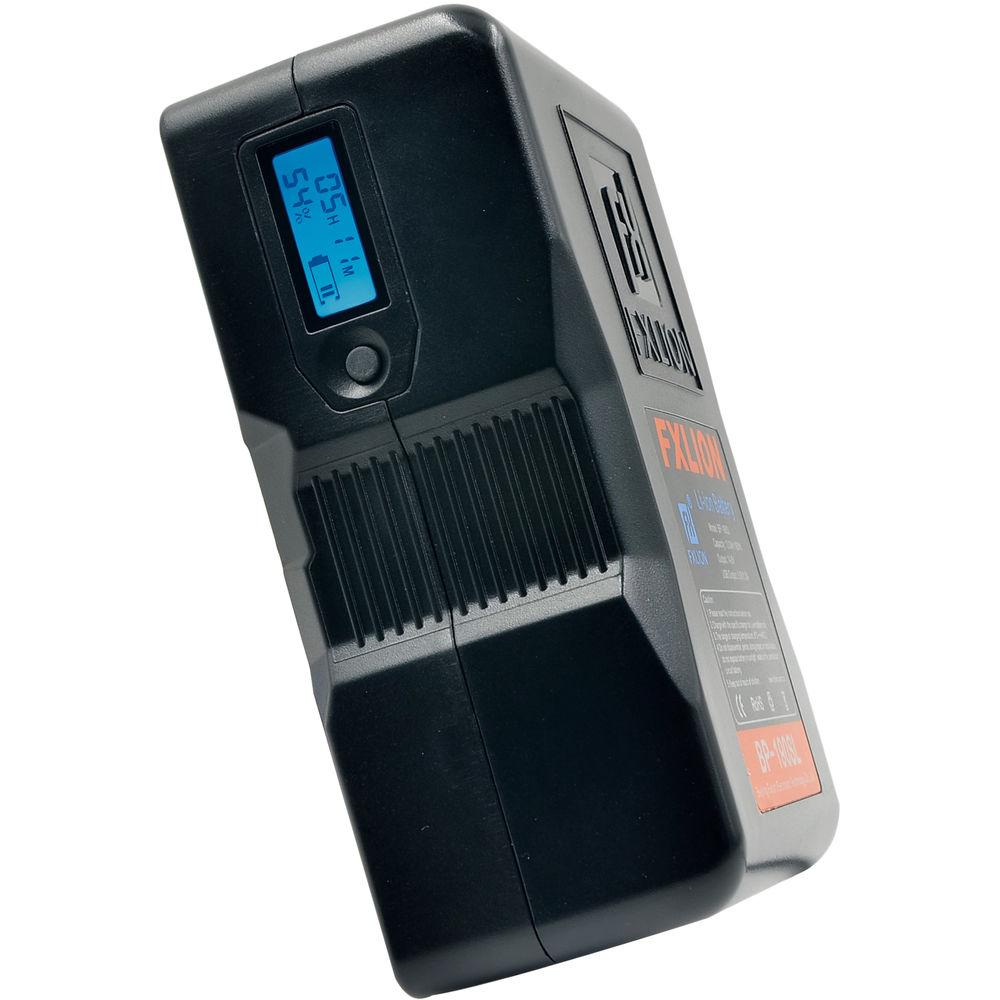

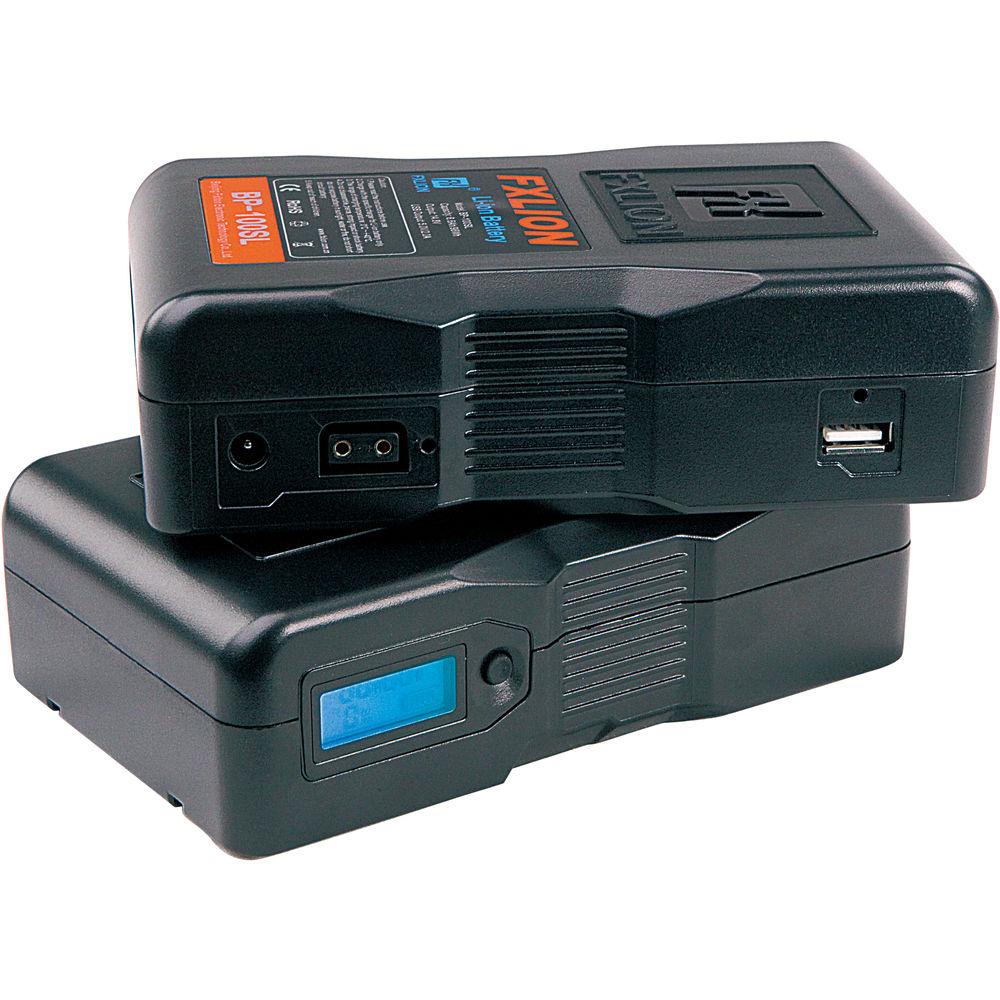

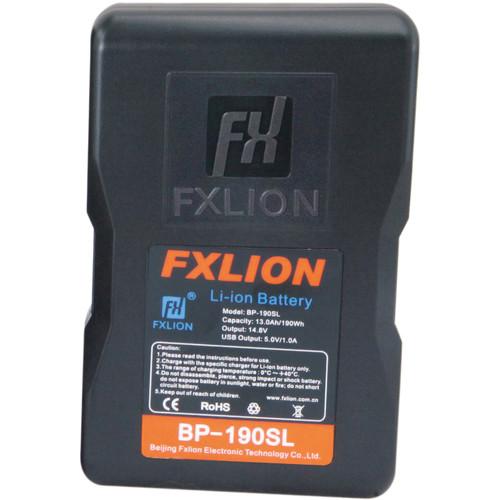

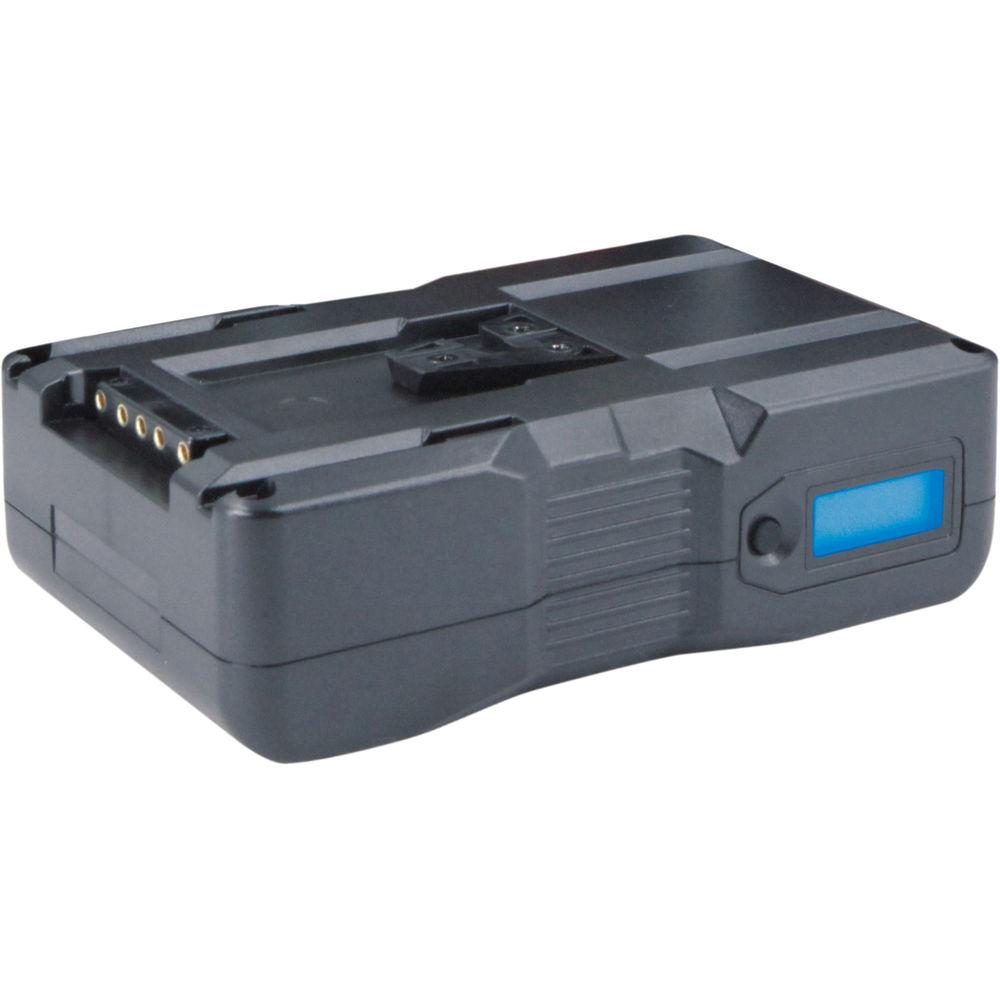

Product description The Cool Blue Series BP-190SL Lithium-Ion V-Mount Battery from Fxlion outputs 14.8V and has a capacity of 190Wh (13Ah). It features both D-Tap and DC outputs that can be used for charging as well as discharging. Additionally, this battery comes with a 5V/2A USB output that allows for charging smartphones. The blue LCD screen displays charging or discharging time in hours and minutes. It flashes when the battery power goes below 10%. This battery also features a built-in circuit design that protects it during charging and use. - Compatible With
- PL-3680, PL-3680D, PL-3680E, PL-5680, PL- Q80B, PL-Q280B, PL-Q480B, PL-1680B, PL-4680B, and PL-5680B Fxlion chargers
- Blue LCD screen flashes when battery power goes below 10%
- Accurate charging/discharging/power indication
- 5-level LED power indicator
- Chargeable Li-ion battery, no memory effect
- Intelligent protection circuit design for over-heat, over-charge, over-discharge, and over-current protection
- D-Tap and DC outputs, both can be used as a charging or discharging port

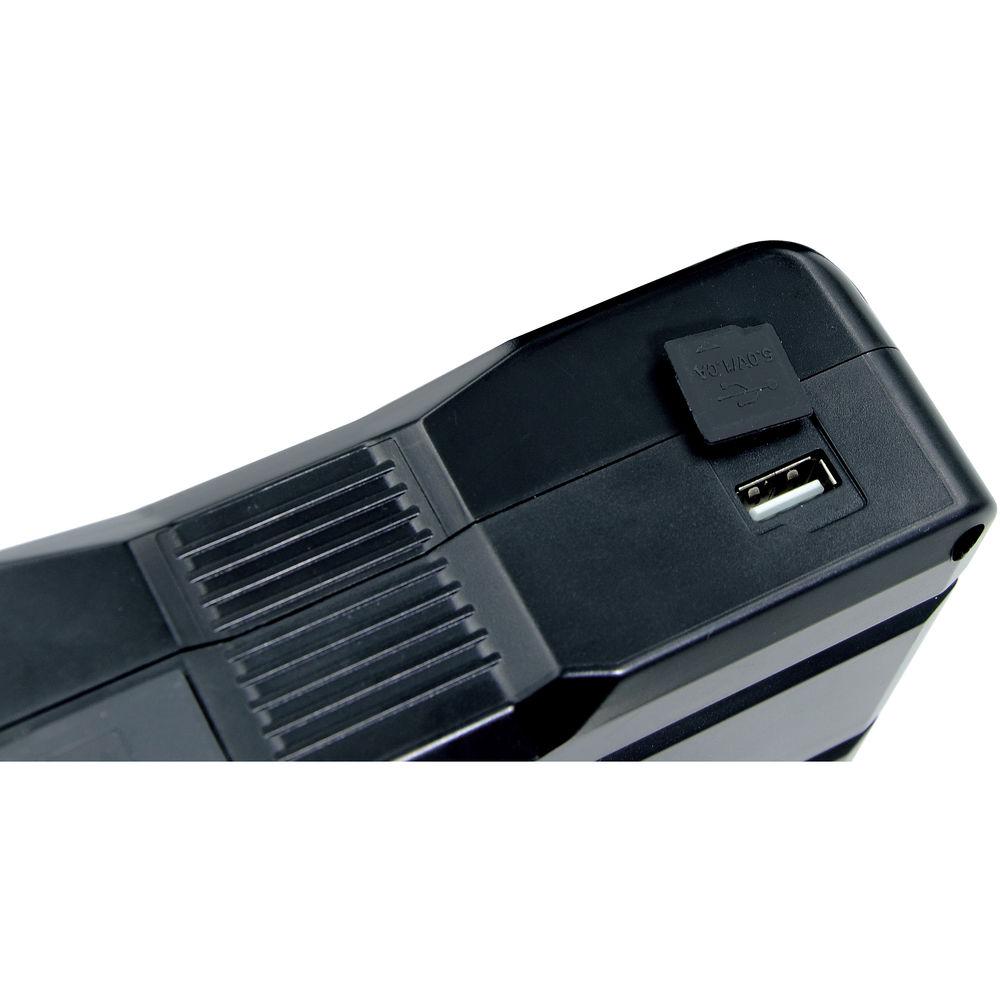

- USB 5V/2A output for charging smartphones
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fxlion Cool Blue Series BP-190SL 14.8V Lithium-Ion V-Mount Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFxlion BP-190SL Specs | Voltage | 14.8 V | | Capacity | 13 Ah, 190 Wh | | USB Output | 5 V / 2 A | | Mount Type | V-Mount | | Charging Time | Approximately 8 hours with FX 16.8 V / 2 A output charger (available separately)
Approximately 3.9 hours with FX 16.8 V / 4 A output charger (available separately) | | Working Temperature | -4 to 131°F (-20 to 55°C) | | Dimensions | 6.2 x 3.9 x 2.5" (158 x 100 x 64.5 mm) | | Weight | 2.6 lb (1.16 kg) |
