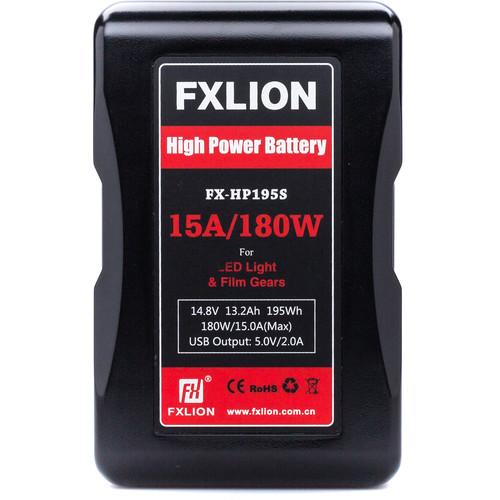

Product description The FX-HP195S 14.8V Lithium-Ion V-Mount Battery from Fxlion can supply a maximum of 15A / 180W constant power to LED fixtures and other equipment. It has a total capacity of 195Wh (13.2Ah). It is compatible with V-Mount power systems and features both D-Tap and DC outputs that can be used for charging as well as discharging. Additionally, this battery comes with a USB output that allows for charging compatible devices like smartphones, and more. - Compatibility
- PL-3680B, PL-3680D, PL-3680E, PL-5680, PL-Q80B, PL-Q280B, PL-Q480B, PL-1680B, PL-4680B, and PL-5680B Fxlion chargers
Suitable for 12V LED lightings and other gear - Working current up to 15A (maximum)

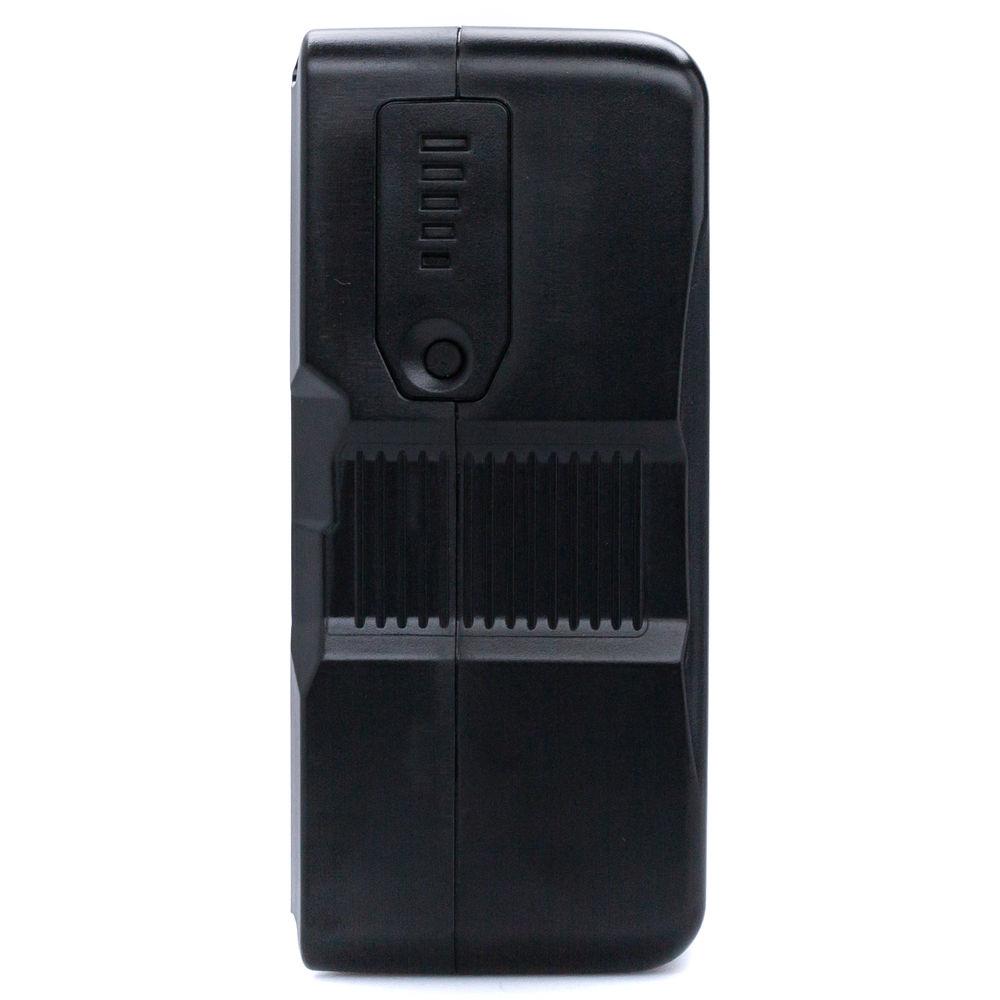

- 5-level LED power indicator
- Chargeable lithium-ion battery, no memory effect
- Intelligent protection circuit design for over-heat, over-charge, over-discharge, and over-current protection

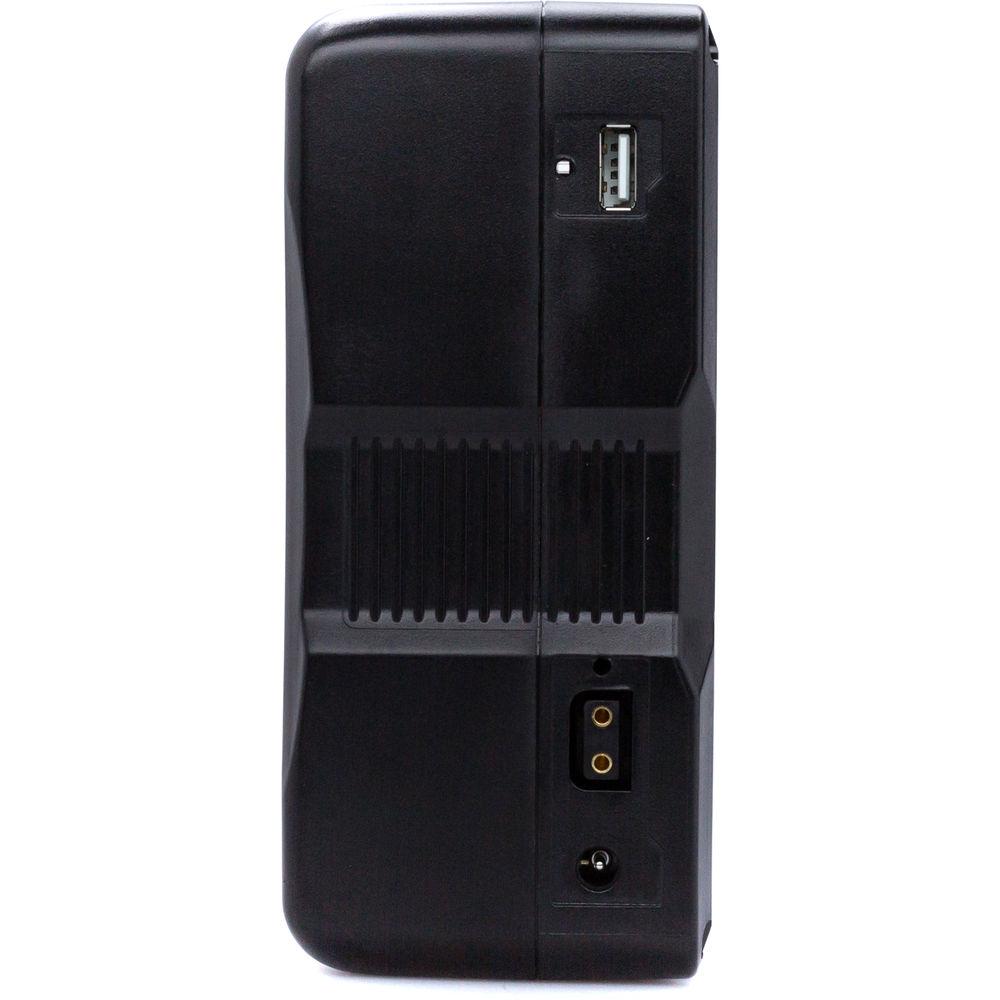

- D-Tap and DC outputs, both can be used as a charging or discharging port
- USB output for charging personal electronic devices
Table of Contents
|
Upload User Manual
Have you got an user manual for the Fxlion FX-HP195S 14.8V Lithium-Ion V-Mount Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFxlion FX-HP195S Specs | Nominal Voltage | 14.8 V | | Capacity | 13.2 Ah, 195 Wh | | Working Current | 15 A (maximum) | | Wattage | 180 W (maximum) | | Mount Type | V-Mount | | Charging Time | Approximately 8 hours with Fxlion 16.8V/2A output charger (available separately)
Approximately 3.9 hours with Fxlion quick charger (available separately) | | Working Temperature | -4 to 131°F (-20 to 55°C) | | Dimensions | 6.2 x 3.9 x 2.7" (158 x 100 x 69.5 mm) | | Weight | 3 lb (1.36 kg) |
