User Manual for G-Technology 12TB G-SPEED Studio Thunderbolt 2 External Storage System Click to enlarge the picture
Contents of the user manual for the G-Technology 12TB G-SPEED Studio Thunderbolt 2
- Product category: Hard Drive Arrays G-Technology
- Brand: G-Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for G-Technology Hard Drive Arrays
 |
User manual for the G-Technology 12TB G-SPEED Studio Thunderbolt 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any G-Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official G-Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a G-Technology product will considerably shorten its lifespan!
|

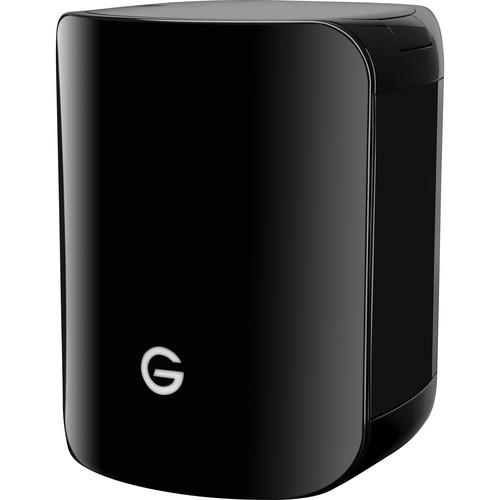

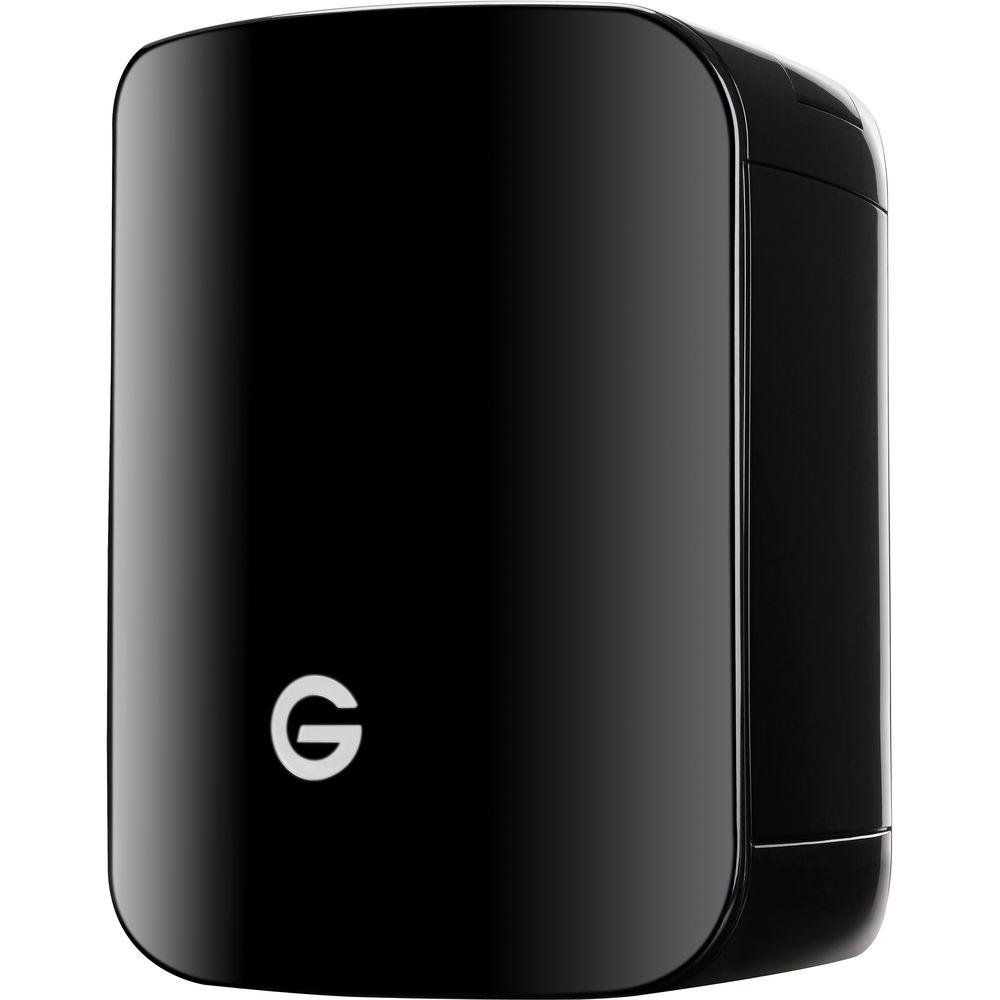

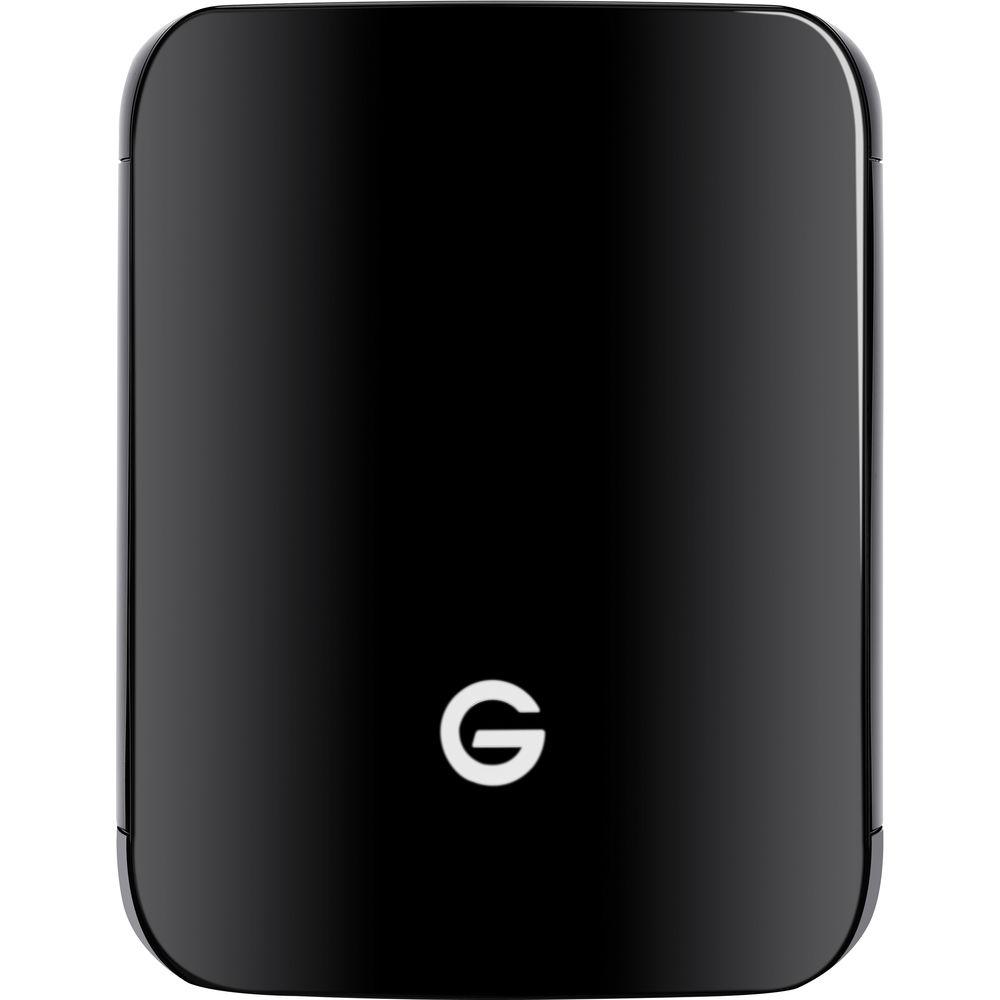

Product description G-Technology Thunderbolt 2-Equipped G-RAID and G-SPEED Studio Storage Systems Read More befyutqsdyxvyfyftfeayuxw The 12TB G-SPEED Studio Storage System with Thunderbolt 2 from G-Technology is designed for more advanced applications, like storing or saving 2K and 4K compressed video, as well as more basic storage. The G-Speed Studio has four removable enterprise drives that can be configured as RAID 0, 1, 5, and 10, each of which supports performance, redundancy, or a combination of both. There are also two Thunderbolt 2 ports that support data transfer speeds up to 20 Gb/s, as well as daisy-chaining of additional devices. This unit is preformatted for Mac and compatible with Windows via reformatting.

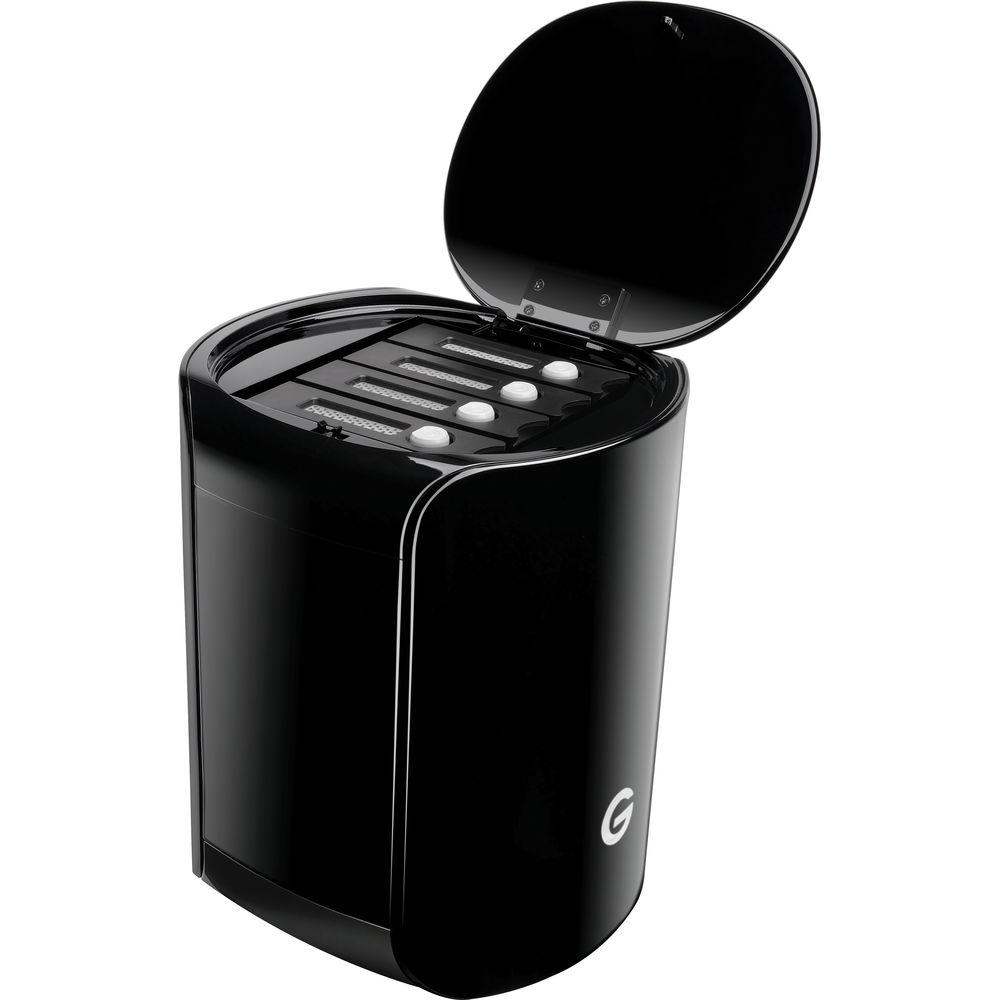

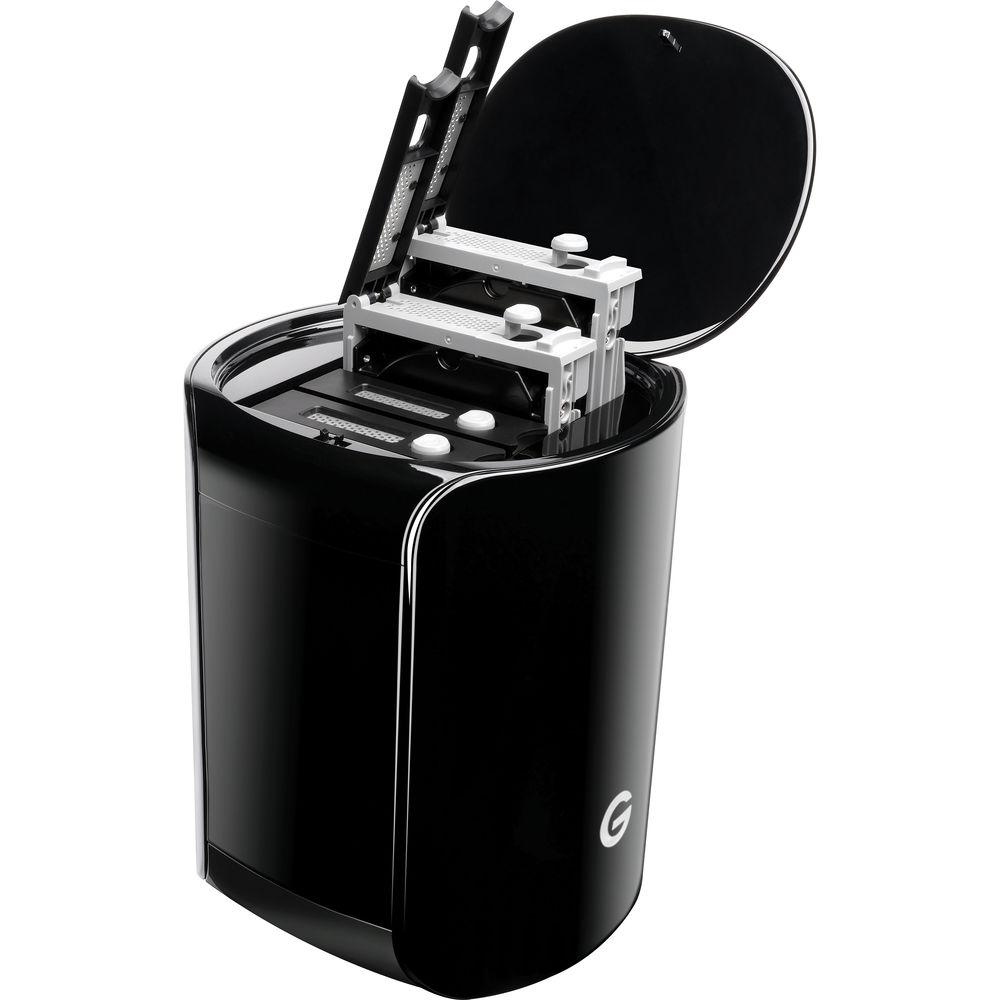

The G-SPEED Studio comes with four 3.5" Enterprise-class drives running at 7200 rpm and configured in RAID 5. Transfer rates of up to 660 MB/s are possible when configured in RAID 0. This makes this suitable for many purposes such as backing up family photos and video, professional digital content use, and more. Also included are all necessary accessories to get the G-SPEED Studio running, such as a power cable and Thunderbolt 2 cable. - Dual Thunderbolt 2 Ports

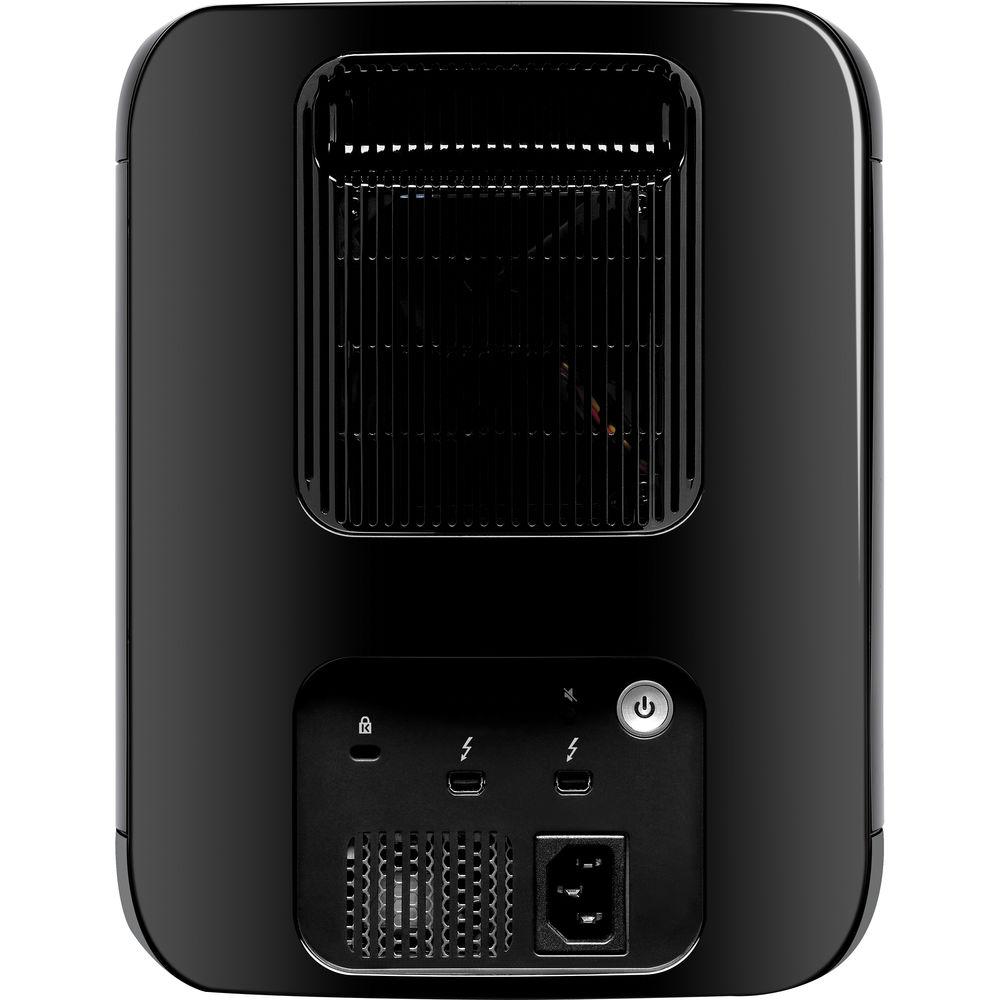

- Thunderbolt 2 offers a single 20 Gb/s bi-directional channel that allows you to stream and write 4K video at the same time. Also daisy chain up to six Thunderbolt devices at the same time
- Hardware RAID Options
- Preconfigured with RAID 5, but also supports RAID 0, 1, and 10. RAID 0 shares data between drives giving you the best performance. RAID 1 stores identical data onto drives to preserve data if one drive fails but reduces the total storage capacity by half. RAID 5 shares and stores identical data with parity with storage capacity reduced by 25%, and RAID 10 is mirrored and striped.
UPC: 705487195309 In the Box G-Technology 12TB G-SPEED Studio Thunderbolt 2 External Storage System (Mac) Thunderbolt Cable Power Cable Limited 3-Year Warranty RAID Arrays for Photography and Pro Video William Min 08/24/2018 User Manual PDF 3.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the G-Technology 12TB G-SPEED Studio Thunderbolt 2 External Storage System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersG-Technology 0G03294 Specs | Capacity | 12 TB | | Interface | 2 x Thunderbolt 2 ports | | Disk | 4 x 3 TB 3.5" 7200 rpm enterprise-class hard drives | | Transfer Rate | 660 MB/s (in RAID 0) | | RAID Configuration | Preconfigured in RAID 5 (Configurable in RAID 0, 1, and 10) | | System Requirement | Mac OS X 10.9 or higher | | Dimensions (LxWxH) | 8.63 x 7.94 x 10.08" / 21.9 x 20.2 x 25.6 cm | | Weight | 13.8 lb / 6.3 kg | | | | Package Weight | 19.5 lb | | Box Dimensions (LxWxH) | 17.0 x 14.5 x 14.0" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
