User Manual for G-Technology 3TB Spare 3000 Enterprise Hard Drive Click to enlarge the picture
Contents of the user manual for the G-Technology 3TB Spare 3000 Enterprise Hard
- Product category: Expansion Drives G-Technology
- Brand: G-Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for G-Technology Expansion Drives
|
User manual for the G-Technology 3TB Spare 3000 Enterprise Hard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any G-Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official G-Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a G-Technology product will considerably shorten its lifespan!
|

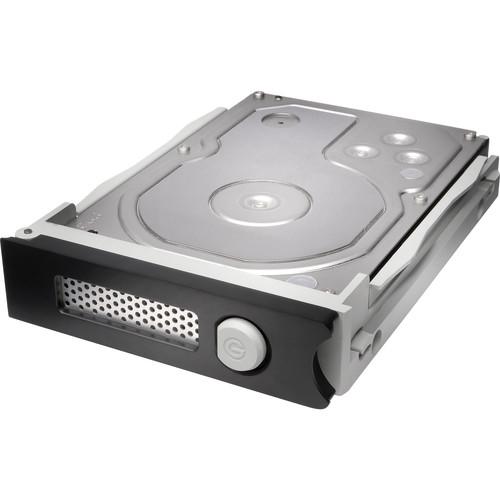

Product description The 3TB Spare 3000 Enterprise Hard Drive from G-Technology is a hot-swappable Spare series drive for use with the G-Technology G-SPEED Studio, G-SPEED Studio XL, G-RAID Studio, and G-RAID arrays. As a Spare series drive, its frame is fitted with a mounting system that only allows it to be used with the mentioned G-Tech products.
This drive allows you to store and access up to 3TB of your data when installed in a G-Technology array. In terms of speed, this drive operates at 7200 rpm and the 64MB cache helps ensure uninterrupted data transfers.
- Rotational Vibration Safeguard
- Helps maintain drive performance in high rotational vibration environments and multi-drive systems
- Thermal Fly-Height Control with internal thermal sensor
- Helps lower the soft error rate for improved reliability and performance
- Improved Watts per Gigabyte
- 24% lower W/GB than its predecessor for maximum efficiency
- Optional Bulk Data Encryption and TCG Enterprise_A
- Encrypt private data, providing improved security and easier redeployment
- SATA Interface
- The hard drive connects via the SATA 6 Gb/s interface (Rev. 3.0)
UPC: 705487196016 In the Box G-Technology 3TB Spare 3000 Enterprise Hard Drive Limited 3-Year Warranty (US Only) Table of Contents
|
Upload User Manual
Have you got an user manual for the G-Technology 3TB Spare 3000 Enterprise Hard Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersG-Technology 0G03506 Specs | | | Interface | SATA III 6 Gb/s | | Capacity (GB) at 512 bytes/sector | 3 TB | | Form Factor | 3.5" | | Sector Size (bytes) | 512e, 512n | | Max areal density (Gbits/sq. in.) | 446 (512e), 475 (512n) | | | | Data Buffer | 64 MB | | Rotational Speed | 7200 rpm | | Interface Transfer Rate (max) | 600 MB/s | | Sustained Transfer Rate (typical) | 171 MB/s (512e), 181 MB/s (512n) | | Seek time (read, typical) | 8.0 ms | | | | Error rate (non-recoverable, bits read) | 1 in 1015 | | Load/Unload Cycles | 600,000 at 104°F / 40°C | | Availability (hrs/day x days/wk) | 24x7 | | MTBF | 2,000,000 hours | | | | Requirements | +5 VDC (±5%)
+12 VDC (+10%/-8%) | | Startup Current (A, max) | 1.2 (+5 V), 2.0 (+12 V) | | Read/Write | 11.4 W | | Idle Average | 6.9 W | | Unload Idle | 5.7 W | | | | Ambient Temperature | 41 to 140°F / 5 to 60°C | | Shock (half-sine wave 2 ms, G) | 70 | | Vibration (G RMS, 5 to 500 Hz) | 0.67 (XYZ) | | | | Ambient Temperature | -40 to 158°F / -40 to 70°C | | Shock (half-sine wave, 1ms, G) | 300 | | Vibration (G RMS, 5 to 500 Hz) | 1.04 (XYZ) | | | | z-height | 1.0" / 26.1 mm | | Dimensions (width x depth) | 4.00 (±0.01) x 5.80" / 101.60 (±0.25) x 147.00 mm | | Weight (typical) | 24.3 oz / 690.0 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 11.0 x 8.5 x 5.5" |
