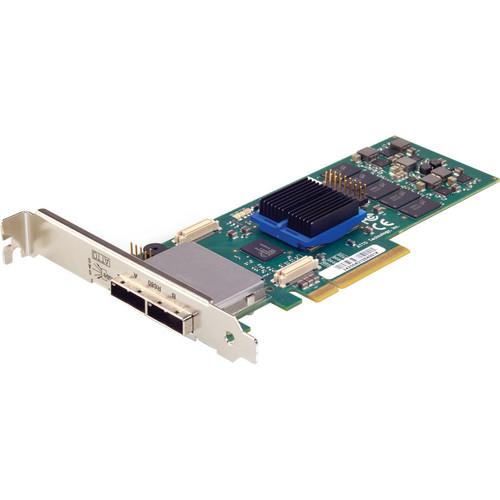

User Manual for G-Technology ATTO Technology ExpressSAS R680 8-Port 6 Gbps SAS SATA RAID Adapter Click to enlarge the picture
Contents of the user manual for the G-Technology ATTO Technology ExpressSAS R680 8-Port
- Product category: Controller Cards G-Technology
- Brand: G-Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for G-Technology Controller Cards
|
User manual for the G-Technology ATTO Technology ExpressSAS R680 8-Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any G-Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official G-Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a G-Technology product will considerably shorten its lifespan!
|
Product description - The ATTO Difference - Adaptive Path Optimization
- The ATTO Difference - CacheAssure
- The ATTO Difference - DriveAssure
The ATTO Technology ExpressSAS R680 8-Port 6 Gbps SAS/SATA RAID Adapter from G-Technology is an external RAID Adapter that adds high performance RAID protection to direct attached SAS and SATA JBOD storage. The ExpressSAS R680 gives cost effective and reliable transition from 3 to 6 Gbps SAS/SATA storage infrastructures in general IT, media and entertainment environments. It also gives transition of 6 Gbps SAS/SATA connectivity to Direct Attached Storage via 8 external ports.
With transfer rates of up to 1200 Mbps per port, the ExpressSAS R680 is ideal for workflows such as digital content creation, streaming video and audio, transactional databases, Email and web servers. The RAID stack and exclusive latency management features help you create, share and protect data and digital assets more effectively. - RAID Levels Supported
- ExpressSAS R680 supports RAID levels 0, 1, 4, 5, 6, 10, 40, 50, 60 and DVRAID, an advanced RAID level for digital video environments* 1
Please Note: *RAID 40, 50, 60 require ATTO Express Power Center software close - Long-Standing RAID Experience
- ExpressSAS R680 features the time-proven ATTO RAID Stack, DVRAID and CacheAssure, proprietary technologies developed to provide the most robust RAID based connectivity solution in the industry.
- Flexible Connectivity Solutions
- The ExpressSAS R680 is ideal for a wide variety of IT and digital media environments that require high-performance and parity RAID protected data. ExpressSAS R680 offers driver support for Windows, Linux and Mac OS X, that provides a single connectivity solution for customers with heterogeneous operating system environments.
- Performance Engineered
- The ExpressSAS R680 allows users to instantly protect their critical data to enhance performance. ExpressSAS R680 is designed to maintain full performance in degraded mode and to minimize downtime with 50% faster rebuilds, limiting exposure to a second drive failure.
- Advanced Management Tools
- The ExpressSAS R680 Adapter's easy-to-use configuration tool features an intuitive GUI that simplifies RAID group configuration, management and monitoring. It also offers the most advanced performance tuning capabilities and troubleshooting utilities, providing users with sophisticated diagnostics and the flexibility to control settings for specific applications.
- Advanced Data Streaming Technology
- Latency management technology that controls the acceleration of data transfers to move large amounts of data faster and more efficiently.
- DriveAssure Technology
- Drive assessment and latency management technology that prevents premature drive failures to ensure uninterrupted access to data.
- CacheAssure Technology
- NV cache data protection module provides a maintenance free solution that safeguards against the loss of cached data during a power or system failure.
- Data Recovery Mode
- Mechanism that increases the probability of fully or partially recovering data that is lost due to a disk failure and offline RAID group.
- User Benefits
- • High performance host-based RAID for direct attached storage • Four port configurations for flexible connectivity • Full performance in degraded or rebuild mode • Flash-based cache protection protects against lost data during power or system failure • More options for retrieving data from a failed drive with data recovery mode • 50% faster rebuilds • Efficient scalability with host level RAID • Maintain high priority workflows with tunable rebuilds • RAID group partitioning for better management
- Management Tools
- • User-friendly GUI for quick and easy RAID setup • Command line interface for advanced functionality • ATTO config tool: BIOS-based RAID management and configuration utility
UPC: 705487188400 In the Box G-Technology ATTO Technology ExpressSAS R680 8-Port 6 Gbps SAS/SATA RAID Adapter Full Height Bracket Firmware CD Limited 3-Year Warranty (US Only) Table of Contents
|
Upload User Manual
Have you got an user manual for the G-Technology ATTO Technology ExpressSAS R680 8-Port 6 Gbps SAS SATA RAID Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersG-Technology 0G02068 Specs | Ports | 8 external | | Bus Specifications | x8 PCIe 2.0 host interface | | Form Factor | Low profile | | Connectors | 2 mini SAS (4x) SFF 8088 external | | Operating System Support | Windows Server 2003, 2008 Windows XP, Vista, 7 SUSE Linux RedHat Linux Mac OS X (10.4.x - 10.7.x) | | Agency Approvals and Compliance | FCC Part 15, Subpart B, Class B
EN55024: 1998 + A1: 2001 + A2: 2003
EN55022: 2006, + A1: 2007 Class B
EN60950 - 1
EU RoHS compliant (2002 / 95 / EC) | | RAID Features and Functionality | SAS 2.0, SAS, SATA and SATA II support
RAID levels 0, 1, 4, 5, 6, 10, 40, 50, 60, JBOD, DVRAID
ATTO RAID stack
Command coalescing
Staggered drive spin-up
RAID level migration
Hot swap with auto rebuild
Online performance metrics and event logs
Native command queuing
512 MB ECC protected cache memory
SES, SNMP and S.M.A.R.T. support
Pass-through support for tape and tape devices
Configurable stripe size
Online capacity expansion
Global and dedicated hot spares
Automatic and tunable online rebuilds
N-way mirroring | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 157°F (-40 to 70°C) | | Operating Humidity | 10 to 90% non-condensing | | Storage Humidity | 5 to 95% non- condensing | | Operating Voltage | 9.6 W (typical) | | Air Flow | 150 lf/m (min) recommended | | Dimensions (LxH) | 6.60 x 2.71" (16.76 x 6.88 cm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.1 x 6.2 x 3.5" |
