User Manual for G-Technology G-RAID 20TB 2-Bay Thunderbolt 2 RAID Array Click to enlarge the picture
Contents of the user manual for the G-Technology G-RAID 20TB 2-Bay Thunderbolt 2
- Product category: Hard Drive Arrays G-Technology
- Brand: G-Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for G-Technology Hard Drive Arrays
 |
User manual for the G-Technology G-RAID 20TB 2-Bay Thunderbolt 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any G-Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official G-Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a G-Technology product will considerably shorten its lifespan!
|

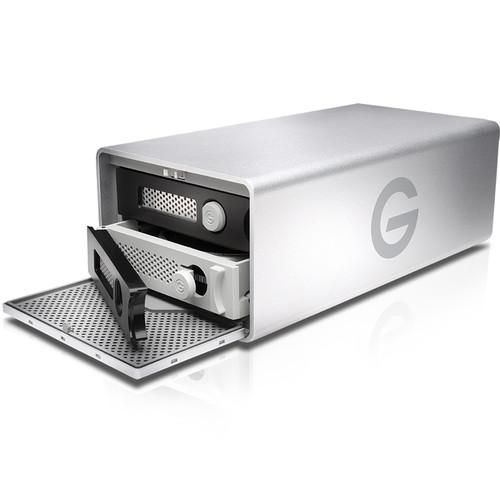

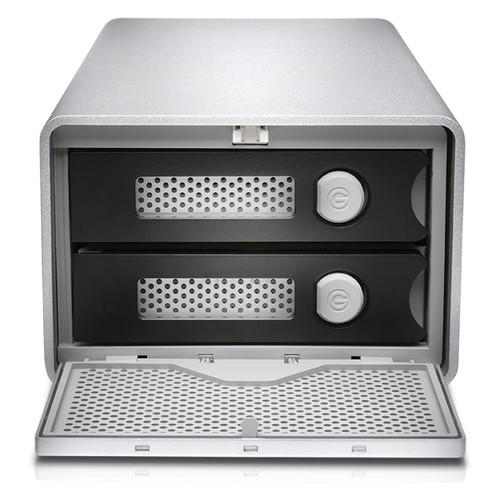

Product description RAID Arrays for Photography and Pro Video Read More Add the speed and storage capabilities of RAID, Thunderbolt 2, and USB 3.0 to your Mac and Windows systems using the G-RAID 20TB 2-Bay Thunderbolt 2 RAID Array from G-Technology. This array features two SATA III 6 Gb/s drive bays, each of which holds one removable 10TB enterprise-class hard drive, for a total capacity of 20TB. The drives have a rotational speed of 7200 rpm and are configured in a RAID 0 array. Moreover, this G-RAID is outfitted with one USB 3.0 port along with two Thunderbolt 2 ports, which deliver daisy-chaining capabilities.
This G-RAID features an internal RAID controller which supports hardware RAID 0 (optimized for performance), RAID 1 (optimized for 1:1 data redundancy), or JBOD, with data transfer rates of up to 480 MB/s. This will allow users to access, browse, edit, and backup their digital library. It is well suited for demanding creative projects, such as those involving HD, 2K, and compressed 4K workflows. In addition, it may also be used for storage-intensive applications, such as audio editing, digital photography, music libraries, data backup, and more. This array uses a smart cooling fan to help ensure quiet operation, a long life, and data reliability, as well as an all-aluminum enclosure to help increase its durability.
While this G-RAID is compatible with both Mac and Windows, it comes pre-formatted HFS+ with Journaling for Mac OS 10.9 and later. It may also be reformatted for Windows and is compatible with Windows 10, 8.1, and 7. Included with this storage array are two Thunderbolt cables, a USB 3.0 cable, a power cable, and an AC power adapter. Protection is provided by a limited 3-year warranty. General Features - Two removable 10TB enterprise-class hard drives
- 2 x Thunderbolt 2 ports (compatible with Thunderbolt)
1 x USB 3.0 port (compatible with USB 2.0) - User configurable hardware RAID can be set as RAID 0 (performance) or RAID 1 (1:1 redundancy), and JBOD (each drive can be utilized individually)
- Data transfer speeds up to 480 MB/s are well-suited for photo and video editing, including multistream HD, 2K, and compressed 4K video workflows
- A smart cooling fan helps to ensure quiet operation, a long life, and data reliability
- The housing is built with an all-aluminum enclosure
- Formatted HFS+ with Journaling for Mac OS 10.9 and later, this array is pre-configured as hardware RAID 0 and may also be reformatted for Windows 10, 8.1, and 7
UPC: 705487202755 In the Box G-Technology G-RAID 20TB 2-Bay Thunderbolt 2 RAID Array (2 x 10TB) 2 x Thunderbolt Cables USB 3.0 Cable Power Cable AC Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the G-Technology G-RAID 20TB 2-Bay Thunderbolt 2 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersG-Technology 0G05012 Specs | | | Number of Bays | 2 x 3.5" | | Connections | 2 x Mini DisplayPort (Thunderbolt 2 (20 Gb/s))
1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s)) | | Compatible Drive Interface | SATA III | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 480 MB/s | | RAID Modes | RAID 0, 1, JBOD | | OS Compatibility | macOS 10.9 or Later
Windows 7 or Later | | | | Total Raw Capacity | 20 TB (2 x 10 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Interface | SATA III | | Initial RAID Configuration | RAID 0 | | Pre-Format | HFS+ | | | | Security Features | Kensington Security Slot | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 80% | | Storage Humidity | 10 to 90% | | | | Material of Construction | Aluminum | | Cooling | 1 x Fan | | Status Monitoring | None | | Dimensions (W x H x D) | 5.1 x 3.6 x 9.9" / 13.0 x 9.1 x 25.1 cm | | | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 12.0 x 9.0 x 5.4" |
