Product description

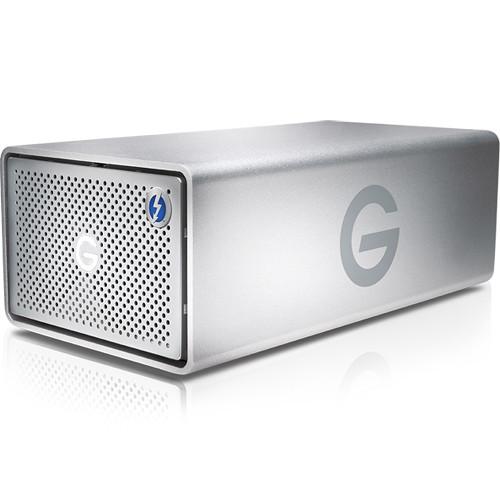

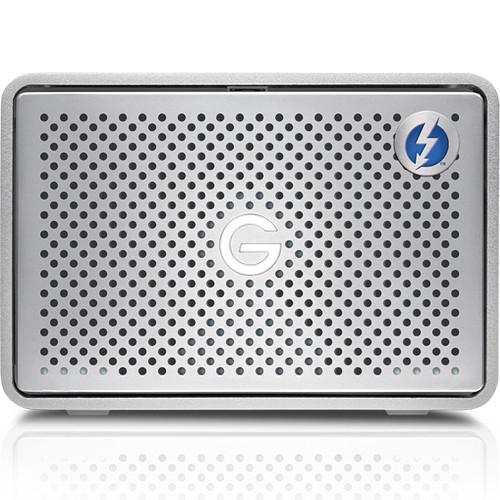

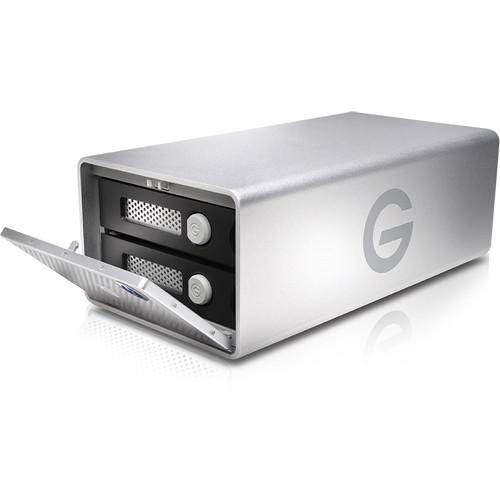

RAID Arrays for Photography and Pro Video Read More Designed for demanding applications and multi-stream HD, 2K, 4K, and HDR workflows, the G-RAID 20TB 2-Bay Thunderbolt 3 RAID Array from G-Technology provides up to 20TB of enterprise-class storage that is made up of two 10TB 7200 rpm 3.5" hard drives and is equipped with two Thunderbolt 3 ports, one USB 3.1 (USB 3.1 Gen 2) port, and one HDMI port. While one of the Thunderbolt 3 ports is used to interface with your host system at speeds of up to 480 MB/s, the other can be used to daisy chain up to five additional devices to your G-RAID. If your system doesn't have Thunderbolt 3, you can use the 10 Gb/s USB 3.1 port, while the HDMI port supports HDCP 2.2, HDR, and 4K/60 fps video passthrough. For those who wish to use this G-RAID with their USB Type-A system, a USB Type-C to Type-A cable is included that supports 10 Gb/s USB 3.1 (USB 3.1 Gen 2), 5 Gb/s USB 3.0 (USB 3.1 Gen 1), and 480 Mb/s USB 2.0.

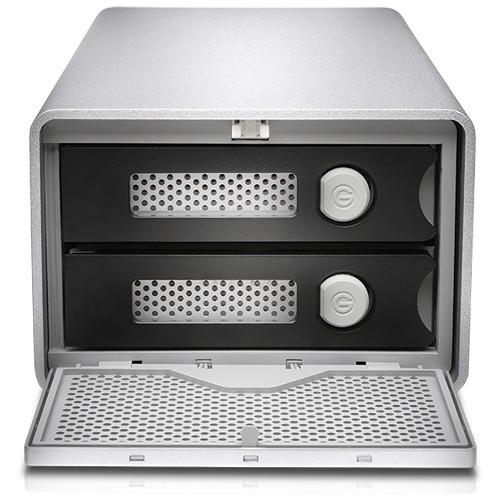

The dual drive bays of this G-RAID support hardware-controlled RAID 0 and RAID 1. RAID 0 stripes the two drives together, providing enhanced read and write speeds, but no data redundancy, while RAID 1 mirrors the content of one drive to the other, providing 1:1 data redundancy at the cost of performance. For those who do not need the benefits of a RAID, JBOD is also supported.

The G-RAID 20TB 2-Bay Thunderbolt 3 RAID Array comes formatted for macOS 10.12+. After a simple reformat, it may also be used with Windows 8.1 and 10. Also included is a 20 Gb/s Thunderbolt cable, an AC power adapter, and a power cable. Protection is provided by a limited 5-year warranty.

General Features

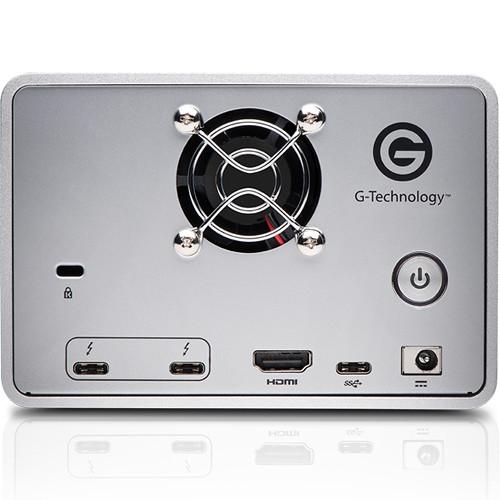

  • Dual Thunderbolt 3 ports and a single USB 3.1 Type-C (USB 3.1 Gen 2) port
  • Daisy-chaining for up to 5 additional devices

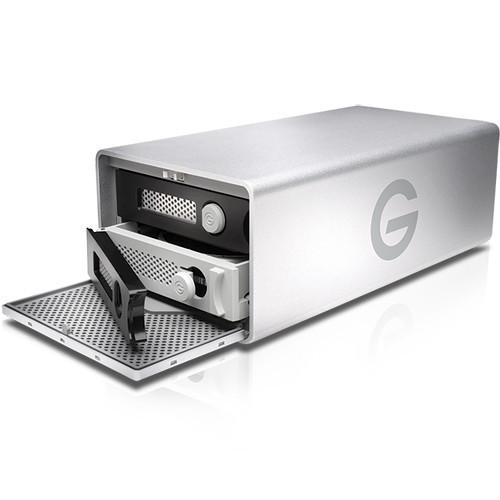

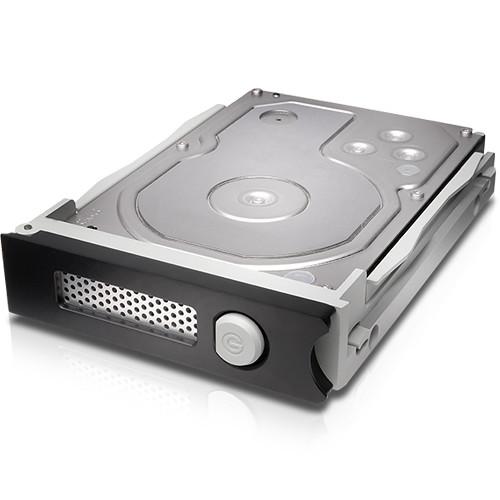

  • Dual 10TB 7200 rpm enterprise-class removable hard drives
  • High-speed data transfers up to 480 MB/s
  • Hardware RAID 0 (performance), RAID 1 (mirroring), or JBOD
  • HDMI port supports HDR and 4K/60 fps video passthrough
UPC: 705487205053 In the Box G-Technology G-RAID 20TB 2-Bay Thunderbolt 3 RAID Array (2 x 10TB)
  • Thunderbolt Cable (20 Gb/s)
  • USB Type-C to Type-A Cable
  • AC Power Adapter
  • Power Cable
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the G-Technology G-RAID 20TB 2-Bay Thunderbolt 3 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    G-Technology 0G05763 Specs

    Number of Bays 2 x 3.5"
    Connections 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
    1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s))
    1 x HDMI Type-A (HDMI 2.0a)
    Form Factor Desktop
    Maximum RAID Transfer Rate 480 MB/s
    RAID Modes RAID 0, 1, JBOD
    OS Compatibility macOS 10.12 or Later
    Windows 8.1 or Later
    Total Raw Capacity 20 TB (2 x 10 TB)
    Type Hard Disk Drive
    Rotational Speed 7200 rpm
    Initial RAID Configuration None
    Pre-Format None
    Dimensions (W x H x D) 9.9 x 5.1 x 3.6" / 25.1 x 13.0 x 9.1 cm
    Weight 6.6 lb / 3 kg
    Package Weight 8.5 lb
    Box Dimensions (LxWxH) 12.0 x 8.8 x 6.9"
