User Manual for G-Technology G-RAID 8TB 2-Bay Thunderbolt 3 RAID Array Click to enlarge the picture
Contents of the user manual for the G-Technology G-RAID 8TB 2-Bay Thunderbolt 3
- Product category: Hard Drive Arrays G-Technology
- Brand: G-Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for G-Technology Hard Drive Arrays
 |
User manual for the G-Technology G-RAID 8TB 2-Bay Thunderbolt 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any G-Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official G-Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a G-Technology product will considerably shorten its lifespan!
|

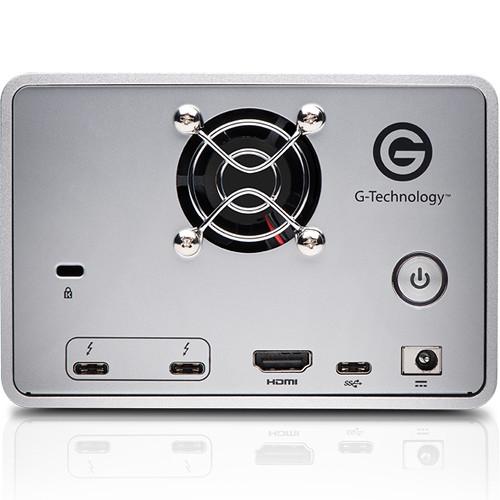

Product description RAID Arrays for Photography and Pro Video Read More Designed for demanding applications and multi-stream HD, 2K, 4K, and HDR workflows, the G-RAID 8TB 2-Bay Thunderbolt 3 RAID Array from G-Technology provides up to 8TB of enterprise-class storage that is made up of two 4TB 7200 rpm 3.5" hard drives and is equipped with two Thunderbolt 3 ports, one USB 3.1 (USB 3.1 Gen 2) port, and one HDMI port. While one of the Thunderbolt 3 ports is used to interface with your host system at speeds of up to 440 MB/s, the other can be used to daisy chain up to five additional devices to your G-RAID. If your system doesn't have Thunderbolt 3, you can use the 10 Gb/s USB 3.1 port, while the HDMI port supports HDCP 2.2, HDR, and 4K/60 fps video passthrough. For those who wish to use this G-RAID with their USB Type-A system, a USB Type-C to Type-A cable is included that supports 10 Gb/s USB 3.1 (USB 3.1 Gen 2), 5 Gb/s USB 3.0 (USB 3.1 Gen 1), and 480 Mb/s USB 2.0.

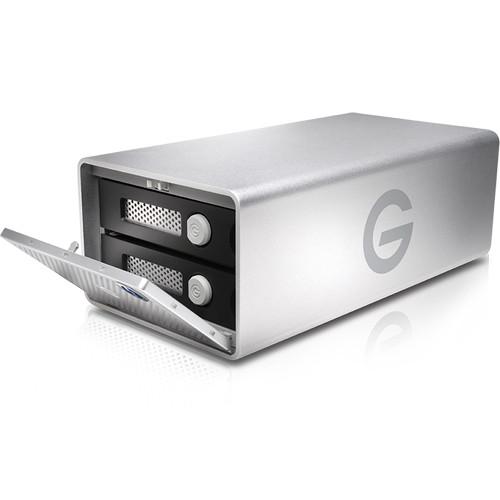

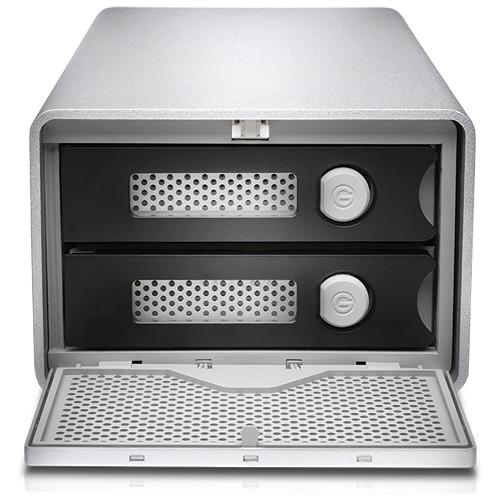

The dual drive bays of this G-RAID support hardware-controlled RAID 0 and RAID 1. RAID 0 stripes the two drives together, providing enhanced read and write speeds, but no data redundancy, while RAID 1 mirrors the content of one drive to the other, providing 1:1 data redundancy at the cost of performance. For those who do not need the benefits of a RAID, JBOD is also supported.
The G-RAID 8TB 2-Bay Thunderbolt 3 RAID Array comes formatted for macOS 10.12+. After a simple reformat, it may also be used with Windows 8.1 and 10. Also included is a 20 Gb/s Thunderbolt cable, an AC power adapter, and a power cable. Protection is provided by a limited 5-year warranty. General Features - Dual Thunderbolt 3 ports and a single USB 3.1 Type-C (USB 3.1 Gen 2) port
- Daisy-chaining for up to 5 additional devices

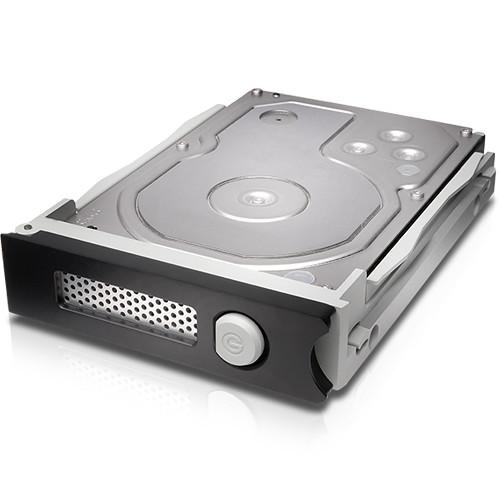

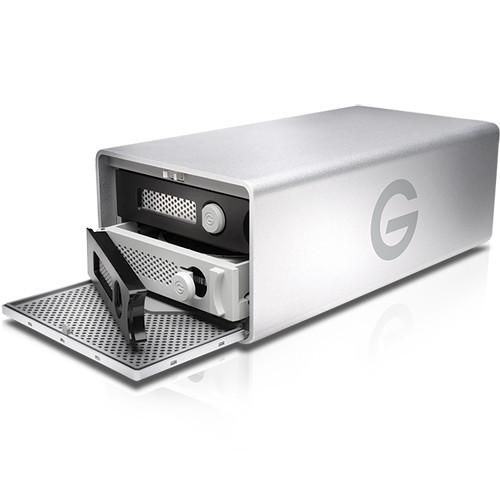

- Dual 4TB 7200 rpm enterprise-class removable hard drives
- High-speed data transfers up to 440 MB/s
- Hardware RAID 0 (performance), RAID 1 (mirroring), or JBOD
- HDMI port supports HDR and 4K/60 fps video passthrough
UPC: 705487204902 In the Box G-Technology G-RAID 8TB 2-Bay Thunderbolt 3 RAID Array (2 x 4TB) Thunderbolt Cable (20 Gb/s) USB Type-C to Type-A Cable AC Power Adapter Power Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the G-Technology G-RAID 8TB 2-Bay Thunderbolt 3 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersG-Technology 0G05748 Specs | | | Number of Bays | 2 x 3.5" | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s))
1 x HDMI Type-A (HDMI 2.0a) | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 440 MB/s | | RAID Modes | RAID 0, 1, JBOD | | OS Compatibility | macOS 10.12 or Later
Windows 8.1 or Later | | | | Total Raw Capacity | 8 TB (2 x 4 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Initial RAID Configuration | None | | Pre-Format | None | | | | Dimensions (W x H x D) | 9.9 x 5.1 x 3.6" / 25.1 x 13.0 x 9.1 cm | | Weight | 6.6 lb / 3 kg | | | | Package Weight | 8.8 lb | | Box Dimensions (LxWxH) | 12.0 x 8.6 x 6.8" |
