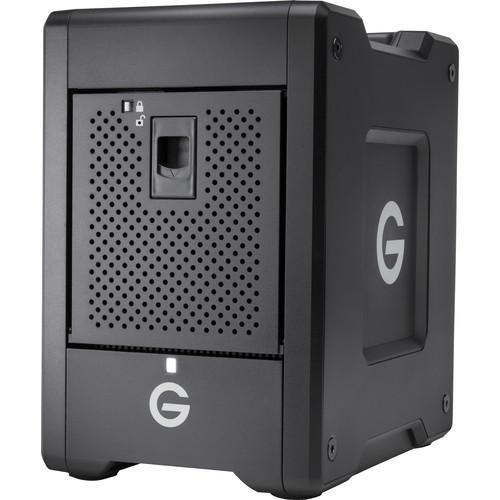

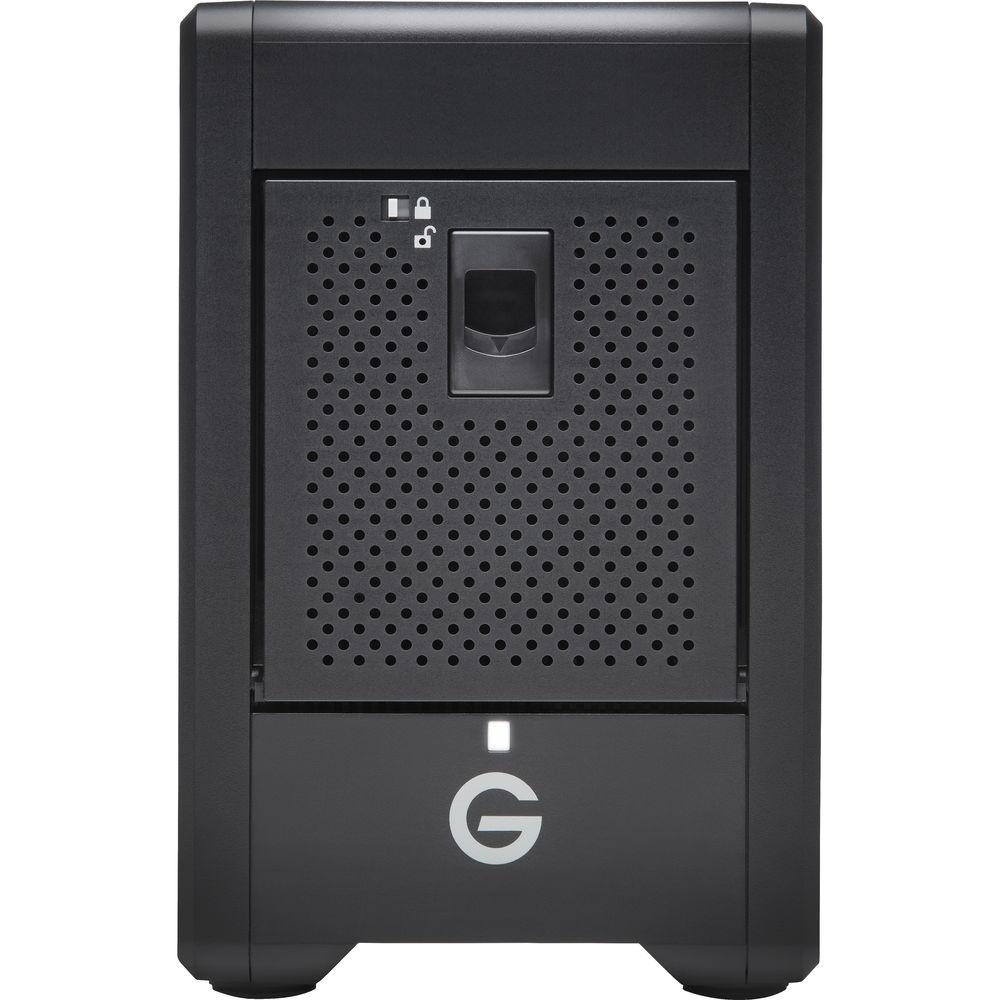

User Manual for G-Technology G-SPEED Shuttle 24TB 4-Bay Thunderbolt 3 RAID Array with Two ev Bay Adapters Click to enlarge the picture
Contents of the user manual for the G-Technology G-SPEED Shuttle 24TB 4-Bay Thunderbolt
- Product category: Uncategorized G-Technology
- Brand: G-Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for G-Technology Uncategorized
 |
User manual for the G-Technology G-SPEED Shuttle 24TB 4-Bay Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any G-Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official G-Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a G-Technology product will considerably shorten its lifespan!
|
Product description Built for easy travel between on-site locations and studios, the G-SPEED Shuttle 24TB 4-Bay Thunderbolt 3 RAID Array from G-Technology delivers storage for demanding workflows, such as 4K, 8K, high dynamic range (HDR), and high frame rate (HFR) footage. Its sustained data transfer rates of up to 500 MB/s allow users to edit multi-camera footage in real time, render multi-layer effects, and export efficiently. Featuring an overall capacity of 24TB, which is split between two 12TB 7200 rpm Enterprise-class SATA 3.5" hard drives, this array comes pre-configured as RAID 0, which provides performance benefits but no data redundancy. It is also compatible with RAID 1, which provides 1:1 data redundancy, and JBOD. Please be aware that if you configure the G-SPEED Shuttle as a RAID 1, its capacity will be cut in half, since one drive will be used for 1:1 data redundancy.

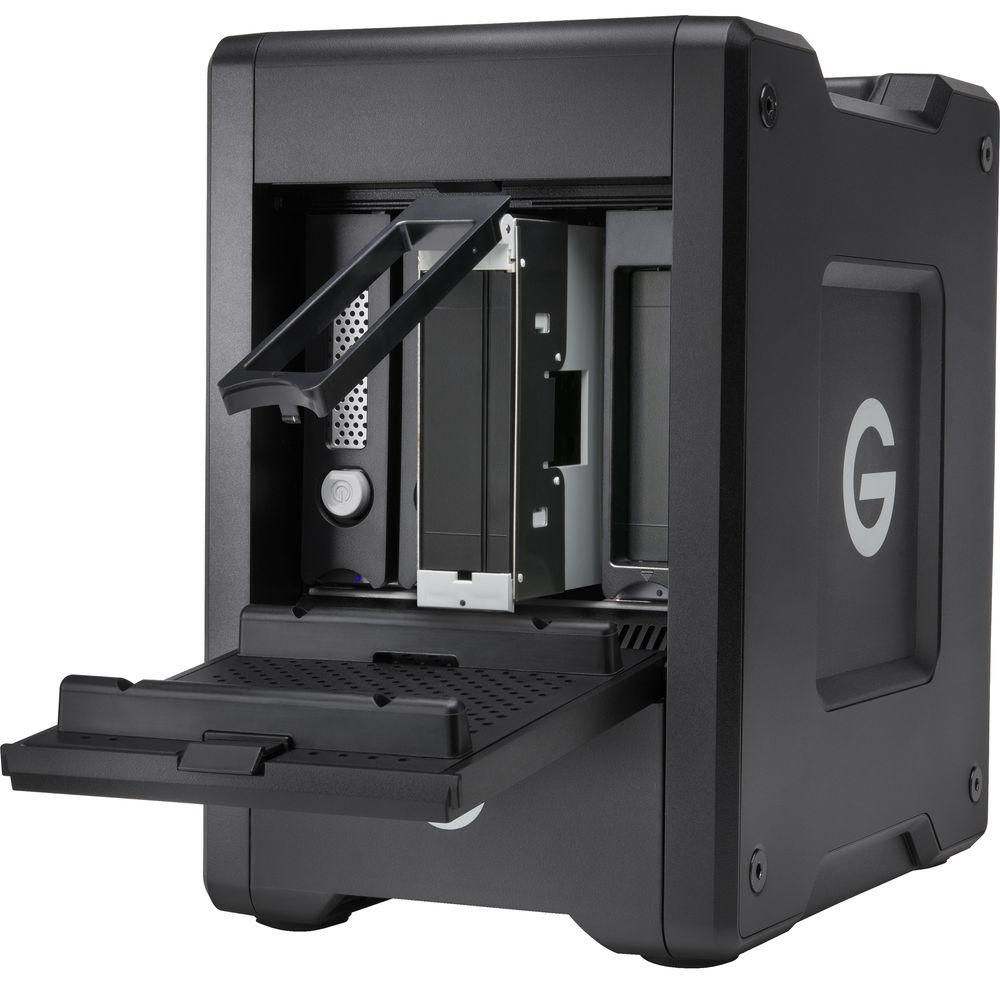

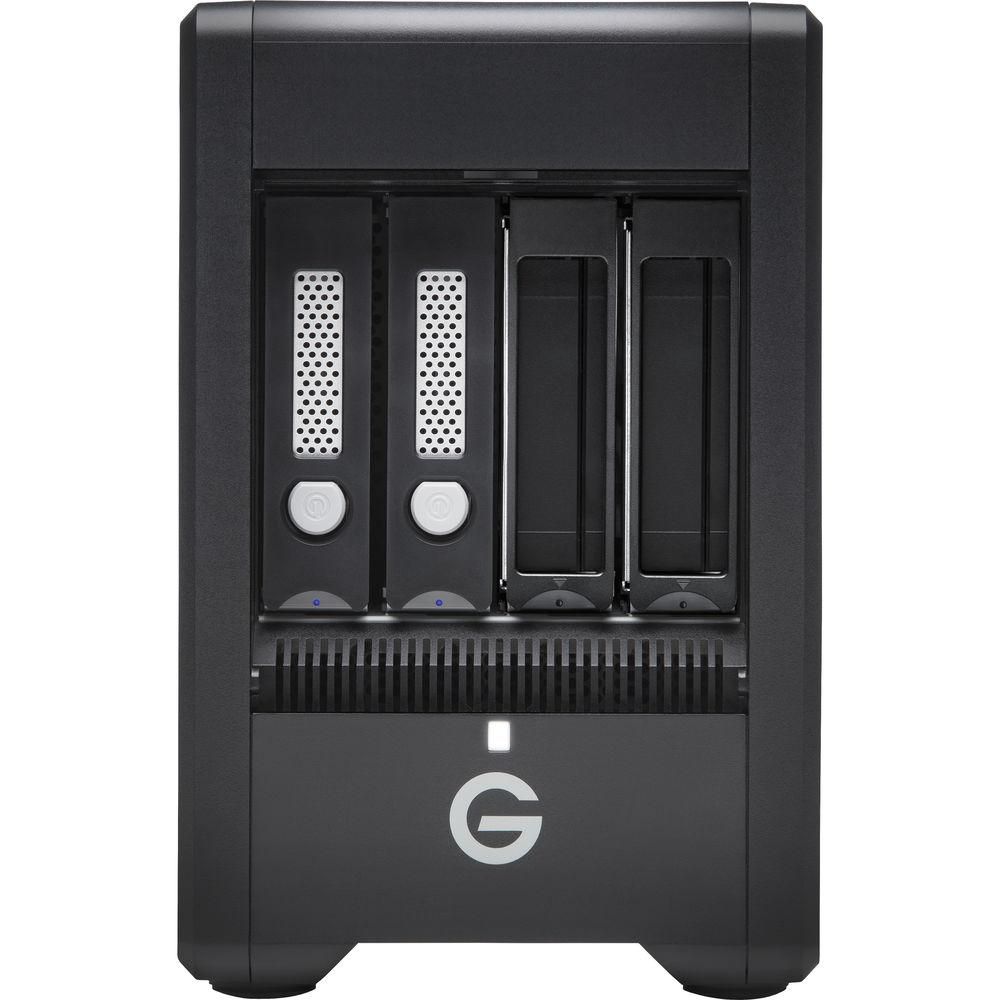

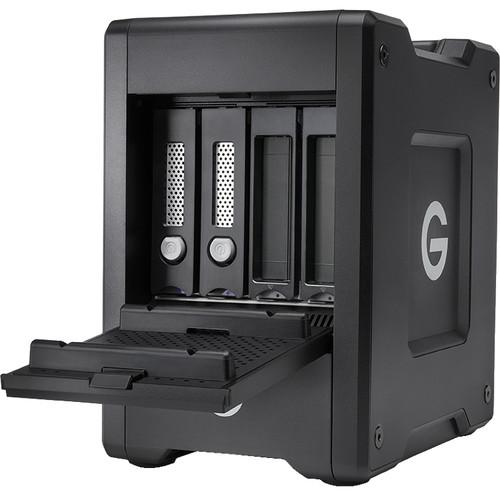

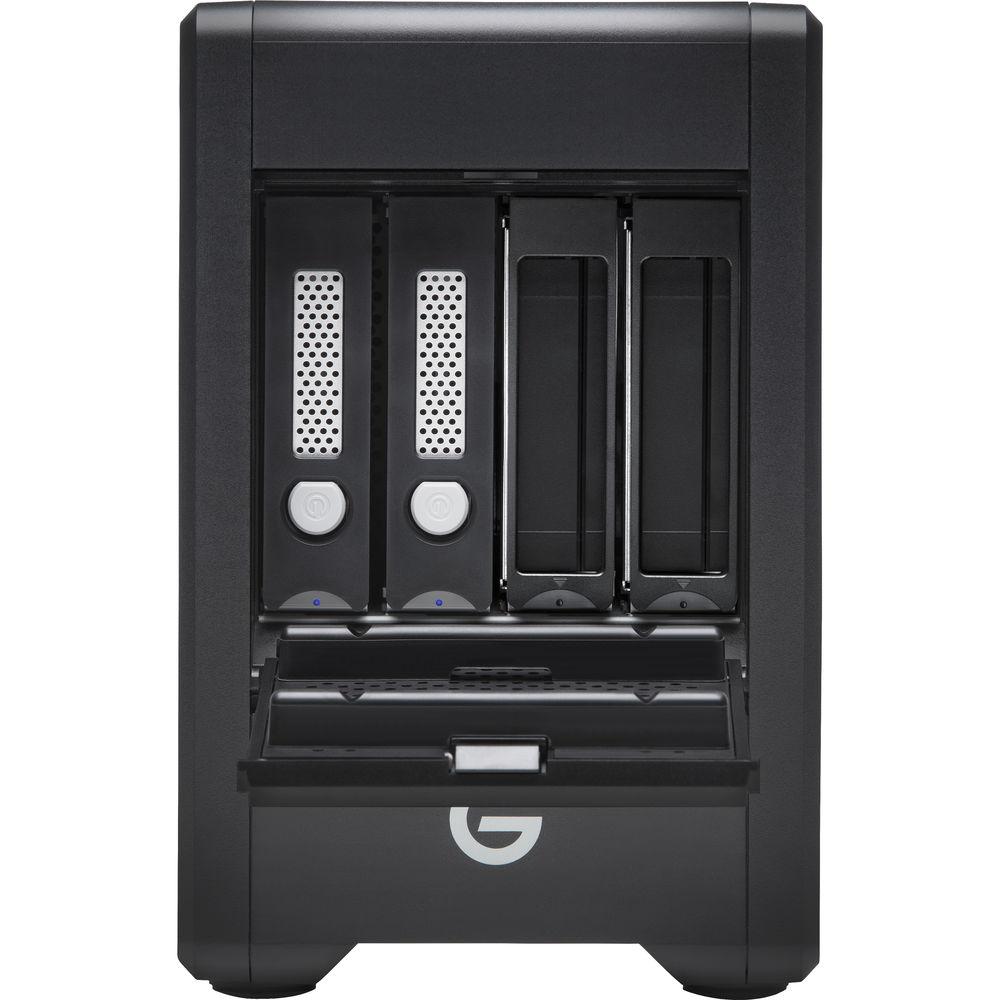

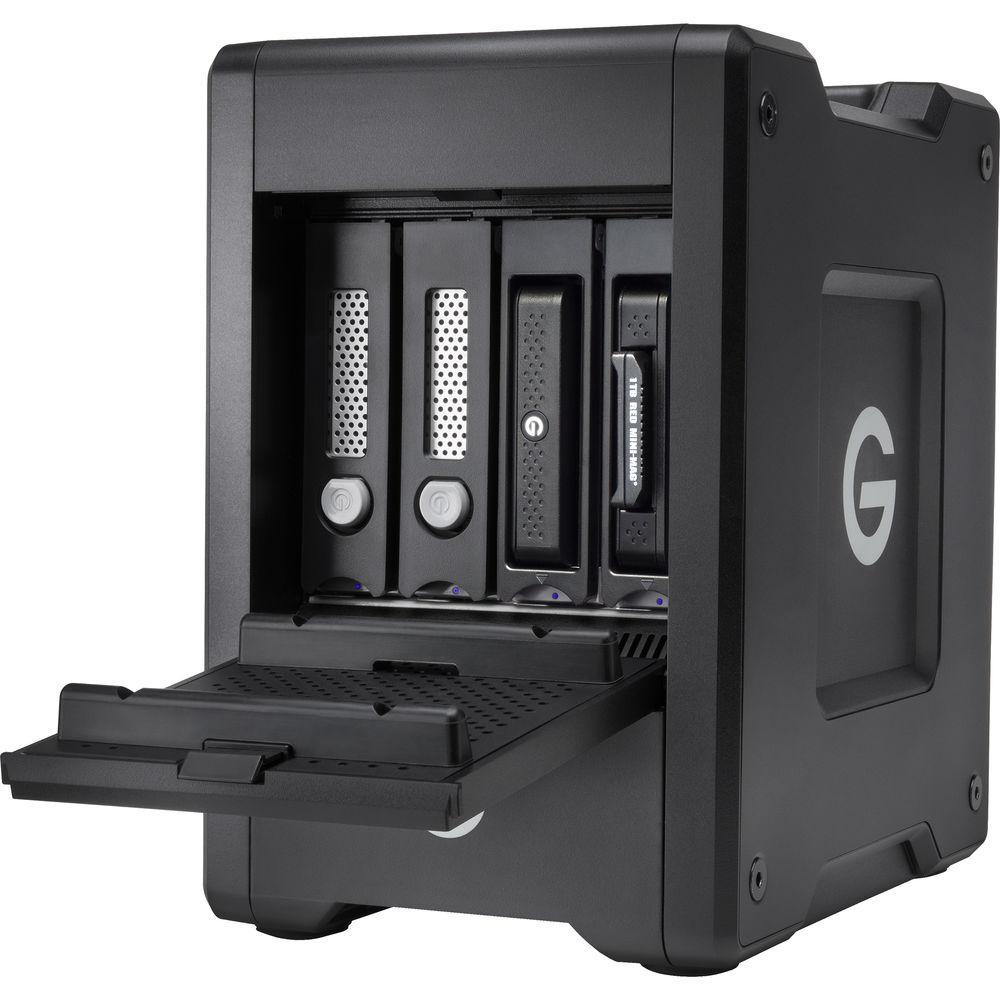

In addition to the two 3.5" drive bays, this array also has two Evolution (ev) Series drive bays that support ev Series drive modules and readers, providing users with a flexible way to quickly offload media from a wide range of ev Series storage to the array. It is also possible to transfer data from the array to the ev Series modules, which may be transported or mailed with more ease than a 3.5" drive.
The G-SPEED Shuttle comes preformatted for macOS 10.12 and later, but can be used with Windows 10 and 7 via a simple reformat. It achieves connectivity with its dual Thunderbolt 3 ports, each of which provides bi-directional transfer speeds of up to 40 Gb/s and is backwards compatible with Thunderbolt 2. While one of the Thunderbolt 3 ports is used to connect to your host system, the other may be used for daisy chaining up to five additional Thunderbolt-compatible devices together, including additional storage, displays, and docks. Included is a Thunderbolt 3 cable and a power cord, and protection is provided by a limited 5-year warranty. General Features - Storage Capacity for Demanding Production Workflows
- With a capacity of 24TB, the G-SPEED Shuttle delivers high performance storage to save all your favorite 4K or 8K high dynamic range (HDR) and high frame rate (HFR) footage in a single location.
- Transportable Design
- Built for easy travel between your on-site production location and to the studio for post-production, the G-SPEED Shuttle delivers powerful, transportable storage to help improve your workflow efficiency.
- Optimized for Multi-Stream Workflows
- Built for multi-stream 4K and 8K production workflows, the G-SPEED Shuttle offers the bandwidth to edit multi-camera footage in real time, render multi-layer effects, and quickly export in an efficient workflow.
- Built-In Hardware RAID
- For maximum performance, the G-SPEED Shuttle comes configured as RAID 0 and also supports RAID 1 and JBOD to provide a versatile and flexible storage solution.
- Up To 500 MB/s Sustained Transfer Rates
- With transfer rates of up to 500 MB/s, the G-SPEED Shuttle delivers the performance to quickly ingest content and natively edit footage to make changes in real time.
- Two ev Series Bay Adapters
- The ev Series Bay Adapters offer a convenient way to quickly offload and save content from a wide range of ev Series drives and readers. Simply plug in an ev Series-compatible device to automatically offload or back up media and minimize your workflows to only the essential steps.
- Daisy Chaining for up to 5 Additional Devices
- With dual Thunderbolt 3 ports, you can conveniently daisy-chain up to 5 additional devices, keeping you connected to multiple drives, 4K displays, and more, through a single connection to your computer.
- Removable, Enterprise-Class Storage
- For all your demanding workloads and mission-critical footage, you can depend on the power and enhanced reliability of two 12TB removable Enterprise-class 7200 rpm hard drives.
In the Box G-Technology G-SPEED Shuttle 24TB 4-Bay Thunderbolt 3 RAID Array with Two ev Bay Adapters (2 x 12TB) Thunderbolt 3 Cable Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the G-Technology G-SPEED Shuttle 24TB 4-Bay Thunderbolt 3 RAID Array with Two ev Bay Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | | | Number of Bays | 2 x 3.5"
2 x Proprietary | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s)) | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 500 MB/s | | RAID Modes | RAID 0, 1, JBOD | | OS Compatibility | macOS 10.12 or Later
Windows 7 or Later | | | | Total Raw Capacity | 24 TB (2 x 12 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Initial RAID Configuration | None | | Pre-Format | None | | | | Dimensions (W x H x D) | 9.8 x 6.8 x 10.5" / 24.8 x 17.4 x 26.7 cm | | Weight | 14.0 lb / 6.4 kg |
