Product description In the Field: G-Technology's G-SPEED Shuttle with Thunderbolt" 3 Read More zabzrusqzarzbvuwrbxrrazqccesswdcq - G-Technology G-SPEED Shuttle 4-Bay Raid Array
- G-Technology G-SPEED Shuttle 4-Bay Raid Array

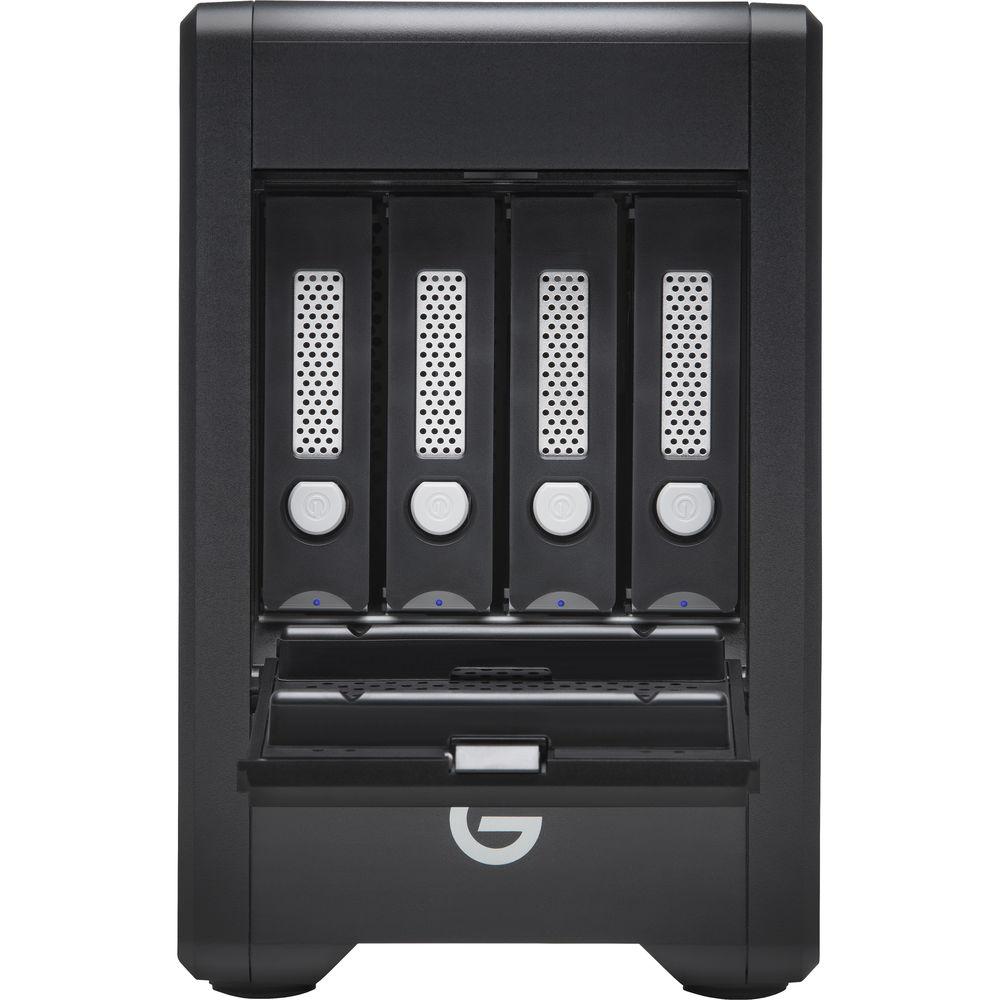

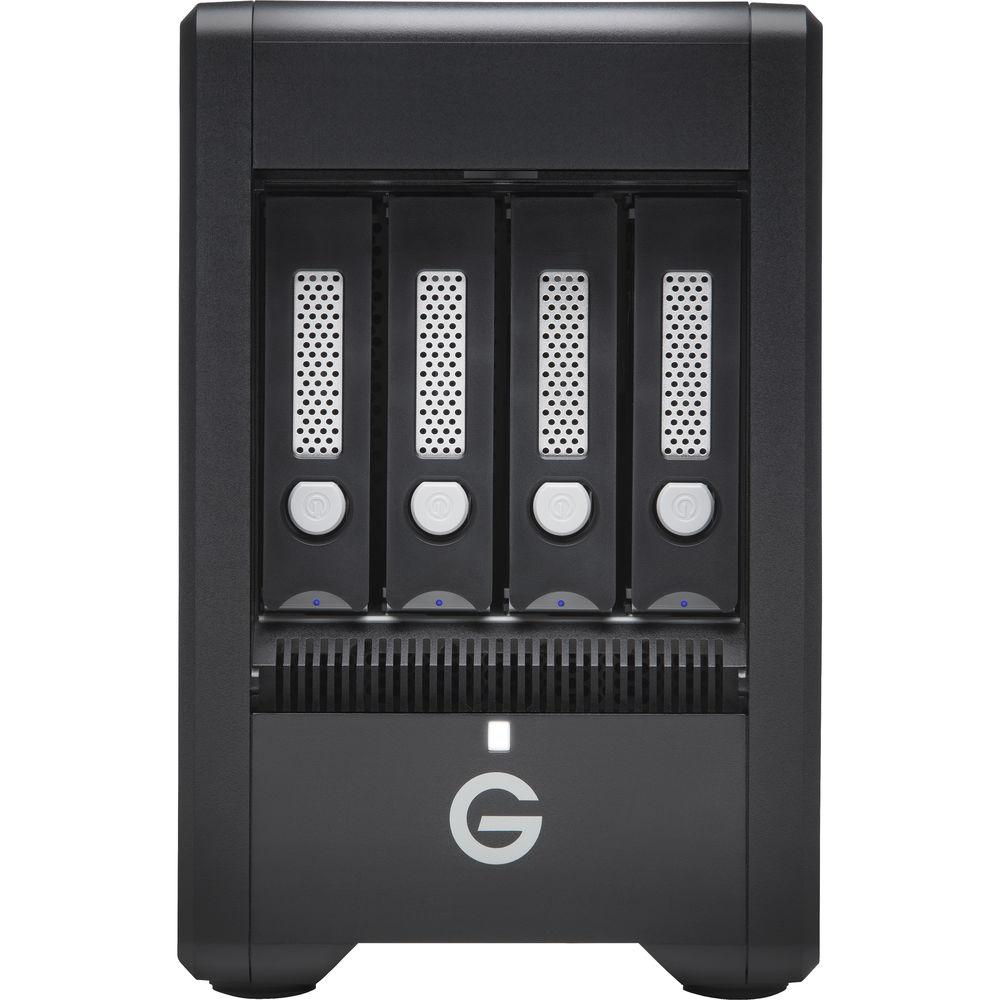

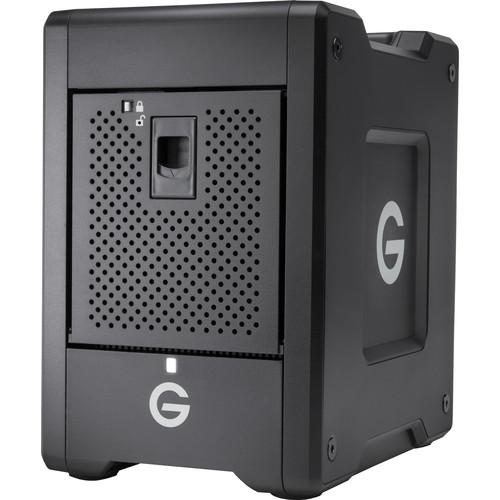

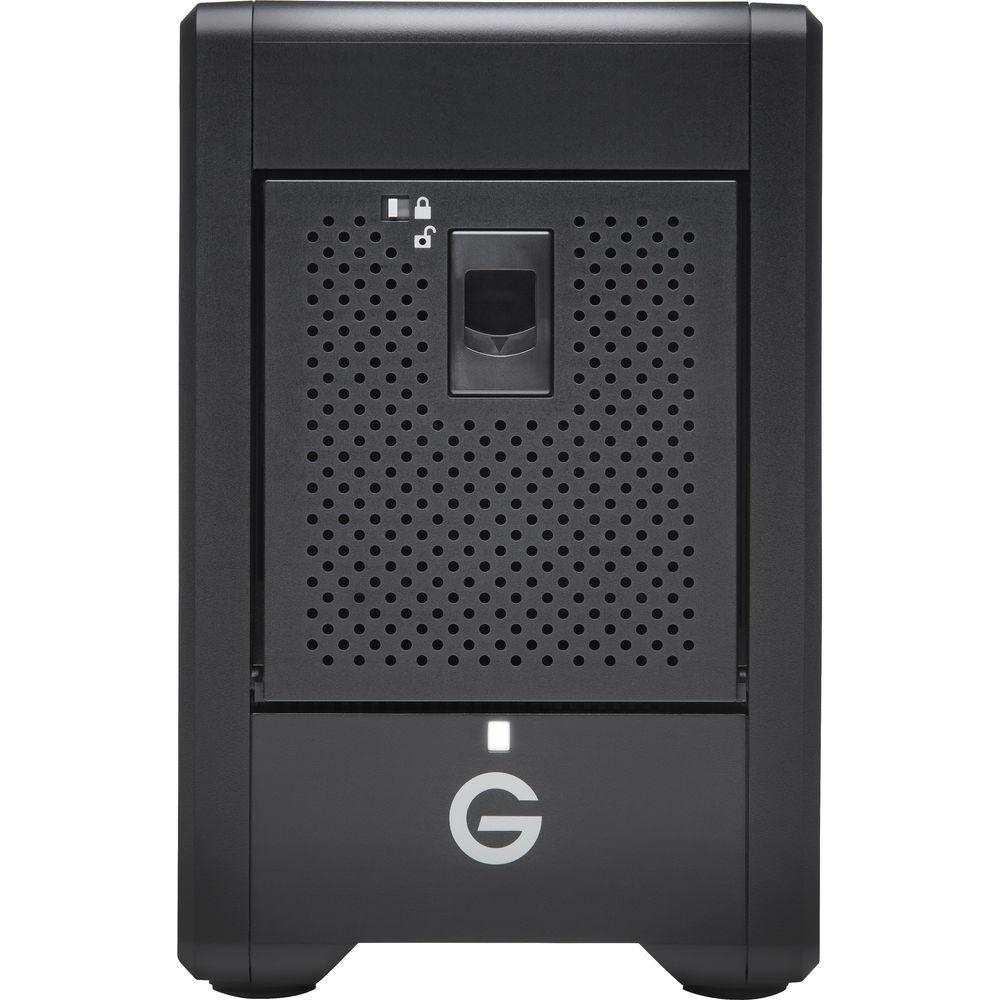

Built for easy travel between on-site locations and studios, the G-SPEED Shuttle 48TB 4-Bay Thunderbolt 3 RAID Array from G-Technology delivers storage for demanding workflows, such as 4K, 8K, high dynamic range (HDR), and high frame rate (HFR) footage. Its sustained data transfer rates of up to 1000 MB/s allow users to edit multi-camera footage in real time, render multi-layer effects, and export efficiently. Featuring an overall capacity of 48TB, which is split over four 12TB 7200 rpm Enterprise-class SATA 3.5" hard drives, this array comes pre-configured in RAID 5, which provides a good balance of performance and data redundancy, but is also able to be configured as RAID 0, 1, and 10, each of which provides performance, data redundancy, or a combination of both.

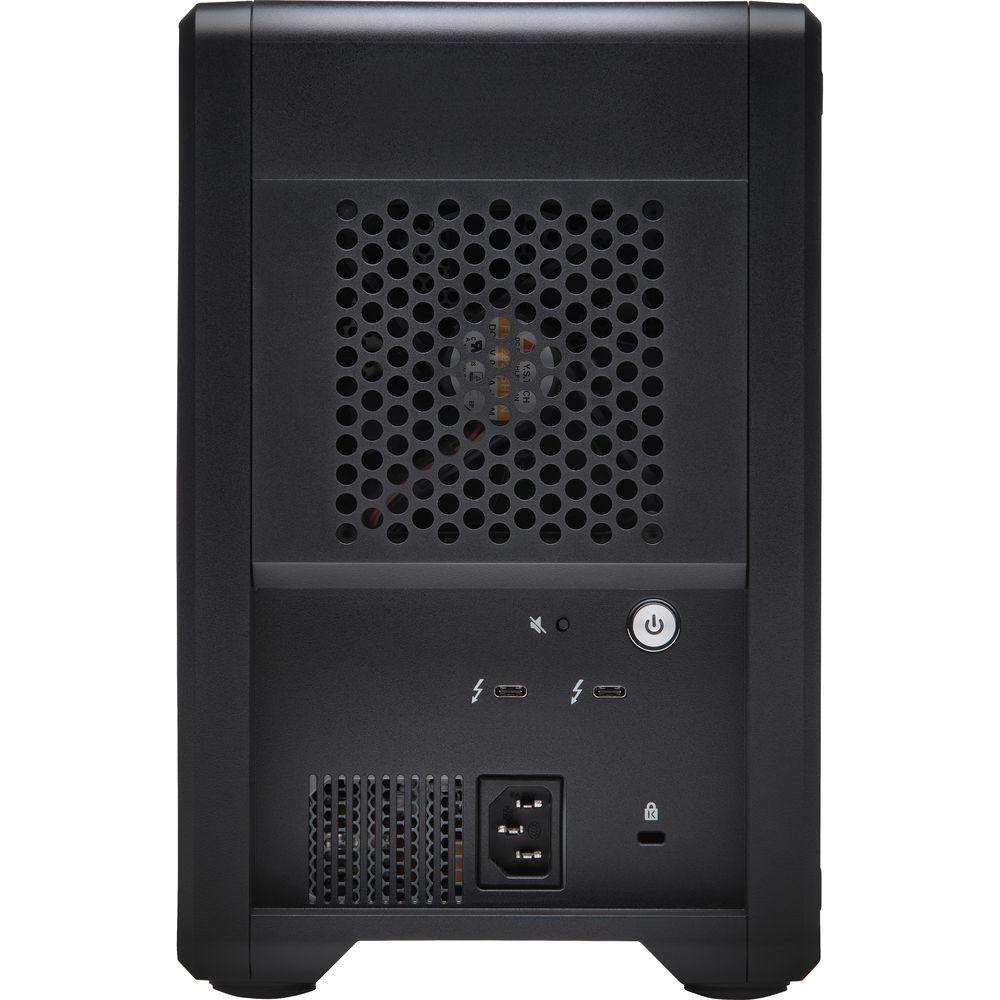

The G-SPEED Shuttle comes preformatted for macOS 10.12 and later, but can be used with Windows 10, 8.1, and 7 via a simple reformat. It achieves connectivity with its dual Thunderbolt 3 ports, each of which provides bi-directional transfer speeds of up to 40 Gb/s and is backwards compatible with Thunderbolt 2. While one of the Thunderbolt 3 ports is used to connect to your host system, the other may be used for daisy chaining up to five additional Thunderbolt-compatible devices together, including additional storage, displays, and docks. Included is a Thunderbolt 3 cable and a power cord, and protection is provided by a limited 5-year warranty. General Features - Storage Capacity for Demanding Production Workflows
- With a capacity of 48TB, the G-SPEED Shuttle delivers high performance storage to save all your favorite 4K or 8K high dynamic range (HDR) and high frame rate (HFR) footage in a single location.
- Up to 1000 MB/s Sustained Transfer Rates
- With transfer rates of up to 1000 MB/s, the G-SPEED Shuttle delivers the performance you need to quickly ingest content and natively edit footage to make changes in real time.

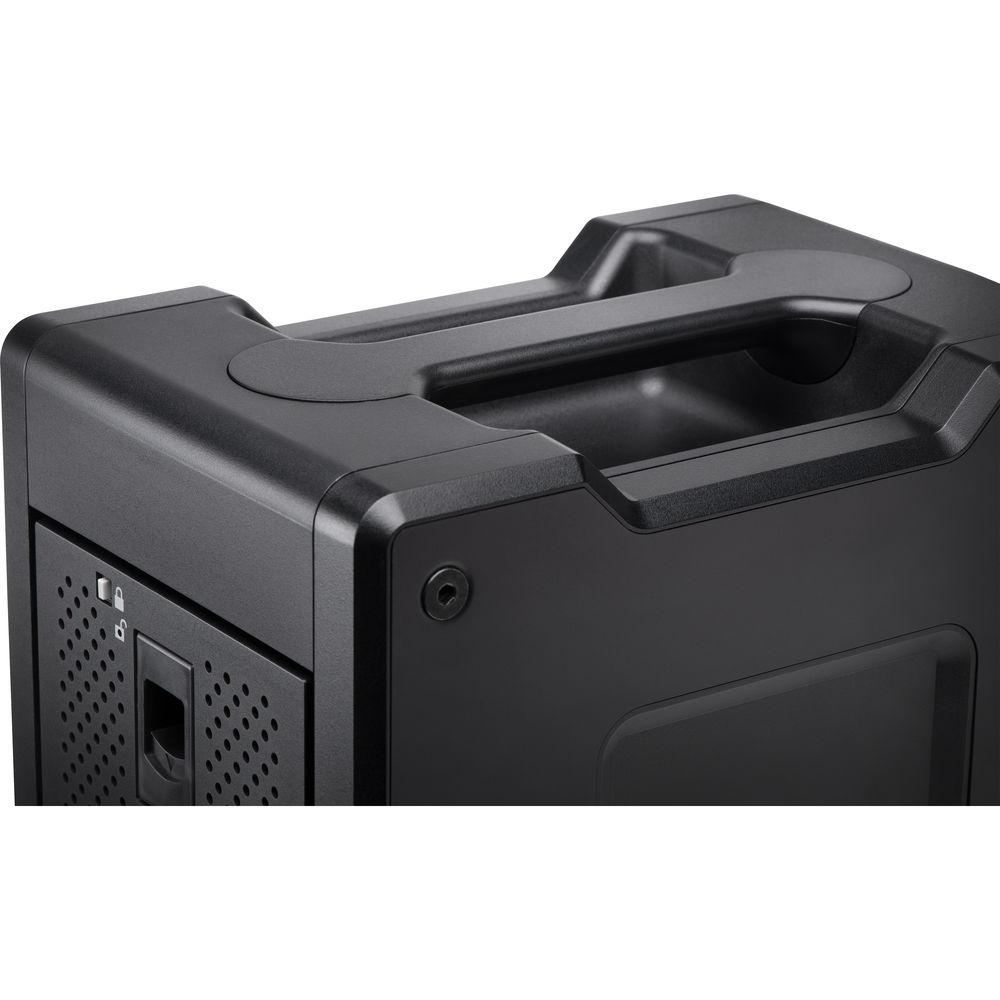

- Transportable Design
- Built for easy travel between your on-site production location and to the studio for post-production, the G-SPEED Shuttle delivers powerful, transportable storage to help improve your workflow efficiency.
- Optimized Support for Multi-Stream Workflows
- Built for multi-stream 4K and 8K production workflows, the G-SPEED Shuttle offers the bandwidth to support multi-camera editing in real time, render footage with multi-layer effects, and quickly export in an efficient workflow.
- Built-In Hardware RAID
- For maximum performance, the G-SPEED Shuttle comes in RAID 5 out of the box and supports RAID 0, 1, and 10 to provide a versatile and flexible storage solution.
- Daisy Chaining for up to 5 Additional Devices
- With dual Thunderbolt 3 ports, you can conveniently daisy-chain up to 5 additional devices, keeping you connected to multiple drives, 4K displays, and more, through a single connection to your computer.

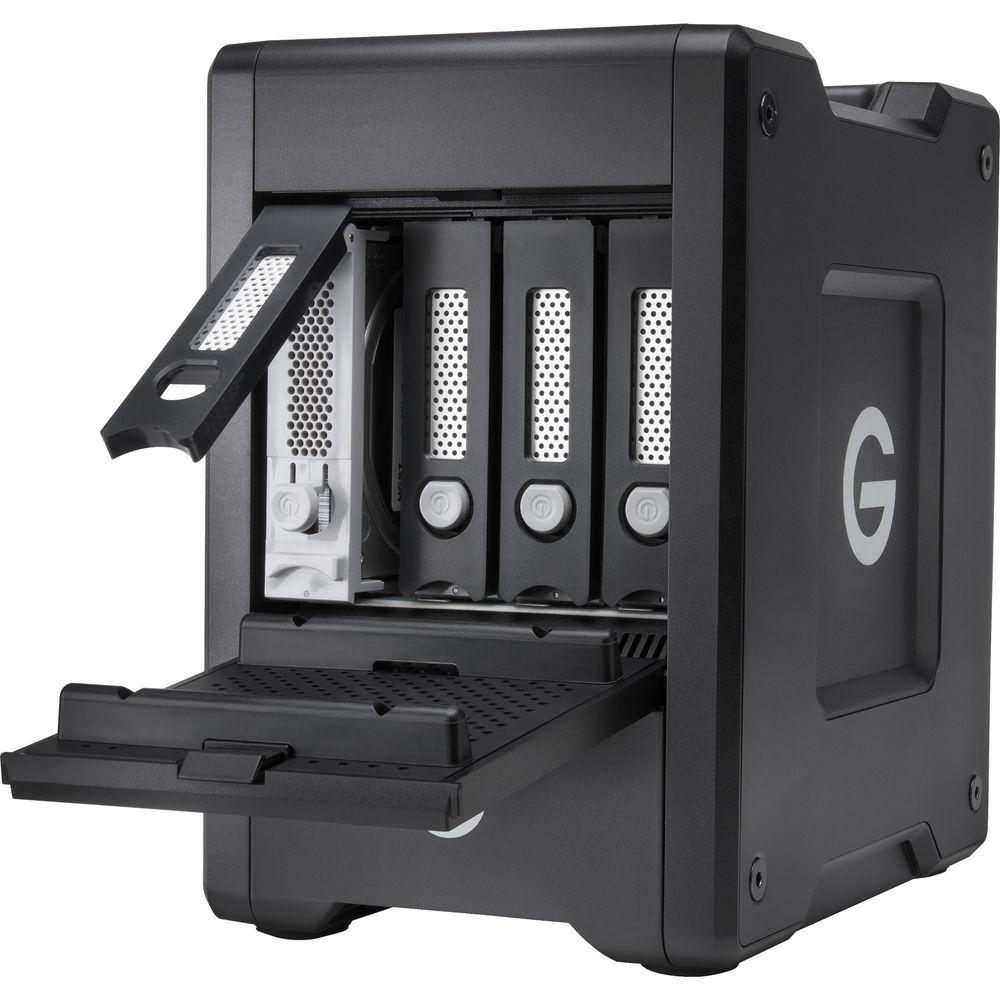

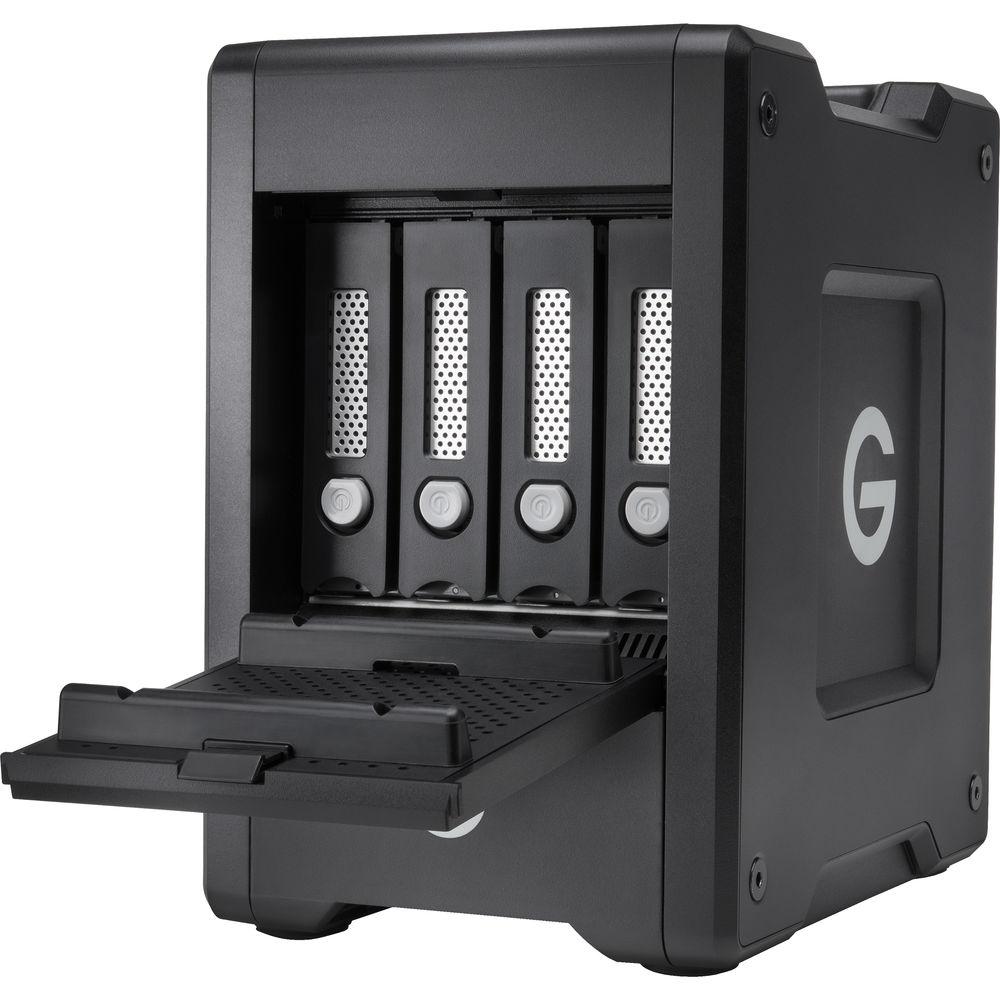

- Removable, Enterprise-Class Storage
- For all your demanding workloads and mission-critical footage, you can depend on the power and enhanced reliability of four 12TB removable Enterprise-class 7200 rpm hard drives.
UPC: 705487206616 In the Box G-Technology G-SPEED Shuttle 48TB 4-Bay Thunderbolt 3 RAID Array (4 x 12TB) Thunderbolt 3 Cable Power Cord Limited 5-Year Warranty The G-SPEED Shuttle: Portable & Powerful 4-Bay Thunderbolt" 3 RAID Storage John-Paul Palescandolo 01/16/2018 RAID Arrays for Photography and Pro Video William Min 08/24/2018 Table of Contents
|
Upload User Manual
Have you got an user manual for the G-Technology G-SPEED Shuttle 48TB 4-Bay Thunderbolt 3 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersG-Technology G-Speed Shuttle Specs | | | Number of Bays | 4 x 3.5" | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s)) | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 1000 MB/s | | RAID Modes | RAID 0, 1, 5, 10 | | OS Compatibility | macOS 10.12 or Later
Windows 7 or Later | | | | Total Raw Capacity | 48 TB (4 x 12 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Initial RAID Configuration | None | | Pre-Format | None | | | | Dimensions (W x H x D) | 9.8 x 6.8 x 10.5" / 24.8 x 17.4 x 26.7 cm | | Weight | 16.0 lb / 7.3 kg | | | | Package Weight | 22.1 lb | | Box Dimensions (LxWxH) | 14.7 x 14.3 x 12.3" |
