User Manual for G-Technology G-SPEED Shuttle XL 24TB 8-Bay Thunderbolt 2 RAID Array Click to enlarge the picture
Contents of the user manual for the G-Technology G-SPEED Shuttle XL 24TB 8-Bay
- Product category: Hard Drive Arrays G-Technology
- Brand: G-Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for G-Technology Hard Drive Arrays
 |
User manual for the G-Technology G-SPEED Shuttle XL 24TB 8-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any G-Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official G-Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a G-Technology product will considerably shorten its lifespan!
|

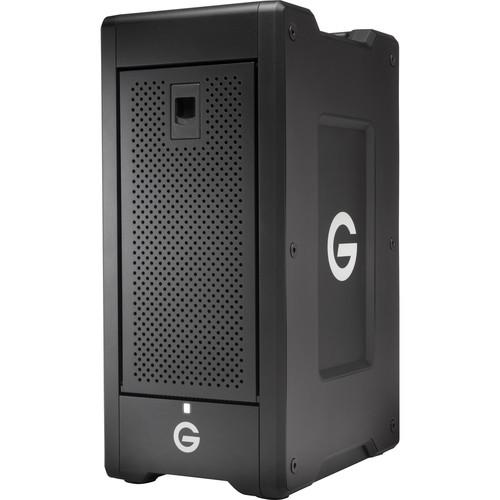

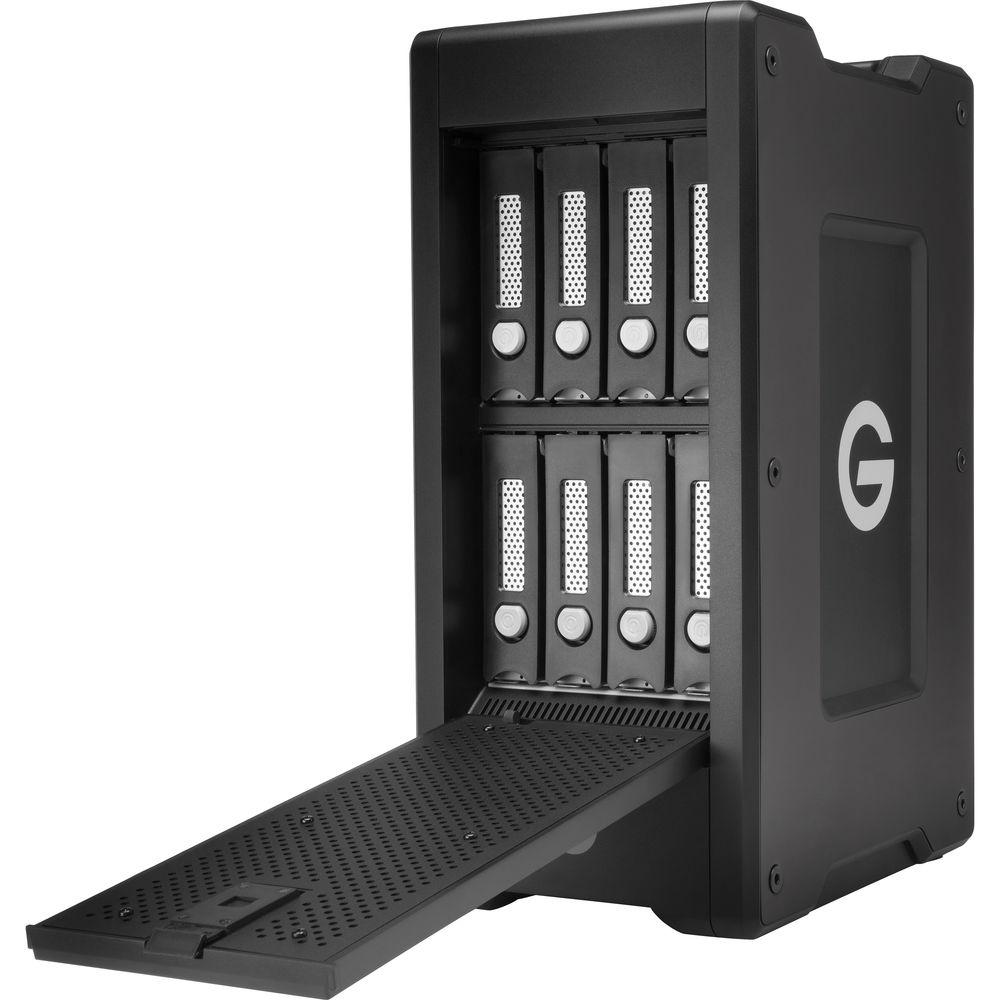

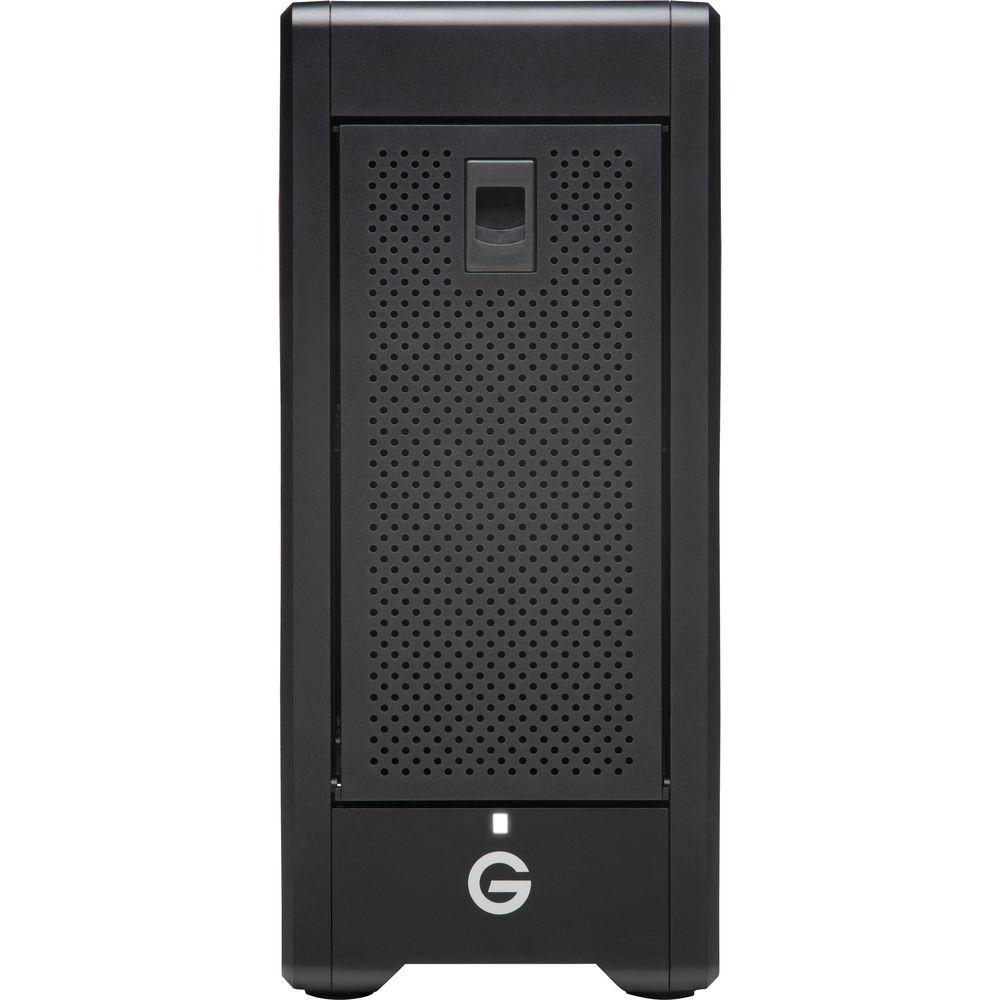

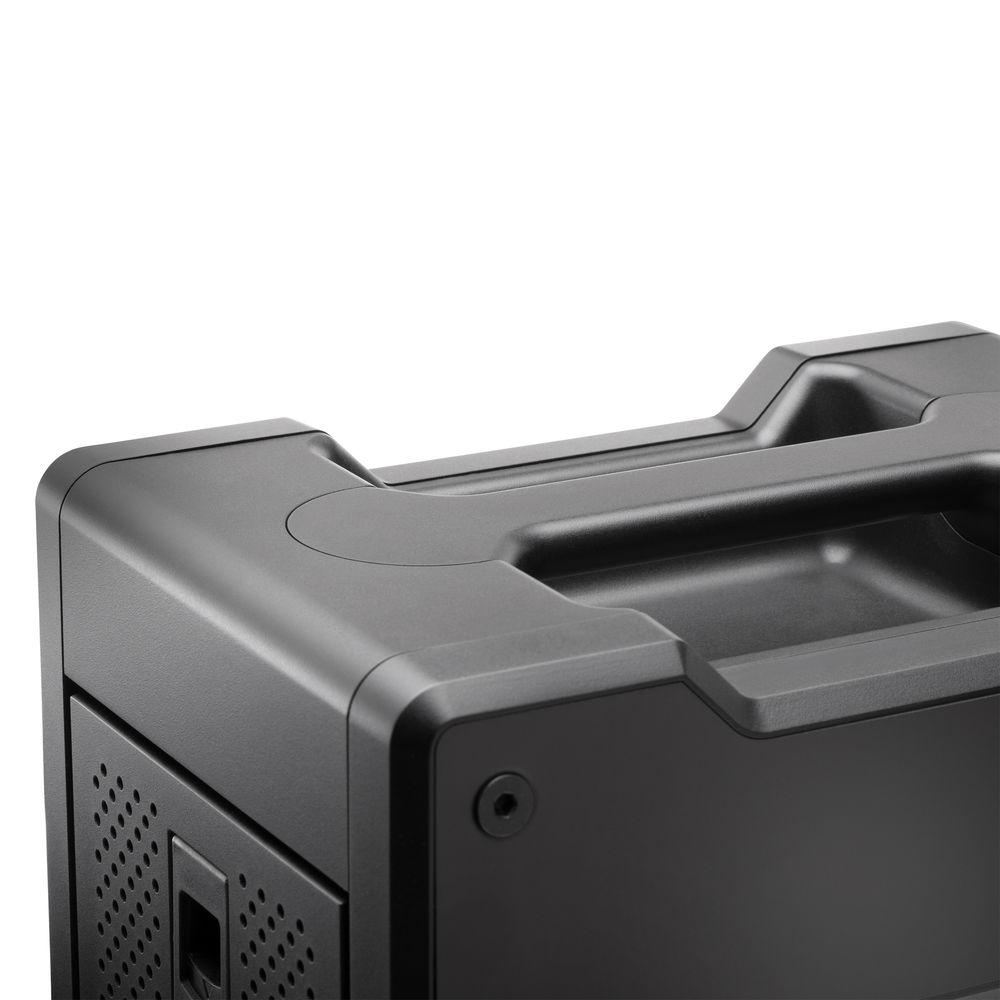

Product description Fast, Reliable Solutions: G-Technology RED Mini Mag and G-SPEED Shuttle 24TB Read More The G-SPEED Shuttle XL 24TB 8-Bay Thunderbolt 2 RAID Array from G-Technology is built with a transportable design that helps make it suitable for use in the field, whether on-location or on-set, with its removable door and top-mounted handle. It supports 4K and beyond workflows and its eight 3.5" drive bays are equipped with 7200 rpm Enterprise-class SATA hard drives in a 3TB configuration that support data transfer rates up to 1,350 MB/s. This array comes pre-configured in RAID 5, which provides a good balance of performance and data redundancy, but is also able to be configured as RAID 0, 1, 6, 10, and 50, each of which provides performance, data redundancy, or a combination of both.

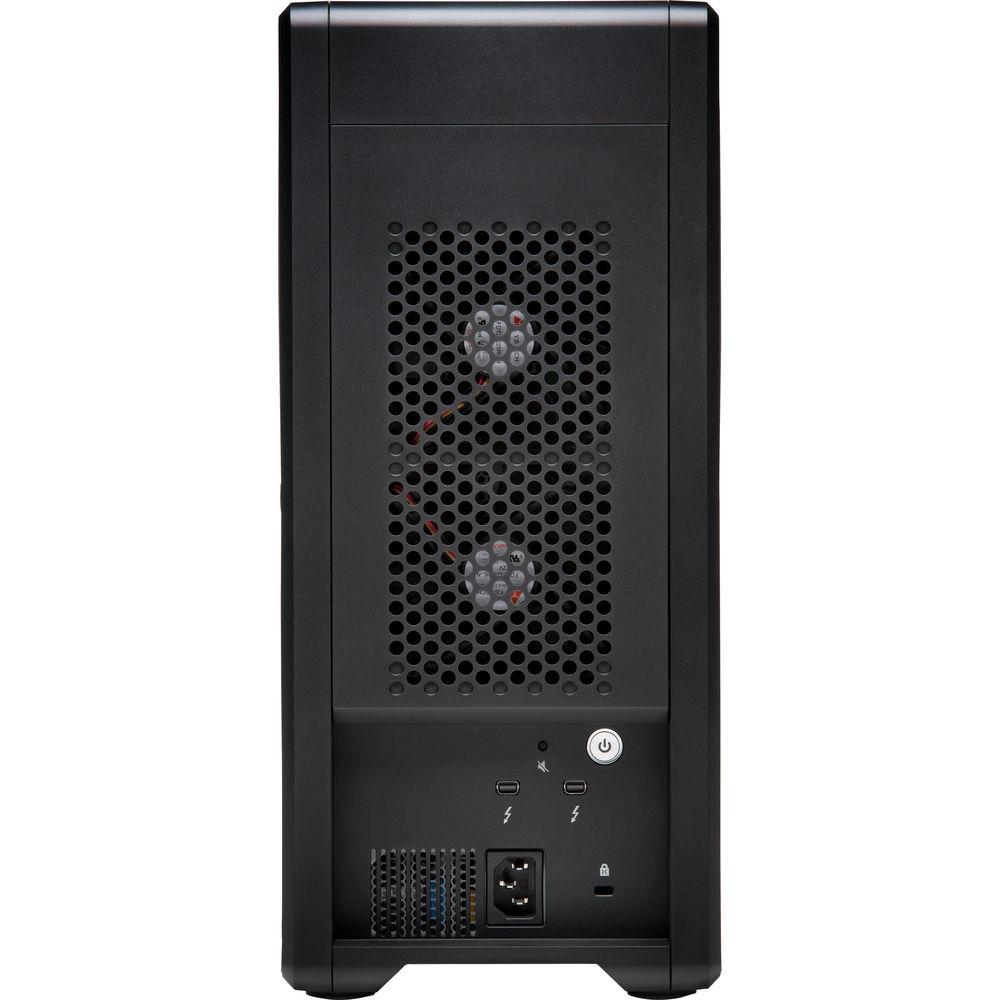

The G-SPEED Shuttle XL is compatible with both Windows and Mac systems and achieves connectivity with its dual Thunderbolt 2 ports, each of which provides bi-directional transfer speeds of up to 20 Gb/s. While one of the Thunderbolt 2 ports is used to connect to your host system, the other may be used for daisy chaining Thunderbolt-compatible devices together, including additional storage, displays, and docks. This array may be operated in horizontal or vertical orientations, includes a Thunderbolt cable and a power cord, and is protected by a limited 3-year warranty. - Transportable design, optional integration in a separately sold protective case
- Up to 24TB (8 x 3TB) of total storage capacity

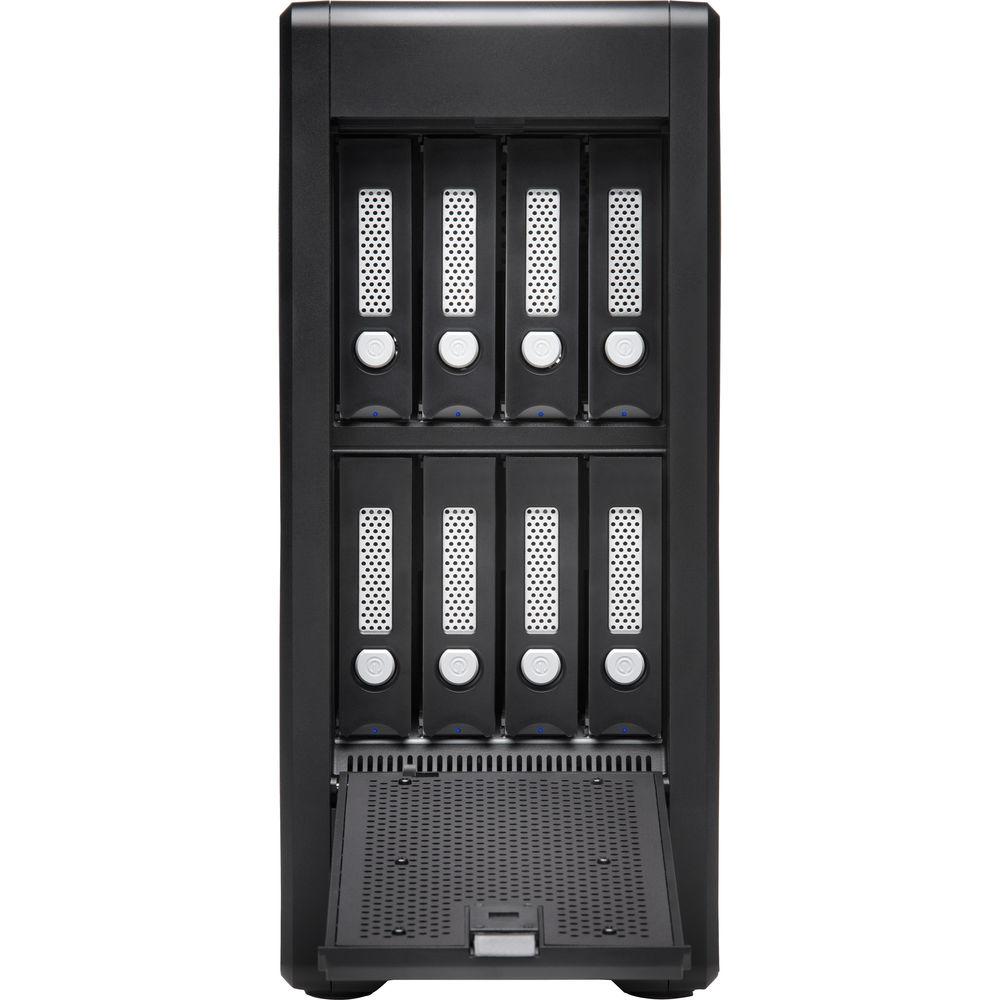

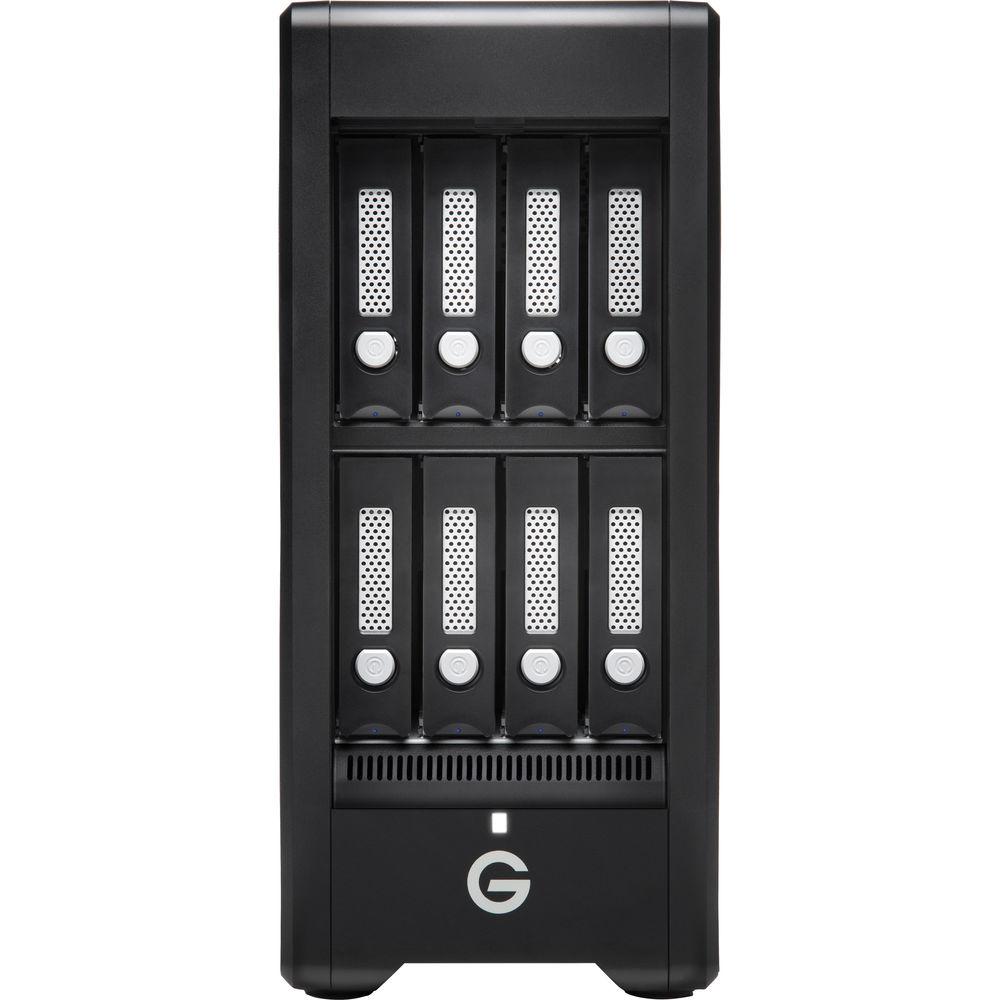

- Eight 3.5" SATA drive bays
- Dual Thunderbolt 2 ports for daisy chaining devices
- User configurable in RAID 0, 1, 5, 6, 10, and 50
- Data transfer rates up to 1,350 MB/s

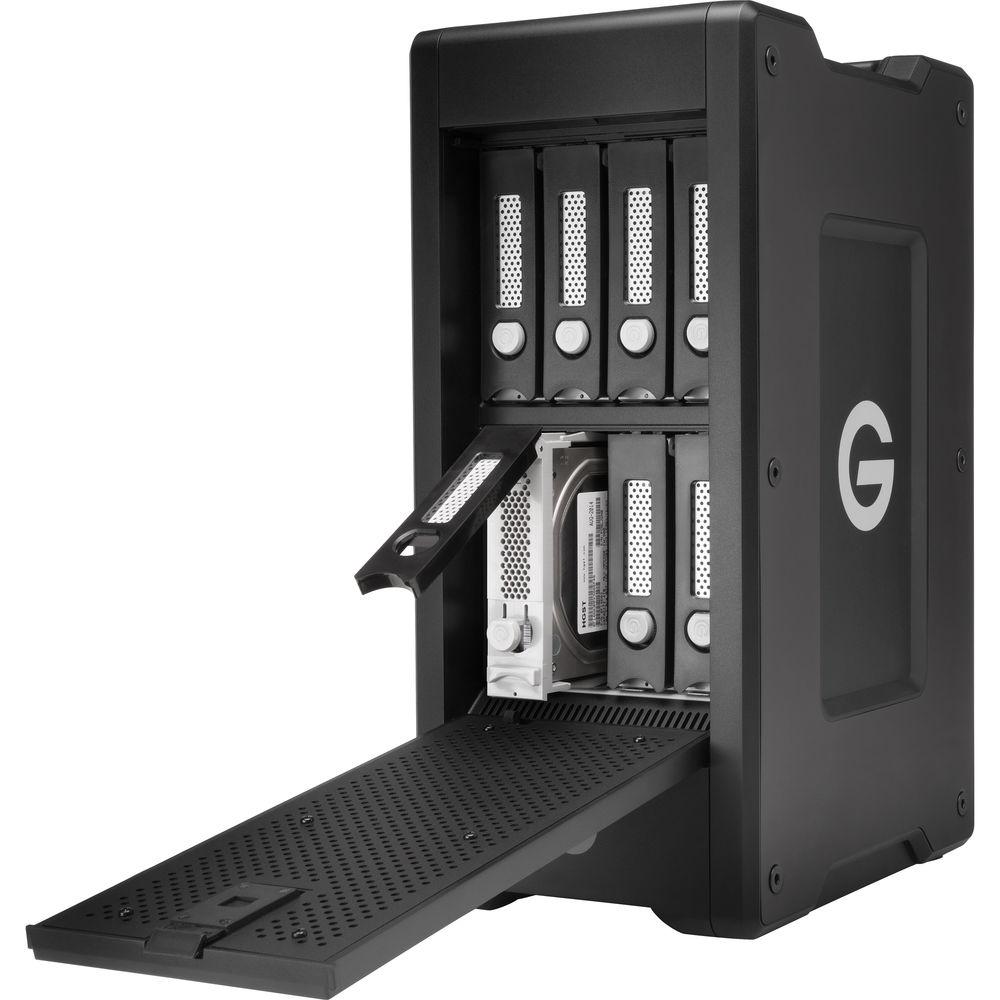

- Removable 7200 rpm Enterprise-class SATA hard drives
UPC: 705487200980 In the Box G-Technology G-SPEED Shuttle XL 24TB 8-Bay Thunderbolt 2 RAID Array (8 x 3TB) Thunderbolt Cable Power Cord Limited 3-Year Warranty RAID Arrays for Photography and Pro Video William Min 08/24/2018 xeaurxesdcuxzuewyerxuaazsvyfztubyucc Quick start Guide PDF 260.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the G-Technology G-SPEED Shuttle XL 24TB 8-Bay Thunderbolt 2 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersG-Technology Shuttle XL Specs | | | Number of Bays | 8 x 3.5" | | Connections | 2 x Mini DisplayPort (Thunderbolt 2 (20 Gb/s)) | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 1350 MB/s | | RAID Modes | RAID 0, 1, 5, 6, 10, 50 | | OS Compatibility | macOS 10.9 or Later
Windows 7 or Later | | | | Total Raw Capacity | 24 TB (8 x 3 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Initial RAID Configuration | RAID 5 | | Pre-Format | None | | | | Dimensions (W x H x D) | 9.8 x 6.9 x 15.7" / 24.9 x 17.5 x 39.9 cm | | | | Package Weight | 32.5 lb | | Box Dimensions (LxWxH) | 20.0 x 14.5 x 13.25" |
