Product description RAID Arrays for Photography and Pro Video Read More - G SPEED Shuttle with ev Bay Adapters Official Product Overview

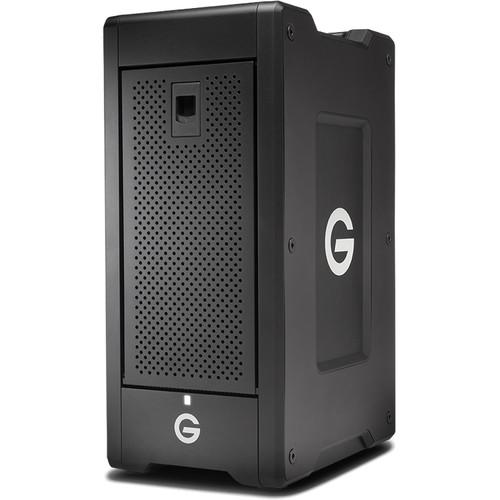

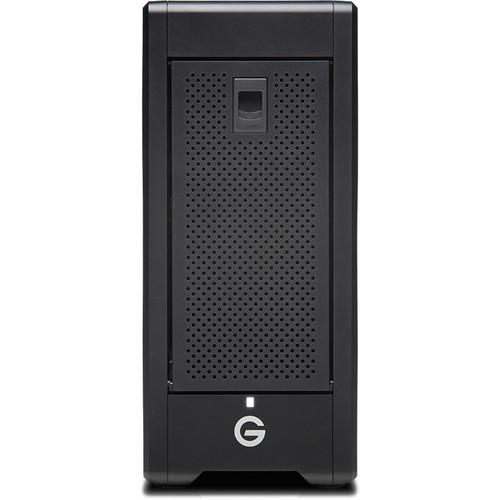

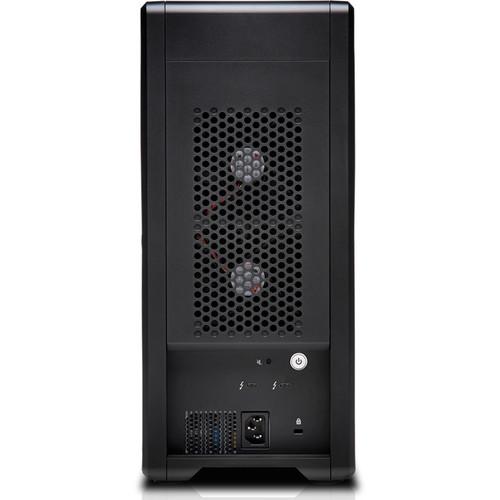

Built to support for video workflows on location and in the studio that require large capacities, high-powered performance, and multiple RAID configurations for multi-stream 4K, 8K, and VR workflows, the G-SPEED Shuttle XL 60TB 8-Bay Thunderbolt 3 RAID Array from G-Technology provides up to 60TB of enterprise-class storage that is made up of six 10TB 7200 rpm 3.5" hard drives and is equipped with two 40 Gb/s Thunderbolt 3 ports. While one of the Thunderbolt 3 ports is used to interface with your host system at speeds of up to 1500 MB/s, the other can be used to daisy chain up to five additional devices to your G-SPEED.

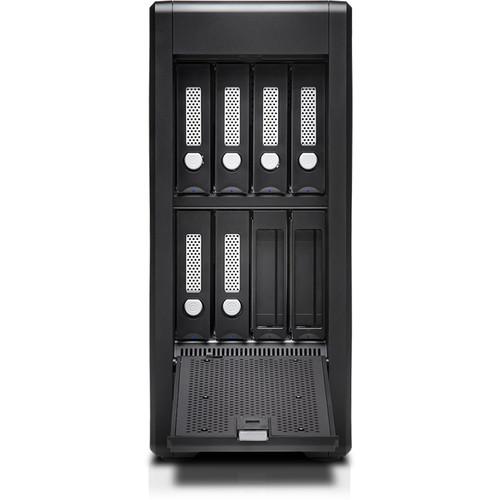

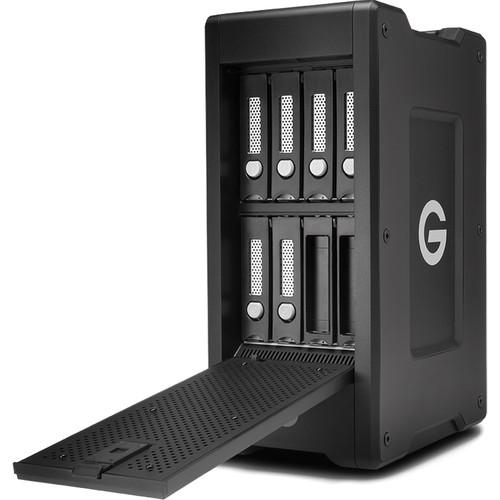

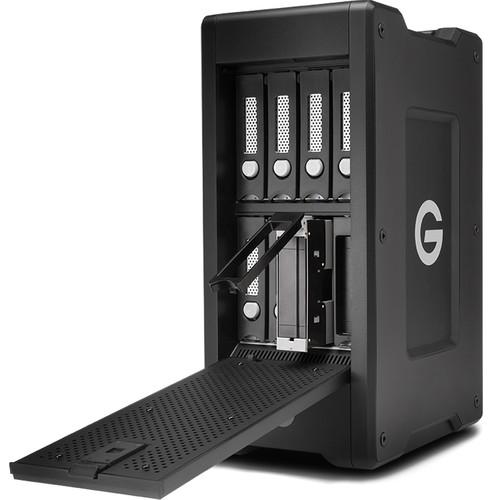

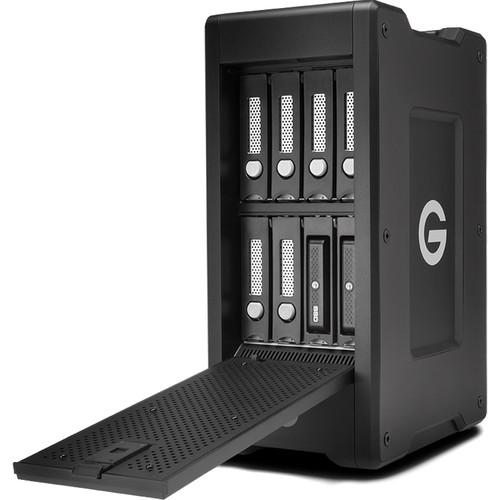

In addition to the six 3.5" drive bays, this array also has two Evolution (ev) Series drive bays that support ev Series drive modules. If there is data that needs to be copied off the array's 3.5" drives, it can be copied to the ev Series modules, which may then be removed from the array and transported or mailed with more ease than a 3.5" drive. ev Series modules can also be used to adapt memory cards, such as the RED MINI-MAG, so that content may be transferred to and from the array.
The six drive bays of the G-SPEED come pre-configured as hardware-controlled RAID 5, which provides a good balance of performance and data redundancy. Also supported is RAID 0, 1, 6, and 10. Please bear in mind that the ev Series drive bays may only be configured as RAID 0, 1, and JBOD.
The G-SPEED Shuttle XL 60TB 8-Bay Thunderbolt 3 RAID Array comes formatted for macOS 10.12+. After a simple reformat, it may also be used with Windows 10 and 7. Also included is a 40 Gb/s Thunderbolt 3 cable, a power cord, and six removable disk modules, and two ev Series bay adapters. Protection is provided by a limited 5-year warranty. General Features - Large 60TB capacity and portable design
- Supports multi-stream 4K, 8K, and VR workflows
- Hardware RAID: supports RAID 0, 1, 5, 6, and 10
- Up to 1500 MB/s sustained transfer rates
- Dual 40 Gb/s Thunderbolt 3 ports (compatible with 20 Gb/s Thunderbolt 2)
- Enterprise-class 7200 rpm hard drives
- Daisy-chaining for up to 5 additional devices
UPC: 705487205855 In the Box G-Technology G-SPEED Shuttle XL 60TB 8-Bay Thunderbolt 3 RAID Array with Two ev Bay Adapters (6 x 10TB) 6 x Removable Disk Modules 2 x ev Series Bay Adapters 1 x Thunderbolt 3 Cable (40 Gb/s) Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the G-Technology G-SPEED Shuttle XL 60TB 8-Bay Thunderbolt 3 RAID Array with Two ev Bay Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersG-Technology Shuttle XL Specs | | | Number of Bays | 8 x 3.5" | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s)) | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 1500 MB/s | | RAID Modes | RAID 0, 1, 5, 6, 10, JBOD | | OS Compatibility | macOS 10.12 or Later
Windows 7 or Later | | | | Total Raw Capacity | 60 TB (6 x 10 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Initial RAID Configuration | RAID 5 | | Pre-Format | None | | | | Dimensions (W x H x D) | 9.7 x 6.9 x 15.2" / 24.5 x 17.5 x 38.5 cm | | Weight | 23.9 lb / 10.8 kg | | | | Package Weight | 31.95 lb | | Box Dimensions (LxWxH) | 20.3 x 14.5 x 12.9" |
