User Manual for Gabor TM-3770 Tilting Wall Mount for 37-70" Flat Panel Screens Click to enlarge the picture
Contents of the user manual for the Gabor TM-3770 Tilting Wall Mount for
- Product category: Monitor Wall Mounts Gabor
- Brand: Gabor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gabor Monitor Wall Mounts
 |
User manual for the Gabor TM-3770 Tilting Wall Mount for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gabor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gabor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gabor product will considerably shorten its lifespan!
|

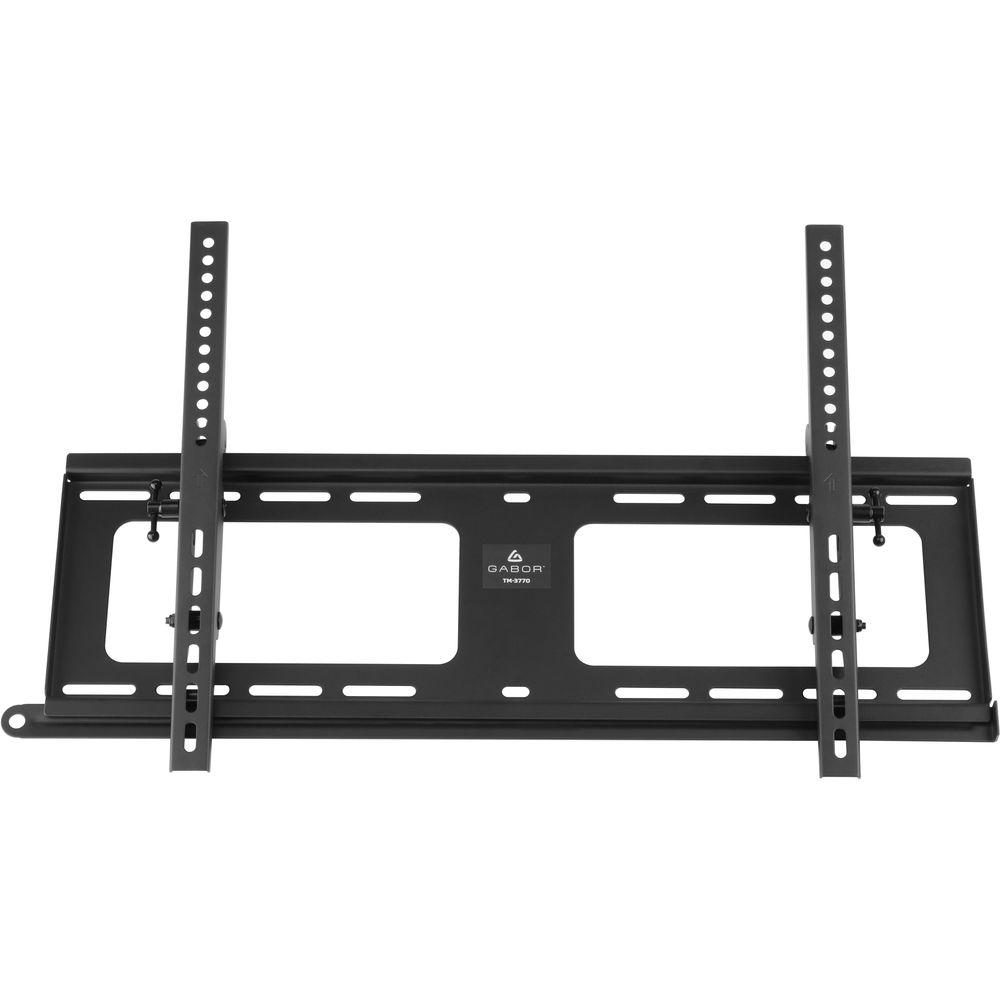

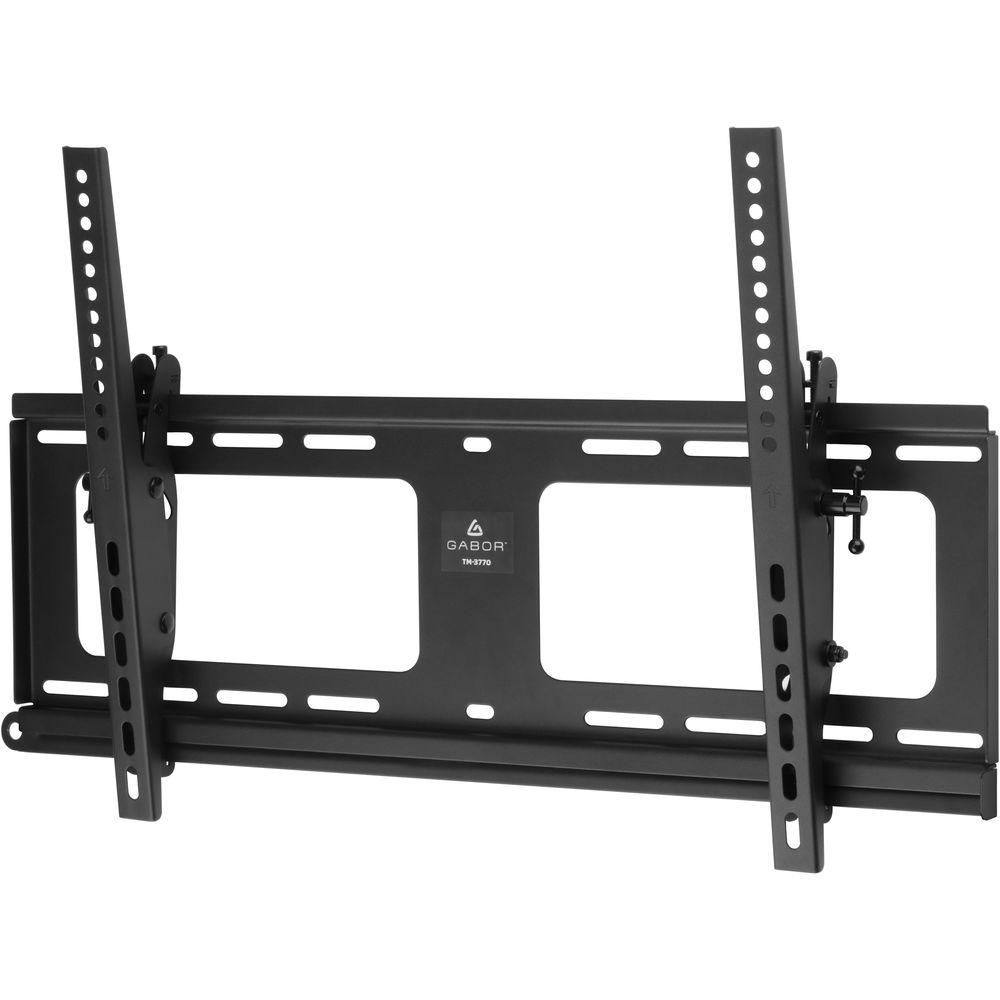

Product description The TM-3770 Tilting Wall Mount for 37-70" Flat Panel Screens from Gabor is a rugged steel mount for TVs that can be installed into various materials like wood studs or concrete. It supports up to 176 pounds and provides you with tilt adjustment from -10 to 5° to fit your viewing preference. Furthermore, if your TV is not level even after mounting, you can use the integrated screws to fine-tune its horizontal placement. Compatible with almost all flat panel displays, this mount also comes with a locking bar for additional security. - Pre- and Post-Installation Tilt Adjustment
- Use the included bubble level to make sure your TV mount is level. Once your TV is mounted, you can still make post-installation horizontal adjustments by using the integrated adjustment screws.
- VESA Compatible
- The brackets are compliant with VESA standard mounting hole patterns for flat screen TVs.
- Tilt Adjustment
- The TV mount sits almost flush against the wall, but you can tilt it from -10 to +5° to your ideal viewing angle.
- Extra Security

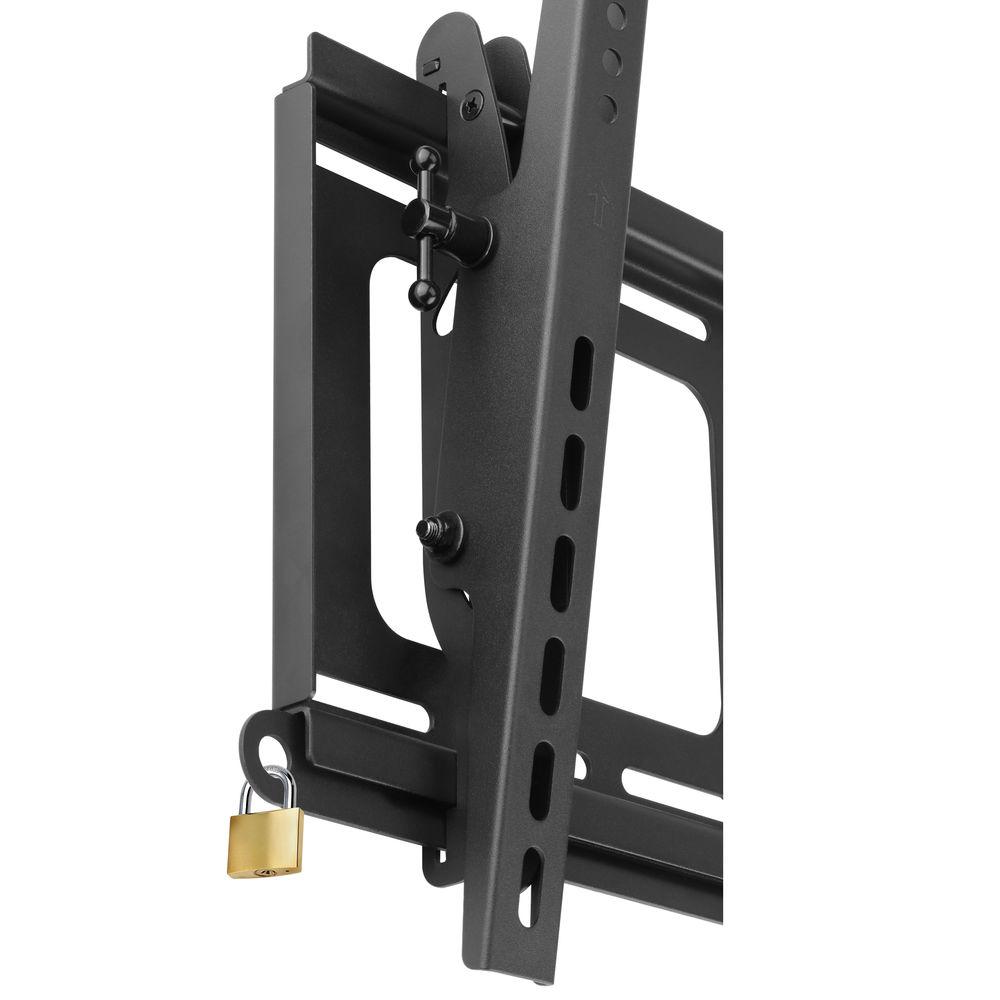

- This mount comes with an anti-theft locking bar for additional security when your TV is mounted in a public place.
UPC: 847628598478 In the Box Gabor TM-3770 Tilting Wall Mount for 37-70" Flat Panel Screens 2 x Brackets Anti-Theft Locking Bar Bubble Level Mounting Hardware Limited 1-Year Warranty User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Gabor TM-3770 Tilting Wall Mount for 37-70" Flat Panel Screens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGabor TM-3770 Specs | | | Supported Screen Sizes | 37 to 70" / 94.0 to 177.8 cm | | Supported Weight Capacity | 176 lb / 79.8 kg | | Mounting-Hole Pattern | 75 x 75 to 404 x 640 mm | | Number of Displays Supported | 1 | | | | Mounting Requirements | Solid Wall | | Distance from Mounting Surface | 2.1" / 5.4 cm | | Weight | 7.1 lb / 3.2 kg | | | | Package Weight | 9.75 lb | | Box Dimensions (LxWxH) | 30.9 x 9.4 x 2.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
