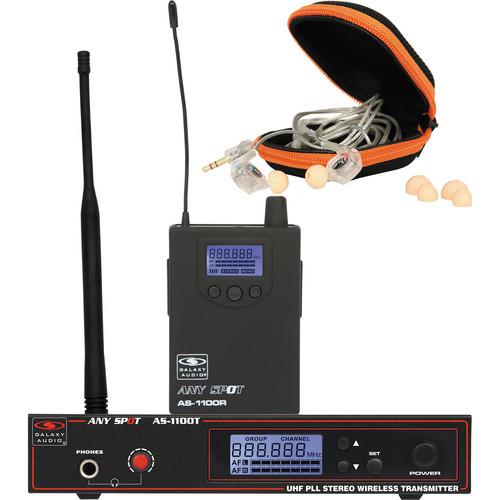

Product description The Galaxy Audio AS-1100 Any Spot Wireless Personal Monitoring System includes the AS-1100T Transmitter and the AS-1100R Bodypack Receiver. The AS-1100 system has 120 selectable UHF frequencies to help locate a suitable channel to transmit sounds without much interference. The Any Spot Wireless Personal Monitor is a good alternative for performers who are tired of lugging around heavy and bulky floor monitors. It allows the user to move freely around the stage or audience and continue to hear the monitor mix.
This wireless personal monitoring system is effective in eliminating stage noise, protecting users' ears from damage, and eliminates feedbackzfutfyvyfcadtbcv that allows the user to move around the stage without hampering the quality of sound for the audience. The system is easy to use and replaces the floor wedges and the amplifiers that power them. Simply plug the system into a monitor out jack on the mixing console, create the desired mix, and it's ready to deliver quality sound.

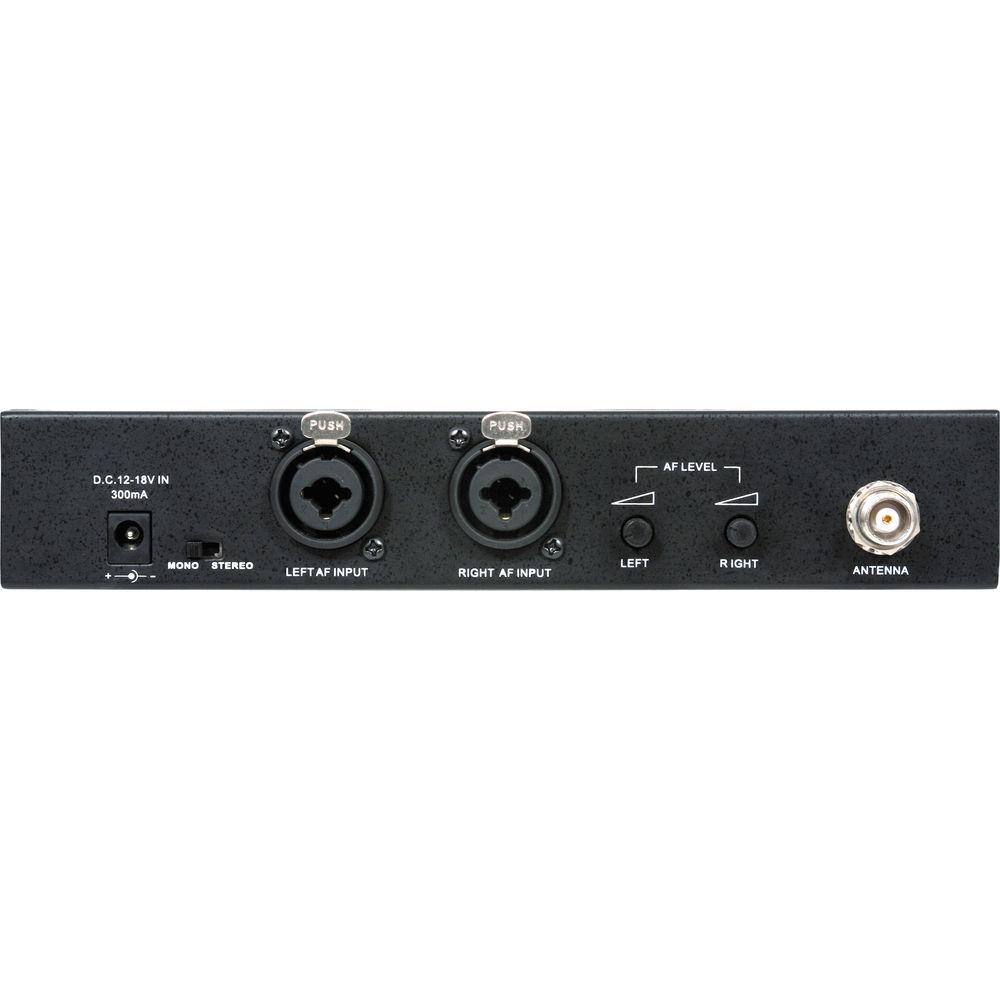

The AS-1100R receiver features a 100mW headphone amplifier with a standard 3.5mm headphone output. The receiver features an LCD display with channel, battery level, and RF/AF indicator and a built-in limiter. The AS-1100T transmitter has two XLR 1/4" combo jack for its inputs, a stereo / mono switch, a headphone output, volume control, and an LCD display that displays the channel and input levels. It comes with a single rack mount kit for mounting 1 unit in 1 rack space. The EB-10 Ear Buds feature pro dual drivers with a passive crossover. One driver delivers low frequencies while the other delivers high frequencies. These ear buds have a maximum power input capacity of 150 mW and a sensitivity rating of 120 dB/mW. It has a chord that is over 4' (1.2m) long and includes a zippered carrying case with a cleaning rod and 3 pairs of silicon sleeves (small, medium, and large). AS-1100T Transmitter - Transmits in stereo or mono
- 584 to 607 MHz frequency band
AS-1100R Receiver - LCD display with backlight
- Headphone output volume control
- 4-Bar battery life indicator
In the Box Galaxy Audio AS-1100-D Any Spot Wireless Personal Monitoring System with Pro Dual Driver Ear Buds & Case (584 to 607 MHz) AS-1100R Receiver AS-1100T Transmitter Ear Buds for Receiver EB-10 Professional Dual-Driver In-Ear Monitor Headphones Limited 3-Year Warranty on Transmitter & Receiver Limited 1-Year Warranty on Ear Buds Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio AS-1100-D Any Spot Wireless Personal Monitoring System with Pro Dual Driver Ear Buds & Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio AS-1110 Specs | | | Audio Input Level | +6 dBV (maximum) | | Gain Adjustment Range | 40 dB | | Input Impedance | 100 kΩ | | Power Requirements | 12 to 18 VDC at 300 mA (supplied by external power supply) | | Input | Impedance balanced (XLR) | | Pins | Pin1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio | | Dimensions (H x W x D) | 1.50 x 8.30 x 3.78" (38.10 x 210.82 x 96.01 mm) | | Weight | 21.0 oz (593.3 g) | | | | Audio Output Level | 100 mW | | Sensitivity | -94 dBm for 30 dB | | Image Rejection | >55 dB | | Power Requirements | 2 x AA size alkaline or rechargeable batteries | | Battery Life | About 5 hours | | Dimensions (H x W x D) | 3.74 x 2.60 x 1.00" (94.99 x 66.04 x 25.40 mm) | | Weight | 3.5 oz (86.46 g) without batteries | | | | Sensitivity | At 1 kHz: 120 dB/mW | | Frequency Response | 20 to 18 kHz | | Drivers | Armatures: Dual Balanced (single hi / low) with passive crossover | | Transducer Type | Dynamic | | Impedance | 22 Ω | | Distortion | Less than 0.3% | | Connector | Gold plated 3.5 mm phone, stereo | | Cord Length | 55.0" (139.7 cm) | | Weight | 0.25 oz (7.0 g) excluding cable | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 17.0 x 17.0 x 4.0" |
