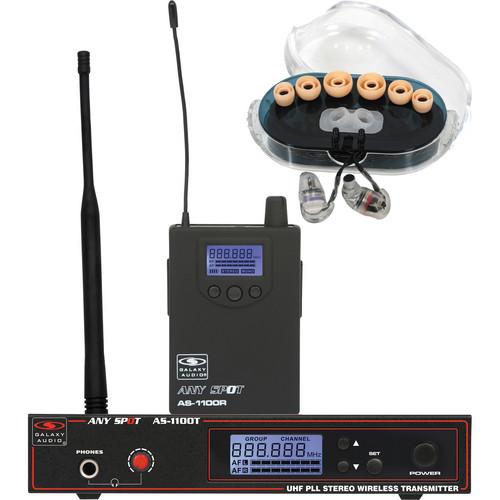

User Manual for Galaxy Audio AS-1100-D Anyspot Wireless Personal Monitor with Single Driver Ear Buds & Case Click to enlarge the picture
Contents of the user manual for the Galaxy Audio AS-1100-D Anyspot Wireless Personal
- Product category: In-Ear Monitoring Systems Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio In-Ear Monitoring Systems
 |
User manual for the Galaxy Audio AS-1100-D Anyspot Wireless Personal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|
Product description The Galaxy Audio AS-1100 Anyspot Wireless Personal Monitor packs an impressive punch. The transmitter has stereo XLR 1/4" inputs, a headphone output, and LCD display which displays the channel and input level. The Receiver has an LCD with channel, battery level, and an RF / AF indicator. The Anyspot Wireless Monitor is suitable for anyone looking for their first system or to upgrade to the next level.
The AS-1100 Wireless Personal Monitor applies the same technology and design used in the second generation of WPMs. It is effective at eliminating stage noise, protecting users' ears from damage, allowing the user to move around the stage without hampering the quality of sound for the audience, and eliminates feedback. The system is also easy to use and replaces the floor wedges and the amplifiers that power them. Simply plug the system into a monitor out jack on the mixing console, create the desired mix, and it's ready to deliver quality sound. The AS-1100 system has 120 selectable UHF frequencies to help locate the best and clearest signal to transmit.

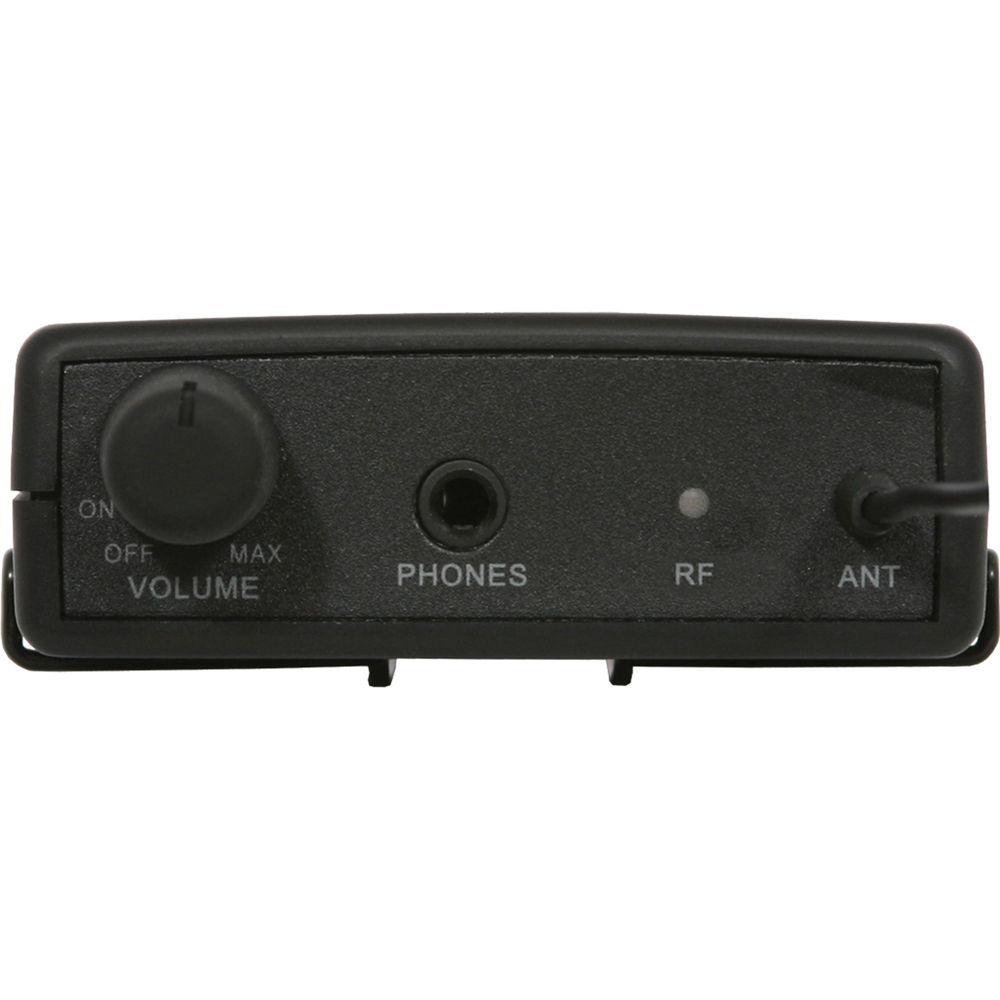

The AS-1100R receiver features a 100mW headphone amplifier with a standard 3.5mm (1/8") headphone output. The receiver is sure to be plenty loud for any environment. It has a built-in limiter and an LCD display.

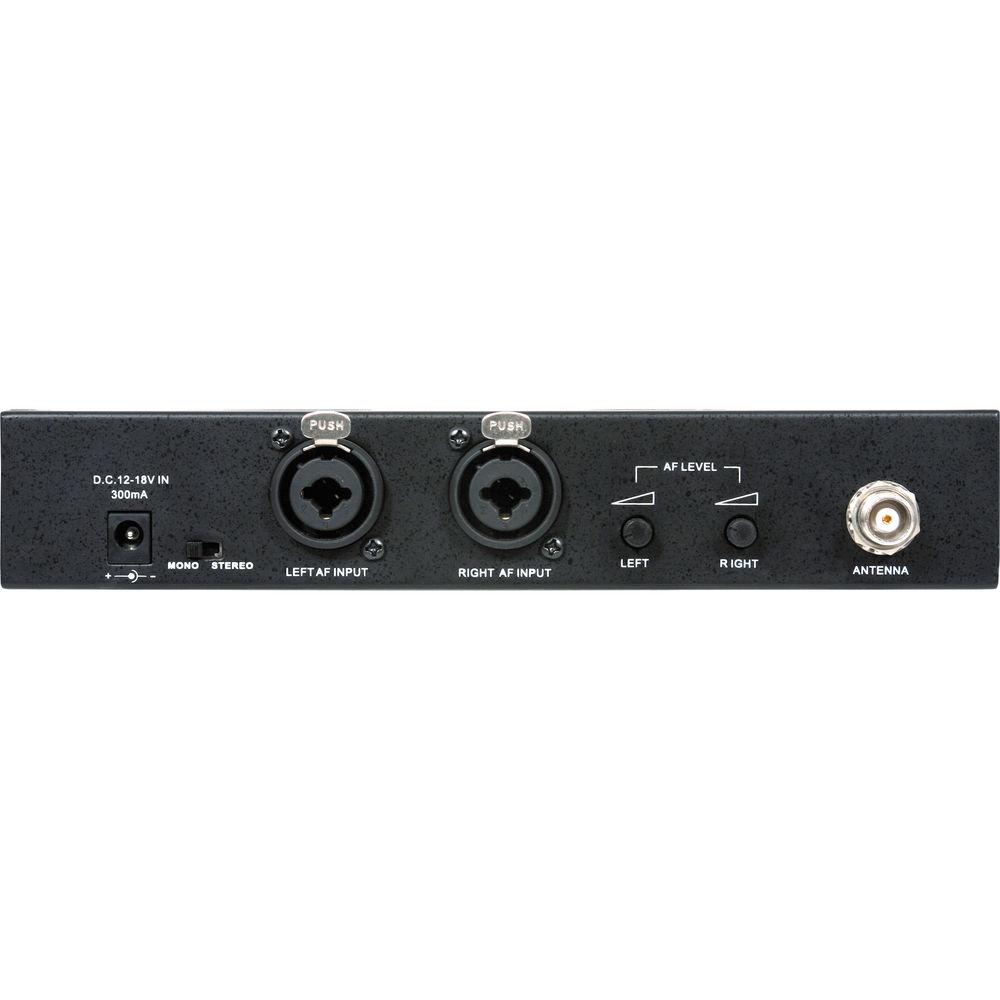

The AS-1100T transmitter has 2 XLR 1/4" combo jack for its inputs, a stereo / mono switch, a headphone output, volume control, and an LCD display. It includes a single rack mount kit, for mounting 1 unit in 1 rack space.
The Any Spot Wireless Personal Monitor is a good alternative for performers who are tired of lugging around heavy and bulky floor monitors and tired of leaving a gig with ringing ear. It allows the user to move freely around the stage or audience and continue to hear the monitor mix.
The EB-6 Ear Buds features a single driver delivering full frequency performance. They have a cord over 4' (0.2m) long and come with a durable plastic carrying case with 3 pairs of silicon sleeves (small, medium, and large). AS-1100T Transmitter - Transmits in stereo or mono
- 584 to 607 MHz frequency band
AS-1100R Receiver - LCD display with backlight
- Headphone output volume control
- 4-bar battery life indicator
UPC: 691281001024 In the Box Galaxy Audio AS-1100-D Anyspot Wireless Personal Monitor with Single Driver Ear Buds & Case AS-1100R Receiver AS-1100T Transmitter Ear Buds for Receiver EB-6 Single-Driver Earbuds with Case and Cable Limited 3-Year Warranty on Transmitter & Receiver Limited 1-Year Warranty on Ear Buds Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio AS-1100-D Anyspot Wireless Personal Monitor with Single Driver Ear Buds & Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio AS-1106 Specs | | | Audio Input Level | +6 dBV (maximum) | | Gain Adjustment Range | 40 dB | | Input Impedance | 100 kΩ | | Power Requirements | 12 to 18 VDC at 300 mA (supplied by external power supply) | | Input | Impedance balanced (XLR) | | Pins | Pin1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio | | Dimensions (H x W x D) | 1.50 x 8.30 x 3.78" (38.10 x 210.82 x 96.01 mm) | | Weight | 21.0 oz (593.3 g) | | | | Audio Output Level | 100 mW | | Sensitivity | -94 dBm for 30 dB | | Image Rejection | >55 dB | | Power Requirements | 2 x AA size alkaline or rechargeable batteries | | Battery Life | About 5 hours | | Dimensions (H x W x D) | 3.74 x 2.60 x 1.00" (94.99 x 66.04 x 25.40 mm) | | Weight | 3.5 oz (86.46 g) without batteries | | | | Sensitivity | At 1 kHz: 114 dB/mW | | Frequency Response | 20 to 20 kHz | | Transducer Type | Dynamic | | Impedance | 16 Ω | | Distortion | Less than 0.3% | | Cord Length | 59.0" (149.8 cm) with 3.5 mm stereo plug | | Weight | 0.21 oz (5.9 g) excluding cable | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 16.7 x 12.6 x 3.2" |
