User Manual for Galaxy Audio AS-1100 Personal Wireless Stage-Monitoring System Click to enlarge the picture
Contents of the user manual for the Galaxy Audio AS-1100 Personal Wireless Stage-Monitoring
- Product category: In-Ear Monitoring Systems Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio In-Ear Monitoring Systems
 |
User manual for the Galaxy Audio AS-1100 Personal Wireless Stage-Monitoring contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

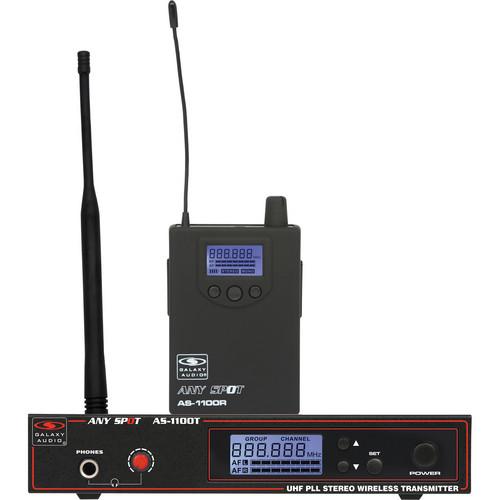

Product description A comprehensive package giving you the AS1100T and the AS100R, The Galaxy Audio AS-1100 is a personal wireless stage-monitoring system operating at 584 to 607 MHz. The system is intended to provide stereo or mono wireless stage-monitoring at up to 300' away, thus eliminating the need for bulky and loud floor speakers.

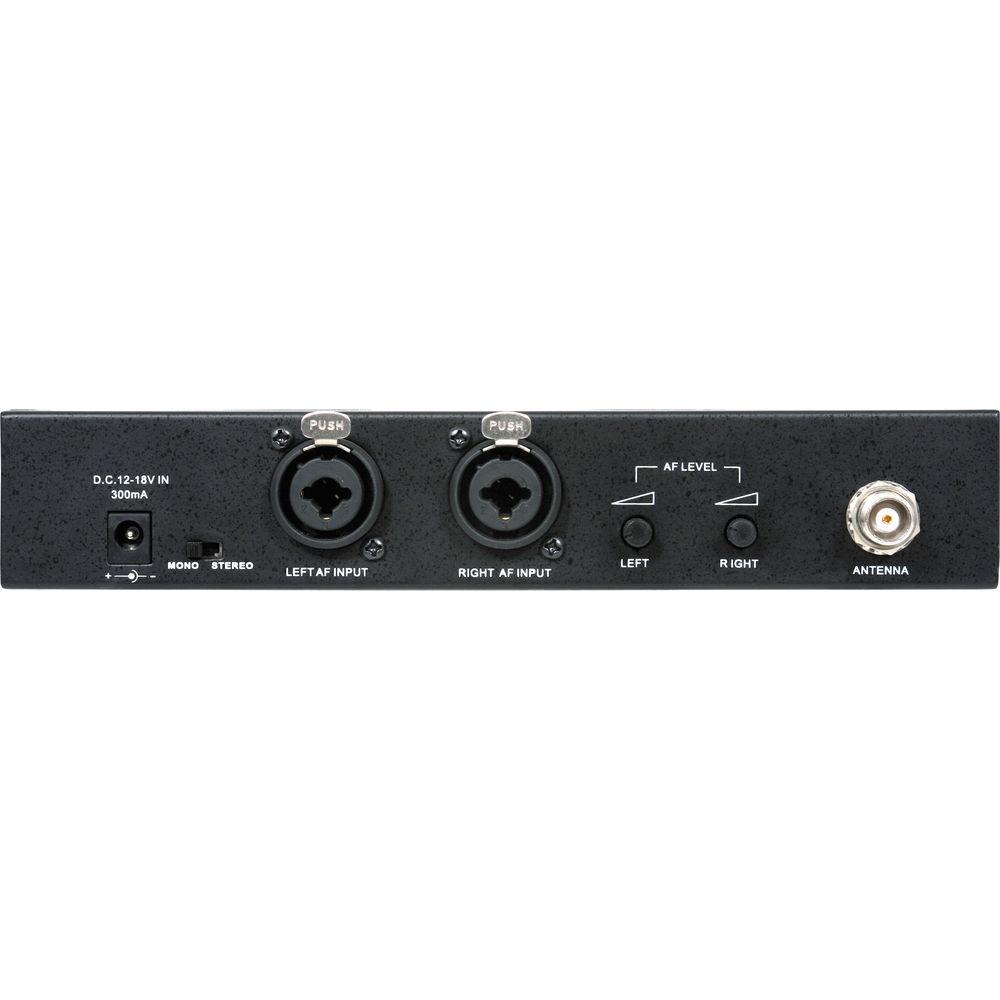

This receiver/transmitter package offers 120 selectable channels. Additional receivers may be added for large bands, stage performances, and more. The AS1100T transmitter features XLR/TRS combo inputs and an AF L/R indicator. The AS1100R receiver runs on 2 AA batteries, features a 4-bar battery-status indicator, and sports a back-lit LCD display. The receiver comes with a pair of earbuds. - AS-1100T Wireless Transmitter The AS-1100T Wireless Transmitter from Galaxy Audio is designed for use in the AS-1100 wireless monitor system. It can transmit either stereo or mono signals, and features dual combo XLR/TRS input connectors. The unit has an LCD display to indicate AF L/R, channel number, and frequency. A power supply and antenna are included.
- Transmits in Stereo or Mono
- Channel Number and Frequency

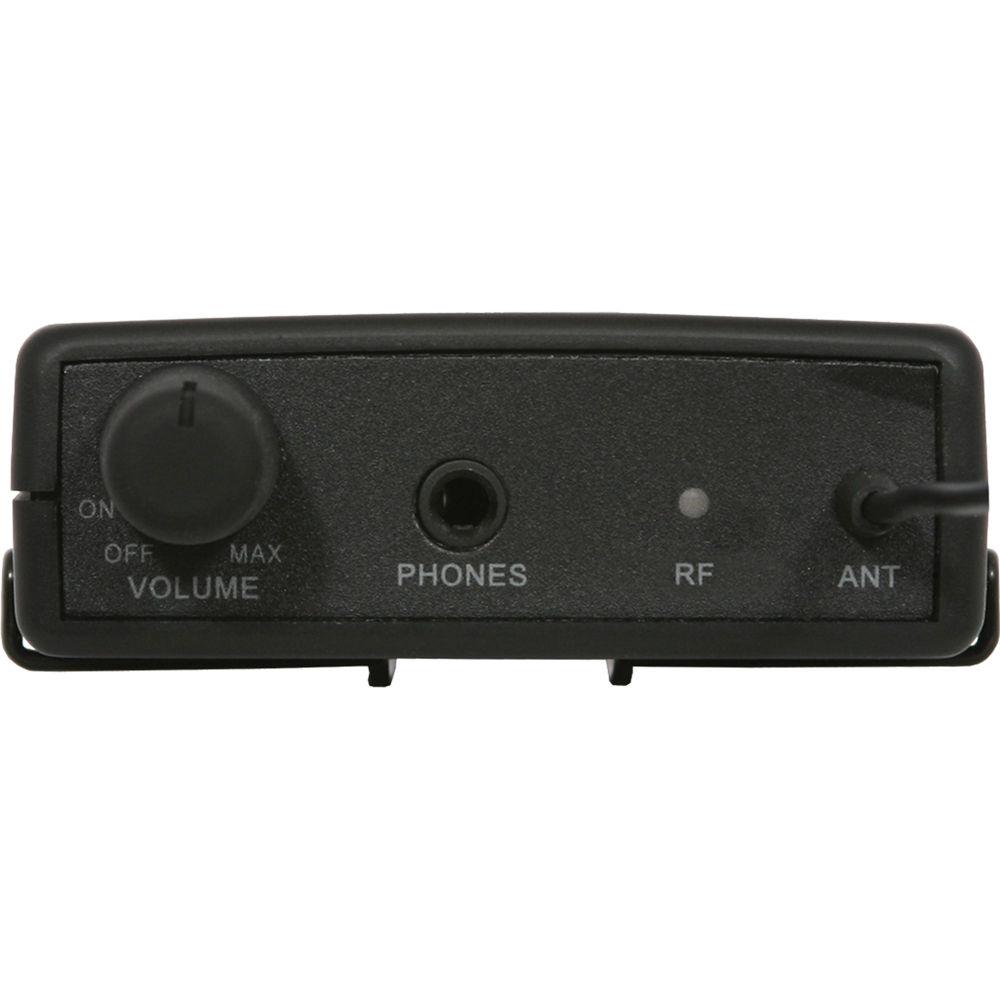

UPC: 691281804755 - AS-1100R Wireless Bodypack Receiver The AS-1100R Wireless Bodypack Receiver from Galaxy Audio is designed for use in the AS-1100 wireless system. It features a backlit LCD display that indicates battery life as well as RF and AF reception. The unit is powered by 2 AA batteries (not included) for up to 5 hours. A pair of earbuds are included.
- Headphone Output Volume Control
- 4 Bar Battery Life Indicator
- Powered by 2 AA Batteries
In the Box Bundle Items AS-1100T Wireless Transmitter fzdxqbuzfwbqruxdtxuzxqvasvczawdtscyz AS-1100R Wireless Bodypack Receiver
Also Includes - Earbuds
- Limited 3-Year Warranty
- Limited 1-Year Warranty for Earbuds
Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio AS-1100 Personal Wireless Stage-Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AS-1100T Wireless Transmitter
| Maximum Audio Input Level Analog | +6 dBV | | Gain Adjustment Range | 40 dB | | Input Impedance | 100 kΩ | | Power Requirements | 12-18 V DC @ 300 mA, supplied by external power supply | | Input | 2x Impedance balanced XLR inputs
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No audio | | Dimensions (HxWxD) | 1.5 x 8.3 x 3.8" (38 x 212 x 96 mm) | | Weight | 21 oz (605 g) | | | | Box Dimensions (LxWxH) | 16.6 x 12.7 x 3.3" | - AS-1100R Wireless Bodypack Receiver
| Audio Output Level | 100 mW | | Sensitivity | -94 dBm for 30 dB | | Image Rejection | >55 dB | | Power Requirements | 2x AA alkaline or rechargeable batteries | | Battery Life | 5 hours, approximate | | Dimensions (HxWxD) | 3.7 x 2.6 x 1" (95 x 65 x 25 mm) | | Weight | 3.5 oz (100 g), without batteries | | | | Box Dimensions (LxWxH) | 7.0 x 3.2 x 1.5" |
