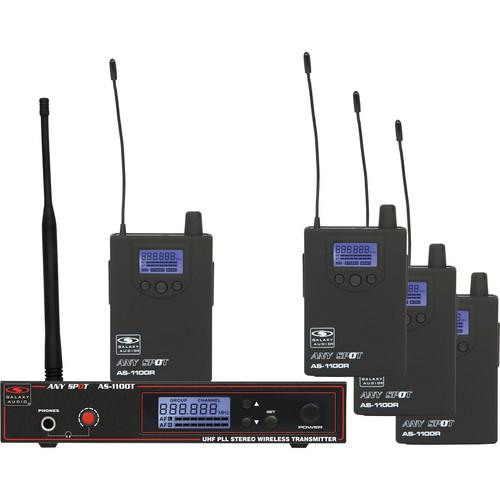

Product description The AS-1100D 4-User Personal Wireless Stage Monitoring System from Galaxy Audio includes everything you need to provide wireless monitoring to up to 4 users. Operating at 584 to 607 MHz, this system includes an AS-1100T transmitter and 4 AS-1100R receivers. It is intended to provide stereo or mono wireless stage monitoring at up to 300' away without bulky floor speakers.
The system offers 120 selectable channels and additional receivers (sold separately) may be added for large bands, stage performances, etc. The AS-1100T transmitter features XLR/TRS combo inputs and an RF output of 10mW. Each AS-1100R receiver runs on a pair of standard AA batteries, features a 4-bar battery status indicator, and has an easy-to-use volume control. Each receiver comes with a pair of compact earbuds so you can start working immediately. Note: Additional transmitters and receivers (sold separately) can be added to this system for additional functionality. System - Uses a UHF radio signal to provide a wireless range of up to 300'

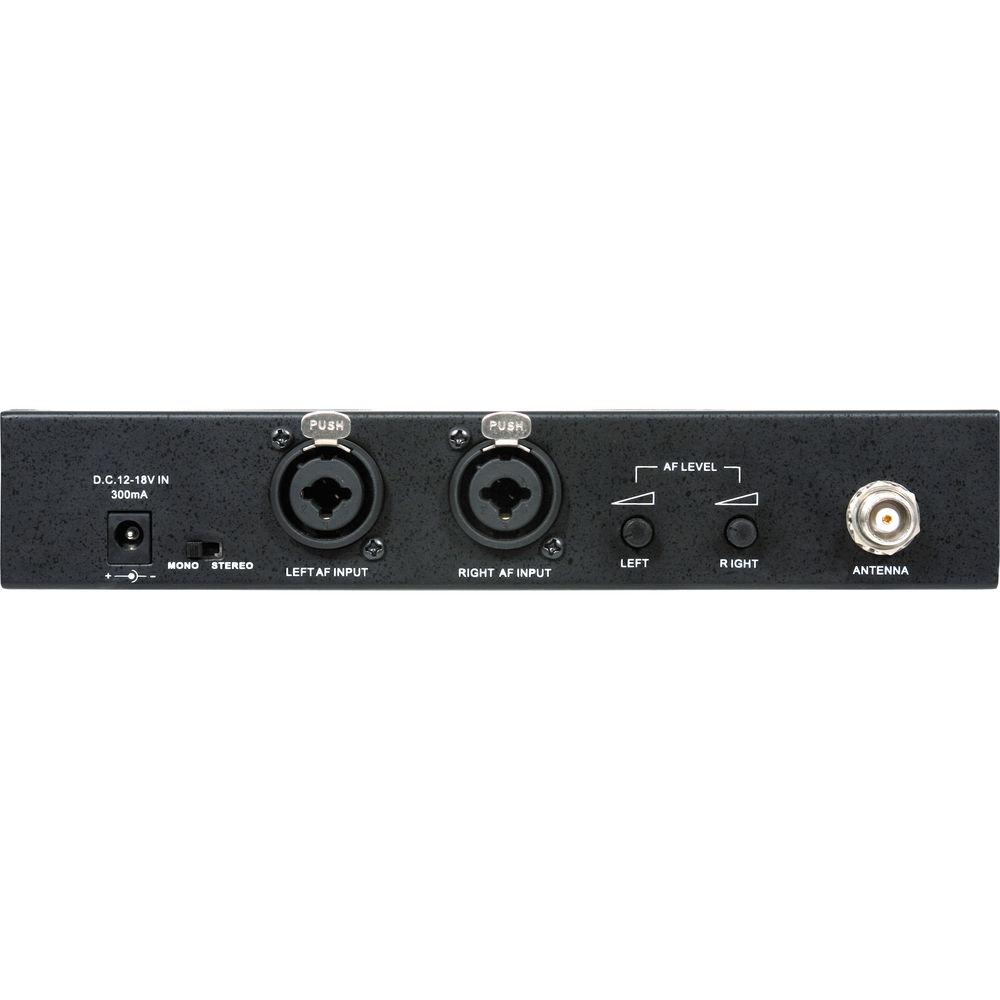

Transmitter - Compact design for tabletop or rackmount use
- XLR/TRS combo input connectors
- Front-panel light-up LCD display with channel number and frequency

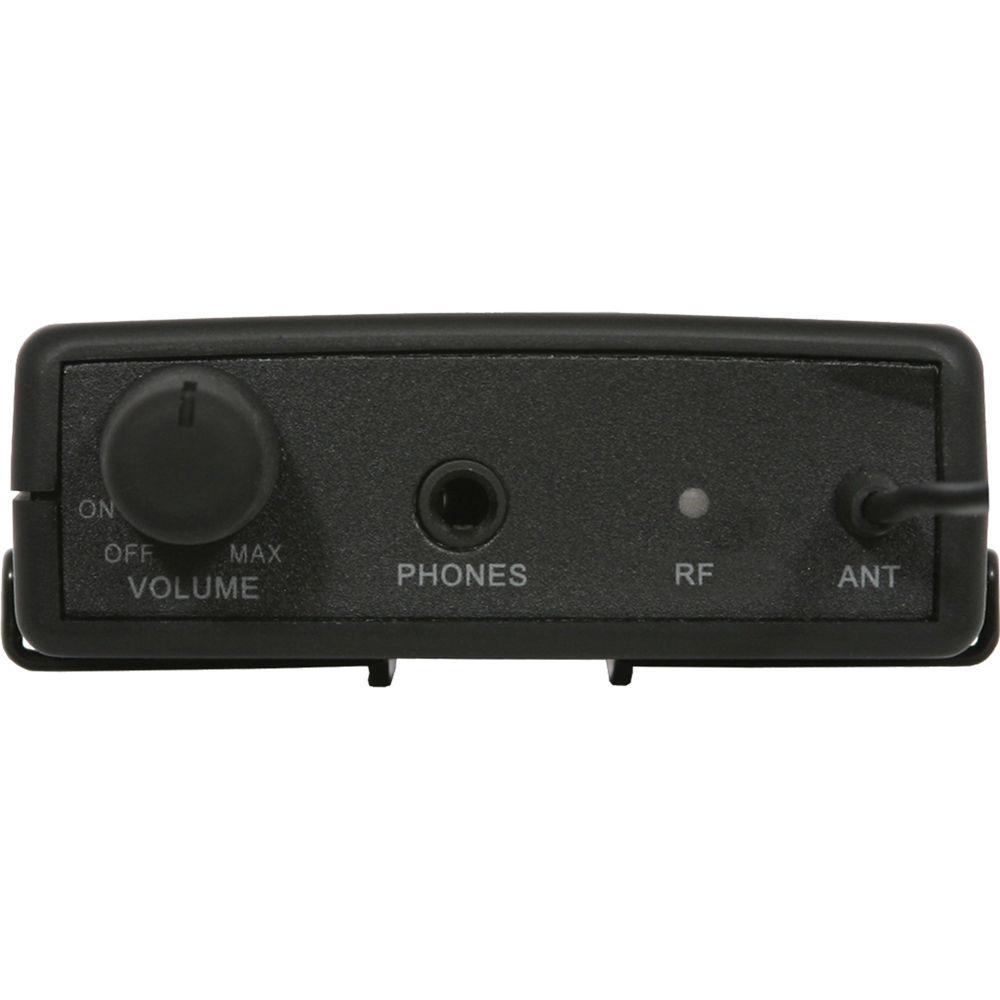

Receiver - Backlit LCD display, plus RF and AF indicators
- 100mW headphone jack, compact earbuds included
- Easy-to-use volume control
- Operates on 2 AA batteries and has a 4-bar battery indicator

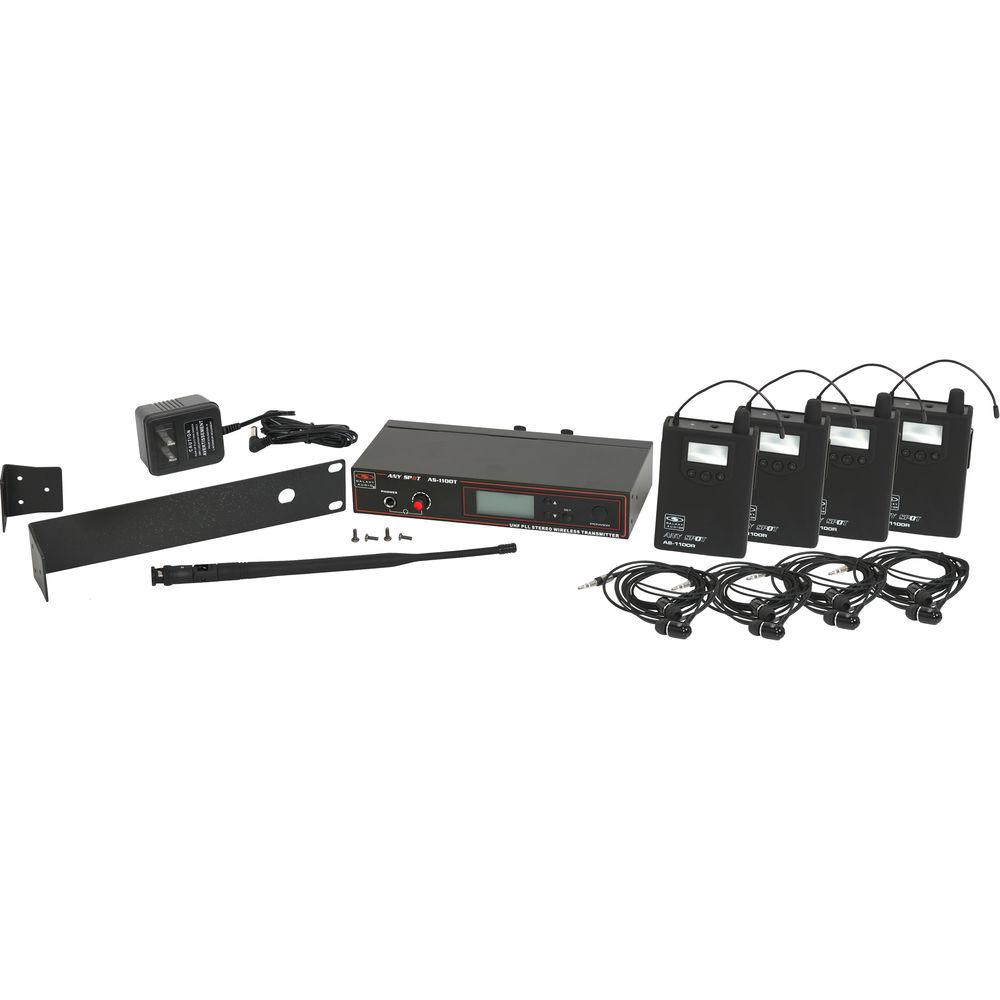

UPC: 691281804748 In the Box Galaxy Audio AS-1100D 4-User Personal Wireless Stage Monitoring System (584 to 607 MHz) AS-1100T Transmitter (584 to 607 MHz) 4 x AS-1100R Receivers (584 to 607 MHz) 4 x Earbuds Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio AS-1100D 4-User Personal Wireless Stage Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio AS-1100 Specs | | | Band | UHF | | Frequency Range | 584 to 607 MHz | | Operating Range | Up to 300' (92 m), Depending on environment | | Audio Frequency Response | 60 Hz - 16 kHz ±3 dB | | Total Harmonic Distortion (THD) | < 1% | | Dynamic Range | > 90 dBA | | Operating Temperature | 14 to 122°F (-10 to +50°C) Battery characteristics may limit temperature range | | | | Input Level | +6 dBV | | Output Level | 10 dBm
10 mW RF output | | Gain | 40 dB | | Input Impedance | 100 kOhms | | Connectors | 1 x balanced XLR/TRS combo input
1 x 1/4" headphone output | | Power | 12-18 VDC @ 300 mA via external power supply | | Dimensions (HxWxD) | 1.5 x 8.3 x 3.8" (38 x 212 x 96 mm) | | Weight | 21 oz (605 g) | | | | Audio Output Level | 100 mW | | Sensitivity | -94 dBm for 30 dB | | Image Rejection | > 55 dB | | Connector | 1 x 3.5 mm headphone jack | | Battery Type/Life | 2 x AA batteries (Alkaline or Rechargeable)
Up to 5 hours | | Dimensions (HxWxD) | 3.7 x 2.6 x 1" (95 x 65 x 25 mm) | | Weight | 3.5 oz (100 g) (Without batteries) | | | | Package Weight | 6.26 lb | | Box Dimensions (LxWxH) | 17.0 x 13.6 x 2.7" |
