User Manual for Galaxy Audio AS-1100N 4-User Personal Wireless Stage Monitoring System Click to enlarge the picture
Contents of the user manual for the Galaxy Audio AS-1100N 4-User Personal Wireless
- Product category: In-Ear Monitoring Systems Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio In-Ear Monitoring Systems
 |
User manual for the Galaxy Audio AS-1100N 4-User Personal Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

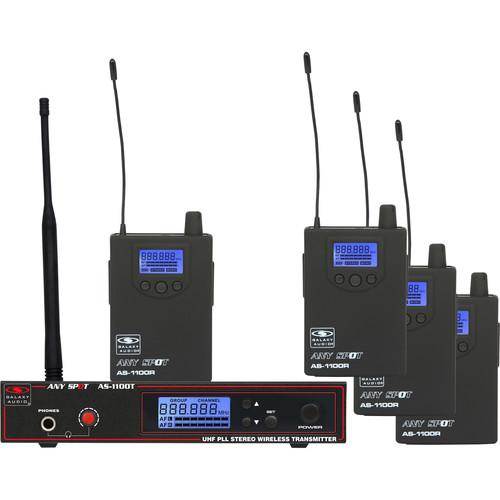

Product description The AS-1100N 4-User Personal Wireless Stage Monitoring System from Galaxy Audio includes everything you need to provide wireless monitoring to up to 4 users. Operating at 518 to 542 MHz, this system includes an AS-1100T transmitter and 4 AS-1100R receivers. It is intended to provide stereo or mono wireless stage monitoring at up to 300' away without bulky floor speakers.
The system offers 120 selectable channels and additional receivers (sold separately) may be added for large bands, stage performances, etc. The AS-1100T transmitter features XLR/TRS combo inputs and an RF output of 10mW. Each AS-1100R receiver runs on a pair of standard AA batteries, features a 4-bar battery status indicator, and has an easy-to-use volume control. Each receiver comes with a pair of compact earbuds so you can start working immediately. Note: Additional transmitters and receivers (sold separately) can be added to this system for additional functionality. System - Uses a UHF radio signal to provide a wireless range of up to 300'
Transmitter - Compact design for tabletop or rackmount use
- XLR/TRS combo input connectors
- Front-panel light-up LCD display with channel number and frequency

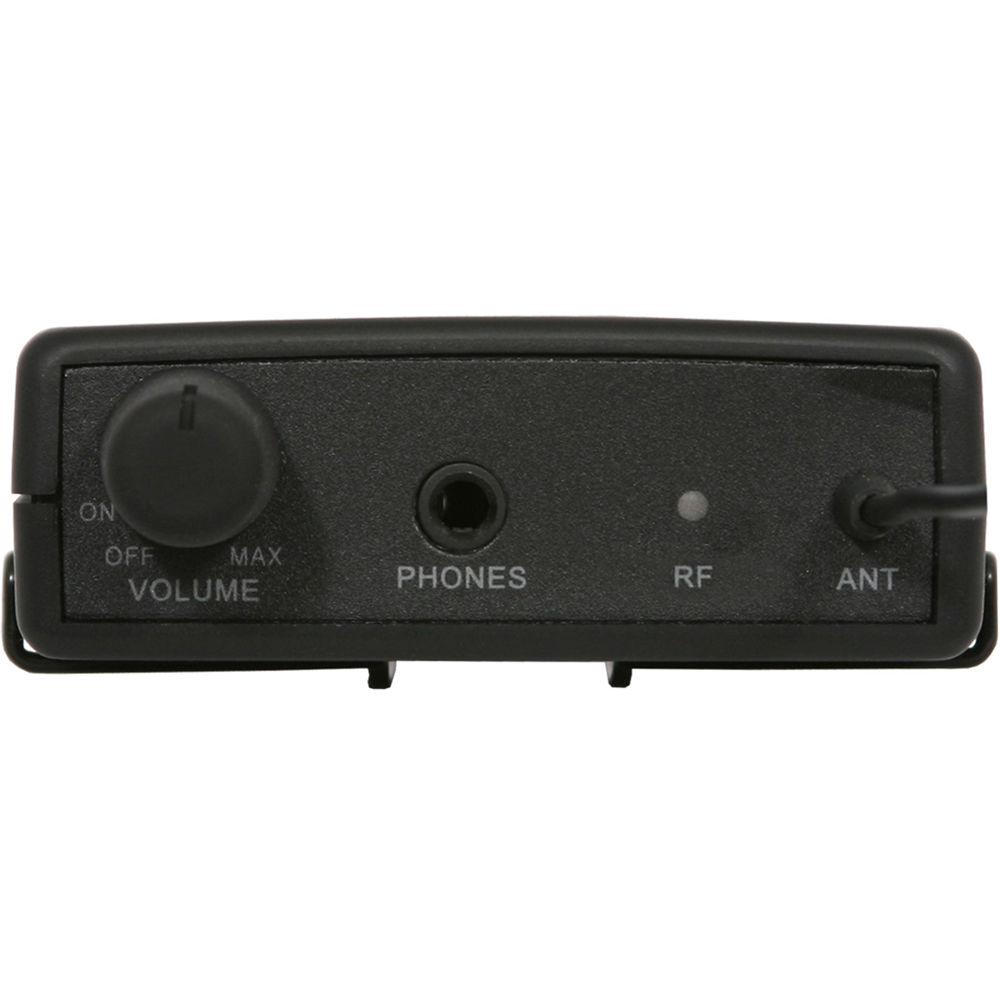

Receiver - Backlit LCD display, plus RF and AF indicators

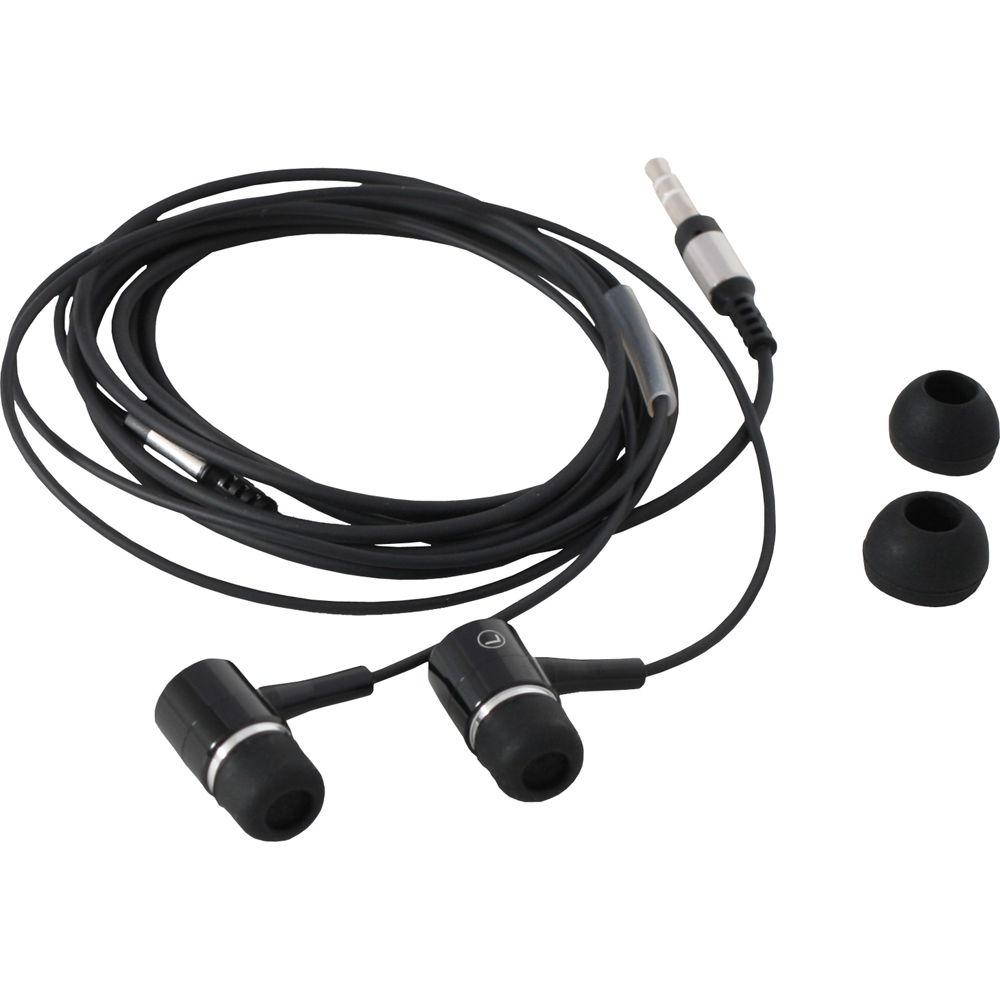

- 100mW headphone jack, compact earbuds included
- Easy-to-use volume control
- Operates on 2 AA batteries and has a 4-bar battery indicator

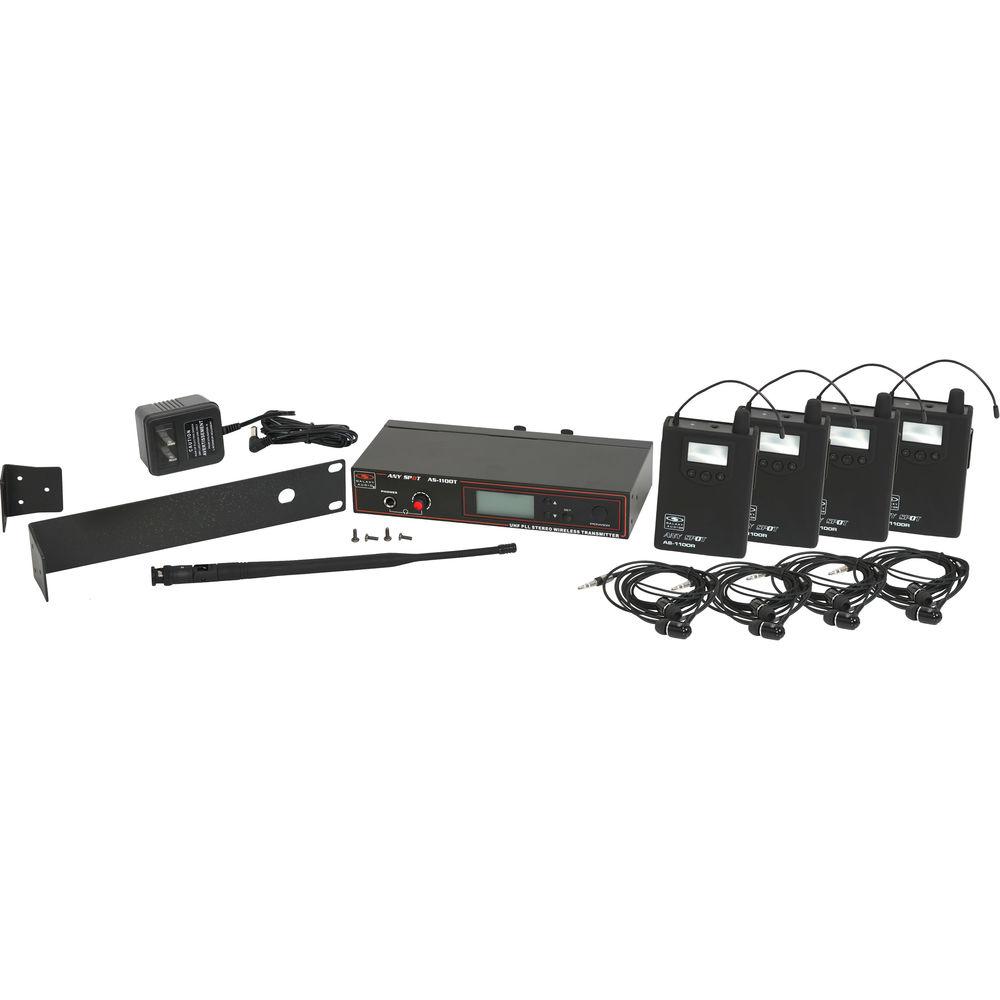

UPC: 691281006579 In the Box Galaxy Audio AS-1100N 4-User Personal Wireless Stage Monitoring System (518 to 542 MHz) AS-1100T Transmitter (518 to 542 MHz) 4 x AS-1100R Receivers (518 to 542 MHz) 4 x Earbuds Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio AS-1100N 4-User Personal Wireless Stage Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio AS-1100-4N Specs | | | Band | UHF | | Frequency Range | 518 to 542 MHz | | Operating Range | Up to 300' (92 m), Depending on environment | | Audio Frequency Response | 60 Hz - 16 kHz ±3 dB | | Total Harmonic Distortion (THD) | < 1% | | Dynamic Range | > 90 dBA | | Operating Temperature | 14 to 122°F (-10 to +50°C) Battery characteristics may limit temperature range | | | | Input Level | +6 dBV | | Output Level | 10 dBm
10 mW RF output | | Gain | 40 dB | | Input Impedance | 100 kOhms | | Connectors | 1 x balanced XLR/TRS combo input
1 x 1/4" headphone output | | Power | 12-18 VDC @ 300 mA via external power supply | | Dimensions (HxWxD) | 1.5 x 8.3 x 3.8" (38 x 212 x 96 mm) | | Weight | 21 oz (605 g) | | | | Audio Output Level | 100 mW | | Sensitivity | -94 dBm for 30 dB | | Image Rejection | > 55 dB | | Connector | 1 x 3.5 mm headphone jack | | Battery Type/Life | 2 x AA batteries (Alkaline or Rechargeable)
Up to 5 hours | | Dimensions (HxWxD) | 3.7 x 2.6 x 1" (95 x 65 x 25 mm) | | Weight | 3.5 oz (100 g) (Without batteries) | | | | Package Weight | 6.55 lb | | Box Dimensions (LxWxH) | 17.1 x 13.5 x 5.6" |
