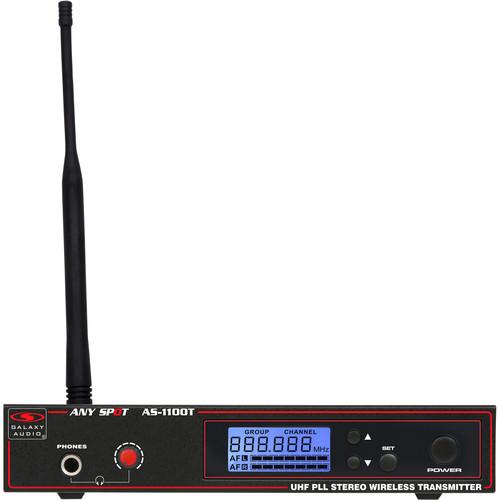

User Manual for Galaxy Audio AS-1100TN Wireless Monitor Transmitter Click to enlarge the picture
Contents of the user manual for the Galaxy Audio AS-1100TN Wireless Monitor Transmitter
- Product category: Receivers Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio Receivers
|
User manual for the Galaxy Audio AS-1100TN Wireless Monitor Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|
Product description The AS-1100TN Wireless Monitor Transmitter from Galaxy Audio transmits audio in stereo or mono signals. Equipped with LCD display, the transmitter features 120 channels to select from, and can be powered using a 12 to 18 VDC external power supply (included). It requires the AS-1100R Receiver (sold separately) on the receiving end. - Transmits in stereo or mono signal
- Channel number and frequency
UPC: 691281006678 In the Box Galaxy Audio AS-1100TN Wireless Monitor Transmitter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio AS-1100TN Wireless Monitor Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio AS-1100TN Specs | Audio Input Level | Maximum: +6 dBV | | Gain Adjustment Range | 40 dB | | Frequency Band | 518 to 542 MHz | | Input Impedance | 100 kOhms | | Output Level | 10 dBm | | Power Requirements | 12 to 18 VDC at 300 mA supplied by external power supply | | XLR Inputs | Impedance balanced | | Pin Assignments | Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No audio | | Dimensions (H x W x D) | 1.5 x 8.3 x 3.8" (3.8 x 21 x 9.6 cm) | | Weight | 21 oz (605 g) |
