User Manual for Galaxy Audio AS-1400 UHF Wireless In-Ear Personal Monitoring System Click to enlarge the picture
Contents of the user manual for the Galaxy Audio AS-1400 UHF Wireless In-Ear
- Product category: In-Ear Monitoring Systems Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio In-Ear Monitoring Systems
 |
User manual for the Galaxy Audio AS-1400 UHF Wireless In-Ear contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

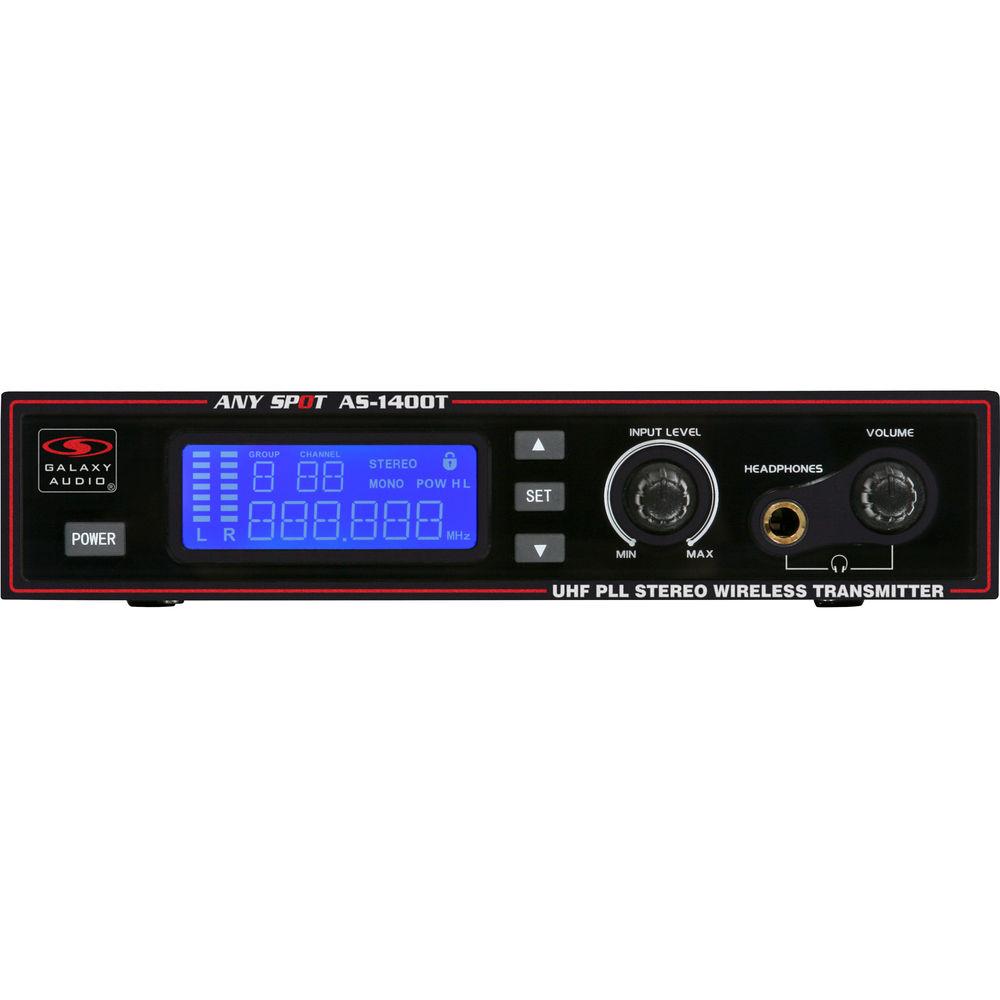

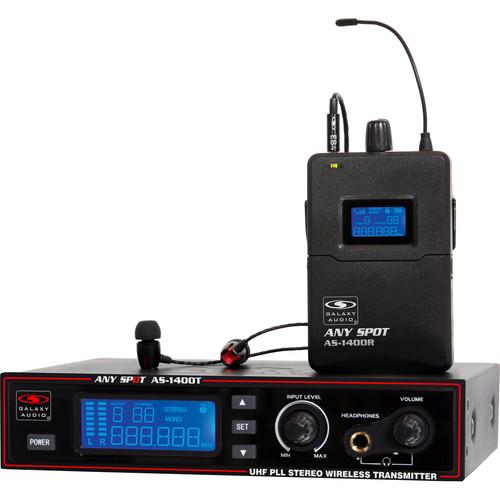

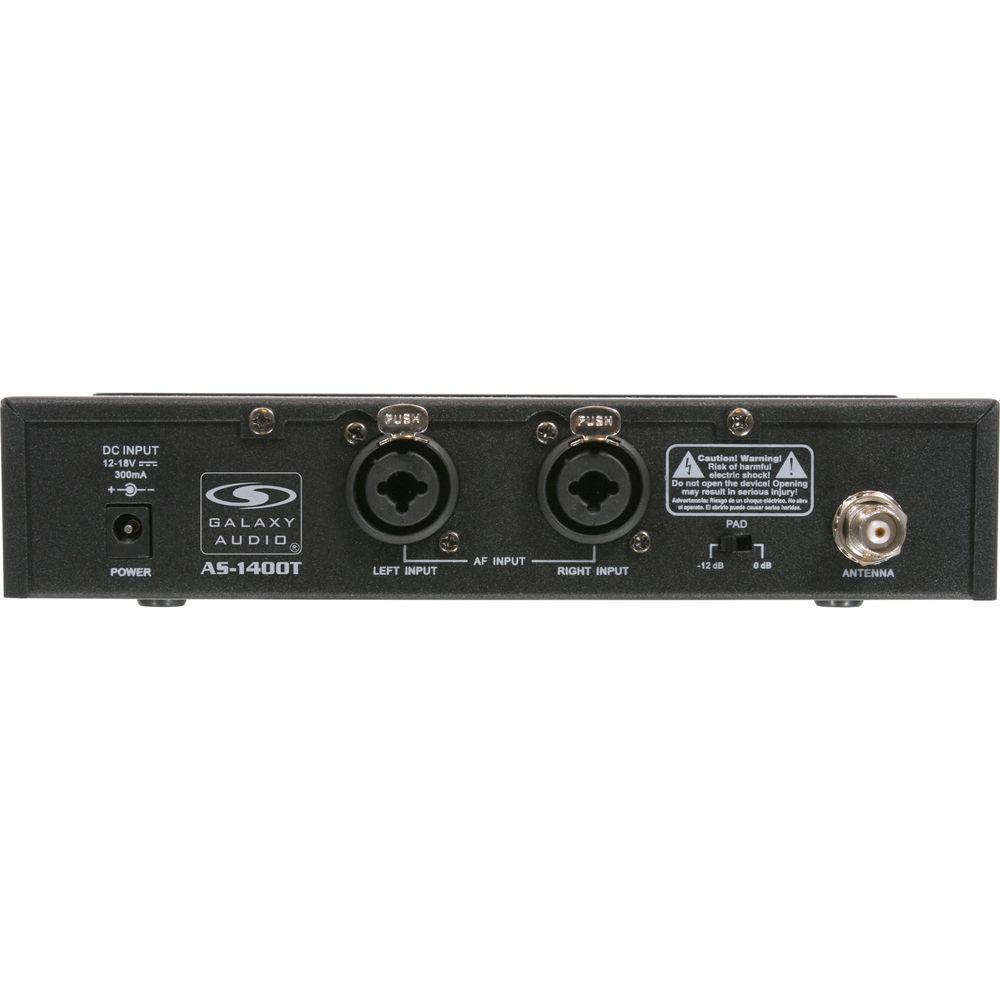

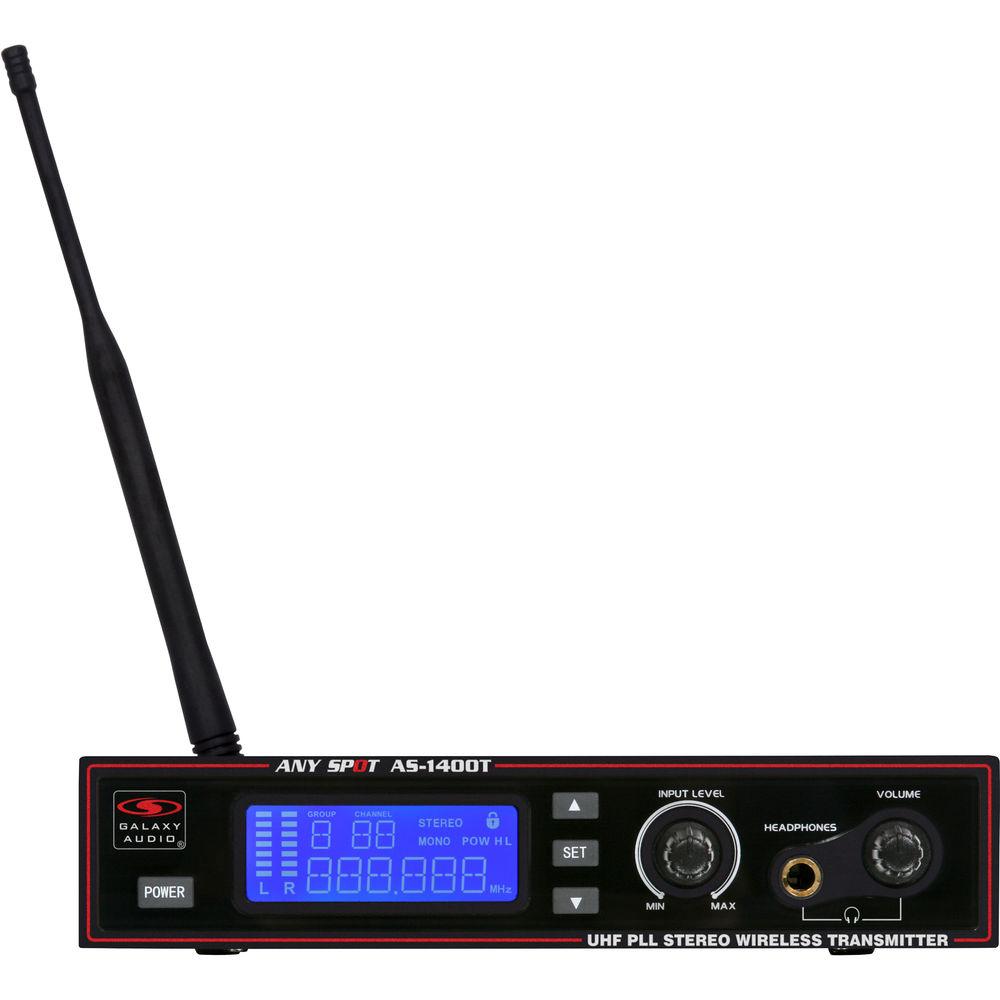

Product description The Galaxy Audio AS-1400 is a UHF wireless in-ear personal monitoring system designed to provide versatile signal mixing, long range, and easy operation for musicians and vocalists in houses of worship, concert venues, and live stage applications. It includes a half-rack transmitter, bodypack receiver, in-ear headphones, power supply, and antenna. The phase-locked loop system offers 275 selectable channels in the 516 to 558 MHz wireless band and a transmission range of up to 300 feet. Backlit LCDs display channel number, frequencies, level, and more.Connect line-level signals to the transmitter's dual XLR-1/4" combo inputs, then connect headphones to the 1/4" stereo headphone output to check audio signal quality. Hook the bodypack receiver to your belt via a handy clip, connect the supplied in-ear headphones to the 1/8" stereo mini-jack, then adjust the output volume. Multiple receivers may be fed from a single transmitter operating in mono or stereo, and each receiver can monitor in mono or stereo. A mixed mono mode allows the musician to adjust the balance between two mixes. - Half-rack transmitter features stereo XLR-1/4" combo inputs, a 1/4" headphone output with volume control, input level control, and backlit LCD for display of group, channel number, frequencies, input level, and stereo/mono mode

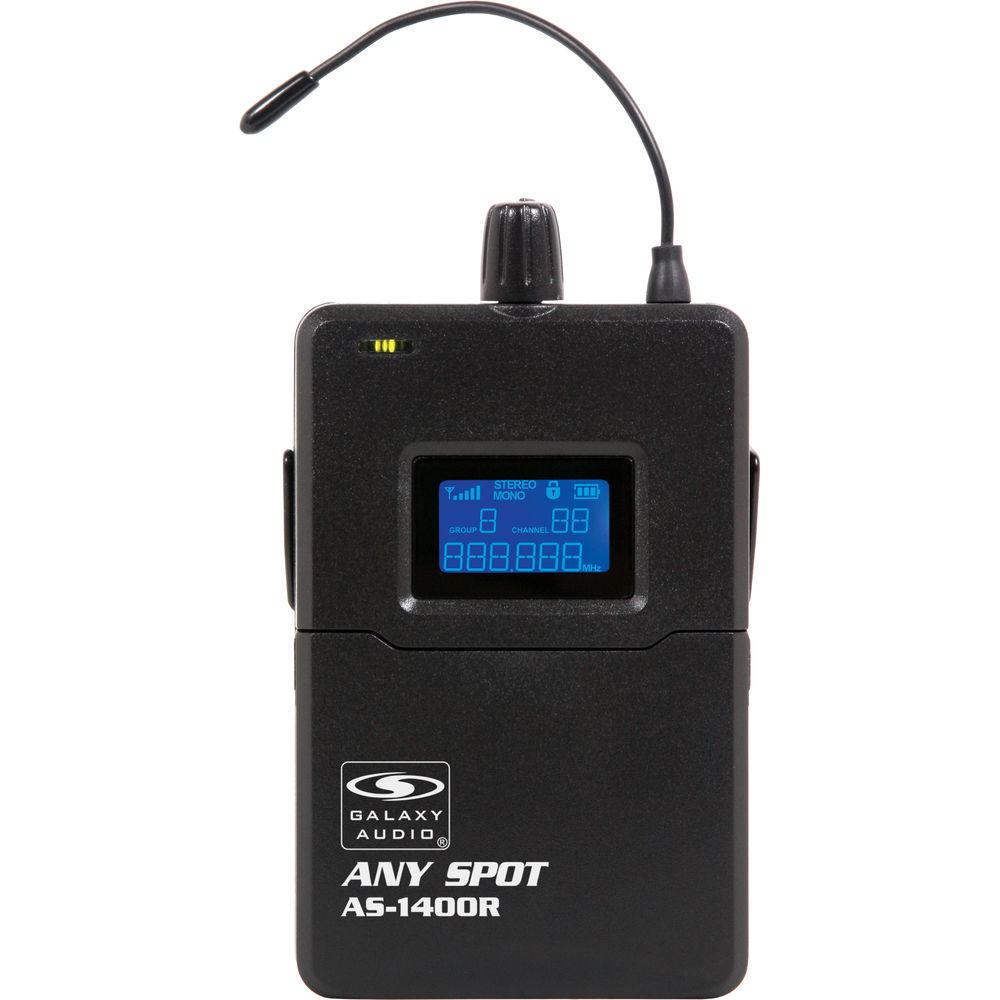

- Bodypack receiver features an 1/8" stereo headphone output with volume control, belt clip, LED indicators for RF signal and low-battery status, and backlit LCD for display of group, channel number, frequencies, input level, battery level, and stereo/mono mode
- Receiver offers three transmission modes: stereo, mono, or mixed mono mode, which allows performers to adjust the balance of left and right audio signals sent from the transmitter via the bodypack
- Supplied in-ear headphones feature titanium drivers, extended bass response, and aluminum alloy construction
- Power the receiver via two AA batteries, which provide up to seven hours of battery life
- Includes power supply and rack-mounting kit
UPC: 691281006999 In the Box Galaxy Audio AS-1400 UHF Wireless In-Ear Personal Monitoring System EB4 Single-Driver In-Ear Stereo Monitor Headphones Power Supply Antenna MREWD Rack-Mounting Kit for Wireless Systems Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio AS-1400 UHF Wireless In-Ear Personal Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio AS-1400 Specs | | | Frequency Band | UHF | | Wireless Frequency Range | 516 to 558 MHz (band code M) | | Number of Selectable Frequencies | 275 | | Transmitter Output | 30 mW | | Bandwidth | 42 MHz | | Operating Range | Up to 300' / 92 m (under typical conditions) | | Frequency Response ± 3dB | 40 Hz to 16 kHz | | Dynamic Range | >90 dB (A-weighted) | | Total Harmonic Distortion (THD) | <0.4% at 1 kHz | | Signal-to-Noise Ratio (SNR) | >105 dB | | Maximum Deviation Range |
