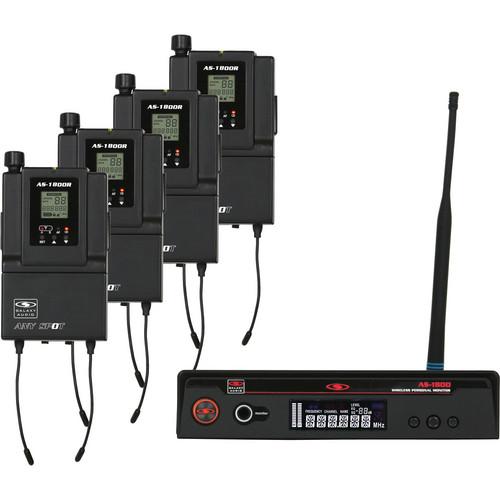

Product description The AS-1800-4 Personal Wireless Monitor Band Pack System from Galaxy Audio includes 4 bodypack receivers (AS-1800R), 4 sets of ear buds, and 1 transmitter (AS-1800T). It is designed to get the whole band wireless in one package. The AS-1800-4 allows a band to send 1 stereo mix to 4 individuals.

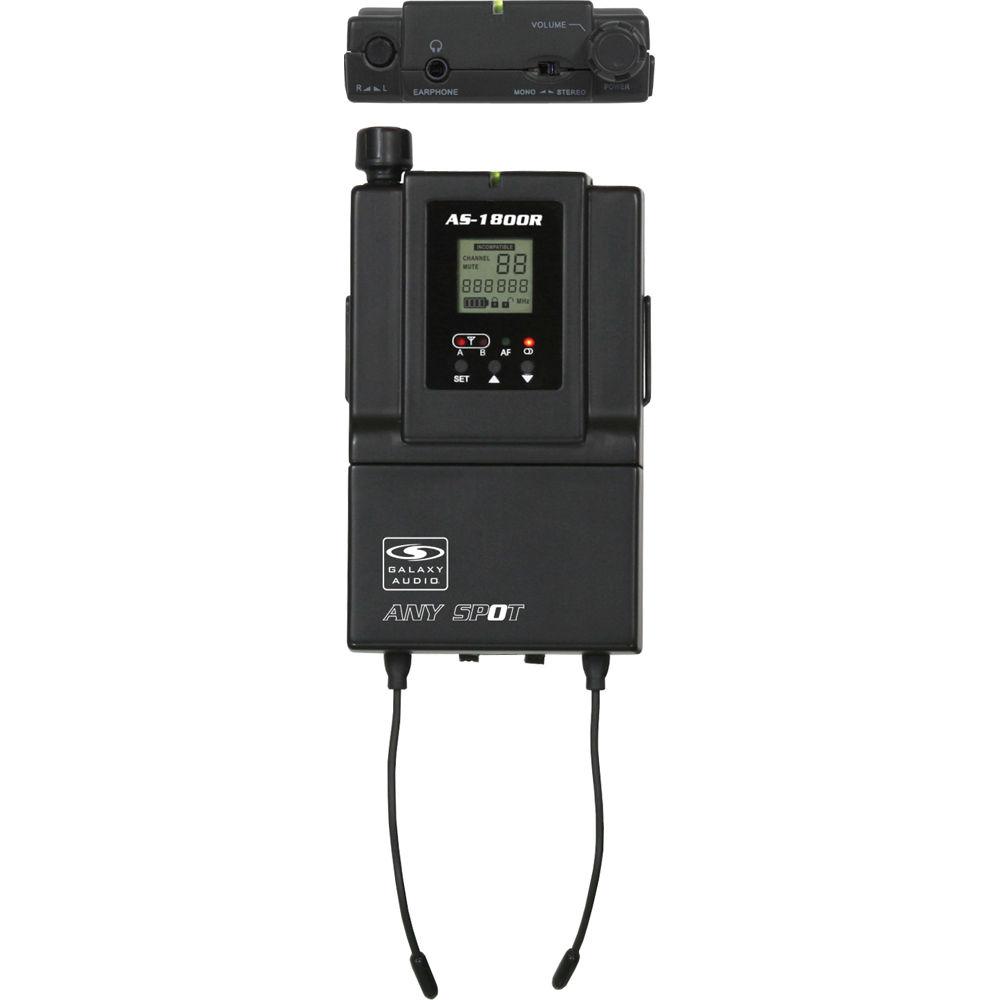

With 150mW's of headphone output, the AS-1800R bodypack receiver is loud enough for any environment. The receiver has a squelch adjustment, stereo/mono switch, diversity antennas, LCD display that shows the channel number, frequency and battery status, button lock, and a magnesium alloy construction. The Mixed Mono Mode allows performers to adjust the balance of the left and right audio signals sent from the transmitter directly on the body pack. The performers can have their vocals in input 1 and the band mix in input 2 and adjust the volume of each independently to create their own personal mix. Alternatively, 2 different monitor mixes can be sent from the board so that each performer can decide which mix they want to hear on their belt pack.

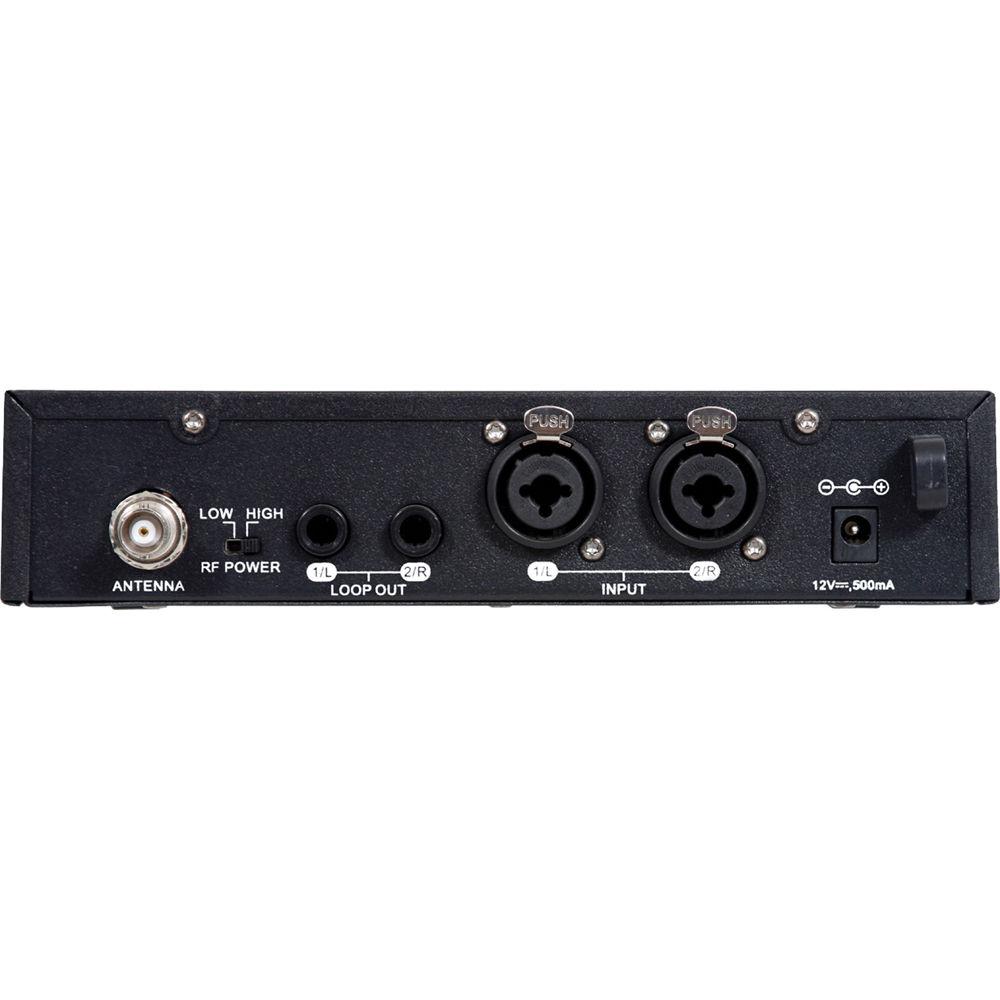

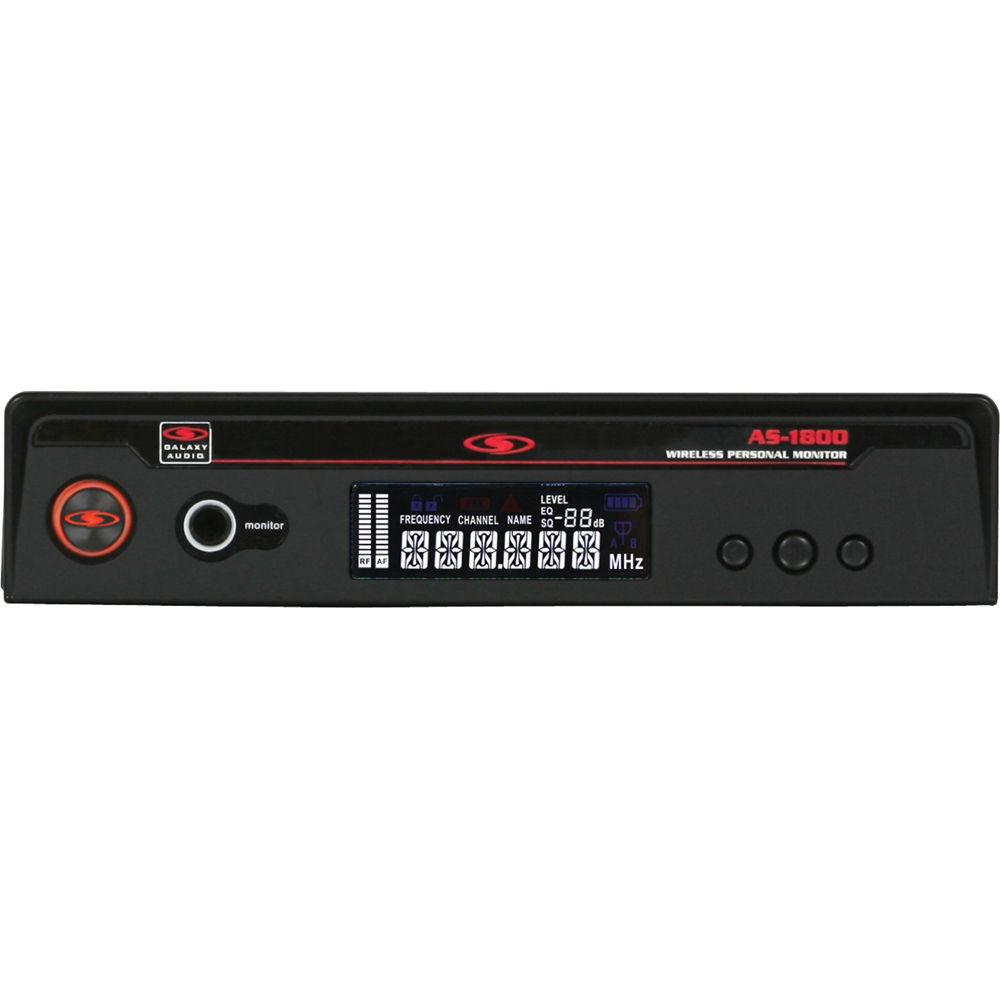

The AS-1800T transmitter allows the user to select from 640 frequencies or 32 channels and has XLR/1/4" combination inputs, 2 to 1/4" line outputs, and selectable 30 or 100 mW transmitter output. The transmitter can be programmed with the name of the user which makes it easy to identify which performer is using which transmitter. It also allows the user to change between name, frequency, or channel on the display. There is a sensitivity selector for the transmitter input, which will allow either the mic or line level to be accepted into the transmitter.
Note: Additional receivers/transmitters may be purchased at a later date to add mixes. - Transmitter Features
- Easy to read LCD
2 x 1/4" Line outputs (unbalanced)
Volume control
Two XLR/¼" combo inputs
Naming function
30/100mW selectable transmitter output
Monitor output
Detachable BNC antenna - Receiver Features
- True diversity
Magnesium alloy construction
45 to 18 kHz
Mixed mono mode
Frequency display
Backlit LCD
Volume control
Battery level indicator
150mW headphone output
Runs on 2AA batteries (7 hours-alkaline)
Button lock
Squelch adjustment
Volume knob
Auto mute
Stereo/mono switch UPC: 691281806346 In the Box Galaxy Audio AS-1800-4 300' Range Personal Wireless Monitor Band Pack System Transmitter Antenna Power Adapter Earphone 4 x Body Pack Receiver 4 x Earbud Rack Mount Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio AS-1800-4 300' Range Personal Wireless Monitor Band Pack System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio AS-1800-4 Specs | | | Frame Size | Main: EIA Standard 1/2 U | | Channels | 32 Channels
640 Selectable frequencies | | Frequency Stability | ±0.0005%, Phase lock loop frequency control | | Carrier Frequency Range | CODE B3: 554 to 570 MHz | | Modulation Mode | FM stereo modulation | | Output Power | 30 mW or 100 mW selectable | | Operating Range | 300' (100 m) typical (in open space) | | Oscillation Mode | PLL synthesized | | Spurious Rejection | <-60 dBm | | Maximum Deviation Range | ±68 KHz | | S/N Ratio | 105 dB | | Total Harmonic Distortion (THD) | < 0.7% @ 1 KHz | | Bandwidth | 16 MHz | | Frequency Response | 45 Hz to 18 KHz ±1 dB | | Audio Input | 2 x Line level, XLR / 1/4" combo jack | | Audio Output | 2 x 1/4" (6.3 mm) unbalanced jack | | Dimensions (H x W x D) | 1.7 x 8.2 x 8.1 (43.1 x 208.2 x 205.7) | | Weight | 2.3 lb (1.0 kg) | | | | Channels | 32 Channels / 640 Selectable frequencies | | Frequency Stability | ±0.0005%, phase lock loop frequency control | | Carrier Frequency Range | UHF Code B3: 554 to 570 MHz | | Modulation Mode | FM stereo modulation | | Operating Range | 300.0' (91.4 m) typical (in open space) | | Oscillation Mode | PLL synthesized | | Sensitivity | 6 dBμV, S/N > 60 dB at 25 deviation (mono) | | Bandwidth | 16 MHz | | Maximum Deviation Range | ±68 KHz | | S/N Ratio | >105 dB | | Total Harmonic Distortion (THD) | <0.7% @ 1 KHz | | Frequency Response | 45 Hz to 18 KHz ±1 dB | | Stereo Separation | >45 dB (at 1 KHz) | | Output Connector | 1/8" (3.5 mm) stereo earphone connector | | Output Power | 150 mW at 1 KHz (THD1%) | | Battery | 2 x AA | | Current Consumption | 185 mA typical | | Battery Life (approx.) | 7 hours | | Dimensions (H x W x D) | 4.2 x 2.6 x 0.8" (107.9 x 66.0 x 22.0 mm) | | Weight | 0.35 lb (0.15 kg) | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 18.0 x 14.4 x 8.8" |
