User Manual for Galaxy Audio AS-1800 Wireless Personal Monitor System Click to enlarge the picture
Contents of the user manual for the Galaxy Audio AS-1800 Wireless Personal Monitor
- Product category: In-Ear Monitoring Systems Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio In-Ear Monitoring Systems
 |
User manual for the Galaxy Audio AS-1800 Wireless Personal Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

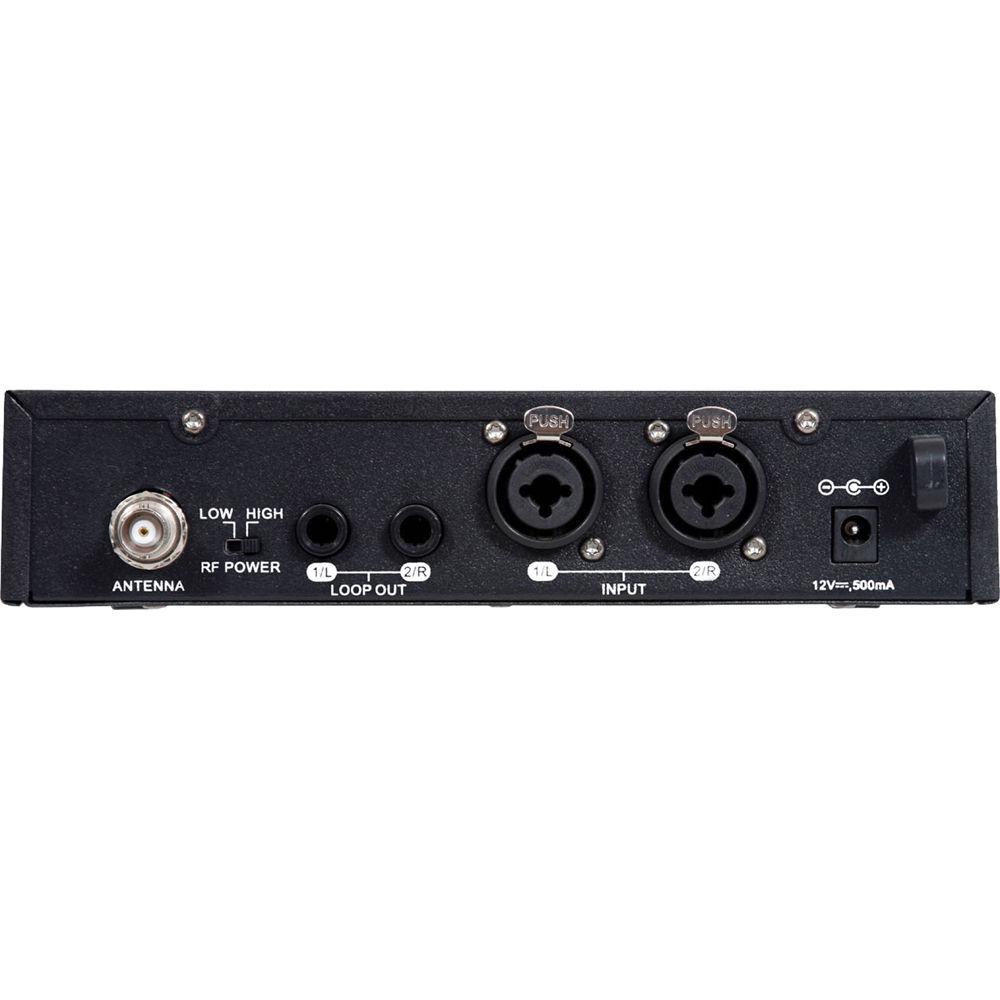

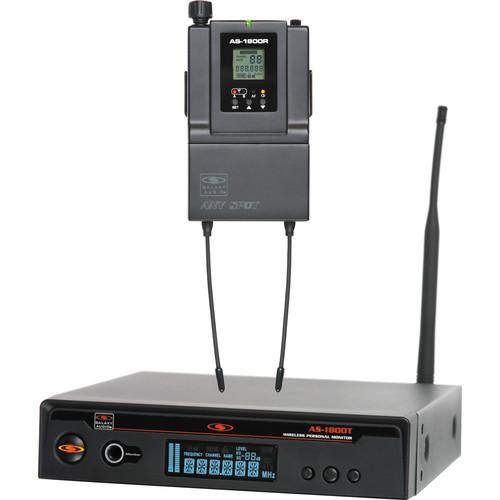

Product description The AS-1800 from Galaxy Audio is a wireless personal monitoring system designed to provide professional audio quality and reliability for artists, broadcasters, and other demanding audio environments. The system features a half-rack sized transmitter and an ergonomic bodypack receiver with soft touch controls. The unit operates over a 16 MHz bandwidth with 640 selectable UHF frequencies and 32 channels. The "True Diversity" reception offers interference-resistant operation, while the Phase Lock Loop (PLL) ensures transmission reliability. The "Noise Lock" squelch effectively blocks stray radio frequencies.The AS-1800 offers a mixed mono mode which allows performers to have independent control over the band mix and their vocal or instrument signals. Additionally, two separate monitor mixes can be created from the board giving the performer a choice of what they wish to hear on their belt packs. An unlimited number of bodypacks may be added. The AS-1800 system ships with a power adapter, antenna, and ear buds with three pairs of silicone sleeves. - AS-1800T - Transmitter
-
- LCD Display
- Line Outputs (unbalanced): 2 x 1/4"
- Volume control
- Combo Inputs: 2 x XLR/1/4" jacks
- Naming Function
- Selectable Transmitter Output: 30/100 mW
- Monitor output
- Detachable BNC antenna

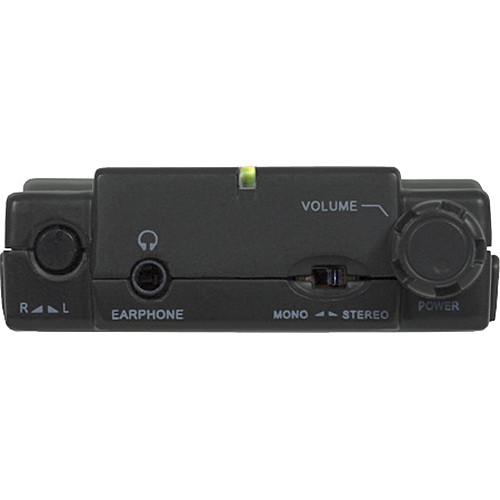

- AS-1800R - Bodypack Receiver
-
- True diversity
- Magnesium alloy construction
- Mixed mono mode
- Frequency display
- Backlit LCD
- Volume control
- Battery level indicator
- 150 mW headphone output
- Runs on 2 x AA batteries(7 hours-alkaline)
- Button lock
- Squelch adjustment
- Volume knob
- Auto mute
- Stereo/mono switch
UPC: 691281004520 In the Box Galaxy Audio AS-1800 Wireless Personal Monitor System Power Adapter Earphones 3 x Pairs of Silicon Sleeves for Earphones (SM, MD, LG) Antenna Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio AS-1800 Wireless Personal Monitor System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio AS-1800 Specs | | | Channels | Channels: 32
Selectable Frequencies: 640 | | Frequency Stability | ±0.0005%
Frequency Control: Phase Lock Loop (PLL) | | Operating Frequencies | Available Frequencies:
B2 538 to 554 MHz
B3 554 to 570 MHz | | Modulation Mode | FM stereo modulation | | Operating Range | Open Space (Typical): 300' / 100 m | | Oscillation Type | PLL synthesized
Spurious Rejection: <-60 dBm | | Maximum Deviation Range | ±68 kHz | | Bandwidth | 16 MHz | | S/N | > 105 dB | | THD | < 0.7% @ 1 kHz | | Frequency Response | 45 Hz to 18 kHz (±1 dB) | | | | Audio Input / Output | Line Level Input: 2 x XLR/1/4" combo jacks
Line Level Output: 2 x 1/4" unbalanced | | Rated Output Power | 30 or 100 mW | | Dimensions (H x W x D) | 1.7 x 8.2 x 8.1" / 4.3 x 20.8 x 20.6 cm | | Weight | 2.3 lb / 1.0 kg | | | | Sensitivity | 6 dB µV
S/N >60 dB at 25 deviation (mono) | | Stereo Separation | ≥45 dB (at 1 kHz) | | Output Connector | Stereo Earphone Connector: 1/8" | | Output Power | 150 mW at 1 kHz (THD 1%) | | Battery | 2 x AA | | Current Consumption | 185 mA (typical) | | Battery Life (approx.) | 7 hours | | Dimensions (H x W x D) | 4.3 x 2.6 x 0.9" / 10.8 x 6.6 x 2.2 cm | | Weight | 0.4 lb / 0.2 kg | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 17.0 x 17.0 x 4.0" |
