Product description

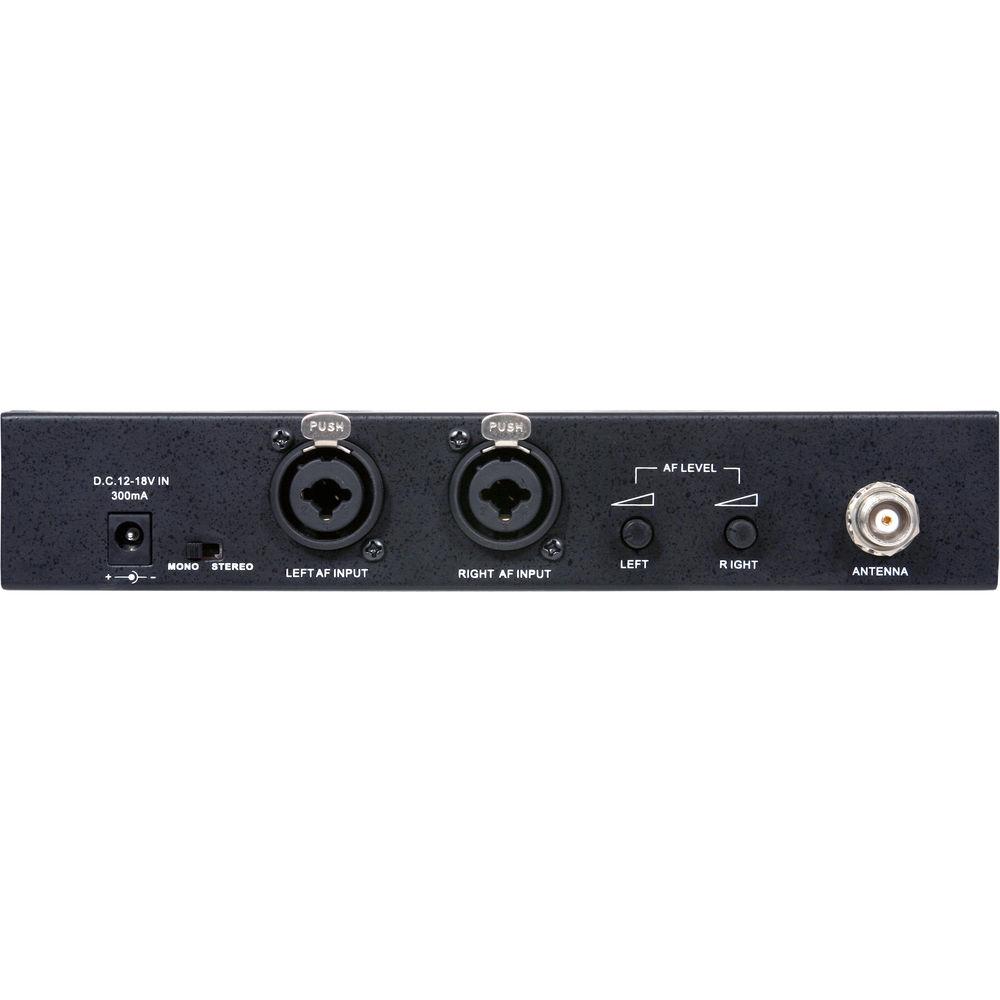

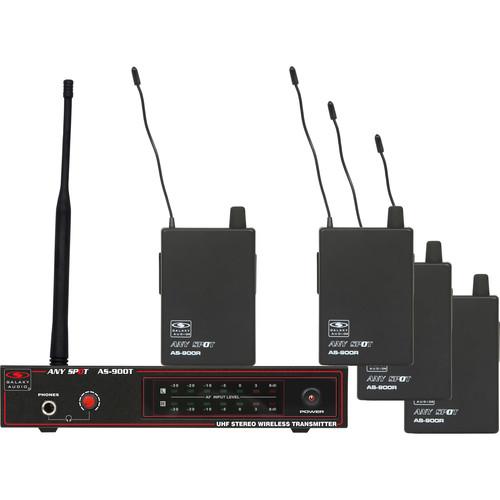

• AS-900R Any Spot Series Wireless Personal Monitor Transmitter (N8 Band: 531.15 MHz) The AS-900R Any Spot Series Transmitter from Galaxy Audio is used with the AS-900 wireless stage monitoring system. It transmits signals to the AS-900R bodypack receiver (available separately) located at a distance of up to 150 ft. It can transmit in either mono or stereo formats. This unit has a fixed UHF frequency of 531.15 MHz. The transmitter unit has two XLR-1/4" combo jacks for its inputs, a stereo / mono switch, and a headphone output with volume control. It can be rack mounted in 1RU space using the included rack ears. A rack tray is available separately for mounting two transmitters side by side in one rack space. UPC: 691281005114
• AS-900RN8 Stereo Receiver for AS-900 Wireless In-Ear Personal Monitor System (N8: 531.15 MHz) The Galaxy Audio AS-900RN8 Stereo Receiver is intended for use with the AS-900 wireless in-ear personal monitor system. It features an 80mW headphone amplifier with a standard 3.5mm headphone output, and a built-in limiter to ensure sufficient loudness in any environment. The AS-900R operate up to five hours on two AA alkaline or rechargeable batteries. Included is a pair of lightweight EB4 earbuds along with three pairs of silicon sleeves (small, medium, and large).

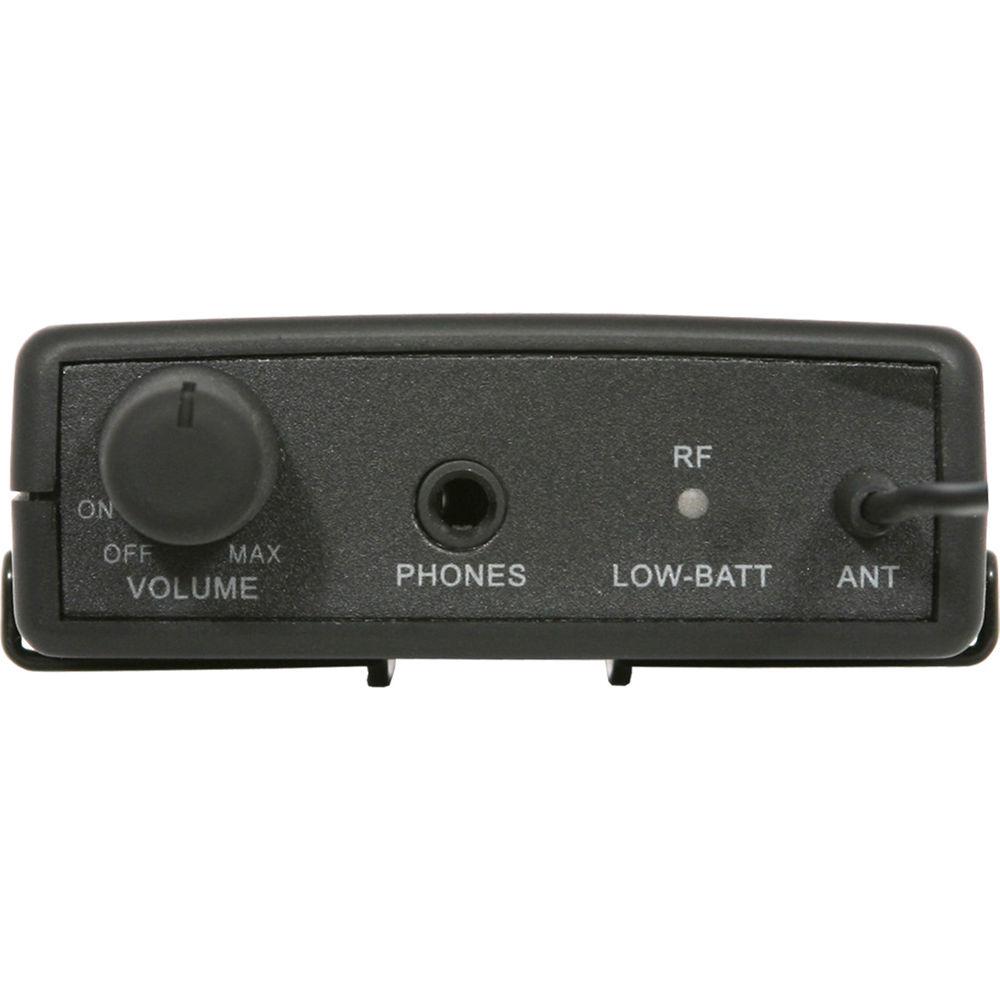

  AS-900R Receiver
  • • Earphone output with volume control
    • Lightweight at 3.2 oz
    • 80mW headphone amplifier
    • 3.5mm stereo headphone output
    • Built-in limiter
    • RF indicator
    • Low-battery indicator
    • Powered via two AA batteries
    • Battery life approximately 5 hours

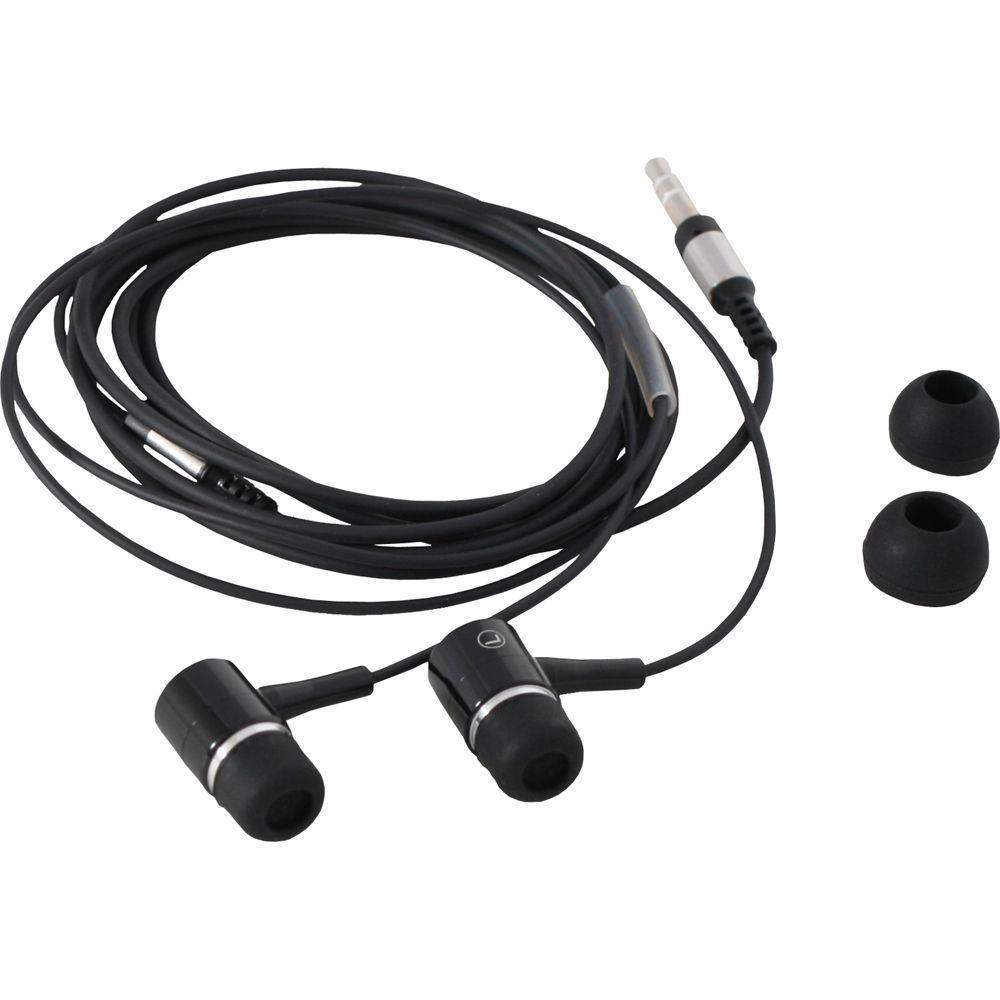

  EB4 Earbuds
  • • Stereo personal monitoring earbuds
    • Single, titanium drivers
    • Durable 51" cable
    • High-fidelity audio with extended bass
    • Lightweight and comfortable
    • Aluminum-alloy construction
    • Includes pairs of small, medium, and large silicone-gel sleeves
  UPC: 691281005053

• Antenna

• 13.5 to 35.5V Power Supply

• Rack Ears

• Limited 3-Year Warranty

• EB4 Single-Driver In-Ear Stereo Monitor Headphones

• 3 x Pairs of Silicone Gel Sleeves in Small, Medium, and Large Sizes

• Limited 1-Year Warranty for Earbuds

• Limited 3-Year Warranty for Receiver

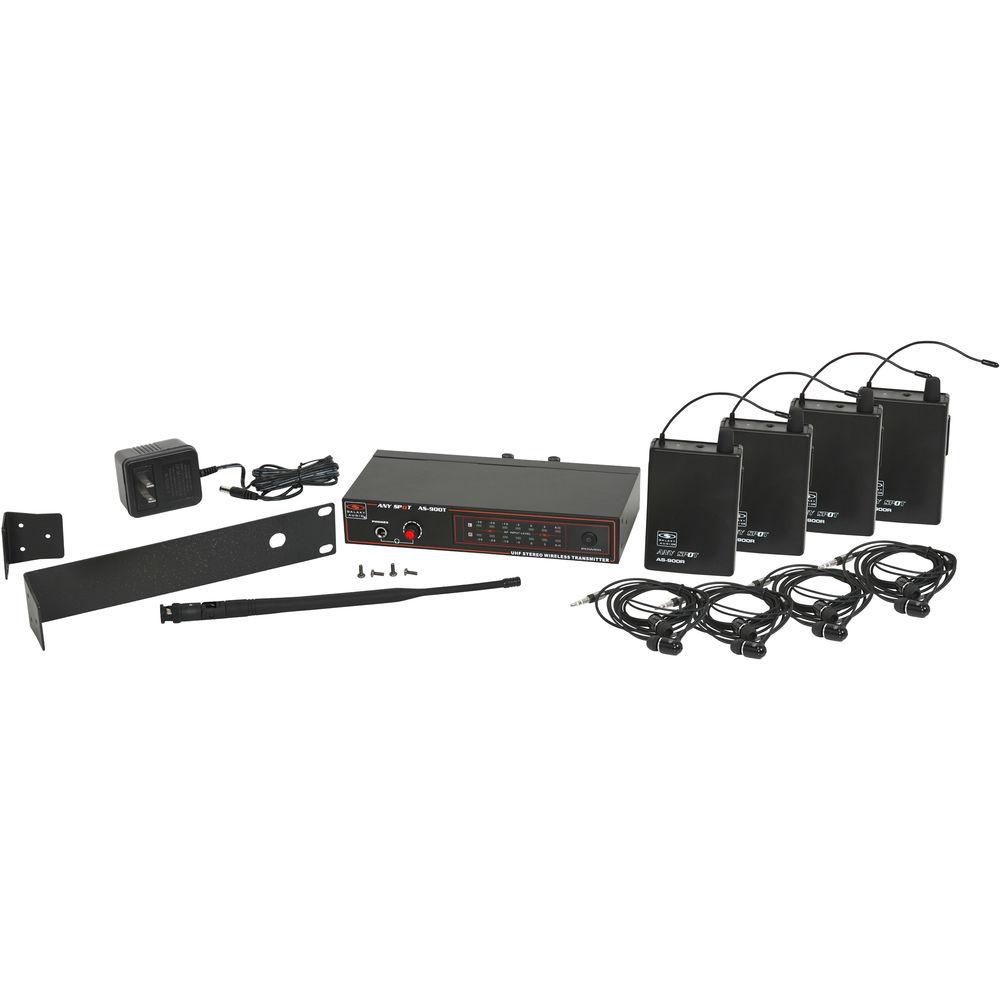

Also Includes

• Rackmount Kit
• Set of EB-3 Earbuds
• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AS-900R Any Spot Series Wireless Personal Monitor Transmitter (N8 Band: 531.15 MHz)

  Frequency Band	N8: 531.15 MHz
  Operating Range	150' (50 m), under typical conditions Actual range depends on RF signal absorption, reflection, interference, and battery characteristics.
  Audio Frequency Response	80 Hz to 16 kHz (±3 dB)
  Total Harmonic Distortion	±30 kHz deviation, 1 kHz tone <1%
  Dynamic Range	>90 dB A-weighted
  Output Level	10 dBm
  Maximum Audio Input Level Analog	+6 dBV
  Gain Adjustment Range	40 dB
  Input Impedance	100 kOhms
  Input	XLR Input: Impedance balanced Pin 1: Ground (cable shield) Pin 2: Audio Pin 3: No audio
  Power Requirements	12 to 18 VDC at 300 mA, supplied by external power supply (included)
  Operating Temperature	14 to 122°F (-10 to 50°C)
  Dimensions (H x W x D)	1.5 x 8.3 x 3.8" (3.8 x 21.2 x 9.6 cm)
  Weight	31 oz (605 g)

• AS-900RN8 Stereo Receiver for AS-900 Wireless In-Ear Personal Monitor System (N8: 531.15 MHz)

  Frequency Band	N8: 531.15 MHz
  Operating Range	200' / 61 m, under typical conditions Actual range depends on RF signal absorption, reflection, interference, and battery characteristics
  Audio Output Level	80 mW, earphone out with volume control
  Limiter	Built-in
  Sensitivity	-94 dBm for 30 dB
  Stereo Separation	40 dB (at 1 kHz)
  Output Connector	1/8" / 3.5 mm, stereo earphone connector
  Power Requirements	2 x AA alkaline or rechargeable batteries
  Battery Life	Approximately 5 hours
  Operating Temperature	14 to 122°F / -10 to 50°C
  Dimensions (H x W x D)	3.74 x 2.60 x 1.00" / 9.5 x 6.5 x 2.5 cm
  Weight	3.2 oz / 90.0 g, without batteries

  Driver	Single, titanium
  Frequency Response	20 Hz to 20 kHz ( Rating 70% users recommend this product to others. And what about you? This product has already been rated by 81 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
