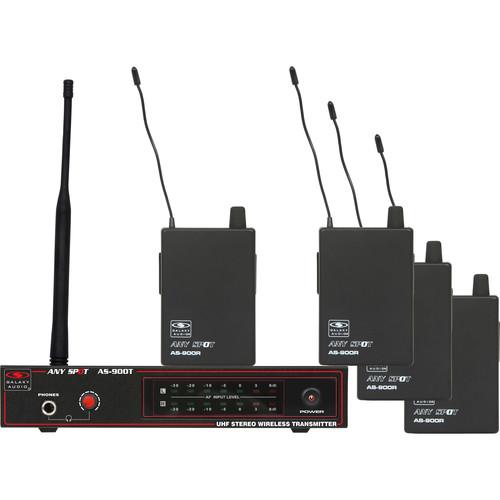

Product description Designed to feed one stereo mix to up to four people, the AS-900 4-Band Pack from Galaxy Audio includes an AS-900T Transmitter and four AS-900R Bodypack Receivers. It operates on a fixed frequency—specifically, N1 Band, 514.4 MHz—and takes its inputs from dual combination XLR / 1/4" jacks on the rear panel.
This system can transmit signals up to 150 feet, allowing a four-piece band, for instance, to wander the stage and still receive a stereo cue-mix. Simply plug the transmitter into a mixing console's monitor output jacks, create a mix that'll suit the needs of those on stage, and send to up to four participants. A stereo / mono switch allows you to sum the signal if mono is preferred. Though the system only handles the sending and receiving of one stereo mix to four individual bodypacks, it can be expanded with additional transmitters and receivers to provide more mixes to more listeners.

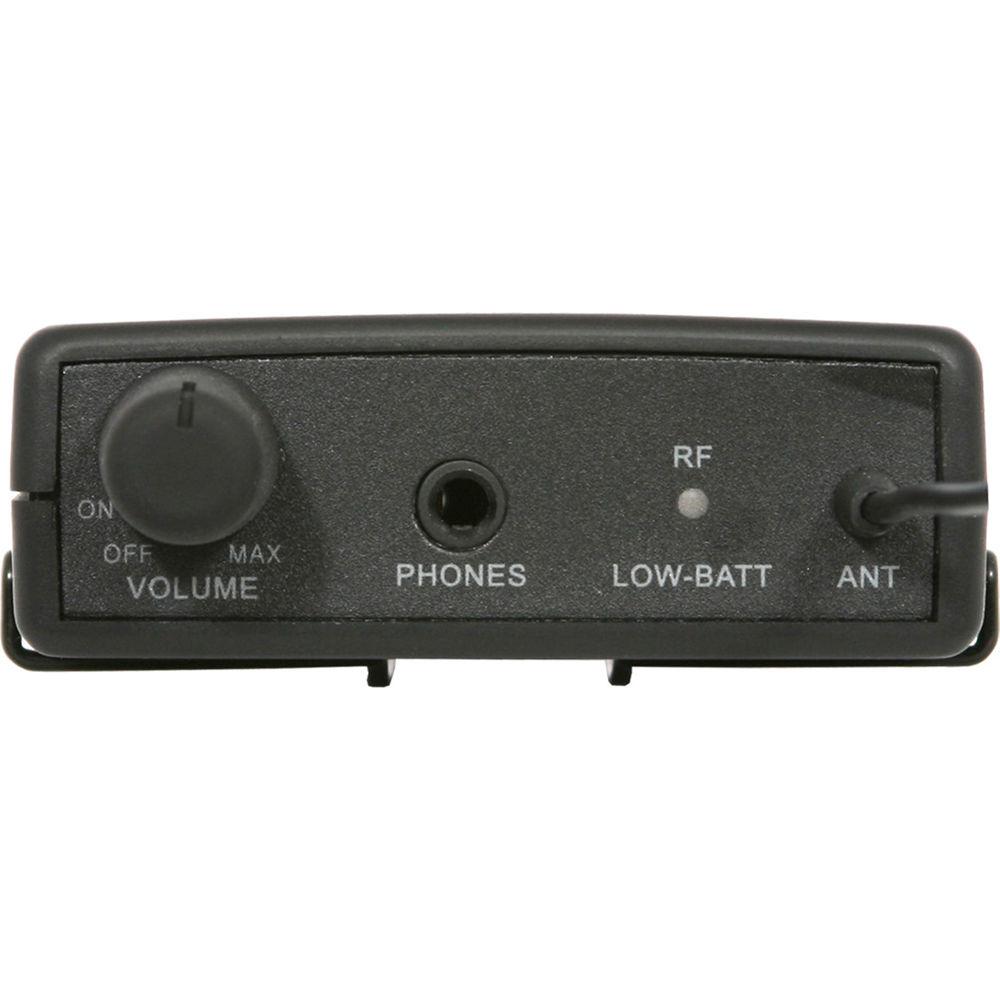

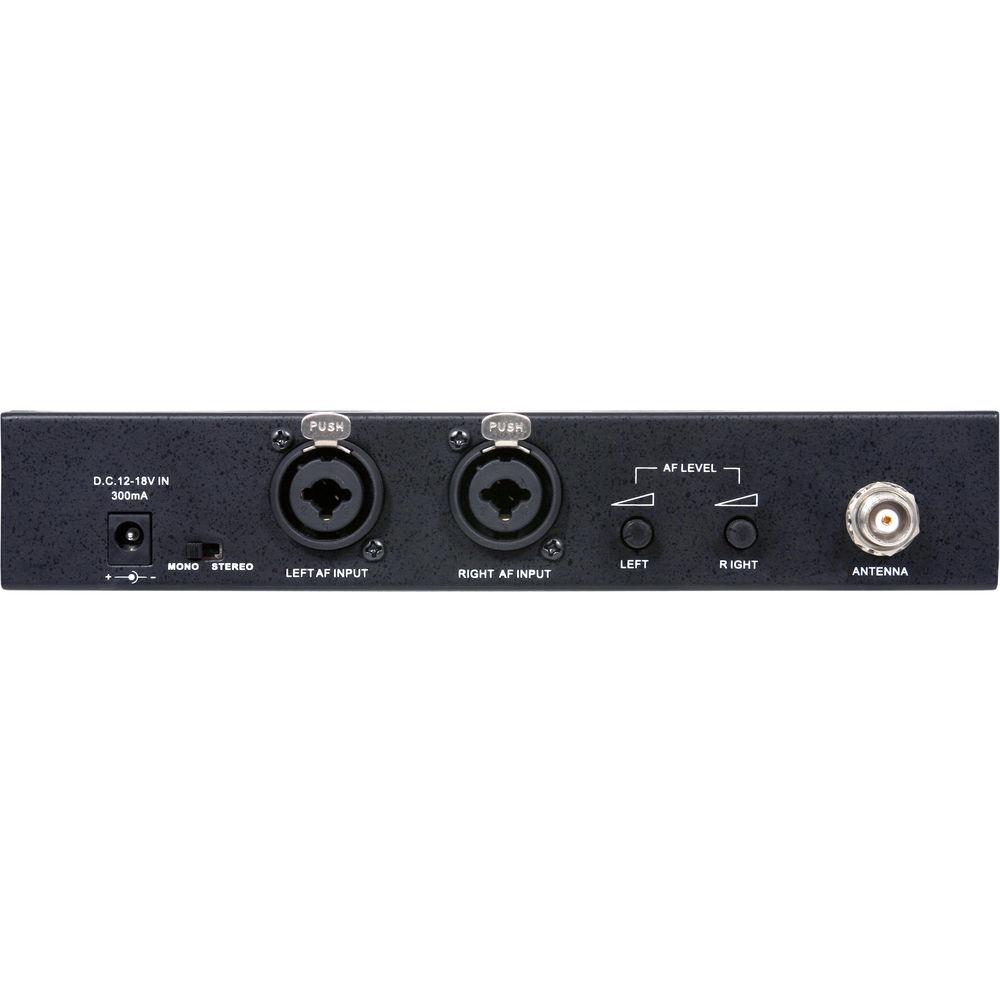

Each receiver features an 80mw headphone amplifier with a standard 3.5mm headphone output, as well as RF and low-battery indicators. A built-in limiter ensures signals don't get too loud or distorted. Furthermore, the receiver comes with a complementary set of EB3 ear buds and a rackmount kit for the transmitter. Note: Most users do not need a license to operate this wireless personal monitoring system. Nevertheless, operating this system without a license is subject to certain restrictions; purchasers should be aware that the FCC is currently evaluating use of wireless microphone and personal monitoring systems, and these rules are subject to change. - AS-900R Any Spot Series Wireless Personal Monitor Transmitter (N1 Band: 514.4 MHz) The AS-900R Any Spot Series Transmitter from Galaxy Audio is used with the AS-900 wireless stage monitoring system. It transmits signals to the AS-900R bodypack receiver (available separately) located at a distance of up to 150 ft. It can transmit in either mono or stereo formats. This unit has a fixed UHF frequency of 514.4 MHz. The transmitter unit has two XLR-1/4" combo jacks for its inputs, a stereo / mono switch, and a headphone output with volume control. It can be rack mounted in 1RU space using the included rack ears. A rack tray is available separately for mounting two transmitters side by side in one rack space. UPC: 691281005077
- AS-900RN1 Stereo Receiver for AS-900 Wireless In-Ear Personal Monitor System (N1: 514.4 MHz) The Galaxy Audio AS-900RN1 Stereo Receiver is intended for use with the AS-900 wireless in-ear personal monitor system. It features an 80mW headphone amplifier with a standard 3.5mm headphone output, and a built-in limiter to ensure sufficient loudness in any environment. The AS-900R operate up to five hours on two AA alkaline or rechargeable batteries. Included is a pair of lightweight EB4 earbuds along with three pairs of silicon sleeves (small, medium, and large).
- AS-900R Receiver
-
- Earphone output with volume control
- Lightweight at 3.2 oz
- 80mW headphone amplifier
- 3.5mm stereo headphone output
- Built-in limiter
- RF indicator
- Low-battery indicator
- Powered via two AA batteries
- Battery life approximately 5 hours

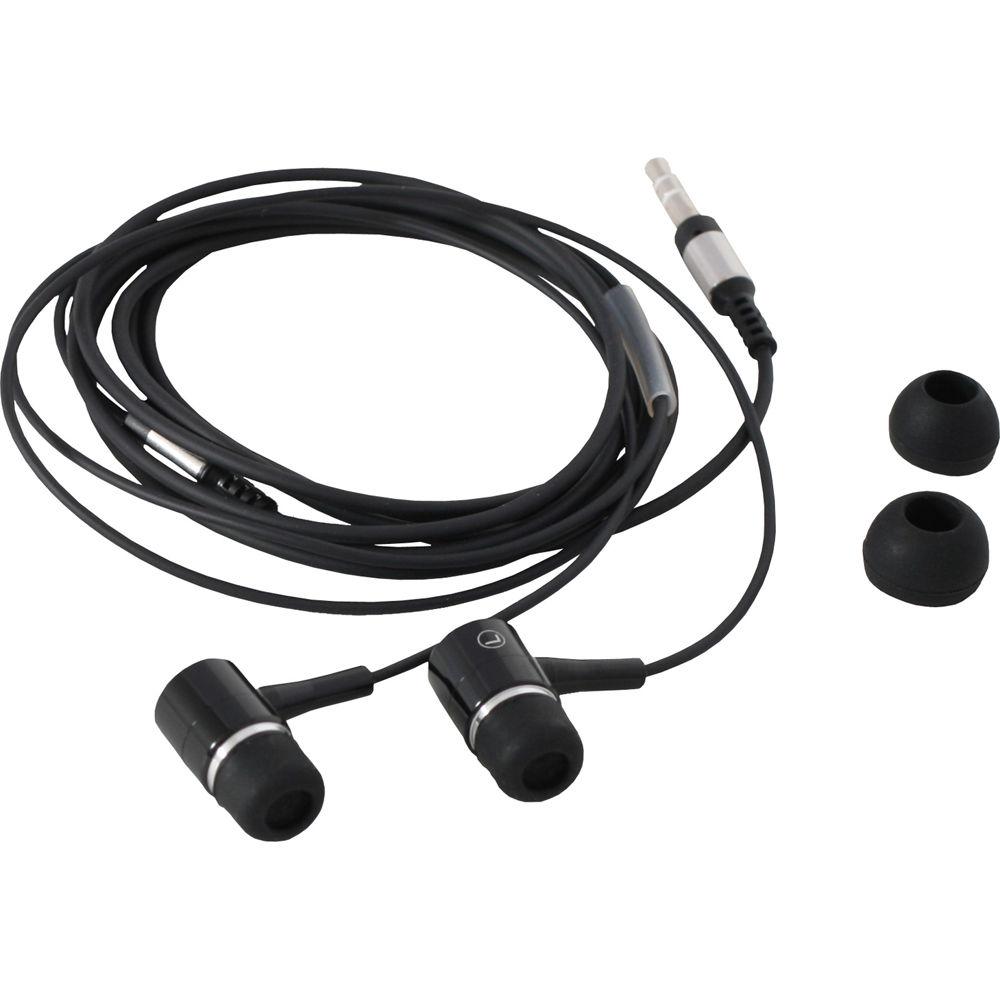

- EB4 Earbuds
-
- Stereo personal monitoring earbuds
- Single, titanium drivers
- Durable 51" cable
- High-fidelity audio with extended bass
- Lightweight and comfortable
- Aluminum-alloy construction
- Includes pairs of small, medium, and large silicone-gel sleeves

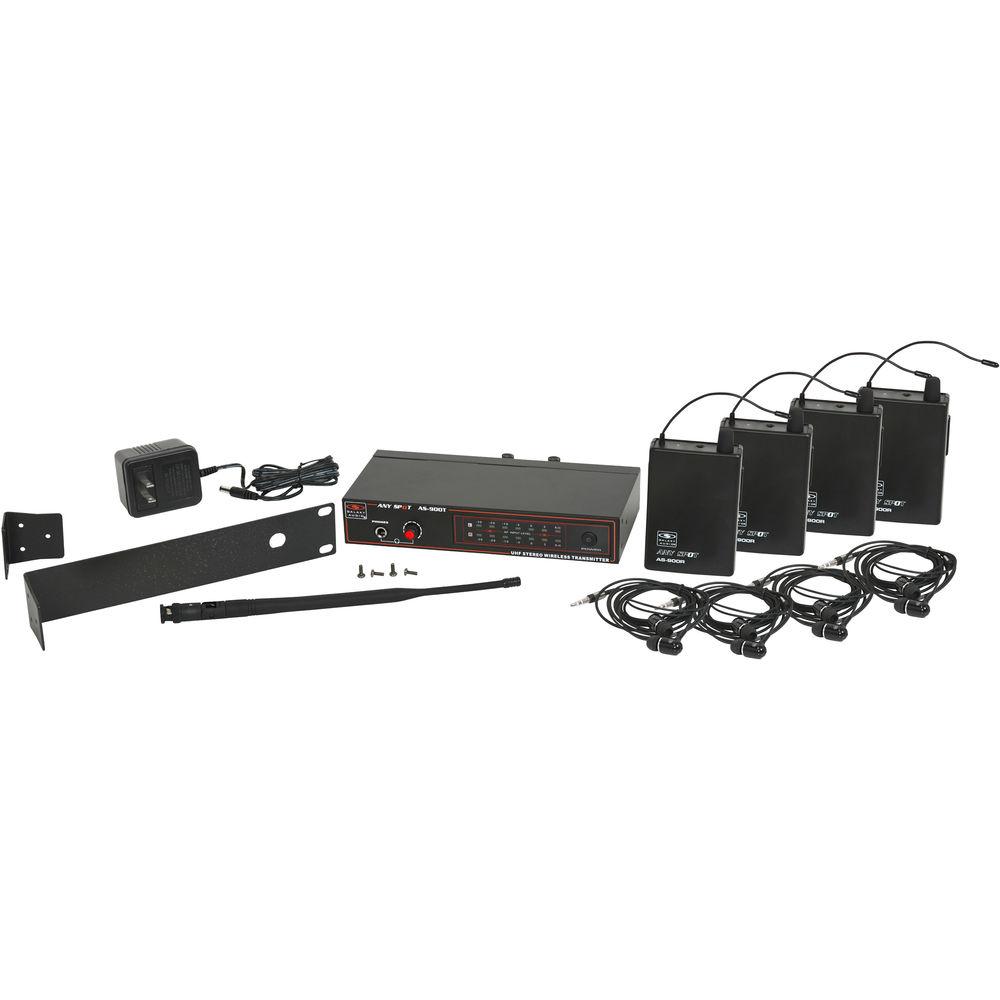

UPC: 691281005015 In the Box Bundle Items AS-900R Any Spot Series Wireless Personal Monitor Transmitter (N1 Band: 514.4 MHz) vryyqaeeftxffxsxwy - 13.5 to 35.5V Power Supply
4 x AS-900RN1 Stereo Receiver for AS-900 Wireless In-Ear Personal Monitor System (N1: 514.4 MHz) - EB4 Single-Driver In-Ear Stereo Monitor Headphones
- 3 x Pairs of Silicone Gel Sleeves in Small, Medium, and Large Sizes
- Limited 1-Year Warranty for Earbuds
- Limited 3-Year Warranty for Receiver
Also Includes - Rackmount Kit
- Set of EB-3 Earbuds
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio AS-900 Any Spot 4-Band Pack Wireless Personal Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AS-900R Any Spot Series Wireless Personal Monitor Transmitter (N1 Band: 514.4 MHz)
| Frequency Band | N1: 514.4 MHz | | Operating Range | 150' (50 m), under typical conditions
Actual range depends on RF signal absorption, reflection, interference, and battery characteristics. | | Audio Frequency Response | 80 Hz to 16 kHz (±3 dB) | | Total Harmonic Distortion | ±30 kHz deviation, 1 kHz tone <1% | | Dynamic Range | >90 dB A-weighted | | Output Level | 10 dBm | | Maximum Audio Input Level Analog | +6 dBV | | Gain Adjustment Range | 40 dB | | Input Impedance | 100 kOhms | | Input | XLR Input: Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No audio | | Power Requirements | 12 to 18 VDC at 300 mA, supplied by external power supply (included) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions (H x W x D) | 1.5 x 8.3 x 3.8" (3.8 x 21.2 x 9.6 cm) | | Weight | 31 oz (605 g) | - AS-900RN1 Stereo Receiver for AS-900 Wireless In-Ear Personal Monitor System (N1: 514.4 MHz)
| | | Frequency Band | N1: 514.4 MHz | | Operating Range | 200' / 61 m, under typical conditions
Actual range depends on RF signal absorption, reflection, interference, and battery characteristics | | Audio Output Level | 80 mW, earphone out with volume control | | Limiter | Built-in | | Sensitivity | -94 dBm for 30 dB | | Stereo Separation | 40 dB (at 1 kHz) | | Output Connector | 1/8" / 3.5 mm, stereo earphone connector | | Power Requirements | 2 x AA alkaline or rechargeable batteries | | Battery Life | Approximately 5 hours | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions (H x W x D) | 3.74 x 2.60 x 1.00" / 9.5 x 6.5 x 2.5 cm | | Weight | 3.2 oz / 90.0 g, without batteries | | | | Driver | Single, titanium | | Frequency Response | 20 Hz to 20 kHz (
