User Manual for Galaxy Audio AS-900N2 Any Spot Series Wireless Personal Monitoring System Click to enlarge the picture
Contents of the user manual for the Galaxy Audio AS-900N2 Any Spot Series
- Product category: In-Ear Monitoring Systems Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio In-Ear Monitoring Systems
 |
User manual for the Galaxy Audio AS-900N2 Any Spot Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

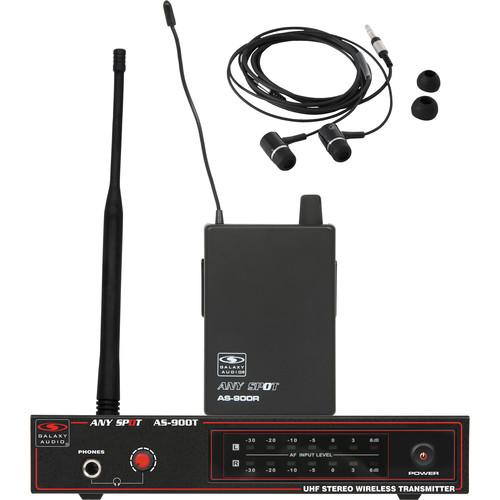

Product description Sporting a fixed frequency of 517.55 MHz, the Galaxy Audio AS-900N2 Any Spot Series Wireless Personal Monitoring System is a single-channel, UHF frequency system that includes the AS-900T Transmitter and the AS-900R Bodypack Receiver. This fixed-frequency system allows the wireless transmission of audio signal in either mono or stereo formats at a range of up to 150' feet, thereby permitting musicians, singers, and lecturers to perform without significant tethers to cabled systems.

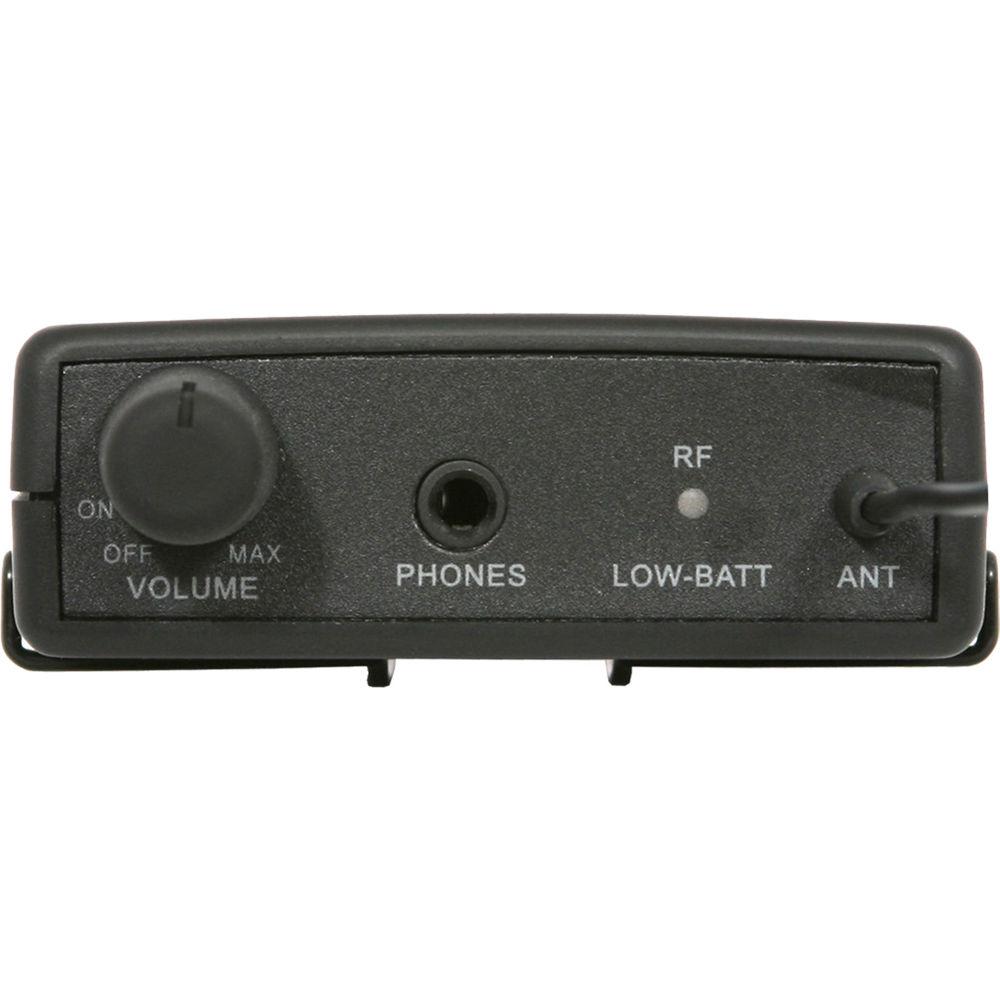

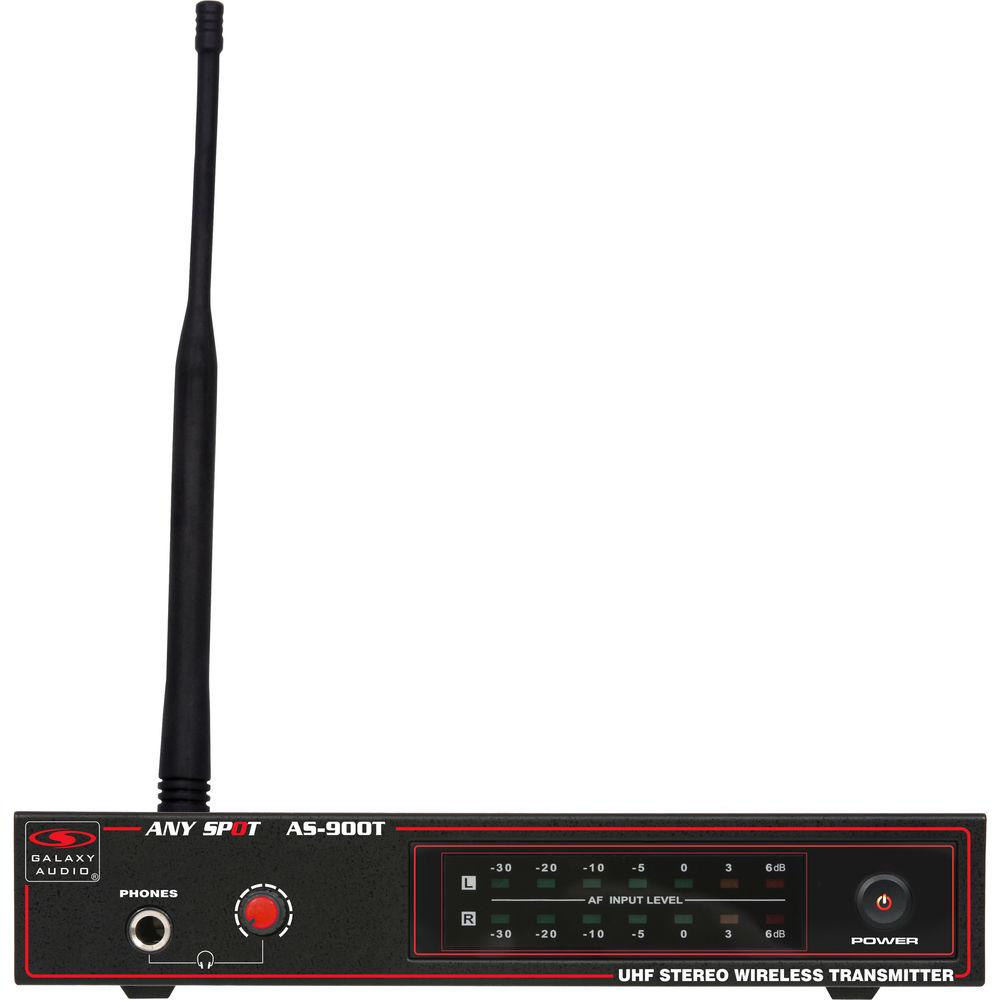

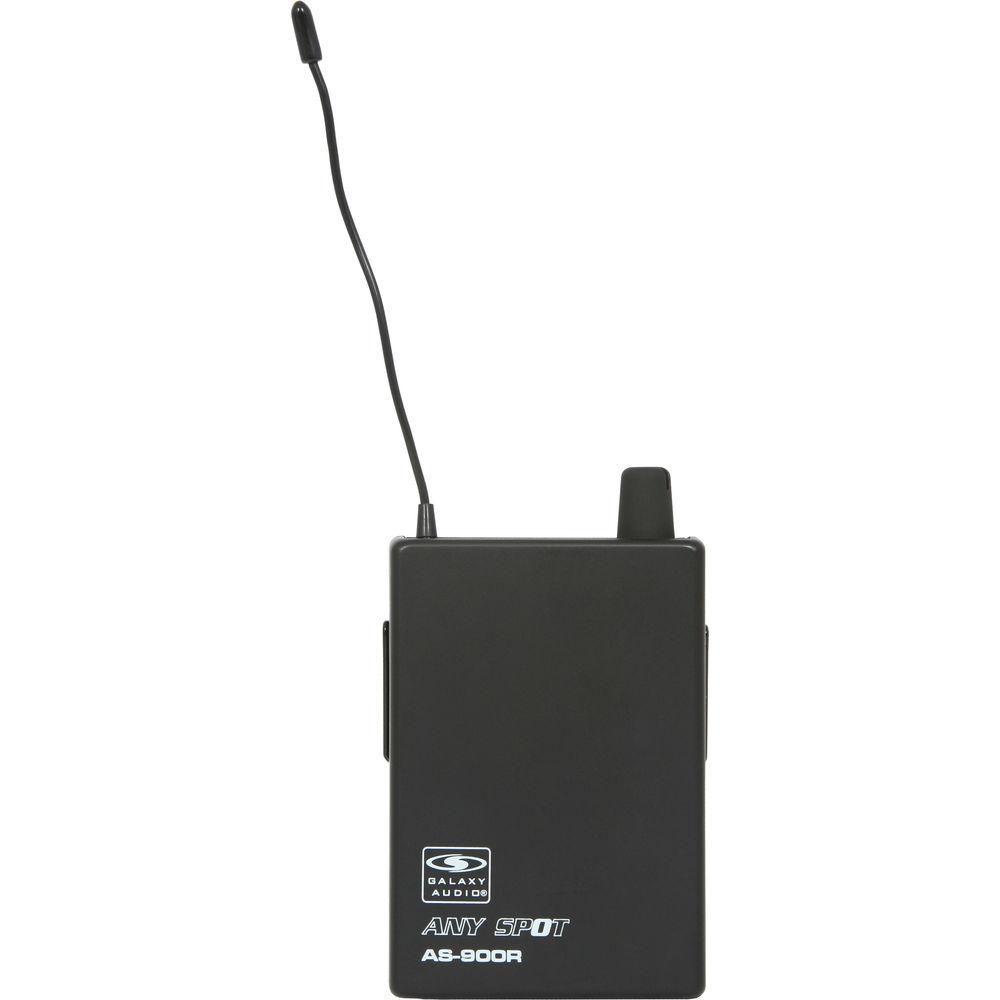

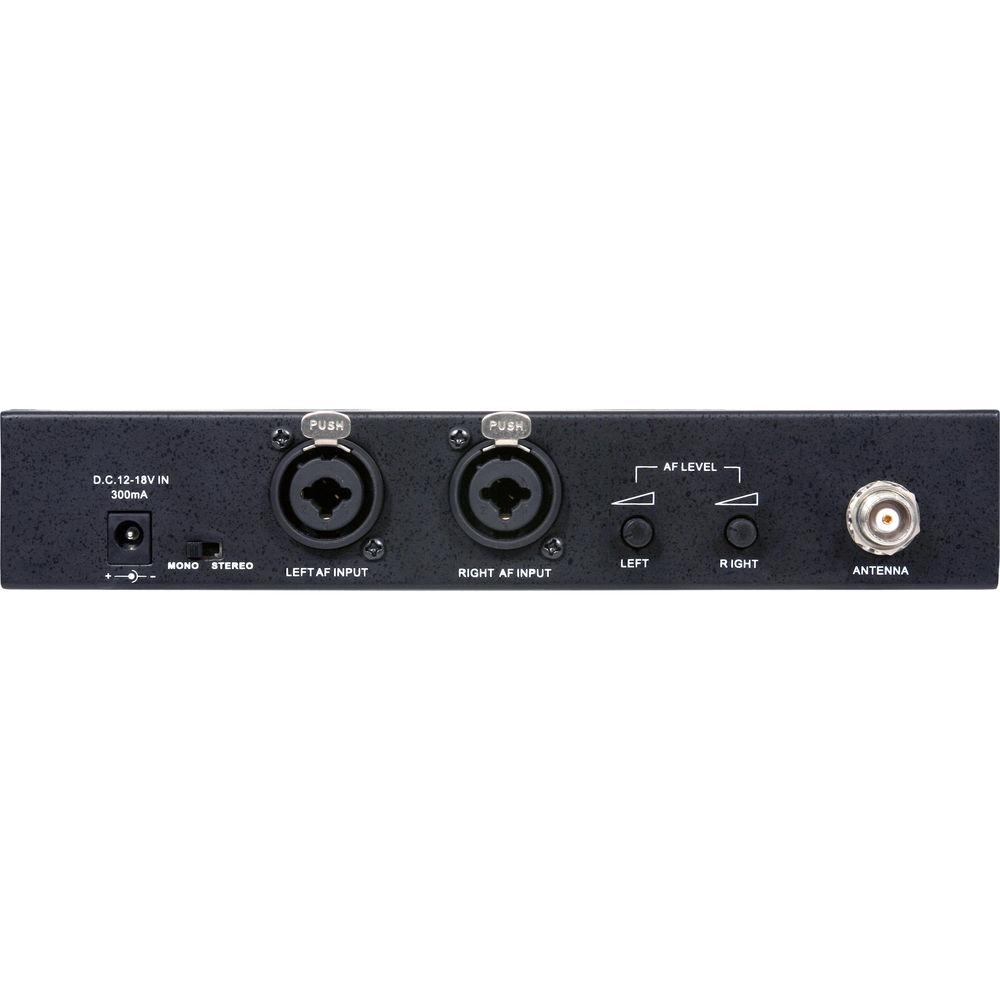

The receiver gives you an audio output level of 100mW, featuring a standard 3.5mm (1/8") headphone jack. It's powered by two AA batteries and can last up to five hours. The transmitter, on the other hand, provides an L/R level display, two XLR/1/4" combo jack for its inputs, a stereo / mono switch, and headphone output with volume control. The transmitter also includes a single rackmount kit for mounting 1 unit in 1 rack space.
The AS-900 Wireless System has features which help eliminate extraneous stage noise, aid in the protection from hearing damage, and limits on-stage feedback, thereby permitting you to move around the stage or audience all while hearing the monitor mix. As such, this system can mitigate the need for bulky floor wedges, as well as the amplifiers that power them. The system comes with a set of EB4 earbuds. Note: Additional receivers and/or transmitters may be purchased separately. UPC: 691281004841 In the Box Galaxy Audio AS-900N2 Any Spot Series Wireless Personal Monitoring System (N Band, 517.55 MHz) AS-900R Any Spot Series Wireless Personal Monitor Transmitter (N2 Band: 517.55 MHz) AS-900RN2 Stereo Receiver for AS-900 Wireless In-Ear Personal Monitor System (N2: 517.55 MHz) Antenna Rack Ears Power Supply Pair of EB4 Earbuds Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio AS-900N2 Any Spot Series Wireless Personal Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio AS-900 Specs | | | Frequency Range | 517.55 MHz | | Band | UHF | | Output Level | Transmitter: 10 dBm | | Operating Range | Under Typical Conditions: 150.0' / 45.8 m Actual range depends on RF signal absorption, reflection, and interference. | | Frequency Response | Audio: ±3 dB, 80 Hz to 16 kHz | | Total Harmonic Distortion | ±30 Hz deviation, 1 kHz tone < 1% | | Dynamic Range | > 90 dB A-weighted | | Operating Temperature Range | 14 to 122ºF (-10 to 50ºC) Battery characteristics may limit this range. | | | | Maximum Audio Input Level Analog | 6 dBV | | Gain Adjustment Range | 40 dB | | Input Impedance | 100 kOhms | | Power Requirements | 12 to 18 VDC at 300 mA supplied by external power supply | | Connections | 2 x XLR | | Pins | Pin1: Ground (cable shield)
Pin 2: Audio
Pin 3: No audio | | Dimensions (H x W x D) | 1.5 x 8.3 x 3.8" / 38 x 212 x 96 mm | | Weight | 21.0 oz / 595.3 g | | | | Type | Bodypack | | Audio Output Level | 100 mW | | Sensitivity | -94 dBm for 30 dB SINAD, typical | | Image Rejection | > 70 dB | | Power Requirements | 2 x AA size alkaline or rechargeable batteries | | Battery Life | Approximately 5 hours | | Dimensions (H x W x D) | 3.7 x 2.6 x 1.0" / 9.5 x 6.6 x 2.5 cm | | Weight | 3.2 oz / 90.7 g (without batteries) | | | | Box Dimensions (LxWxH) | 17.25 x 13.25 x 5.5" |
