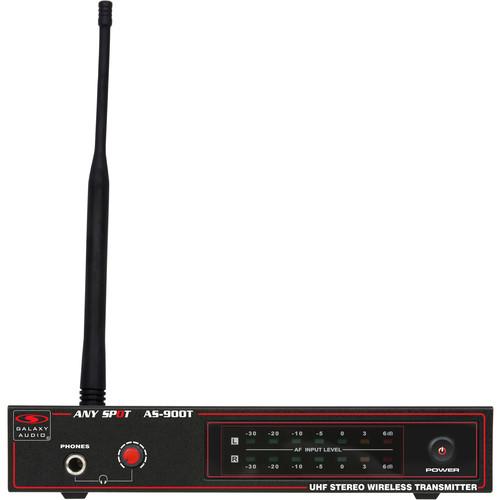

User Manual for Galaxy Audio AS-900R Any Spot Series Wireless Personal Monitor Transmitter Click to enlarge the picture
Contents of the user manual for the Galaxy Audio AS-900R Any Spot Series
- Product category: Transmitters Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio Transmitters
|
User manual for the Galaxy Audio AS-900R Any Spot Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|
Product description The AS-900R Any Spot Series Transmitter from Galaxy Audio is used with the AS-900 wireless stage monitoring system. It transmits signals to the AS-900R bodypack receiver (available separately) located at a distance of up to 150 ft. It can transmit in either mono or stereo formats. This unit has a fixed UHF frequency of 538.8 MHz. The transmitter unit has two XLR-1/4" combo jacks for its inputs, a stereo / mono switch, and a headphone output with volume control. It can be rack mounted in 1RU space using the included rack ears. A rack tray is available separately for mounting two transmitters side by side in one rack space. UPC: 691281005121 In the Box Galaxy Audio AS-900R Any Spot Series Wireless Personal Monitor Transmitter (N9 Band: 538.8 MHz) Antenna 13.5 to 35.5V Power Supply Rack Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio AS-900R Any Spot Series Wireless Personal Monitor Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio AS-900R Specs | Frequency Band | N9: 538.8 MHz | | Operating Range | 150' (50 m), under typical conditions
Actual range depends on RF signal absorption, reflection, interference, and battery characteristics. | | Audio Frequency Response | 80 Hz to 16 kHz (±3 dB) | | Total Harmonic Distortion | ±30 kHz deviation, 1 kHz tone <1% | | Dynamic Range | >90 dB A-weighted | | Output Level | 10 dBm | | Maximum Audio Input Level Analog | +6 dBV | | Gain Adjustment Range | 40 dB | | Input Impedance | 100 kOhms | | Input | XLR Input: Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No audio | | Power Requirements | 12 to 18 VDC at 300 mA, supplied by external power supply (included) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions (H x W x D) | 1.5 x 8.3 x 3.8" (3.8 x 21.2 x 9.6 cm) | | Weight | 31 oz (605 g) | | | | Box Dimensions (LxWxH) | 17.25 x 13.25 x 5.5" |
