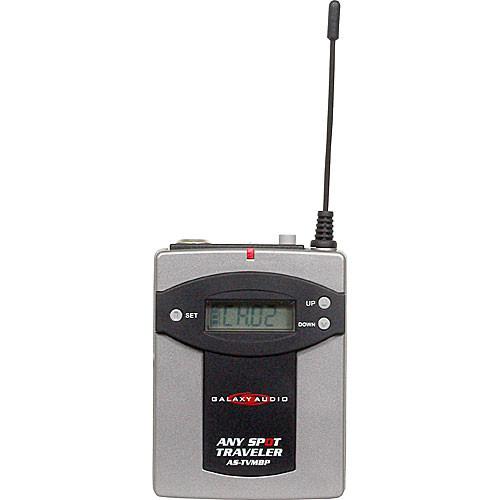

User Manual for Galaxy Audio AS-TVMBP Wireless Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Galaxy Audio AS-TVMBP Wireless Bodypack Transmitter
- Product category: Add-On Wireless & Components Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio Add-On Wireless & Components
|
User manual for the Galaxy Audio AS-TVMBP Wireless Bodypack Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|
Product description The Galaxy Audio AS-TVMBP is a wireless bodypack transmitter designed for Traveler portable PA systems with TV-REC wireless microphone receivers. The sturdy aluminum bodypack offers TA3M mini-XLR and 3.5mm inputs and accommodates the lavalier and headset microphone models available from Galaxy Audio.Like the receiver, the bodypack features 96 selectable UHF channels for minimal interference. Additional features include a large LCD display, belt-clip, sensitivity control, mute switch, and 3-bar battery life indicator. The AS-TVMBP bodypack will operate for up to 14 hours on two AA alkaline batteries. An LED near the power switch indicates power status. - 96 channels selectable via up/down buttons
- TA3M mini-XLR and 3.5mm inputs
- LCD display shows selected channel and 3-bar battery status indicator
- Powered via two AA batteries (available separately)
- Sensitivity control and mute button
- Power switch and LED indicator
- Charging contacts for use with AS-DCTVMBP body pack charger (available separately)
- Belt clip offers easy mounting to belt, clothing, or strap
In the Box Galaxy Audio AS-TVMBP Wireless Bodypack Transmitter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio AS-TVMBP Wireless Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio AS-TVMBP Bodypack Specs | Inputs | 1 x TA3M mini-XLR microphone input
1 x 1/8" / 3.5 mm aux input | | RF Output | 10 mW | | Spurious Emission | <250 nW | | Power Requirement | 2 x AA batteries (1.2 V NiMH 1300 mAh or 1.5 V alkaline) | | Battery Life | Approximately 14 hours (alkaline)
Approximately 11 hours (NiMH rechargeable) | | Enclosure Material | Aluminum | | Dimensions (H x W x D) | 3.5 x 2.5 x 1.1" / 88 x 64 x 27 mm | | Weight | 4.5 oz / 127 g (with batteries) |
