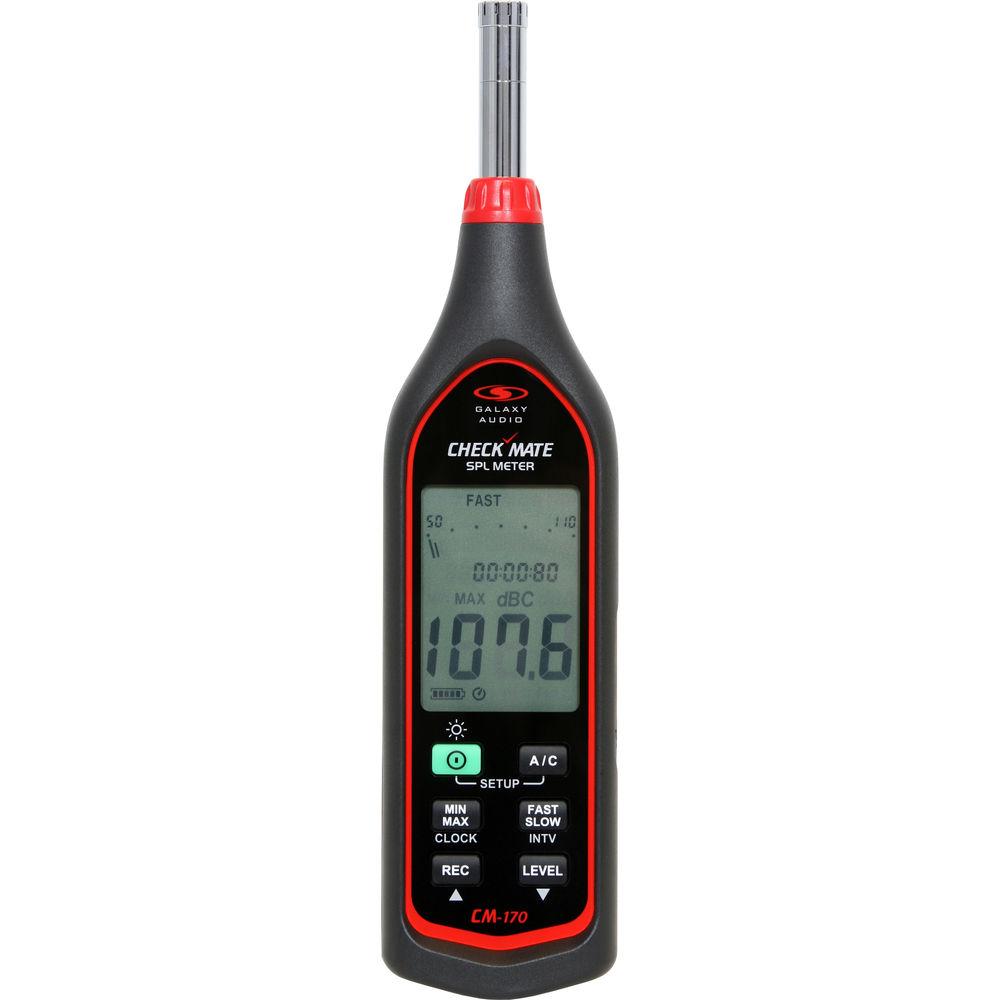

User Manual for Galaxy Audio CM-170 Check Mate Series Type II SPL Meter Click to enlarge the picture
Contents of the user manual for the Galaxy Audio CM-170 Check Mate Series
- Product category: Metering Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio Metering
 |
User manual for the Galaxy Audio CM-170 Check Mate Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

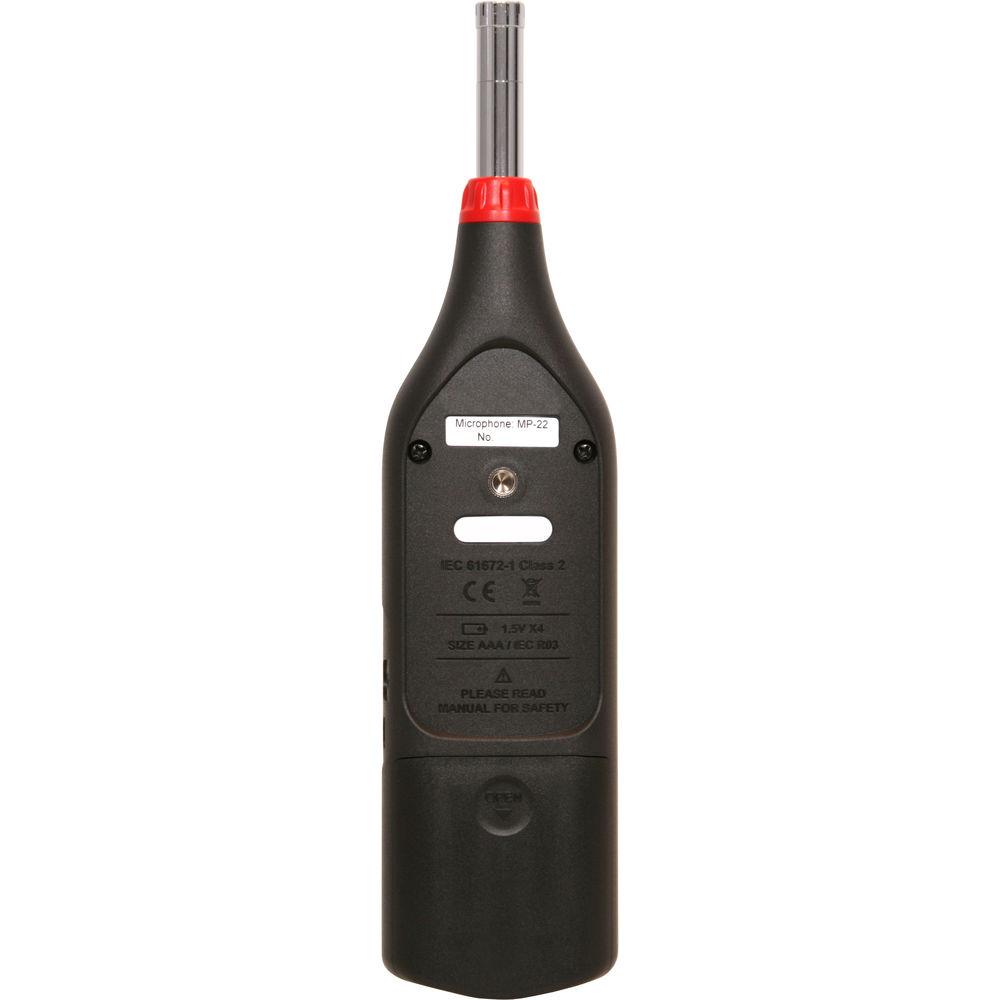

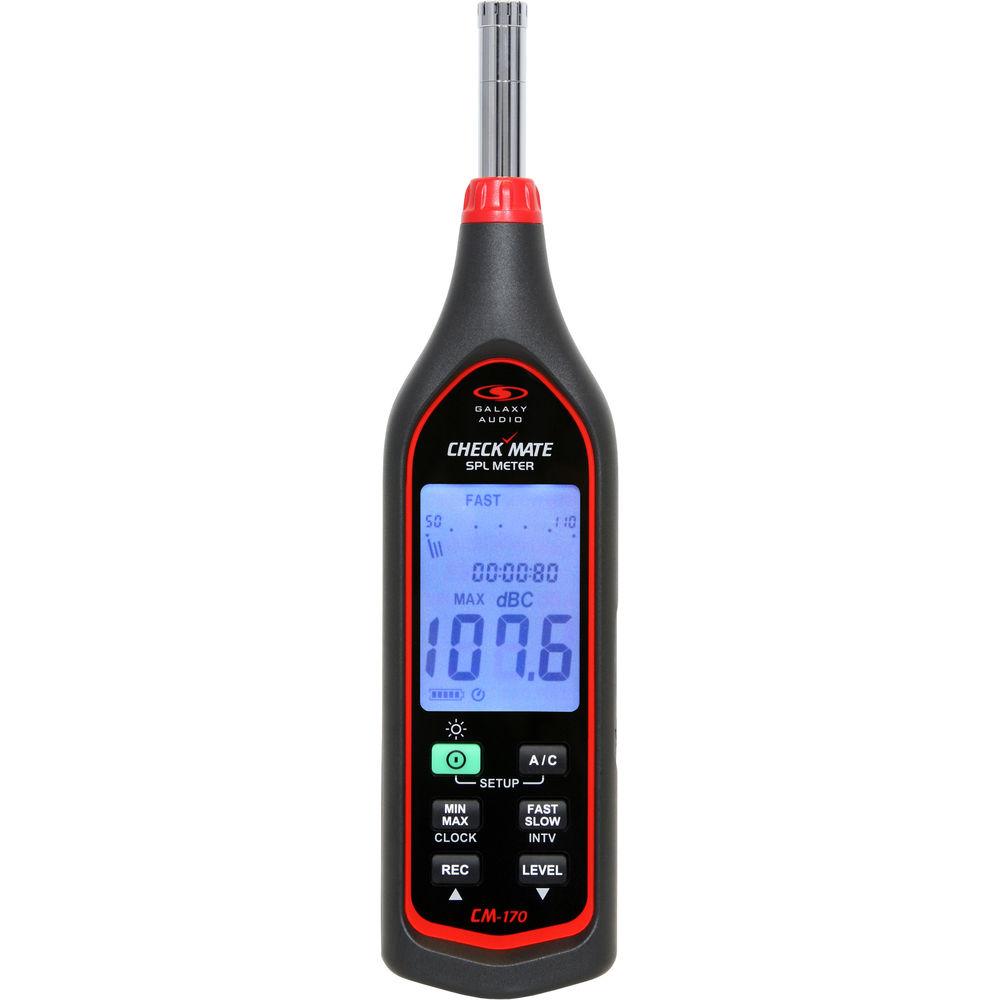

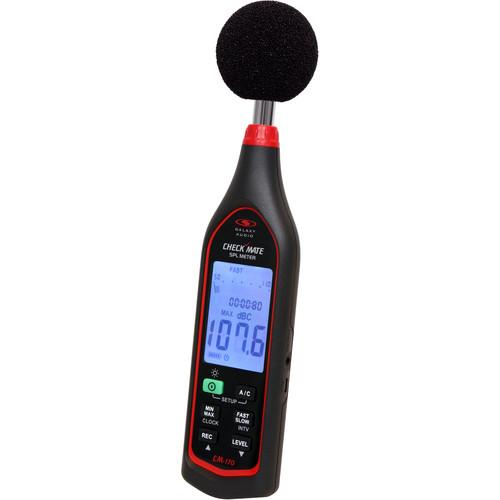

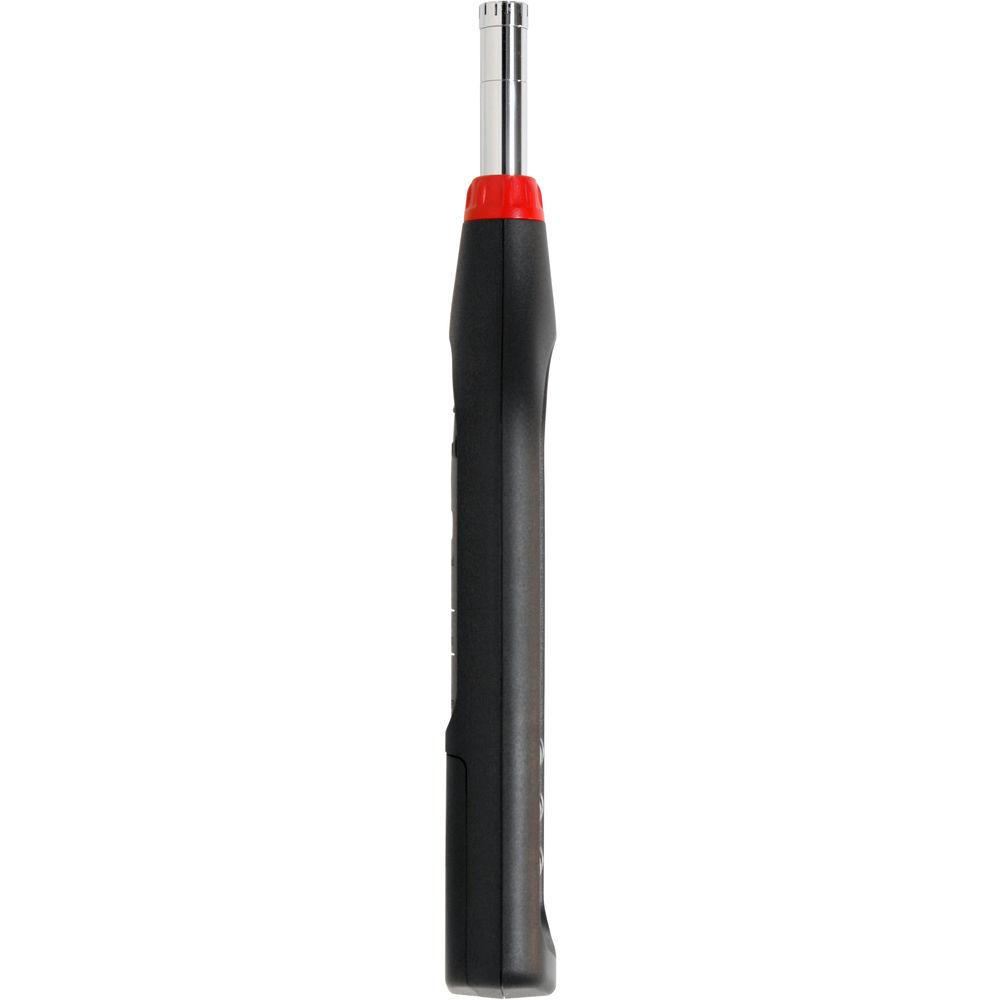

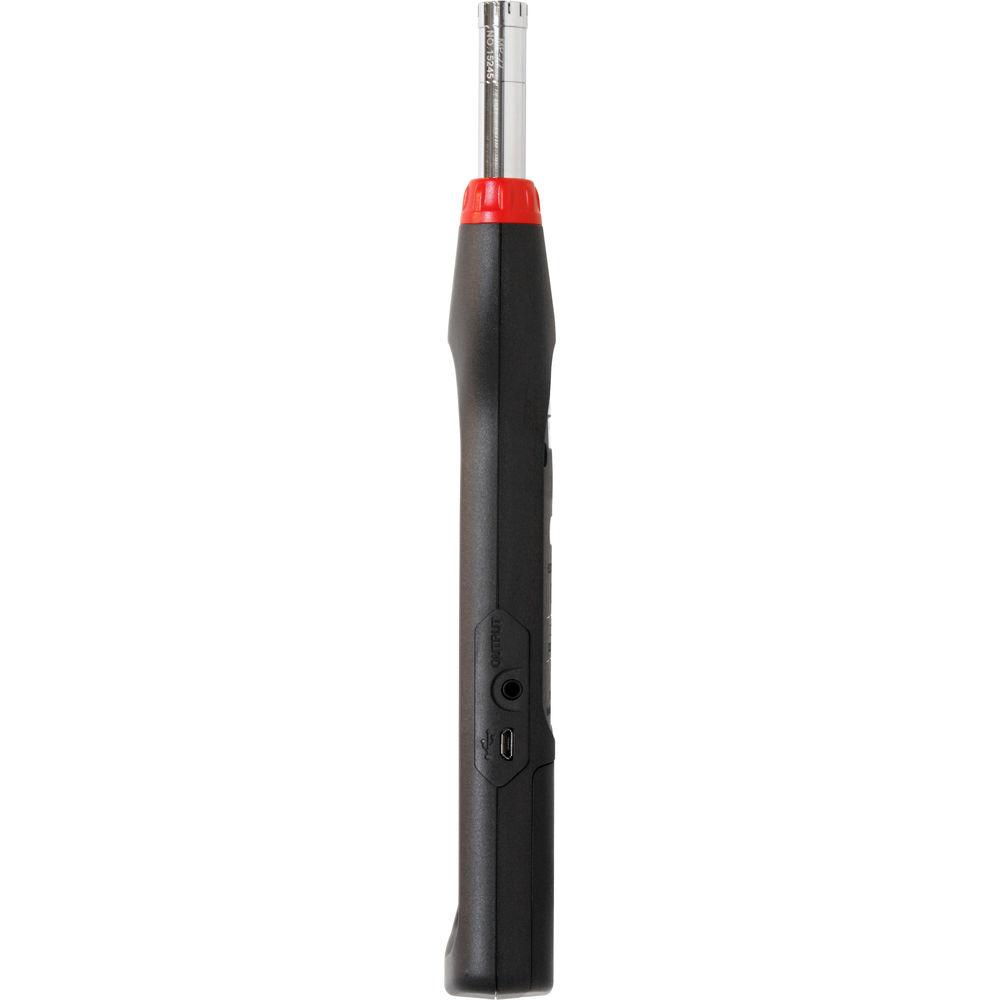

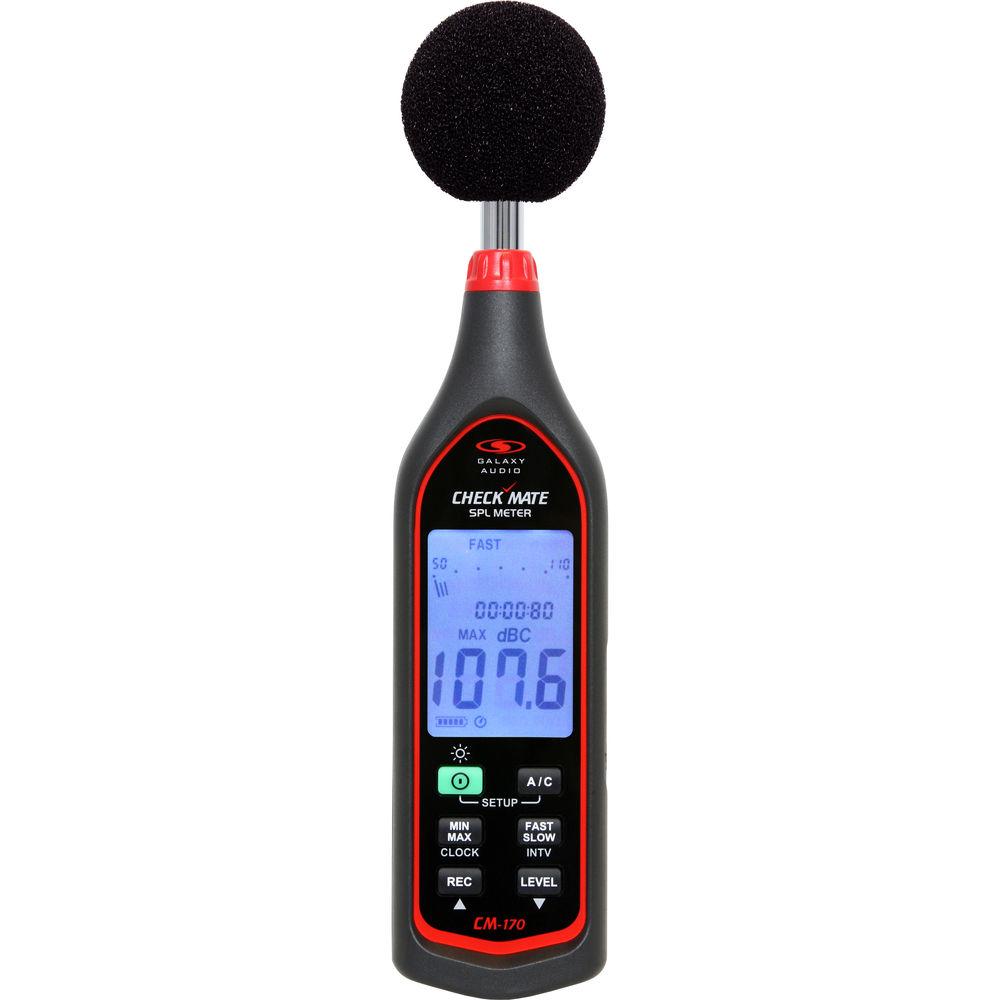

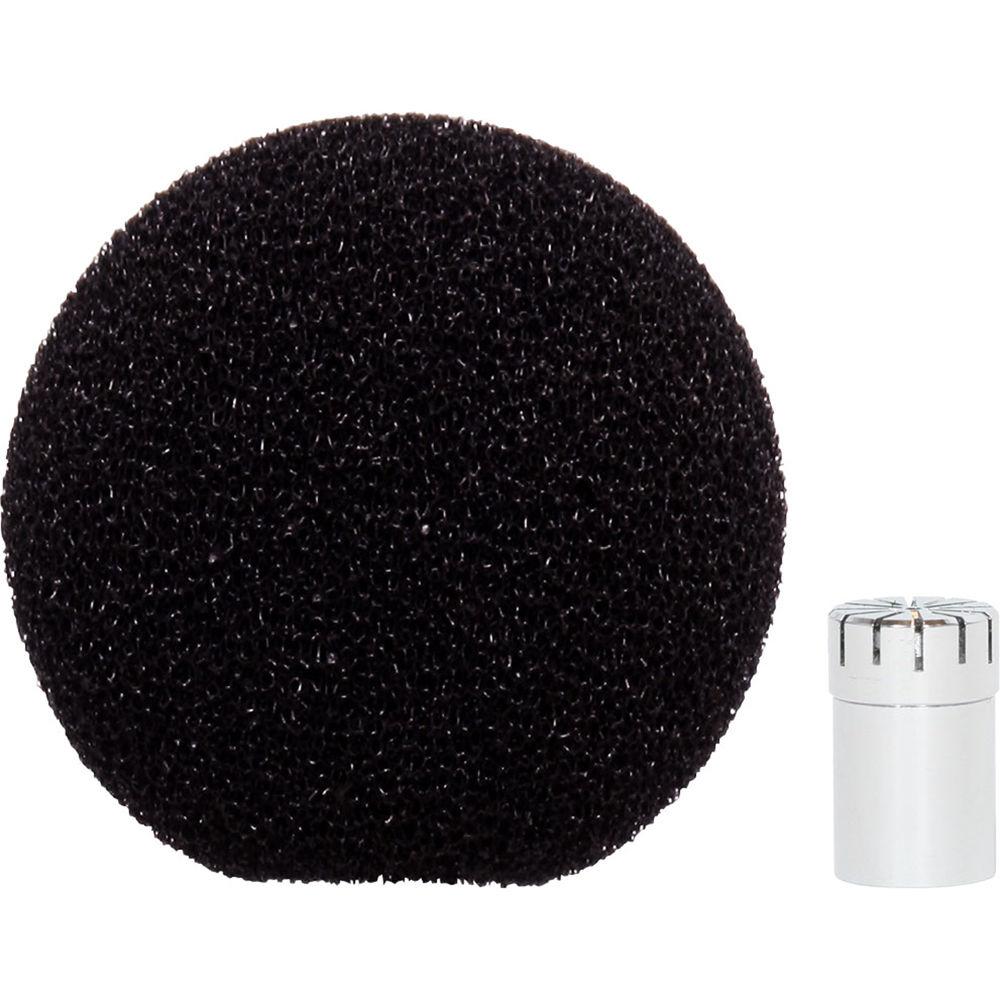

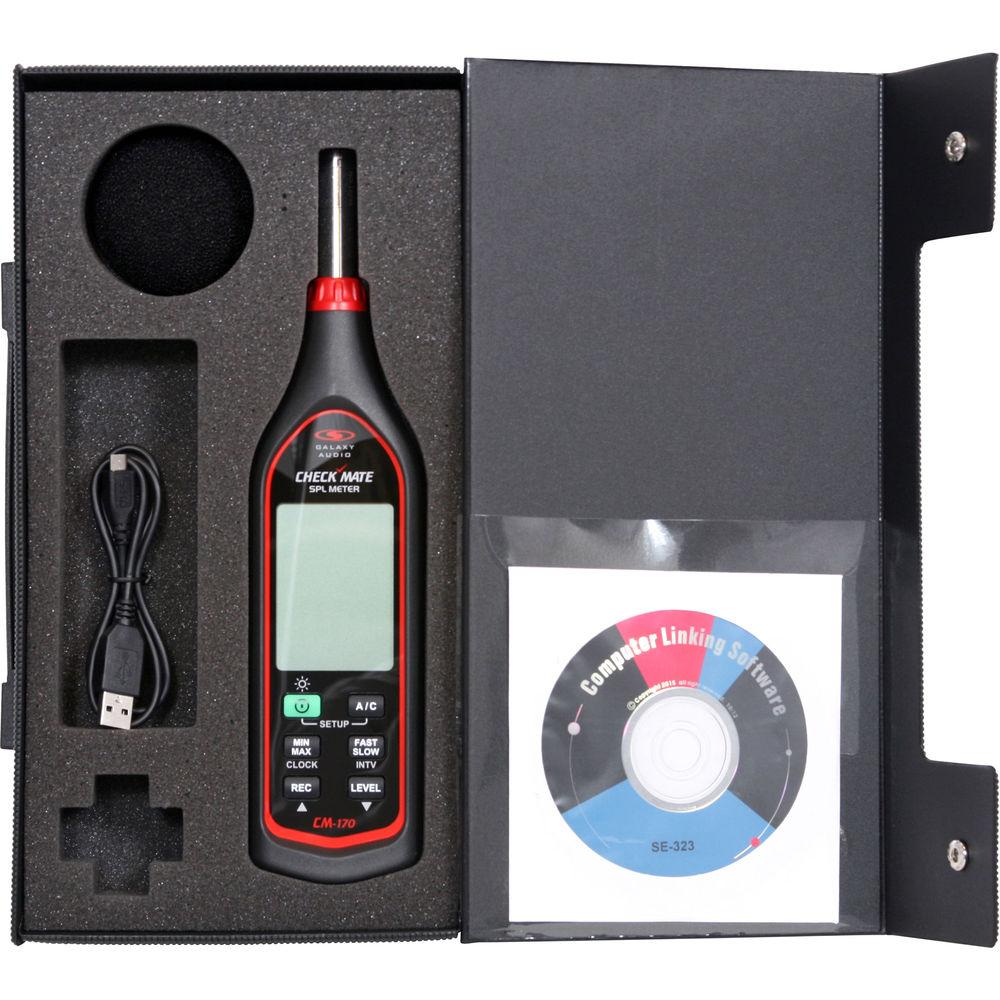

Product description The CM-170 Check Mate Series Type II SPL Meter from Galaxy Audio is similar to the CM-160 model, except for the data logging with clock feature, fast/slow time weighting, and electronic calibration. It can be used to measure SPL (Sound Pressure Levels) in decibels, which is the unit for measuring relative loudness of a sound. Today, there is a need to know just how loud your surroundings really are. The CM-170 is a tool that everybody working in loud environments should own from working musicians, DJs, police departments, sound contractors, to racetracks, and more. The CM-170 comes complete with batteries, a carry case, a windscreen, a USB cable, and software for the computer. UPC: 691281006449 In the Box Galaxy Audio CM-170 Check Mate Series Type II SPL Meter Windscreen 4 x AAA Batteries USB Cable Software for Computer Carry Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio CM-170 Check Mate Series Type II SPL Meter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio CM-170 Specs | Standard | IEC 61672-1 Class 2, ANSI S1.4 Type 2 | | Microphone | 1/2" electret condenser | | Accuracy | ± 1.4 dB (reference 94 dB @ 1 kHz) | | Display | Liquid Crystal Display | | Level Range | Lo: 30 to 90 dB
Med: 50 to 110 dB
Hi: 70 to 130 dB
Auto: 30 to 130 dB | | Auxiliary Output | AC signal output | | Frequency Weighting | A/C | | Time Weighting | Fast, slow | | Dynamic Range | 60 dB | | Frequency Range | 20 Hz to 8 kHz | | Alarm Function | Over, under | | Capacity | Data Logging: 64,000 records | | Power Requirements | 4 x AAA, NEDA 24A, IEC LR03 batteries | | Power Consumption | Aprox. 0.2 W | | Battery Life | Approximately 24 hours | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Dimensions (L x W x H) | 10.4 x 2.5 x 1.1" (264 x 63 x 29 mm) | | Weight | 8.6 oz (0.54 kg) with batteries | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 12.5 x 6.7 x 3.1" |
