User Manual for Galaxy Audio CR12W Core Series 12" 2-Way 1200W Passive PA Speaker Click to enlarge the picture
Contents of the user manual for the Galaxy Audio CR12W Core Series 12"
- Product category: PA Speakers Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio PA Speakers
 |
User manual for the Galaxy Audio CR12W Core Series 12" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

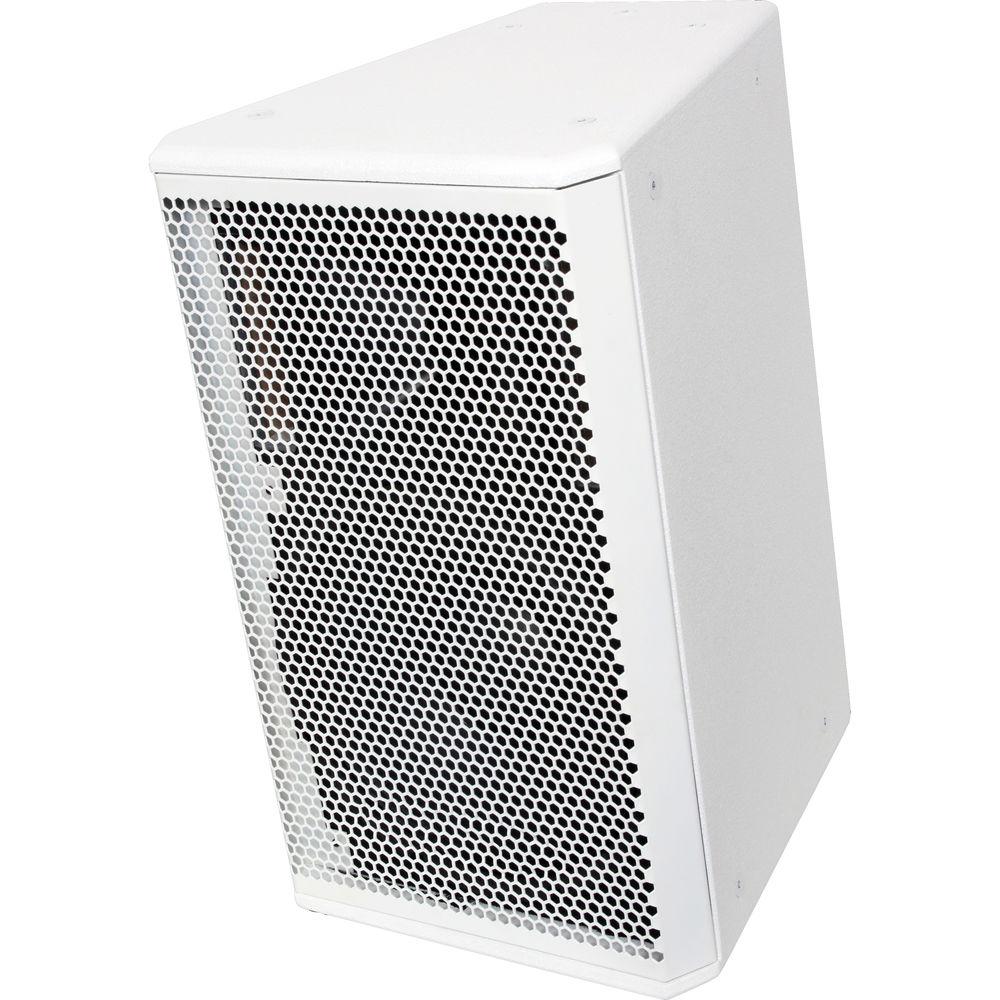

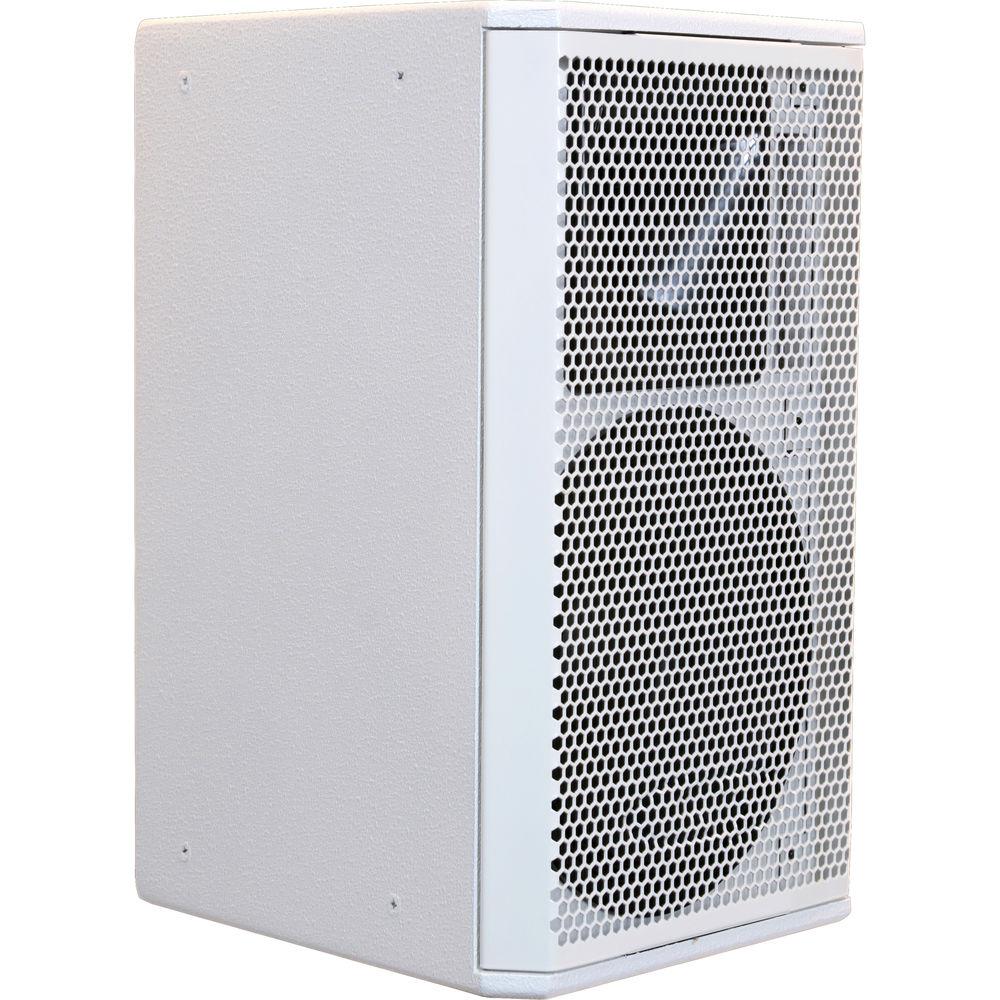

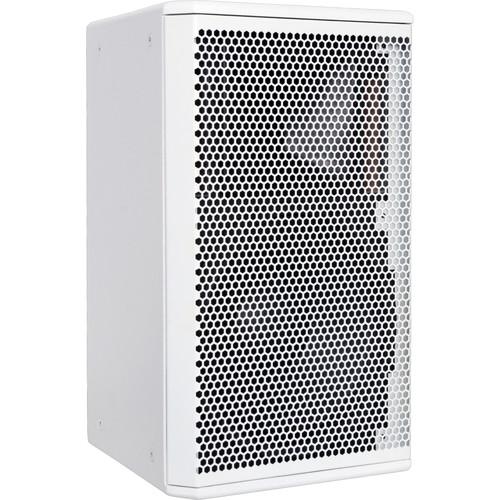

Product description The white Galaxy Audio CR12W is a Core series 12" 2-way 1200W passive PA speaker offering high power handling and versatile installation for bands, DJs, and audio engineers in clubs, concert venues, and live stage applications. Its 12" woofer and 1" high-frequency driver with a constant directivity horn yield a 62 Hz to 18 kHz frequency response and handle 400W RMS (1200W peak). Two 1/4" twist-lock parallel jacks and a barrier terminal input allow easy hookup to power amplifiers. The sturdy, durable MDF cabinet and steel grille are paintable to match your venue's color scheme. The CR12W may be placed in a floor monitor configuration, stood upright, or suspended via 20 M8 points. A built-in carry handle simplifies transport and installation. - Passive 8-Ohm PA speaker handles 400W RMS (1200W peak)
- 12" woofer and constant directivity, asymmetrical horn yield a 62 Hz to 18 kHz frequency response
- Woofer wired in polarity, horn wired out of polarity

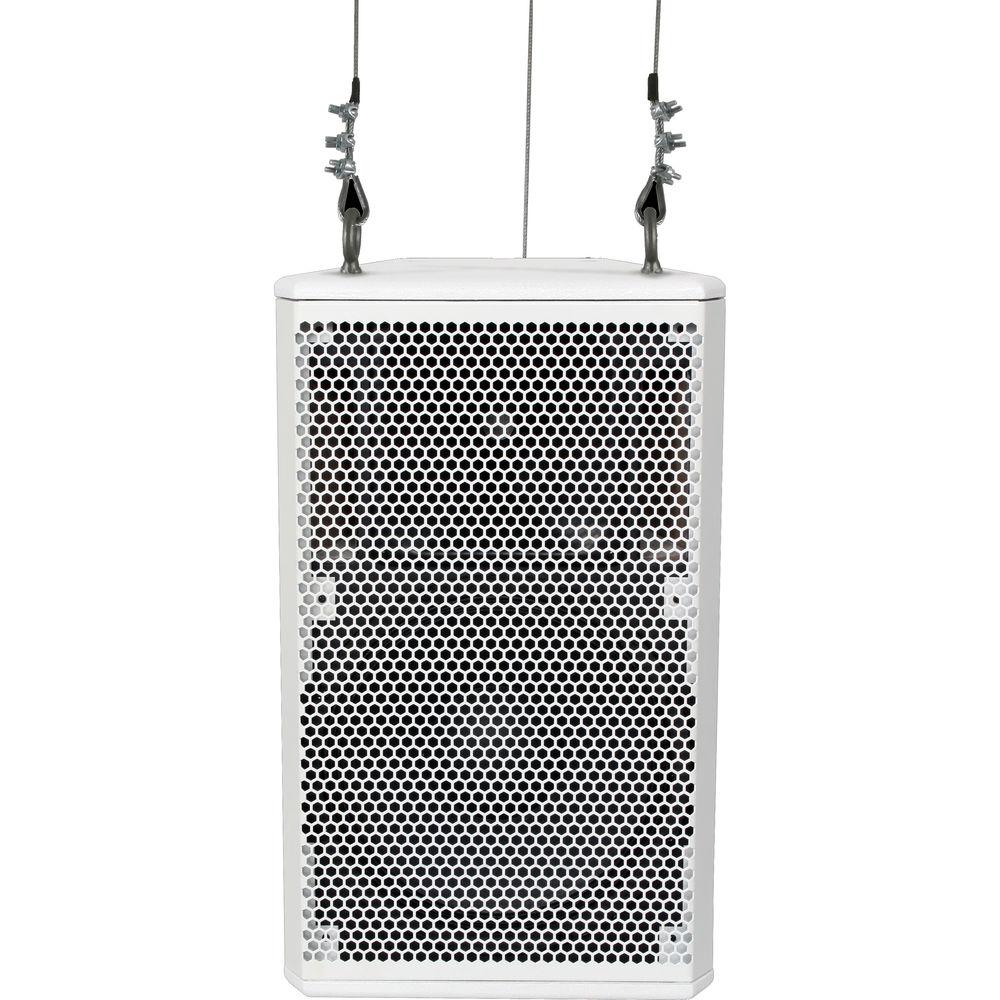

- Supports hanging installation via 20 M8 threaded suspension points

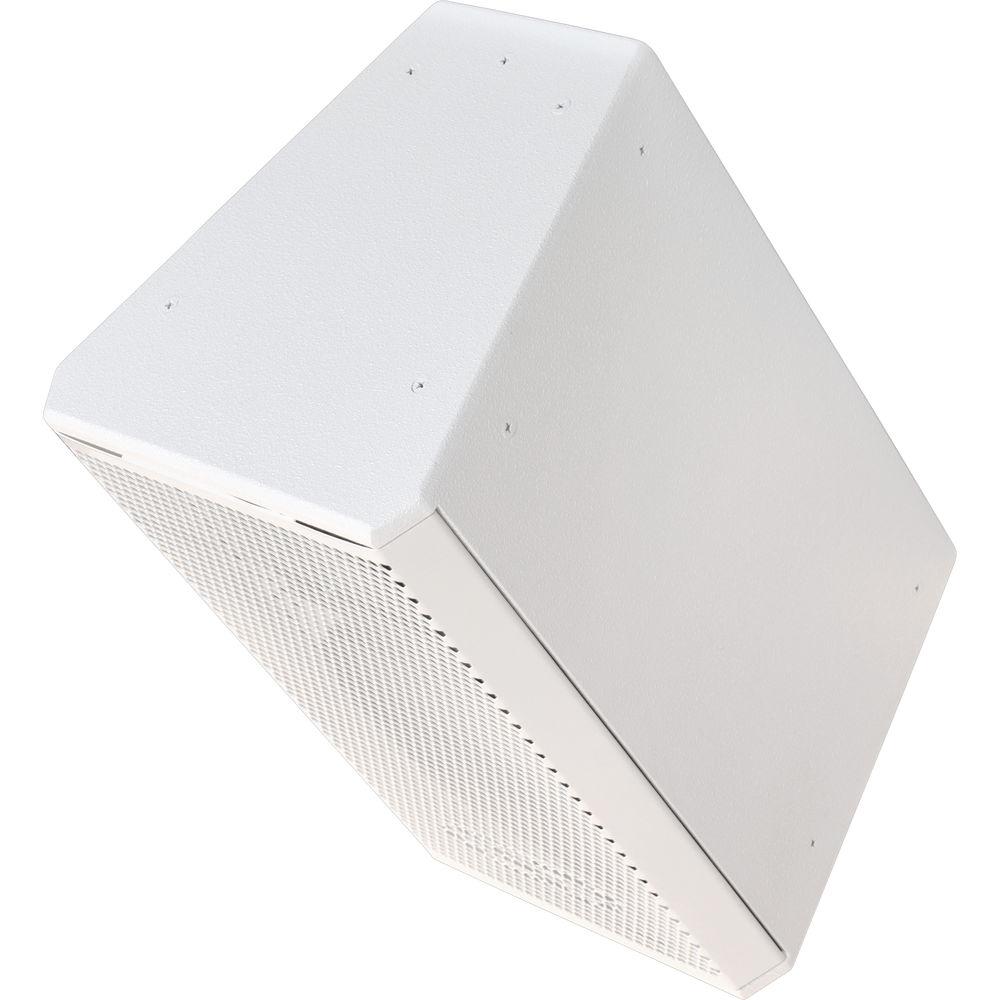

- Angled sides allow setup as a floor monitor
- Includes four rubber feet for stable placement when vertically oriented on a floor
- Built-in handle for simplified transport
- Paintable MDF cabinet and steel grille
UPC: 691281003011 In the Box Galaxy Audio CR12W Core Series 12" 2-Way 1200W Passive PA Speaker (White) 4 x Rubber Feet Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio CR12W Core Series 12" 2-Way 1200W Passive PA Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio CR12W Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 400 W RMS
1200 W Peak | | System Impedance | 8 Ohms | | | | HF Driver | 1 x Compression Driver with 1" / 25.4 mm Throat | | HF Voice Coil | 1.8" / 44.5 mm | | LF Driver | 1 x 12" / 30.5 cm Woofer | | LF Voice Coil | 2.4" / 60 mm | | Magnet | LF:
Ferrite | | | | Frequency Response | 62 Hz to 18 kHz ±3 dB | | Coverage Angle | 75° H x 55° V (Horn) | | Speaker Sensitivity | 92 dB | | | | Audio I/O | 2 x 1/4"
1 x Barrier Strip | | | | Mounting | 20 x M8 | | Construction Material | MDF, Metal Grille | | Dimensions | 22.8 x 14.0 x 15.7" / 580.0 x 356.0 x 400.0 mm | | Weight | 43.9 lb / 19.9 kg | | | | Package Weight | 45.0 lb | | Box Dimensions (LxWxH) | 25.3 x 18.3 x 17.1" |
