Product description The Galaxy Audio DSPOT DS-EQ215 Dual-Channel 15-Filter Parametric and Graphic Digital Equalizer is designed for installed and portable live sound reinforcement applications. The 1RU rackmountable digital signal processor features balanced XLR and 1/4" inputs and outputs. It can be operated in stereo or dual independent channel configurations, and provides 15 bands of parametric or graphic EQ filters per channel. The unit also offers high-pass and low-pass filtering with a slope of up to 24 dB per octave as well as independent gain, phase, delay, and output mute controls on each channel. This makes it possible to time align and configure a loudspeaker system within a space.

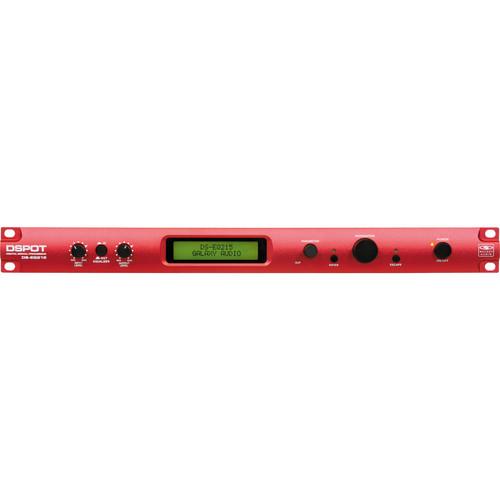

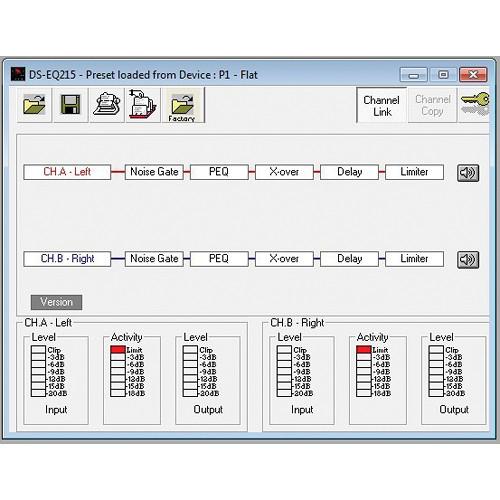

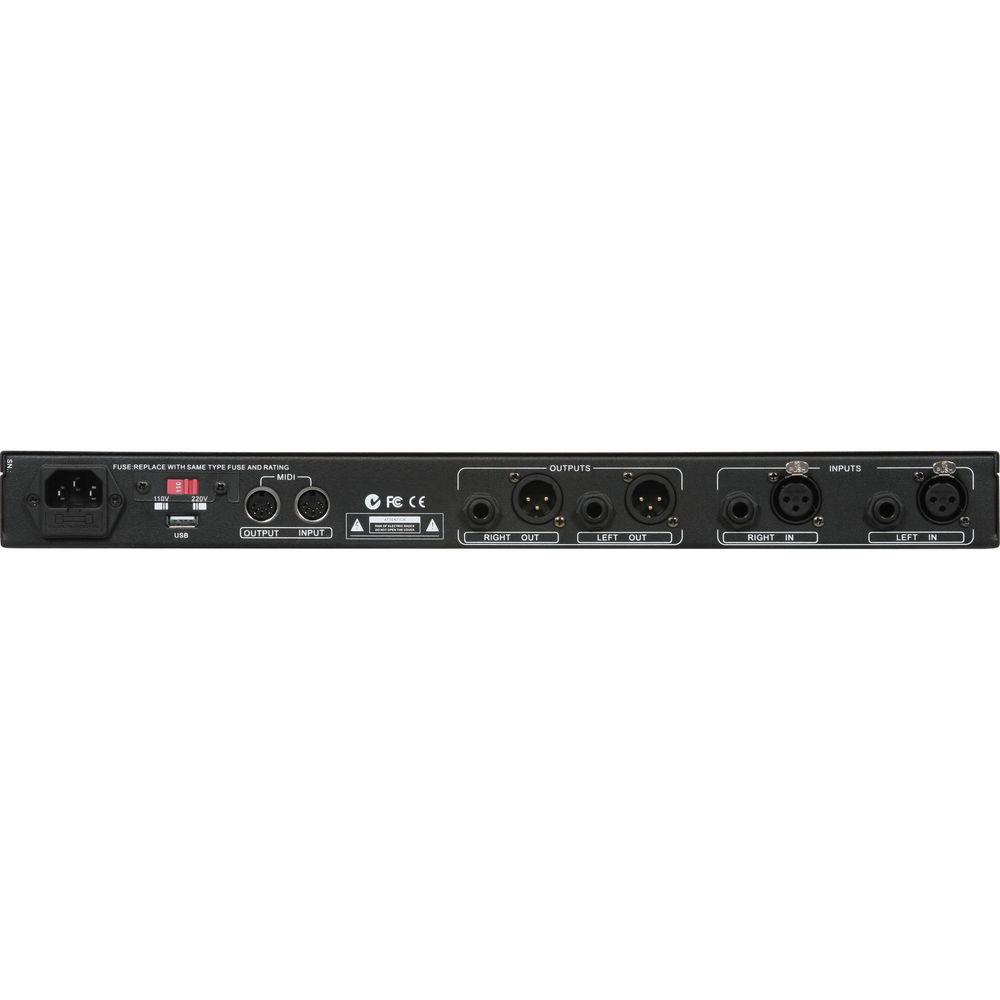

The unit can be controlled via the front-panel LCD display control interface, via MIDI using the rear-panel MIDI in and out connectors, via an RS232 serial port, or via USB connection to an external PC. Control software is available via an included CD or via download from the manufacturer's website. The unit includes 16 factory memory presets and 16 user memory presets that can be recalled for different applications. UPC: 691281003325 In the Box Galaxy Audio DSPOT DS-EQ215 Dual-Channel 15-Filter Parametric and Graphic Digital Equalizer Power Cord CD with Equalizer Software for PC Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio DSPOT DS-EQ215 Dual-Channel 15-Filter Parametric and Graphic Digital Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio DS-EQ215 Specs | Inputs | 2x XLR-3F balanced
2x 1/4" TRS unbalanced | | Input Level | 9 dBu max | | Outputs | 2x XLR-3M balanced
2x 1/4" TRS unbalanced | | Output Level | 9 dBu max | | EQ Type | Parametric or graphic | | Amplitude | PEQ: ± 14 dB step 0.5 dB | | Frequency Control | PEQ: from 20 to 20,000 Hz in 1/12 octave steps
High pass: from 20 to 20,000 Hz in 1/12 octave steps
Low pass: from 20 to 20,000 Hz in 1/12 octave steps | | Slope | High: bypass, -6 dB/octave, -12 dB/octave
Low: bypass, -6 dB/octave, -12 dB/octave | | Bandwidth | PEQ: from 0.04 to 128 (vedi Tab. Q) | | Delay | Coarse adjustment: from 0 to 198 ms in 2 ms steps
Fine adjustment: from 0 to 1 ms in 21 us steps | | Mute | On/off | | Resolution | A/D and D/A: 20 bit
Process: 24 x 32-bit | | Processes | Equalizer | | Display | LCD 2x20 alphanumeric | | Connectivity | RS232
MIDI
USB | | S/N Ratio | >90 dBA (bypass) | | THD + N | <0.01% at -6 dBFS (bypass) | | Frequency Response | 20 to 20,000 Hz +1 to 0.5 dB | | Dimensions (DxWxH) | 7.75 x 19.0 x 1.75" (197 x 483 x 44.5 mm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 20.9 x 12.0 x 3.8" |
