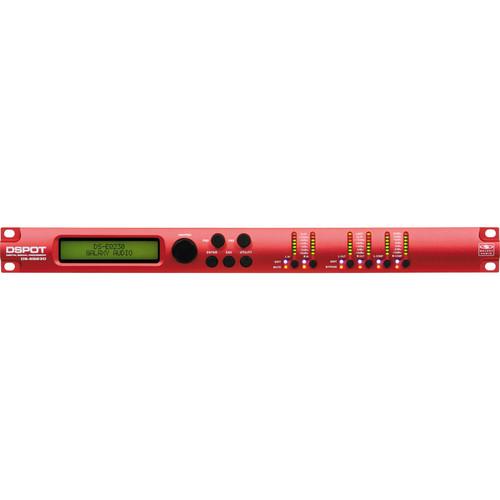

Product description The Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter Parametric and Graphic Digital Equalizer is designed for installed and portable live sound reinforcement applications. The 1RU rackmountable digital signal processor features balanced XLR inputs and outputs as well as a stereo digital SPDIF input.
It can be operated in stereo or dual independent channel configurations, and provides 30 bands of parametric or graphic EQ filters per channel. The unit also offers high-pass and low-pass filtering with a slope of up to 24 dB per octave as well as independent gain, phase, delay, RMS limiting, and output mute controls on each channel. This makes it possible to time align and configure a loudspeaker system within a space.

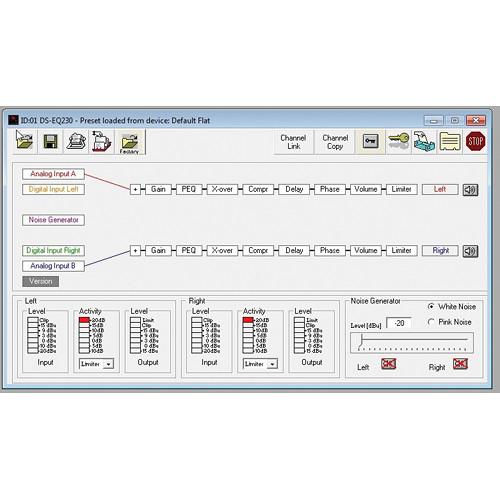

The unit can be controlled via the front-panel LCD display control interface, via RS485 control, or via USB connection to an external PC. Control software is available via an included CD or via download from the manufacturer's website. The unit includes 4 factory memory presets and 16 user memory presets that can be recalled for different applications. UPC: 691281003332 In the Box Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter Parametric and Graphic Digital Equalizer Power Cord CD with Equalizer Software for PC Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio DSPOT DS-EQ230 Dual-Channel 30-Filter Parametric and Graphic Digital Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

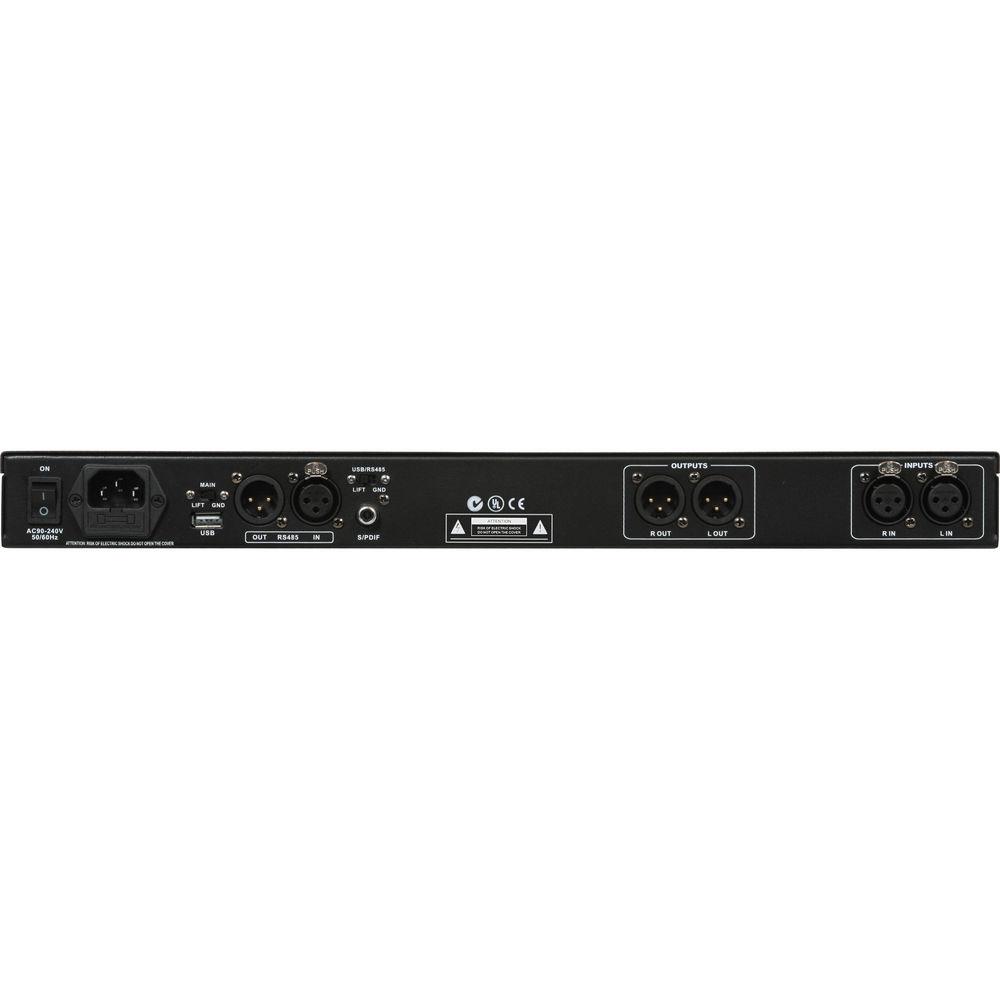

Technical parametersGalaxy Audio DS-EQ230 Specs | Inputs | 2x XLR-3F balanced analog
1x stereo digital SPDIF
1x RS485
1x USB type A port | | Input Level | +20 dBu max | | Outputs | 2x XLR-3M balanced analog
1x RS485 | | Output Level | +20 dBu max | | DSP | SAM3716, 24-bits (data) x 96-bits (coefficient) | | A/D Converters | AKM5392, 24-bits | | D/A Converters | AJN4396, 24-bits | | Sampling Frequency | 48 kHz | | SPDIF | 32 kHz, 44.1 to 48 kHz sources accepted | | EQ Type | Parametric or graphic | | S/N Ratio | 110 dBA | | THD + N | 0.005% | | Frequency Response | 20 to 20,000 Hz ± 1 dB | | Power Supply | Switching power supply | | Dimensions (DxWxH) | 9.25 x 19.0 x 1.75" (235 x 483 x 44.5 mm) | | Weight | 6.3 lb (2.9 kg) | | | | Package Weight | 8.3 lb | | Box Dimensions (LxWxH) | 24.0 x 14.0 x 6.0" |
