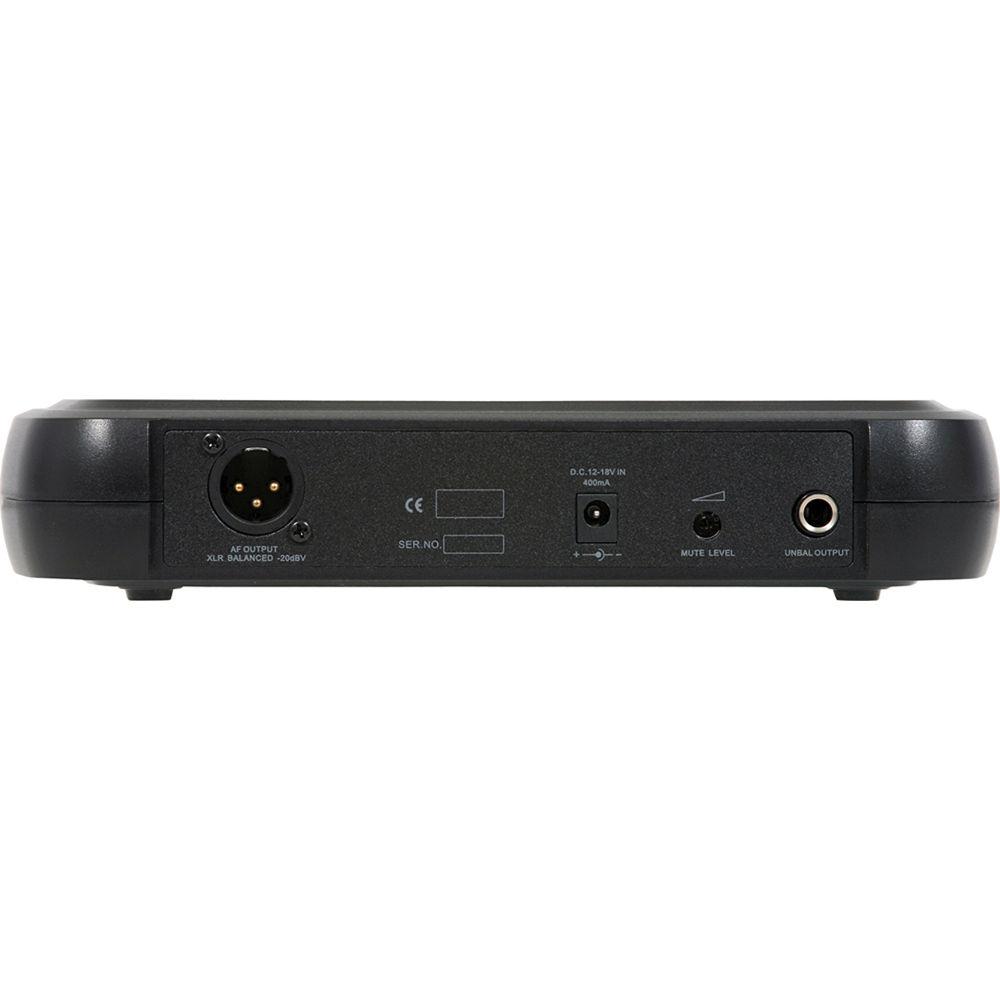

Product description The ECMR/52GTR Wireless Microphone System (D) from Galaxy Audio includes a 200' (61 m) range, which provides a lot of wiggle room for anyone putting on a performance. The ECMR has 16 selectable channels, diversity antennas, which are mounted to the front of the rugged plastic casing and allows for an IR sync. The MBP52 bodypack transmitter has a 0/-10/mic selector switch. The system includes the ECMR (receiver), MBP52 (bodypack transmitter), AS-GTR (guitar cable), power supply and 1/4-1/4" output cable. Everything you need for a flexible wireless microphone system. - The ECMR/52GTR Wireless Microphone System (D) has 16 selectable channels, IR sync and diversity antennas mounted to the front of the rugged plastic casing
- The solution ships with an ECMR (receiver), MBP52 (body pack transmitter), AS-GTR (guitar cable), power supply, and a 1/4-1/4" output cable

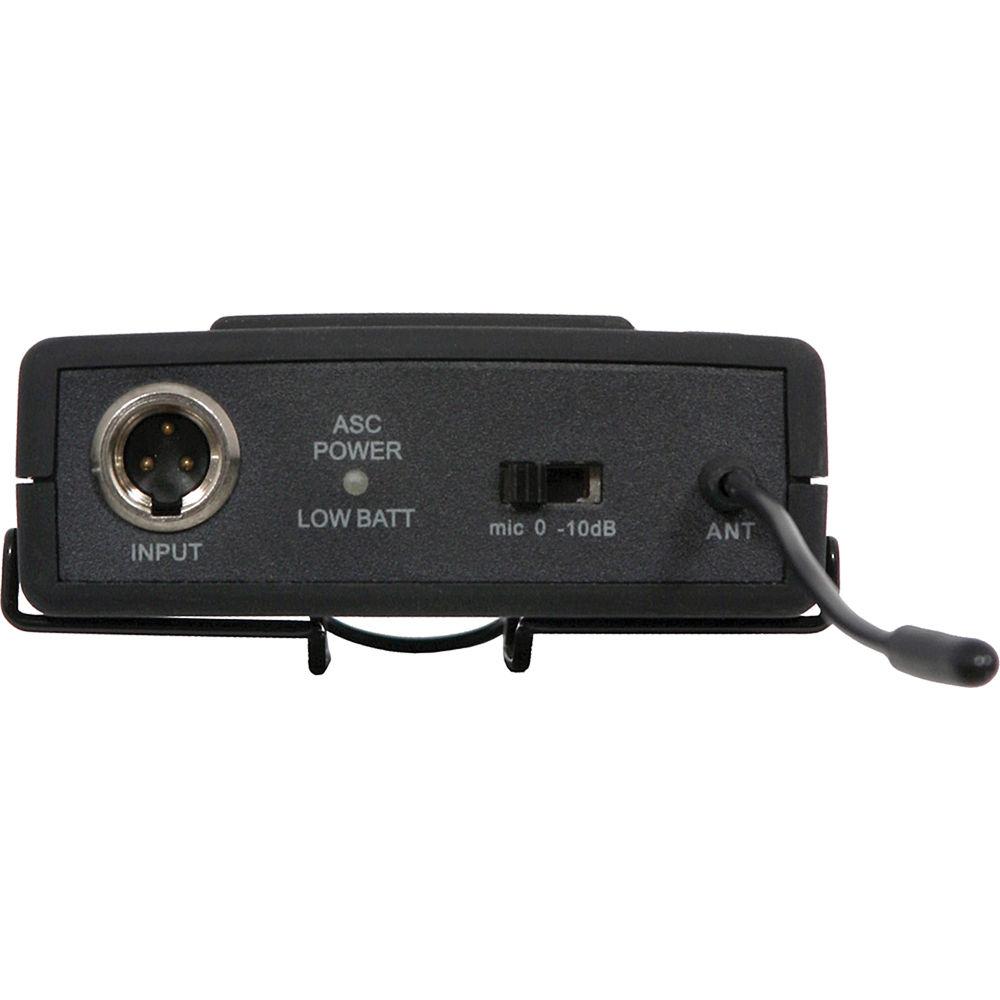

- The ECMR can be used and will sync with the MBP52 transmitter. The transmitter is powered by (2) AA batteries. The MBP52 bodypack transmitter has a 0/-10/Mic selector switch
- The guitar cable (AS-GTR) works with all Galaxy bodypack transmitters

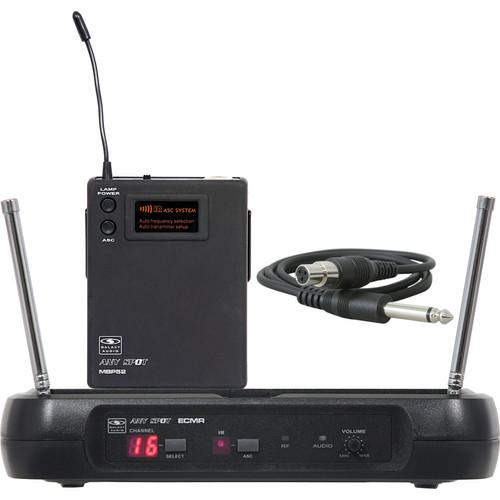

In the Box Galaxy Audio ECMR/52GTR Wireless Microphone System (D) ECMR Receiver 1/4-1/4" Output Cable Power Adapter MBP52 Bodypack Transmitter AS-GTR Guitar Cable User Manual 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio ECMR 52GTR Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio ECMR Specs | System | Channels: 16
Frequency range: Code D 584-607MHz
Transmitter output level: 10dBm
Band: UHF
Operating range: Under typical conditions 150' (50m)
Note: Actual range depends on RF signal absorption, reflection and interference
Audio frequency response: +/-3dB 70Hz-16KHz
Total harmonic distortion: +/-30KHz deviation 1KHz tone <1%
Dynamic range: >90dB A-weighted
Operating temperature: Range 14-122ºF (-10-50 Cº) | | Receiver | Audio output level: +/-30kHz deviation, 1KHz tone)
XLR connector (into 600 ohms load) -12dBV
1/4" connector (into 3 kohms load) -18dBV | | Impedance | XLR connector: 200 ohms
1/4" connector: 1 kohms | | Outputs | XLR output: Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No audio | | Sensitivity | -93dBm for 30dB | | Image Rejection | < 90dB | | Power Requirements | 13.5 VDC at 300mA, supplied by external power | | Dimensions (HxWxD) | 1.8 x 9.3 x .8" (44.5 x 235 x 121mm) | | Weight | 0.9 lb. (0.4kg) | | Transmitter | Bodypack | | Maximum Audio Input Level Analog | 0-10dBV | | Gain | Mic/0/-10dB | | Impedance | 5 kohms | | Power Requirements | 2 x AA size alkaline or rechargeable batteries | | Battery Life | About 8 hours | | Dimensions (H x W x D) | 3.3 x 2.6 x 1" (85 x 65 x 24mm) | | Weight | 3 oz. (85 g) | | Cable | Guitar 1/4" cable (AS-GTR): Guitar/instrument cable, TA3F connector, works with all Galaxy bodypack transmitters. Use with any guitar or bass guitar. 1/4" to mini XLR connector | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 17.75 x 11.5 x 3.0" |
