User Manual for Galaxy Audio ECMR 52GTR Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Galaxy Audio ECMR 52GTR Wireless Microphone
- Product category: Guitar Wireless Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio Guitar Wireless
 |
User manual for the Galaxy Audio ECMR 52GTR Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

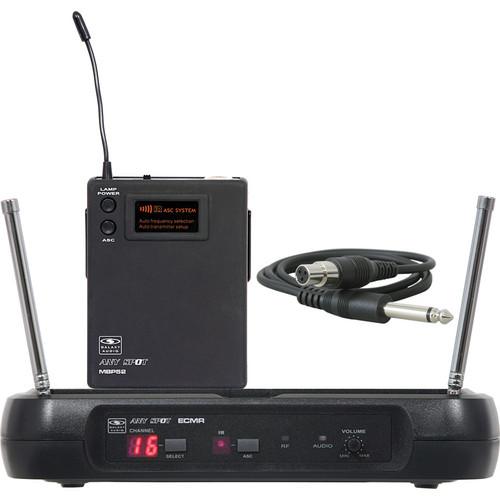

Product description The ECMR/52GTR Wireless Microphone System from Galaxy Audio includes the ECMR (receiver), MBP52 (body pack transmitter), AS-GTR (guitar cable), power supply and 1/4-1/4" output cable. Everything you need for a great wireless microphone system. With a 200' (61 m) range, the system can work in the most demanding environments. The ECMR has 16 selectable channels, diversity antennas, which are mounted to the front of the rugged plastic casing and allows for an IR sync. The MBP52 body pack transmitter has a 0/-10/mic selector switch. - The ECMR/52GTR Wireless Microphone System has 16 selectable channels, IR sync and diversity antennas mounted to the front of the rugged plastic casing
- The solution ships with an ECMR (receiver), MBP52 (body pack transmitter), AS-GTR (guitar cable), power supply, and a 1/4-1/4" output cable

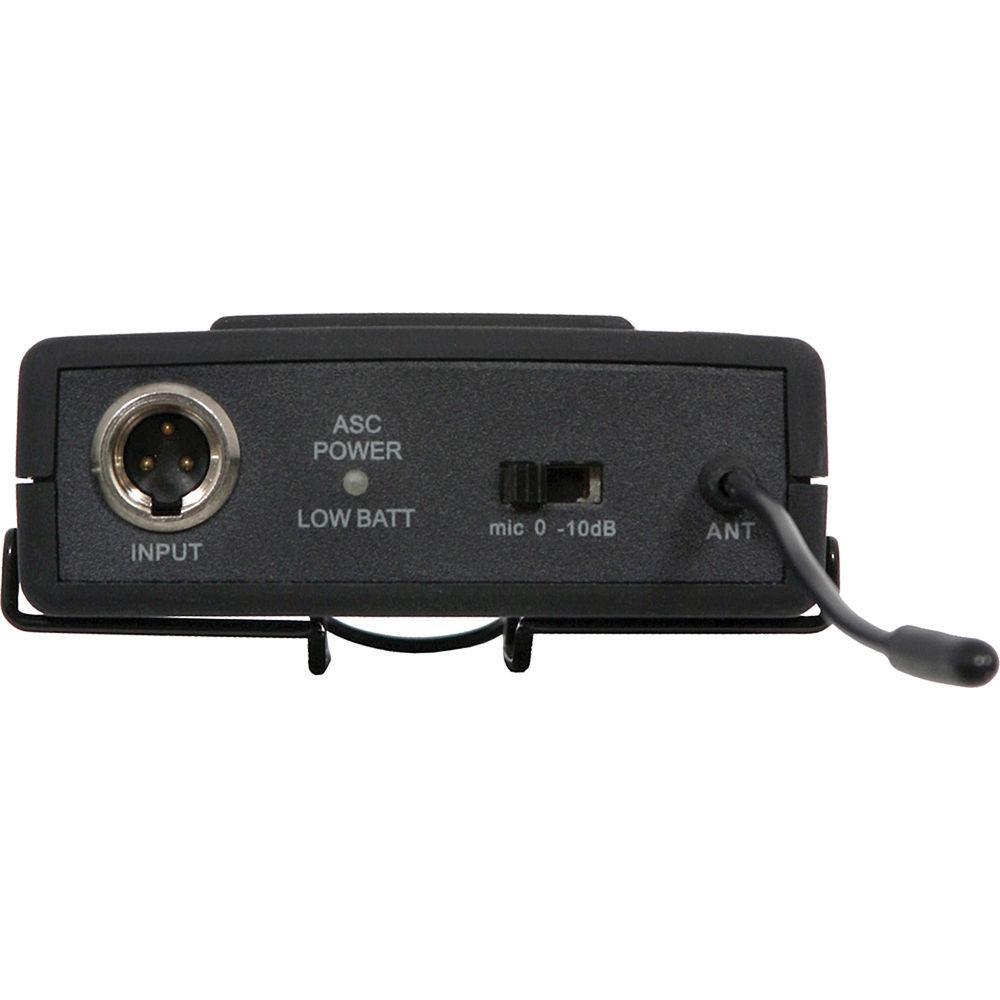

- The ECMR can be used and will sync with the MBP52 transmitter. The transmitter is powered by (2) AA batteries. The MBP52 body pack transmitter has a 0/-10/Mic selector switch
In the Box Galaxy Audio ECMR/52GTR Wireless Microphone System ECMR Receiver 1/4-1/4" Output Cable Power Adapter MBP52 Bodypack Transmitter AS-GTR Guitar Cable User Manual 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio ECMR 52GTR Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio ECMR Specs | System | Channels: 16
Frequency range: CODE D 584-607MHz
Code L: 655-679MHz
Transmitter output level: 10dBm
Band: UHF
Operating range: Under typical conditions 150' (50m)
Note: Actual range depends on RF signal absorption, reflection and interference
Audio frequency response: +/-3dB 70Hz-16KHz
Total harmonic distortion: +/-30KHz deviation 1KHz tone <1%
Dynamic range: >90dB A-weighted

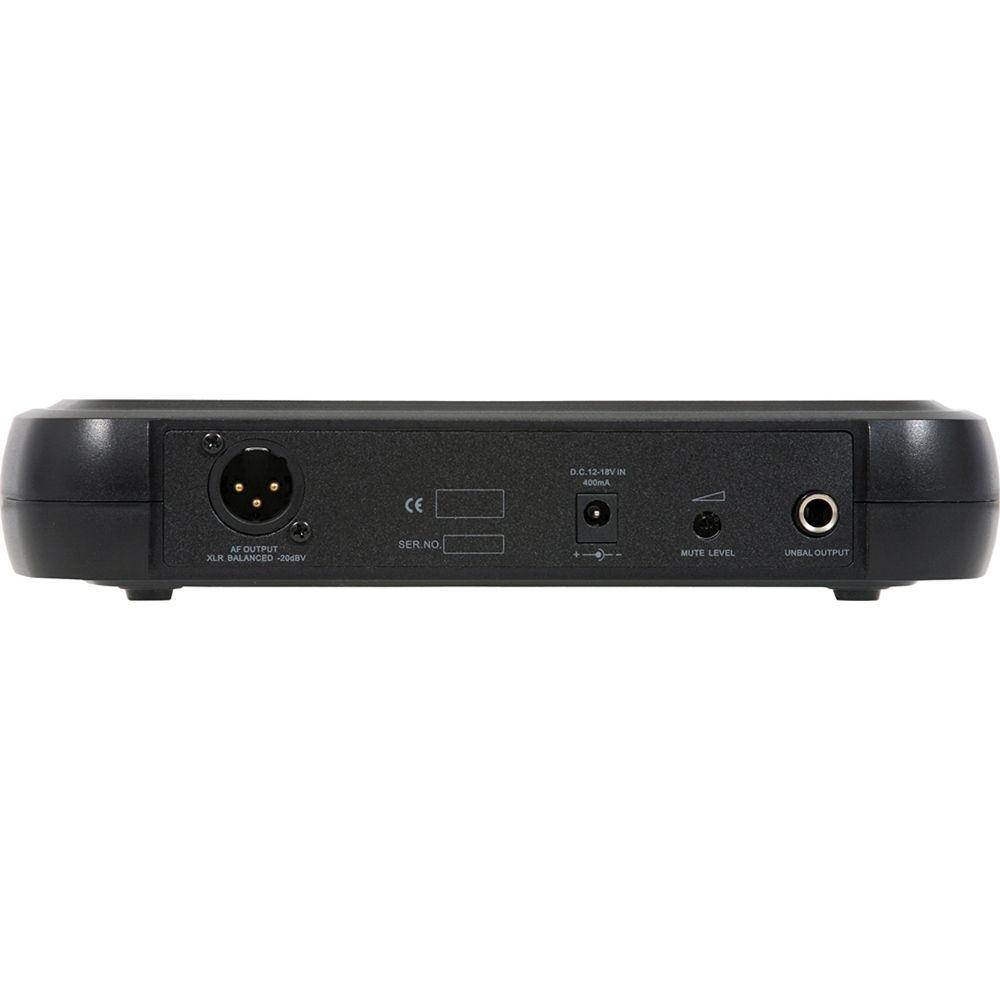

Operating temperature: Range 14-122ºF (-10-50 Cº) | | Receiver | Audio output level: +/-30kHz deviation, 1KHz tone)
XLR connector (into 600 ohms load) -12dBV
1/4" connector (into 3 kohms load) -18dBV | | Impedance | XLR connector 200 ohms
1/4" connector 1 kohms | | Output | XLR output: Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No audio | | Sensitivity | -93dBm for 30dB | | Image Rejection | < 90dB | | Power Requirements | 13.5 VDC at 300mA, supplied by external power | | Dimensions (H x W x D) | 1.8 x 9.3 x .8" (44.5 x 235 x 121mm) | | Weight | 0.9 lb. (0.4kg) | | Transmitter | Body pack | | Maximum Audio Input Level Analog | 0-10dBV | | Gain | Mic/0/-10dB | | Impedance | 5 kohms | | Power Requirements | 2 x AA size alkaline or rechargeable batteries | | Battery Life | About 8 hours | | Dimensions (H x W x D) | 3.3 x 2.6 x 1" (85 x 65 x 24mm) | | Weight | 3 oz. (85 g) | | Cable | Guitar 1/4" cable (AS-GTR): Guitar/instrument cable, TA3F connector, works with all Galaxy body pack transmitters. Use with any guitar or bass guitar. 1/4" to mini XLR connector | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 17.75 x 11.5 x 3.0" |
