User Manual for Galaxy Audio GPS-8 2-Way Compact PA Speaker Click to enlarge the picture
Contents of the user manual for the Galaxy Audio GPS-8 2-Way Compact PA
- Product category: PA Speakers Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio PA Speakers
 |
User manual for the Galaxy Audio GPS-8 2-Way Compact PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

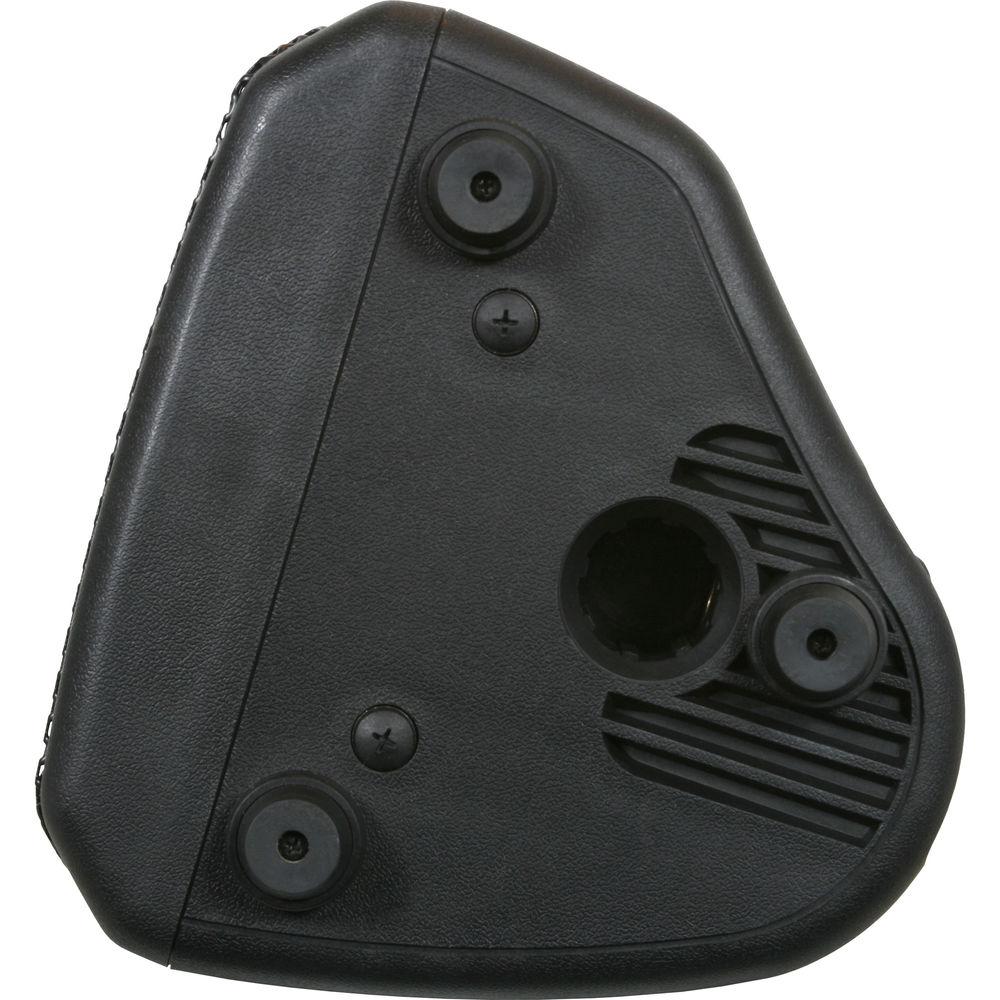

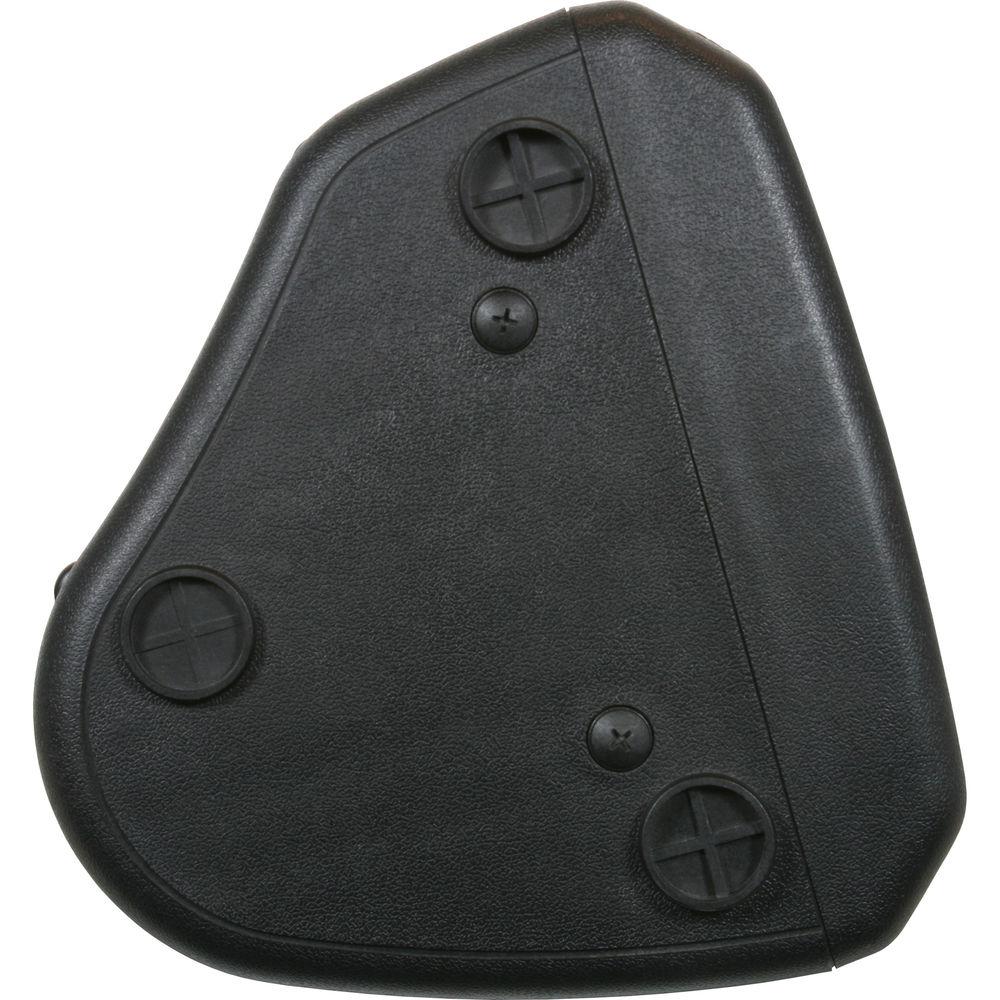

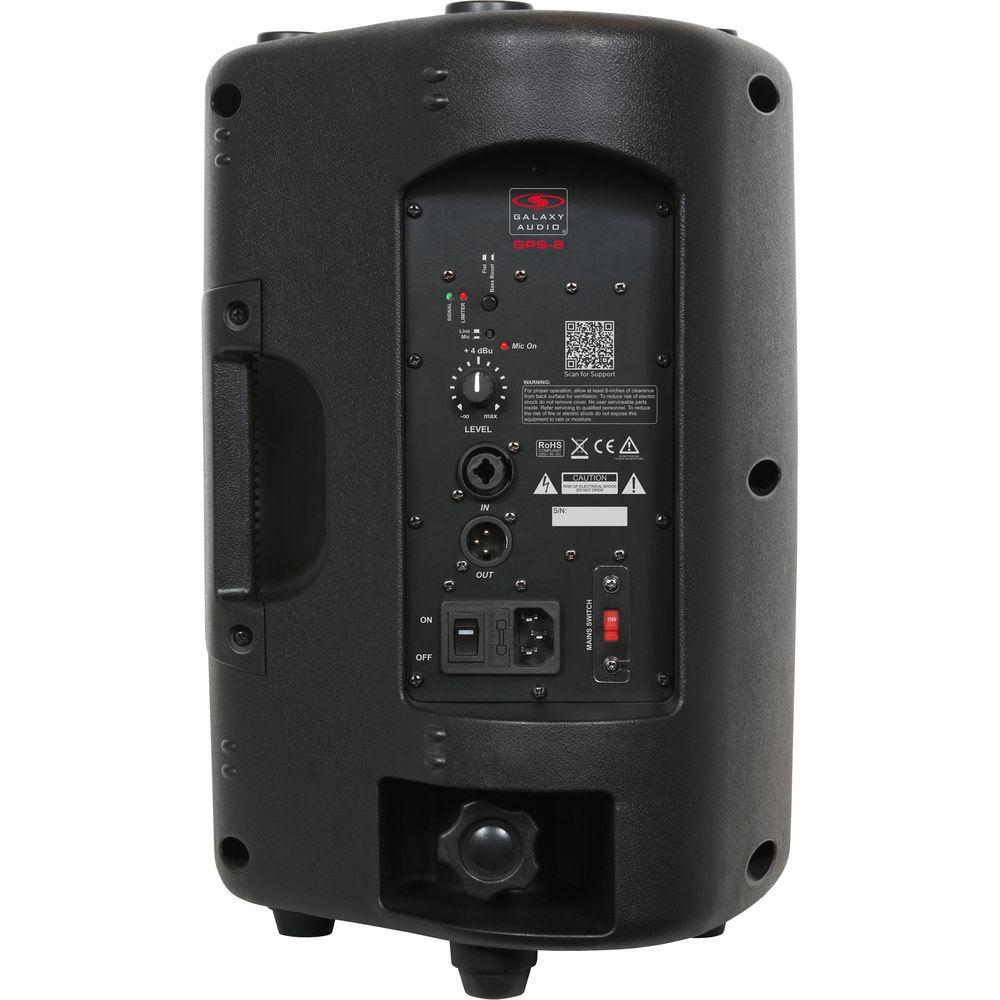

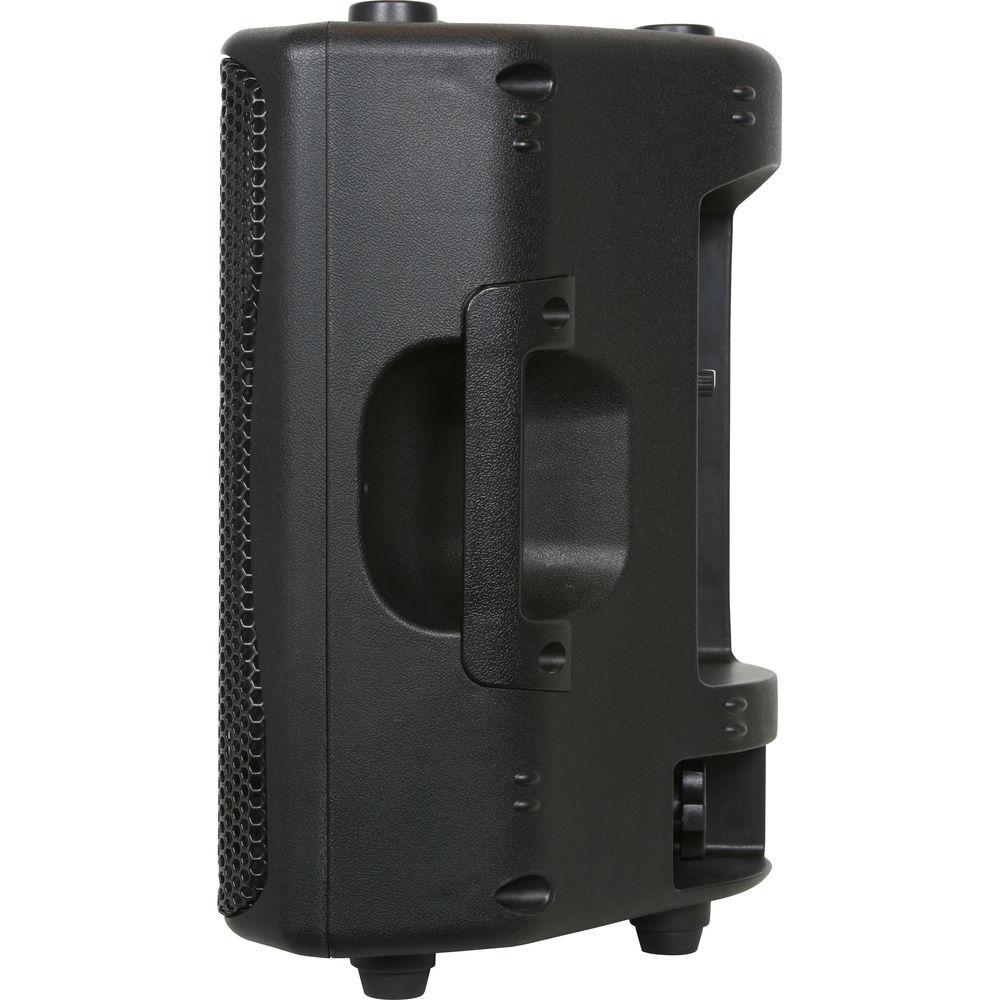

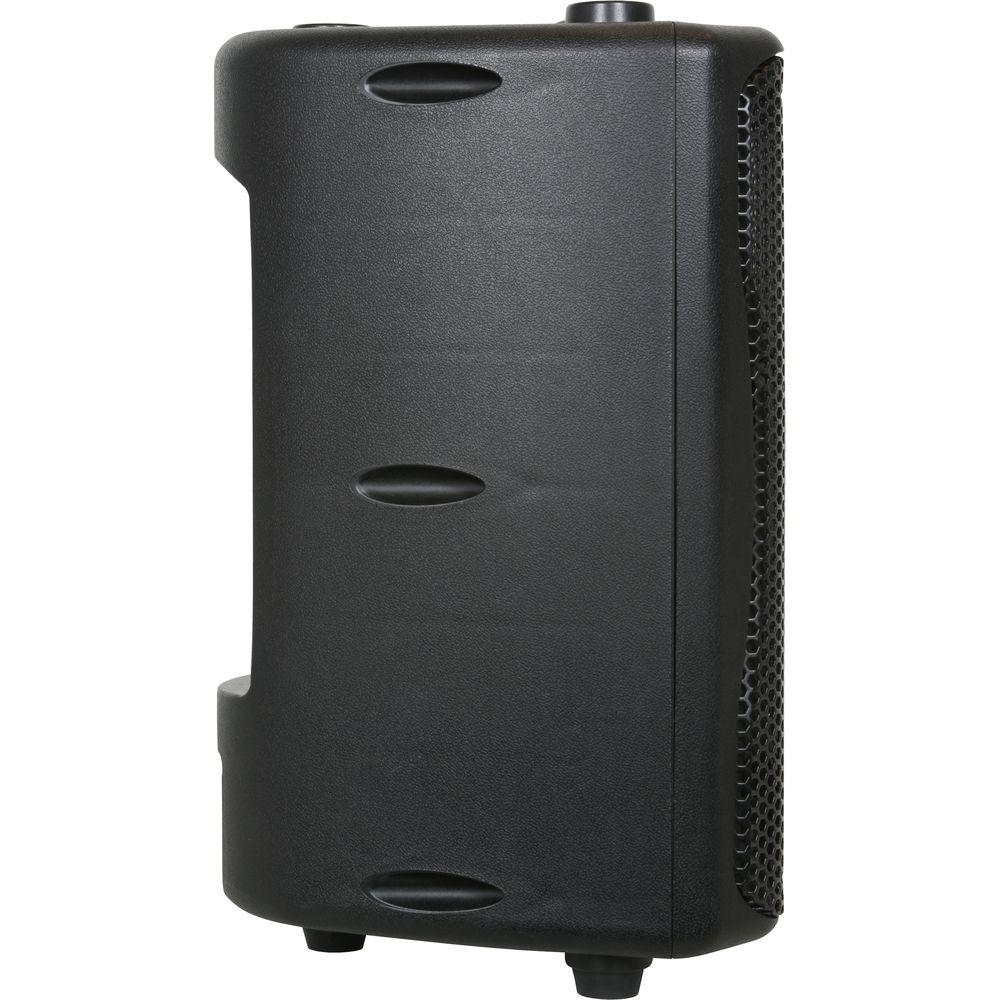

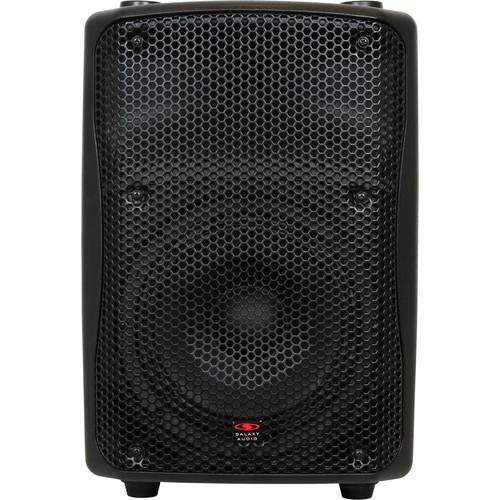

Product description The compact and versatile GPS-8 2-Way Compact PA Speaker from Galaxy Audio is a full-range personal monitor PA system. Equipped with an 8" woofer and 1" horn-loaded compression driver, this speaker system delivers a frequency response of 75 Hz to 17.5 kHz and 200W amplification. Its push-button bass boost feature enhances the low end response. The mic/line switch, along with a variable gain control, allows the speaker to accept any input level. It also features an XLR-1/4" combo input jack for balanced and unbalanced signals. There is an LED that indicates when switched into mic level position. Multiple speaker units can be linked together using the XLRM pass-through jack, without affecting the input level control. The GPS-8 speaker comes with a lightweight, durable, and compact housing. Its asymmetrical shape allows for wedge placement or pole mounting. It can also be permanently mounted using the four M8 threaded suspension points. Additional features included with this speaker are a lighted power switch, switchable 110 / 220V mains power, and integrated carry handle for ease of transportation. - Built-in compressor/limiter
- Switchable Mic/Line input (XLR-1/4" combo)
- XLRM pass-through jack allows for connection of multiple units
UPC: 691281006548 In the Box Galaxy Audio GPS-8 2-Way Compact PA Speaker IEC Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio GPS-8 2-Way Compact PA Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio GPS-8 Specs | | | Frequency Response ± 3dB | 75 Hz to 17.5 kHz (EQ in flat position) | | Sensitivity | 100 dB, 1 W @ 3.3' (1 m) | | Protection | High-Frequency Protection: Dynamic | | | | Woofer | 8" (20 cm) | | Compression Driver | 1" (2.5 cm), horn loaded | | | | Input Sensitivity | Mic In: 8 mV
Line In: 125 mV | | Crossover Frequency | 4.3 kHz | | Slope | 24 dB/Octave | | Protection | Speaker Protection: Thermal, over-excursion | | Bass Boost | +3 dB @ 90 Hz | | Indicators | Power on, signal, limiter | | | | Power | 200 W | | Distortion | <0.1% THD at rated power | | Protection | Amp Protection: Thermal, limiter | | Power Supply | 115 / 230 VAC, 2 A, 50 / 60 Hz | | | | Mounting | Lockable 1-3/8" (35 mm) stand mount | | Rigging Points | 4 points, accepts M8 threaded hardware | | Input Connector | 1 x XLR-1/4" balanced/unbalanced | | Output Connector | 1 x XLR balanced | | Dimensions (H x W x D) | 16.34 x 11.6 x 8.66" (415 x 295 x 220 mm) | | Weight | 17 lb (7.7 kg) | | | | Box Dimensions (LxWxH) | 17.0 x 17.0 x 14.0" |
