User Manual for Galaxy Audio HSM3 Dual-Ear Headset Microphone with 4 Cables Click to enlarge the picture
Contents of the user manual for the Galaxy Audio HSM3 Dual-Ear Headset Microphone
- Product category: Microphones for Wireless Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio Microphones for Wireless
 |
User manual for the Galaxy Audio HSM3 Dual-Ear Headset Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

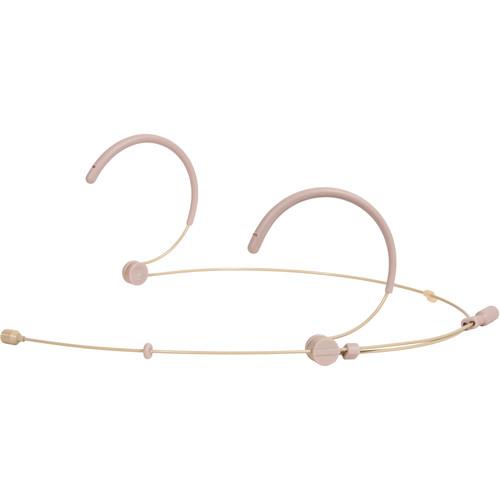

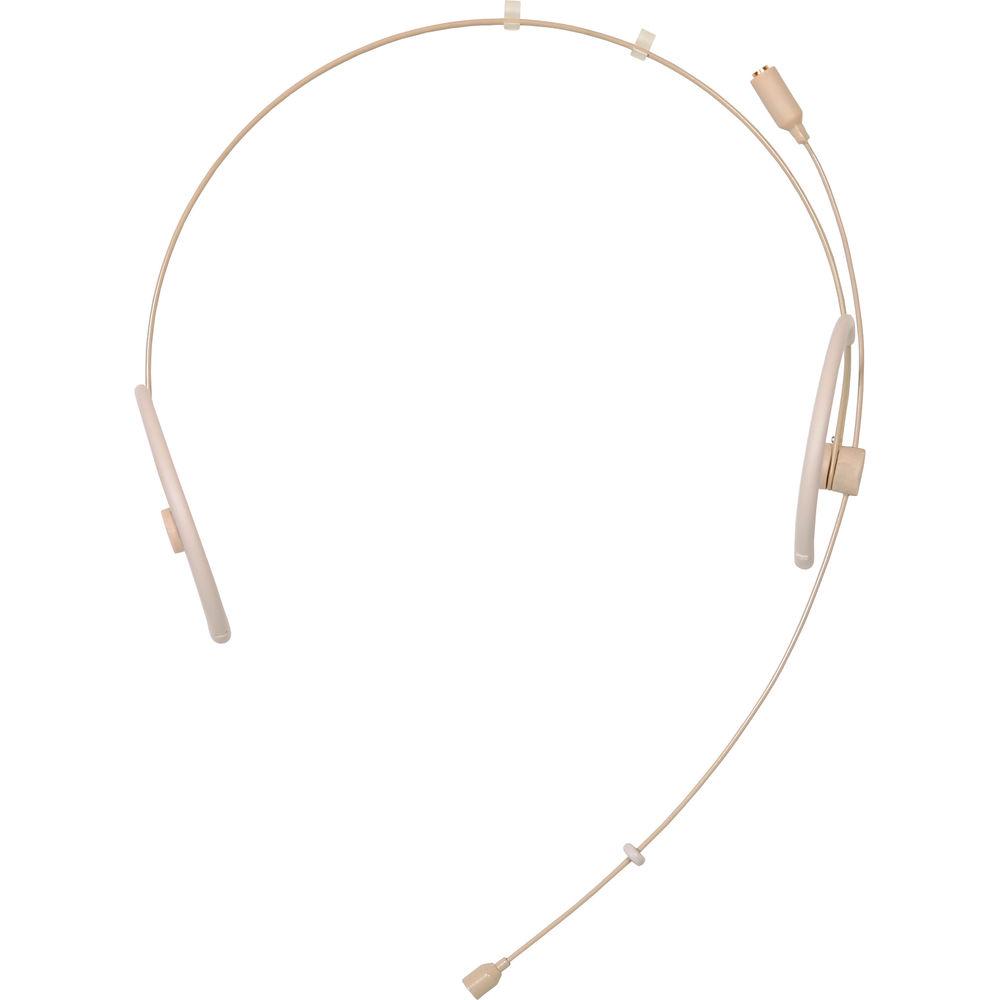

Product description The beige Galaxy Audio HSM3 Dual-Ear Headset Microphone with 4 Cables is an economical headset and four detachable 4' cables designed for compatibility with Shure, Sennheiser, AKG, and Audio-Technica wireless transmitters (available separately). It can be used to capture audio for hands-free applications such as speeches, lectures, board meetings, and more. The 5mm electret condenser element utilizes an omnidirectional polar pattern and yields a frequency response of 20 Hz to 20 kHz. The soft 5.5" microphone stem allows for easy adjustment of the microphone's position as you wear the headset, which hooks around both ears for added stability. It is lightweight and comfortable, even for long periods of time, without using excessive pressure to hold the microphone in place. The supplied windscreen minimizes wind noise and remains discreet when installed. - Dual-ear design hooks around both ears for a stable fit
- Omnidirectional back-electret condenser with 5mm element
- Soft microphone stem allows easy positioning

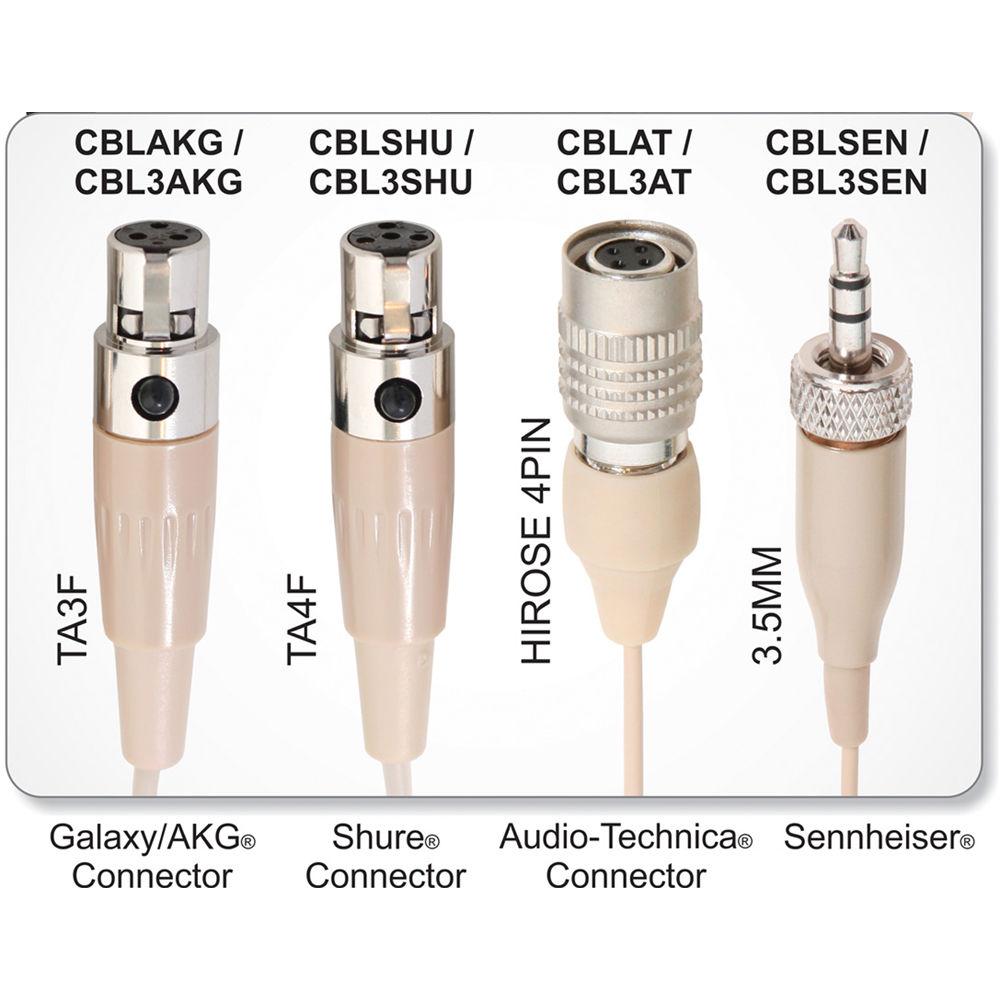

- Includes four detachable 4' cables, each terminated with a different connector—TA3F for AKG/Galaxy, TA4F for Shure, HIROSE 4-pin for Audio-Technica, and 3.5mm for Sennheiser
- 1.5mm-thick cables won't weigh you down
- Includes windscreen to guard against wind noise
- Strain-relief clip inhibits damage to connector
- Can be used with most PC sound cards (adapter available separately)
UPC: 691281006906 In the Box Galaxy Audio HSM3 Dual-Ear Headset Microphone with 4 Cables (Beige) Shure TA4F Replacement Cable Audio-Technica HIROSE 4-Pin Replacement Cable Sennheiser 3.5mm Replacement Cable AKG/Galaxy TA3F Replacement Cable Windscreen Strain-Relief Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio HSM3 Dual-Ear Headset Microphone with 4 Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio HSM3 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Electret Condenser | | Diaphragm | 0.20" / 5 mm | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Maximum SPL | 110 dB SPL | | Impedance | 2.2 kOhms | | Sensitivity | -40 dBV/Pa | | | | Cable Length | 4' / 1.22 m | | Operating Voltage | 2 to 10 V | | Length | 5.5" / 139.70 mm | | Weight | 0.29 oz / 8.2 g | | | | Package Weight | 0.56 lb | | Box Dimensions (LxWxH) | 7.75 x 5.9 x 2.5" |
